This paper presents the design, implementation, and evaluation of
CATS,
a network storage service with strong accountability properties.
A
CATS server annotates read and write responses with evidence
of correct execution, and offers audit and challenge interfaces
that enable clients to verify that the server is faithful.
A faulty server cannot conceal its misbehavior,
and evidence of misbehavior is independently
verifiable by any participant.
CATS clients are also accountable for their actions on
the service.
A client cannot deny its actions, and the server can prove
the impact of those actions on the state views it presented to
other clients.
Experiments with a CATS prototype evaluate the cost of
accountability under a range of conditions and expose the primary factors
influencing the level of assurance and the
performance of a strongly accountable storage server.
The results show that strong accountability is practical for
network storage systems in settings with strong identity
and modest degrees of write-sharing. The accountability concepts and
techniques used in CATS generalize to a broader class
of network services.
1 Introduction
A system is
accountable if it provides a means to detect and expose
misbehavior by its participants.
Accountability provides powerful
incentives to promote cooperation and discourage
malicious and incorrect behavior.
This paper proposes and evaluates system support for
strongly accountable storage protocols and services.
A system is strongly accountable if it provides a means
for each participant to determine for itself
if others are behaving correctly, without trusting assertions
of misbehavior by another participant who may itself be compromised.
To illustrate strong accountability properties and the
means to provide them for shared storage,
we present CATS, a certified accountable
tamper-evident storage service. CATS is a rudimentary
network storage service: it enables clients to read and write
a shared directory of objects maintained
by a CATS server. CATS
provides clients with the means to verify that the
server executes writes correctly,
and that read responses are correct given the
sequence of valid writes received at the server.
Crucially, strong accountability of the server also extends
to the clients: a correct server can prove that its
state resulted from actions taken by specific clients.
Clients cannot deny
or repudiate their operations
on a strongly accountable server, or the
impact of those operations on the shared state.
The CATS network storage service is based on a generic state storage
toolkit. Our intent is that the CATS toolkit can
serve as a substrate for a range of accountable services with
richer semantics.
Various notions of
accountability and end-to-end trust
appear in many previous systems (see
Section 6). Our approach is focused
on assuring semantically faithful behavior,
rather than performance accountability [15].
For example, a compromised CATS server
can deny service, but it cannot misrepresent the shared
state without
risk of exposure that is provable to all participants.
In this respect, CATS offers
a strong form of tamper-evidence [17]
at the server. More generally, strong accountability may be viewed as
a form of Byzantine failure detection. It is a complementary
alternative to
consensus voting [8,28],
which is vulnerable to ``groupthink'' if an attack compromises
multiple replicas.
The CATS toolkit embodies the
state of the art from research in authenticated data
structures [2,6,12,20,21,24,25].
As in many of these schemes,
CATS servers can supply cryptographic proofs that
their read responses resulted from valid write operations.
CATS also incorporates
new primitives for
secure challenges and audits.
Servers export a challenge
interface to verify that writes are incorporated and
visible by other clients. The
audit interface enables an
auditor to verify integrity of writes over arbitrary intervals of
recent history, so that a faulty server cannot revert writes without
risk of detection. Other participants may verify audit results
without requiring trust in the auditor.
Finally, we extend
previous work on authenticated data structures
with new capabilities for fast, reliable secondary
storage access and caching, and
investigate the impact of design choices on
storage, access, and accountability costs.
This paper is organized as follows. Section 2
presents an overview of our approach, threat model, and assumptions.
Section 3 describes the
design of the CATS
state management toolkit and storage service. Section 4 outlines
the details of our prototype
implementation, while Section 5 presents experimental
results with the prototype. Section 6 sets our work
in context with related work, and Section 7 concludes.
2 Overview
The CATS network storage service
is a building block for distributed
applications or services.
Its purpose is
to act as a safe repository of state shared among the participants
(actors) of a distributed system, who are clients of the storage
service. The shared state guides the behavior
of the clients, and the clients may affect the
group through updates to the shared state.
The clients may represent a community of users, who
are responsible for their updates.
CATS supports the core
functions of a network file system.
Clients can create, read, and write opaque
objects identified by unique identifiers (oids).
Each write request
generates a new version of an object.
Versions are named by monotonically increasing timestamps of
the writes that created them. Reads
retrieve the most recent version of the object.
A client may also request a prior version of an object
that was valid at a specified time.
We have limited our focus to essential object
storage functions: for example, in its present form,
CATS does not support nested directories, symbolic names
or links, renaming, partial reads or writes,
truncates, or appends.
2.1 Threat Model
The strong accountability property provides clients with the
means to verify that the server protects the integrity
of the shared state: read responses correctly
reflect the valid writes issued by the clients.
Moreover, the system can assign provable responsibility
for an object version to the client that issued the
write for that version.
To define the threat model, we specify the properties of
a correctly executing storage service.
- Authenticity and undeniability. The service executes
writes issued only by
properly authorized clients. A client cannot deny responsibility
for a write that it has issued.
- Freshness and consistency. Writes are applied in order,
and reads always return the
object version that was valid at the requested time (i.e.,
the version created by the previous write).
- Completeness or inclusion.
Writes are included in the service state and
are visible to other authorized clients.
A faulty storage server could
attempt to violate any of the
above properties. For example, it could accept writes from
unauthorized clients, improperly modify existing objects, or
replay earlier writes. In a more subtle attack the server could
acknowledge the completion of a write request but attempt to
conceal it from
other clients. The storage service or a client could attempt
to deny that it
executed or requested a completed operation. Table 1
lists possible attacks.
CATS does not prevent any of these forms
of misbehavior. In particular, it does not attempt to remove
the need for trust among clients and servers; trust
is essential for sharing and cooperation. Rather,
the philosophy of
our approach is: ``trust but verify'' [35].
CATS holds the storage server
and other participants accountable for their actions, so
that a faulty actor is exposed and isolated. Accountability
precludes an effective attack to subvert the behavior of
the overall system without unavoidable risk of detection.
Integrity also requires that an accountable system protect
its participants from false accusations of guilt.
In CATS, a participant's guilt is cryptographically
provable to all participants.
CATS is compatible with read access controls.
However, violations of confidentiality are not part of the
threat model: a CATS server cannot be held accountable
for serving reads that violate the policy.
Table 1:
Summary of attacks and defenses.
|
Attack |
Defense |
|
Server fails to execute write or object create |
provable
detection |
|
Client repudiates object create or write |
provable
detection |
|
Server denies write or object create |
provable detection |
|
Client writes out of order |
rejected by server |
|
Server returns invalid read response |
provable detection |
|
Fraudulent or unauthorized writes |
provable detection with simple static ACLs;
relies on trusted external authorization server for richer policies |
|
Server replays or reverts valid writes, destroys objects,
reorders writes, or accepts out-of-order writes |
verifiable detection by challenge or audit |
|
Tampering & forking, or other variants of above attacks
on data integrity |
verifiable detection by challenge or audit |
|
Violation of privacy or read access policy |
no defense |
|
2.2 Trust Assumptions

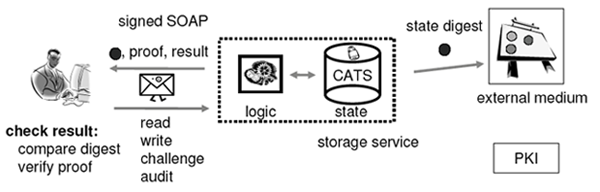

Table 2 lists the components of a CATS service.
The accountability properties of the system rest on correct
functioning of two core elements.
Asymmetric cryptography. Each actor can sign its requests
using at least one asymmetric key pair bound to a
principal; the public key is distributed securely to all actors,
e.g., using a Public Key Infrastructure (PKI). Digital signatures
ensure integrity, authenticity, and non-repudiation of actions.
Secure authentication is
the core trust assumption in our system. If keys are compromised,
then an actor may be falsely held accountable for actions it
did not take. Note, however, that an attacker cannot misrepresent
the actions of any actor whose key it does not possess, and
any actions it takes with a stolen key can be traced to that key.
Even so, a successful attack against a trusted PKI root would
open CATS to subversion by the attacker; thus a PKI
constitutes a Trusted Computing Base in the traditional sense.
External publishing medium. Each actor has a means
to publish a digest of its state periodically. A digest is a
secure hash over the actor's state at a point in time.
Digests are digitally signed,
so an actor cannot repudiate previous claims about its
state. Only the storage server publishes digests
in the accountable storage service example.
Each actor
must have independent access to the history of published digests
in order to validate proofs independently.
Thus the publishing medium is a trusted component. Since
digests are signed, a faulty publishing
medium cannot forge or alter digests unilaterally, but it could mount a
denial-of-accountability attack by concealing them.
The medium could also collude with a participant to alter the digest
history of that participant, but such an attack would be detectable
and provable by another participant that caches previously published
digests. In essence, a faulty publishing medium can destroy the
accountability properties of the system, but it cannot itself subvert the
system.
Due diligence. Accountability in CATS relies on voluntary
actions by each actor to verify the behavior of the others.
For example, if the clients of the CATS storage service do not
request or check proofs that their writes were executed and persist
(see 2.3), then a faulty server may escape detection.
Of course, a lazy client may free-ride on the diligence of others,
possibly leading to a classic tragedy of the commons. What is important
is that an attacker cannot determine or control its risk of exposure.
Table 2:
Summary of components and trust assumptions.
|
Component |
Trust Assumptions |
|
Clients and servers |
Trusted but accountable: Cannot subvert the system without
risk of provable detection. Incorrect or invalid
actions taken with a stolen key are provably detectable. |
|
Publishing medium |
Trusted to render published digests visible to all participants.
Accountable for forgeries or alterations to published digests. Cannot subvert
the system without risk of provable detection. |
|
Authorization service |
Not required for simple static access control lists.
Must be trusted to enforce richer access control policies if needed. |
|
Trusted platform / trusted path |
Necessary for individual user accountability,
else no distinction between misbehavior of user and misbehavior of user software. |
|
Public key infrastructure: |
Trusted Computing Base: Compromise of PKI can subvert the system. |
|
2.3 Challenges and Audits
An important element of our approach is to
incorporate challenge and audit interfaces into service
protocols. Challenges force a server to provide a cryptographic
proof certifying that its actions are correct and consistent relative
to published state digests. An important form of challenge is an audit to verify consistent behavior across a sequence of actions or
an interval of history. Challenges and audits do not require trust
in the auditor; any actor may act as an auditor.
If an actor's challenge or audit reveals
misbehavior, the actor can present its case as a plaintiff to any other
actor, which may verify the validity of the accusation.

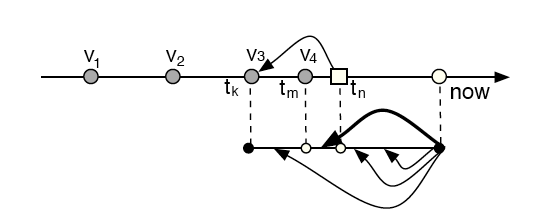

Auditing defends against a freshness attack,
in which a faulty server discards or reverts a valid write
that it has previously accepted
(Section 3.5). A client with authority to read an
object can choose to audit the sequence
of updates to that object through time to ensure
freshness and consistency.
Actors
select a degree of auditing that balances overhead and the
probability of detection of misbehavior.
The server cannot change its history to
conceal its misbehavior from an auditor.
For example, a CATS storage server
may be challenged to prove that it has incorporated a recently completed
write into its published state digest. It may
be audited to prove that its current state resulted
from a sequence of valid writes by authorized clients, and that
its read responses reflect that state.
A challenged or audited CATS server must also justify
that any accepted write complies with the existing access control
policy (See Section 2.4).
A faulty server cannot
allow unauthorized writes or execute its own writes
using a fraudulent identity.
If an attacker subverts the server, the
worst damage it can cause is to deny service or
discard data; covert modifications (including reverted writes) are
tamper-evident and can be exposed at any time through challenges
and audits.
In particular, the server
can be held provably accountable for a forking
attack [17].
2.4 Discussion and Limitations
Figure 1:
Overview of a CATS service, e.g.,
the accountable storage service.
|
User accountability, identity, and privacy.
Ideally, the accountability of a system should extend to its users.
For example, the CATS storage service could hold users accountable
for actions they take within a community or
organization, possibly exposing them
to legal sanction or other social sanction.
However, user accountability
requires strong identity bindings.
There is a fundamental
tension between accountability and privacy or anonymity.
Strong identities exist today within user
communities that interact using shared services in areas such as
health care, infrastructure control, enterprise work flow, finance,
and government, where accountability is particularly
important. Many of these areas already use some form of PKI.
User accountability also requires a trusted path to the
user so that software running with the user's identity
cannot act without the user's
consent. The questions of how to establish a trusted path
to the user and ensure that the user authorizes actions taken with its
identity are outside the scope of this paper. The solution is likely
to require some trust in the platform (e.g., a Trusted Platform Module [33]).
More generally, a signed message or
action is not a guarantee of intent by the principal: many security
breaches occur when components are subverted or private keys are
otherwise stolen [3]. Importantly, when such a breach
occurs, our approach ensures that attackers cannot modify existing
history, as noted above.
External publishing medium.
The external publishing medium
is a certified log that is globally visible. The
publishing medium is much simpler than the storage service
because it does not accept updates, does not support
dynamic object creation, and does
not allow write-sharing.
There are
several ways to implement an external publishing medium. Timestamping
services [7] publish digests using write-once media such as
newspapers. An alternative solution may use a trusted web site.
Finally, the clients of the service can implement the publishing
medium by using a peer-to-peer approach that leverages some form of
gossip and secure broadcast.
Access control.
As part of its operation a CATS service should demonstrate that a
write complies with a write access control policy. It is easy to
hold the server accountable for enforcing a simple and static policy
for write access control;
for example, if the creator of an
object provides an immutable list of identities permitted to modify
the object. We
are investigating how to extend strong accountability to richer
access control policies. A CATS server may use an external
authorization server to govern access control policy and issue signed
assertions endorsing specific clients to write specific objects.
However, such an authorization server must be trusted, and it is
an open question how to assure accountability for it in the general case.
Denial of service through challenges and audits.
One concern is that challenges and audits
could be used as the basis for a denial-of-service attack on the
server. We view this problem as an issue of performance
isolation and quality of service:
resources expended to serve audits and challenges
may be controlled in the same way as read and write requests.
Community standards may define a
``statute of limitations'' that limits the history subject to
audit, and bounds the rate at which each actor may
legitimately request audits and challenges.
3 CATS Design
Figure
1 presents a high-level view of the
CATS storage
service and its components. The service and its clients communicate
using the Simple Object Access Protocol (SOAP). Each message is
digitally signed. The Public Key Infrastructure (PKI) and the publishing
medium constitute the trusted base. Misbehavior
of any other actor can be detected and proven.
The storage service has simple and well-defined operations
(Table 3), which allows us to design it as a thin
layer on top of a generic state store toolkit.
The CATS toolkit incorporates common
state management functions to organize service state to
enable strong accountability.
The CATS storage service uses the state store toolkit
to ensure the tamper-evidence of its state and to prove to its clients
that it maintains its state correctly.
The toolkit's core principle is to separate state management from
state transformation due to application logic. The CATS toolkit
represents service state as an indexed set of named, typed,
elements. The state store accepts updates annotated with a
request--digitally signed by the issuer--and links these action
records to the updated data objects. The CATS
accountable storage service is a simple
application of the toolkit because each element corresponds to exactly
one storage object, and each update modifies exactly one element. The
toolkit provides foundational support for strongly accountable
application services, although accountability for more advanced
services must be ``designed in'' to
the internal logic, state representations and
protocols.
3.1 Action Histories
Table 3:
Accountable storage service operations. The service accepts
reads and writes to a set of named versioned objects. All client writes
and all server responses are digitally signed so that actors can
be held accountable for their actions. Challenges and audits provide the means for
clients or third-party auditors to verify the consistency of
a server's actions relative to periodic non-repudiable digests
generated by that server and visible to all actors.
|
Operation |
Description |
| read(oid) |
Returns the most recent version of the
object with the specified oid. In our prototype, every read response
includes a proof of correctness relative to the digest for the
most recent epoch (implicit challenge). |
|
read(oid, time) |
Returns a signed response with the version of
the specified object at given time (epoch).
In our prototype, every read response
includes a proof of correctness relative to the digest for the
epoch (implicit challenge). |
|
write(oid, value, current) |
Overwrites the specified object with the given
value. The server accepts the request only if at
the time of the write the version stamp of
the object is equal to current. Otherwise, returns
the object's version stamp. |
|
challenge(oid, epoch) |
Requests that the server provide a proof that the object
with the given oid is or is not included in the service
state, relative to the published digest for the given time
(epoch). The response includes a
membership proof for the object and its value, or an
exclusion proof if the oid was not valid. |
|
audit(oid, epoch, span, depth) |
Requests that the service substantiate the write history for
the object named by oid over
the time interval [epoch, epoch+span].
The request is equivalent to depth randomly
selected challenge requests over the interval.
The depth
parameter controls the degree of assurance. |
|
Strong accountability requires CATS to represent action histories
whose integrity is
protected, and provide primitives to retrieve, exchange, and certify
those histories. We have to know who said what to whom, and how that
information was used.
Every CATS
request and response carries a digital signature that uniquely
authenticates its sender and proves the integrity of the
message. Specifically, the content of each request and response is encapsulated in a
signed action record.
Actors may retain a history of action records
and transmit them to make provable statements about the behavior of
other actors and the validity of their actions.
The action history may be integrated
into the internal service state.
For example, the CATS storage server links each element or object
to the set of client requests that affected it or
produced its value.
A CATS server may justify its responses
by presenting a sequence of cached, signed action records that
show how its state resulted from the actions of its clients,
starting from its published state at a given point in time, as
described below.
Action records are verifiable by any receiver and are
non-repudiable by the sender.
Importantly, symmetric
cryptography approaches, e.g., Message Authentication Codes or SSL,
are not sufficient for accountability.
Shared keys cannot guarantee non-repudiation of
origin or content: any party in possession of the shared
key can forge the actions of another using the key.
A CATS server periodically generates a signed digest
over its local state. The state storage data structure
provides a function for an actor
to compute a compact, fixed-size hash over an
atomic snapshot of its current state.
Servers publish their digests by including them in their
responses to clients and publishing them to an external medium
(Section 2.2).
Publishing a digest
commits the server to a unique view of its state
and its history at a specific point in time.
The server cannot
lie about what its state was at that time without
the risk of exposure. Any modification of the state affects the
digest; any conflicts with previously published digests
are detectable and provable.
In particular, the server cannot
safely present different views of its state
to different clients--a forking
attack [17,23].
While nothing prevents the the server from
returning different digest values to different clients, clients can
detect such misbehavior by comparing digests among themselves or
against the published copy.
An epoch is the time interval between generation
of two consecutive state digests by some actor.
An epoch is committed when the digest of its end-state
is published. Epochs are numbered with consecutive timestamp
values.
To preserve the integrity of the timeline,
the computation of each new state digest incorporates the digest from the
previous epoch as an input. This form of chaining prevents the service
from removing a committed snapshot or adding a new snapshot in the
past.
Servers can make provable statements
about their states or operations relative to a published
digest. A CATS server can generate two kinds of
proofs:
- Inclusion. The server claims
that a given (oid, value) pair was recorded
in the service state at the end of some epoch. The claim
is backed by an unforgeable membership proof showing
that the (oid, value) pair was used to compute the digest
for that epoch in a proper way.
- Exclusion. The server claims that no object
with a given oid existed in its state at the end of some
epoch. The claim is backed by a proof exhibiting a
proper computation of the epoch digest that did not
include an object with that oid. If a previous writer
had written an object with that oid, it could have
verified that the server incorporated the object into its
digest in a proper way that would have precluded such a proof.
Section 3.6 describes these proofs
and the data structures that support them in more detail.
A client may request a proof by
issuing a challenge on a target oid.
The server responds
to a challenge with an inclusion proof if the oid was
valid, or an exclusion proof if it was not. If the challenge is
issued by an actor other than the last writer, an inclusion proof
includes a signed copy of the write that generated the object's value.
Challenges enable a client to substantiate
any read or write response.
A writer can issue a challenge to verify
that its write to an oid was incorporated
into the server's state for an epoch,
as represented in the server's published digest, in a
proper way that precludes the server from denying or
safely concealing the write at a later time.
A reader can issue a challenge to verify that its view of the
server's state is consistent
with the server's digests, and therefore (by extension) consistent
with the views verified by the writers and seen by other readers.
The state of a stored object results from an ordered sequence of
writes to the object. Accountability for object values requires
that the server and the object's writers agree on and certify
a serial order of the writes.
Each stored object is annotated with a version stamp consisting
of a monotonically
increasing integer and a hash of the object's value.
The action record for an object write
must include the object's previous version stamp,
certifying that the writer is aware of the object's state at the
time of the write.
The server rejects the write if the version stamp does not
match, e.g., as a result of an intervening write unknown to the writer.
The writer may retry its write, possibly after completing
a read and adjusting its request.
Inspection of a sequence of write actions to an oid
will reveal any
attempt by the server to reorder writes, or any attempt by
a writer to deny its knowledge of an earlier write.
3.5 Freshness and Auditing
It remains to provide a means to hold a server accountable for
``freshness'': an object's value should reflect its most recent
update prior to the target time of the read. A faulty server
might accept a write and later revert it.
Freshness is a fundamental problem: a server can prove that it
does not conceal writes to an object over some interval only by
replaying the object's complete write history over the interval,
including proofs that its value did not change during any epoch
without a valid write action. Reverted writes are the most
difficult form of the ``forking attack''
to defend against; in essence, the fork consistency assurance
of SUNDR [17,23] is that if the
server conceals writes, then it must do so consistently or its clients
will detect a fault.
Figure 2:
At time tn the malicious operator reverts the effect
of the update performed at time tm and sets the corresponding
value to the one valid at time tk . An audit that tracks the
value through a sequence of snapshots detects this violation, as
long as a read is performed in the interval
[tm, tn).
|
Our approach in CATS is to provide a means for any participant to selectively
audit a server's write histories relative to its non-repudiable state digests.
The strong accountability property is that the
server cannot conceal any corruption of an object's value from an audit,
and any misbehavior detected by an audit is verifiable by a third party.
Although reverted writes for objects or intervals that escape audit may
go undetected, a server cannot predict or control what actions will be
audited.
Figure 2 illustrates the auditing process. In this
example, an object receives an update at time tm, which is
correctly applied and the value of the object becomes
v4. However, at a later time, tn, the server reverts the value
of the element to a previous value v3, created at time tk. As a
result of this intervention, reads to the object produce an
incorrect result (v3 instead of v4).
To certify freshness, a client must challenge and examine the object's
value for every epoch in the interval since the last reported update to present. We
will refer to this interval as the span of auditing ((tk,
now) in our example). If the audit confirms that the object and its
reported value were incorporated into all digests for the interval, then
the client can safely
conclude that the reported value is indeed fresh.
On the other hand,
if the server cannot provide a membership proof for the object and its
value relative to some subsequent digest, then the server is faulty.
Clients can reduce the overhead of certifying freshness at the expense
of a weaker, probabilistic assurance. Instead of inspecting every
snapshot in a span, the client may instead issue challenges for
randomly selected snapshots in the span. We refer to the number
of audited epochs as the depth of the audit.
In the above example, the
client performs an audit of depth 4. The audit successfully detects
the misbehavior, since it inspects the service state in a snapshot
created in the interval [tm, tn], in which the object has
the reverted value v4.
The CATS toolkit and accountable storage service
support probabilistic audits as described in the
above example. Clients can issue audit requests and specify a list of
randomly selected snapshots from a specified auditing span.
CATS then constructs a membership proof for the object
and its value in the specified snapshots and returns the result back
to the client.
The probability of detecting a reverted update for a given state
element depends on the lifetime of the reverted update relative to the
span of auditing. Using the above example,
as the number of snapshots in [tn,
now) increases, the probability
of selecting a snapshot in [tm,
tn) decreases. Thus, detecting
an offense becomes more costly as more time passes since the offense
took place. If an incorrect update is not noticed earlier, it may be
difficult and expensive to detect it later.
One way to deal with this problem is to examine more snapshots in the
span (increase the depth of auditing) when verifying older
objects. More formally, if p is the probability of selecting a
snapshot that reveals misbehavior, the probability of detecting
misbehavior after d snapshot inspections is P(p,d) = 1-(1-p)d. If
the lifetime of a reverted update decreases relative to the span, then p
decreases. Figure 3 shows the probability that
audits of fixed depth detect that the value of an element is incorrect
for different values of p and d.

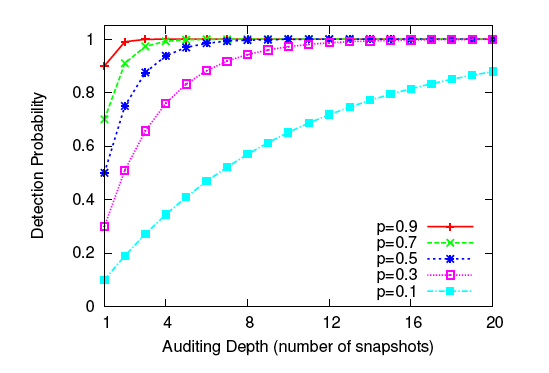

Figure 3:
The longer a reverted update remains undetected
(decreasing p), audits will have to inspect a larger number of
snapshots to ensure a certain probability of detection.
|
Another possible solution is to have trusted auditors periodically
inspect every object and ensure its freshness. The auditors
publish commit records visible to all clients, certifying that the service
state until the point of inspection is consistent.
An alternative, less expensive form of auditing can impose a
probabilistic bound on the number of reverted updates. The core idea
is to choose objects at random and inspect their values in
randomly selected state snapshots. Using a sampling
theory result stating that the successful selection of n
(n>0) white balls from an urn ensures that with probability
1-1/e there are no more than an 1/n fraction of black balls
in the urn, we can prove the following two theorems:
Theorem 1
Examining the complete execution history of n (n>0)
objects chosen uniformly at random from all
state objects
present in a service's state, and ensuring the correctness of
each update operation to these objects, guarantees that with
probability at least 1-1/e the service has maintained correctly at
least (1-1/n) fraction of all objects over its
complete execution history.
Theorem 2
Examiningn (n>0) state update operations and
ensuring that none of them reverts a previous update, ensures that with
probability at least 1-1/e, no more than an1/n fraction of
all state updates have been reverted.
We can further improve the effectiveness of audits using
repetition. It takes O(logk) repetitions of an auditing
algorithm to boost the probability of detection to (1-k) for
any k in (0, 1).
Finally, another complementary approach is for each writer to
challenge periodically objects it has written to ensure that its
updates persist until another authorized client overwrites them.
3.6 Data Structure Considerations
We considered two ways to compute a compact digest over a dynamic set of
elements and demonstrate that an element with a given oid and value is or is not
part of the set: cryptographic
accumulators [5] and authenticated
dictionaries [2,21,24].
Of the two, authenticated dictionaries promise
to be more practical as they have logarithmic update cost and produce proofs
logarithmic in the size of the set (both for inclusion and
exclusion). The advantages of authenticated dictionaries prompted us
to use them as a basis for the CATS toolkit.
An authenticated dictionary is a map of elements
with unique identifiers, and allows for efficient identifier-based
updates and retrievals. Most proposed schemes are based on
Merkle trees [24]. They organize
the elements of the set in a binary search
tree. Each node of the tree is
augmented with an authentication label--the output of a
one-way, collision-resistant hash function applied on
the contents on the node's sub-tree. More specifically, the label of
a leaf node is equal to the hash of its data and identifier, and the label of
an internal node is equal to the hash of the concatenation of the
labels of its left and right children. The recursive scheme labels the
root of the tree with an authenticator
covering the entire tree--its value is a digest
computed over every element of the set.
A membership proof for an element constructed by an authenticated
dictionary consists of a sequence of
sibling hashes: one for each node on the path from the root of the
tree to the leaf node containing the element. Using the sibling
hashes and the hash of the element's data, an actor can recompute
the root authenticator and compare it to the known authenticator. It is
computationally infeasible to fabricate a set of sibling labels
that combine with the element hash to yield the known
root authenticator (e.g., an epoch digest).
Exclusion proofs require that the hashes incorporate the key values
for each node in the search tree, so that each membership proof
also certifies that the path to the object reflects a proper sorted
order for the tree. If the tree is in sorted order, then an exclusion
proof for a given oid is given by the set of hashes for any subtree that
covers the portion of the key space containing oid, but that does not
contain that oid itself.
A number of organizational issues impact the performance of
authenticated dictionaries. In this subsection we describe the cost
dimensions, the way they impact performance, and the specific choices
we made to design the state store.
Tree degree. It is possible to authenticate any search tree
simply by allocating extra space within each node to store its
authentication label. A naive application of the same idea to a high-degree
tree such as a B-Tree [4], however, can
have an adverse impact on authentication performance. The high degree
used by a B-Tree increases the size of the sibling set needed to
compute an authentication label: a membership
proof for a B-Tree storing 1,000,000 four-byte identifiers with out-degree of
100 is more than 7 times larger than a proof generated by a binary
tree storing the same data.
Theorem 3
Balanced binary search trees generate membership proofs of minimal size.
Proof: A balanced tree of degree
B storing
N objects has height at least
logBN. A membership proof consists of a constant size component for each
sibling of every tree node along a root to leaf path. Each tree node has
B-1 siblings. Therefore, a membership proof has at least
f(B) =
(B-1)logBN components. This function obtains its
smallest value for
B=2
The above result exposes a dilemma for building a scalable authenticated
state store: indexing
large collections requires the use of an I/O efficient data structure,
e.g., a B-Tree, however, it will be costly to compute digests and to generate,
transmit, and verify proofs in such a data structure.
We address this challenge with a hybrid approach consisting of a balanced
binary tree mapped to the nodes of a B-Tree for efficient disk storage
(Figure 4). While this approach ensures the optimality of
search operations, updates can trigger a large number of I/O
operations to balance the binary tree. We relax the requirement of
global binary tree balance and trade it for improved I/O performance:
only the part of the tree that is stored within a single B-Tree block
should be balanced. This
restriction may increase the height of the binary tree but offers an
acceptable tradeoff between membership proof size and I/O
efficiency. This solution is similar to the one of
Maniatis [21]. Theorem 3 shows that his choice of a
binary tree is indeed optimal.
Figure 4:
Mapping a binary search tree to disk blocks for efficient
storage.
|
Data layout. Data placement also
impacts the performance of authenticated search trees. Search trees
provide two options for storing data. Node-oriented organizations
store data at all nodes, while leaf-oriented designs store data only
at the leaves. These two choices impact the space requirement,
size of membership proof, and authentication cost. Leaf-oriented
trees require more space but need less data and processing to compute
an authentication label [32]. In the context of a
binary tree mapped to a B-Tree, the smaller size of internal tree
nodes in a leaf-oriented design results in a large portion of the
binary tree being mapped to a single B-tree node. This organization
reduces the I/O and authentication cost and we adopt it in our design.
Persistence. Since it is expensive to generate, publish,
store, and audit epoch digests, it is desirable to minimize the number of epochs
for a write stream by
maximizing the epoch length, the average number of updates
within an epoch.
While there exist methods for building space-efficient persistent data
structures [9] with constant space overhead for
epoch length of one update, persistent authenticated search trees
incur logarithmic space overhead; each update invalidates a
logarithmic number of authentication labels. Using longer epochs
reduces a constant fraction from this overhead by
amortizing the cost of tree maintenance (including
regenerating the authenticators)
across multiple update operations.
For example, since labels
close to the root of the tree are affected by every update operation,
delaying label regeneration to
the end of the epoch ensures that each label is computed
exactly once.
Processing more updates within a
single epoch also decreases space utilization and the disk write rate.
However, there are limits to the practical epoch length.
Longer epochs include more writes and modify more disk
blocks; the number of dirtied blocks for a write set also
grows logarithmically with the size of the tree.
If the set of dirty blocks does not fit within the I/O
cache, then the system will incur an additional I/O cost to regenerate
the labels at the end of the epoch.
Longer epochs also increase the time to create a state
digest and acknowledge the completion of an operation.
Epoch length is an adjustable parameter in our design.
in order to reflect these complexities.
4 Implementation
We implemented the state store toolkit and the storage service using C#, .NET
framework 2.0, and Web Services Enhancements (WSE) 2.0 for
SOAP/Direct Internet Message Encapsulation (DIME) communication. The
storage service toolkit consists of 12,413 lines of code, and the service
implementation took another 6,084 lines. The toolkit implementation consists of
several layered modules. The
lowest layer exports a block-level abstraction with
a unified interface to pluggable underlying storage implementations.
The current implementation uses files for storage media
so it can easily use parallel or replicated storage supported
by the file system.
An intermediary block cache module controls
access to storage and buffering. The
block cache provides interfaces to pin and unpin blocks in memory. An
asynchronous background process monitors the block cache and drains
the cache to keep the number of blocks in use between configured
high-water and low-water marks. Each block can be locked in shared or
exclusive mode. The current implementation does not perform deadlock
detection, and it
maintains all versions of a given object.
The authenticated dictionary implementation uses the block cache
module to access storage blocks. The dictionary is implemented as a
B-Tree with the keys within each block organized in a binary search
tree. The current implementation uses Red-Black trees and it allows to
use other algorithms if necessary. We use Lehman and Yao's B-link tree
concurrency algorithm [16] to ensure optimal
concurrency. The state store can correctly recover after a failure using
write-ahead logging.
The storage service is log-structured [27]. It
consists of an append-only log and an index for locating data on the
log. We use the toolkit for the index, and a variant of
the toolkit's write-ahead log for the append-only log. Each log entry
consists of two portions: the original XML request, and the request
payload. Clients identify objects using 16-byte key identifiers.
Figure 5:
Storage service implementation. The storage service
consists of an index and an append-only log. The service is
implemented as a collection of stages. Each stages is associated
with a pool of worker threads. Pools can grow and shrink
depending on load.
|
The service is structured as a collection of stages (Figure 5) using a custom
staging framework inspired by SEDA [34]. A pool of worker
threads services requests for each stage. The size of the pool changes dynamically
in response to offered load. Stages have queues of fixed capacity to absorb
variations in load. Once queues fill up, the service starts rejecting
requests. Clients resubmit rejected requests at a later time.
The service and its clients communicate via SOAP over TCP. To
limit the overhead of XML, we transfer
binary data using DIME attachments. Requests and responses
are digitally signed. The current implementation uses a custom XML
canonicalization scheme and RSA for signatures. Future releases will
integrate the service with web services standards such as
XML-Signatures and WS-Security.
The service processes update requests in epochs. The service creates a
new epoch as soon as it receives a valid write request for an object
that has already been modified in the current epoch. This approach
allows for the best granularity of accountability as it preserves
every version of an object. However, it has impact on performance if
workload has high contention (Section 5.4). An
alternative implementation choice is to limit the rate at which new
epochs are created by imposing a minimum bound on the length of an
epoch. To enforce this bound, the service must reject a write
if it will generate an epoch ahead of its due time. Clients must
buffer and coalesce their writes, which will result in decreased
data sharing.
5 Evaluation

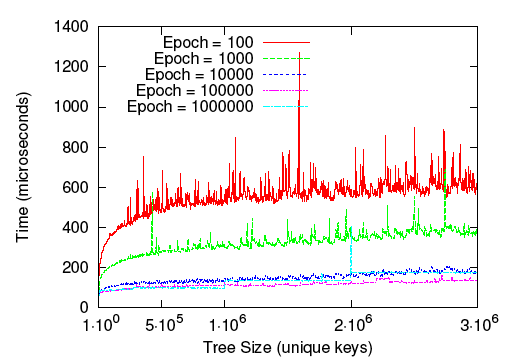

Figure 6:
The time to apply an update to the authenticated
dictionary is logarithmic relative to the number of unique keys in
the index and increases as epoch length decreases.
|
Figure 7:
The average number of new nodes introduced per update
operation, stretch factor, is logarithmic relative to the
epoch length. Smaller epochs have significantly higher
stretch factors resulting in larger indexes.
|
In this section we present an evaluation study of our prototype. Our
goal is to understand how accountability impacts performance under
varying conditions. In particular, we study the impact of public key
cryptography, object size, request rate, workload contention, epoch
length, and auditing.
We run all tests on IBM x335 servers running Windows 2003 Server
Standard Edition operating system. Each machine has 2 Pentium IV Xeon
processors running at 2.8GHz, 2GB of RAM, 1GB Ethernet, and IBM
SCSI hard disks with rotation speed of 10,000 RPM, average latency and
seek time of 3 ms and 4.7 ms respectively.
We use a population of 1,000,000 unique objects and
pre-populate the server to have one version of each object. Since the
cost of index operations grows logarithmically
with the size of the state store, a state store with 1,000,000 objects
has already reached a steady state in which increasing size has minor impact
on performance (doubling the size of the store will increase the cost
of operations by approximately 3%).
We use a community of clients to issue requests to the service using
the SOAP interface. Our
workloads consist of synthetic reads/writes of a controlled size. We vary
the ``heat'' of the workload by biasing the probability of selecting a
given object as the target of a read/write operation. We denote heat using the
notation X:Y, which we interpret to mean: X% of the requests go to
Y% of the objects. For example 100:100 is a uniform workload, and 80:20
is the typical hot/cold workload. All tests
last 3 minutes with initial 30 seconds for warming the caches. We
report averages and standard deviations from 10 runs. Our test
workloads are a rough
approximation of real storage workload and the magnitude of the
performance results we report may differ from that of real systems. However,
the focus of our study is the cost of accountability and our workloads
allow us to vary the key parameters to quantify those effects.
We use SHA-1 to compute authentication labels. Object keys
are assigned randomly in the identifier space (16 bytes). This is a
conservative approach intended to limit spatial locality and stress
our implementation. In practice, spatial locality can reduce the
overhead of persistence and the cost of state digest computation.
We store the index and the log
in blocks of size 64KB. The index cache has capacity 2000 blocks and
the log cache has capacity 8000 blocks. The cache sizes are chosen so
that neither the index, nor the append-only log fit in memory. For
storage medium we use files residing on the local NTFS file system. The
files are accessed using the standard .NET I/O API. For improved
performance we place the append-only log and the index on separate
disks. We commit dirty blocks to disk every 2 seconds.
Figure 8:
Membership proof size is logarithmic relative to the
number of unique keys in the index and is on the order of
1KB. The time to verify a membership proof is on the order of
550 microseconds.
|
5.2 Toolkit Behavior
Figure 9:
Maximum achievable data bandwidth for storage service RPC
interface based on SOAP/DIME and WSE 2.0. The results suggest that
this interface has high overhead and services using it will
be potentially communication-bound.
|
We first examine the behavior of the CATS toolkit. In
particular, we study membership proofs (size and time to verify), and
the impact of epoch length on update and storage costs. We use a set
of 3,000,000 random keys of size 16 bytes and insert them
consecutively in a CATS index. We create new epochs at a
controlled rate.
Figure 6 shows the time to apply an update to the
authenticated index as a function of the unique keys in the index and
epoch length. We observe that the update cost is logarithmic with
respect to the number of unique keys. The cost also grows as epoch
length decreases. There are two primary reasons to explain this
behavior. First, smaller epochs amortize the cost of maintaining the
index and computing authentication labels among a smaller number of
updates. Second, smaller epochs produce larger indexes and cause higher
write rate per update operation.
Next we examine the impact of epoch length on storage costs. We
define the stretch factor for a given epoch length to be the
average number of new (Red-Black tree) nodes introduces by an update
operation. Ephemeral trees have epoch length of infinity and stretch
factor of 2. Figure 7 shows how the stretch factor
changes with epoch length. The stretch factor is logarithmic relative
to the number of unique objects in the index and grows as epoch
length decreases. Thus very small epochs can produce very large
indexes.
Finally, we examine membership
proofs. Figure 8 shows the size of
membership proofs and the time to verify a membership proof as a
function of the number of unique keys in the index. Importantly, these
metrics do not depend on epoch size. As expected, membership proof
size is logarithmic relative to the unique keys in the index. For our
configuration, a proof is on the order of 1KB and it takes about 550 microseconds to verify.
Figure 10:
Write saturation throughput for objects of different
size using 80:20 workload for configurations with and
without digital signatures. As object size increases, the
relative cost of digital signatures decreases.
|
The important point to take away from these experiments is that
membership proofs are compact and relatively cheap to verify. Update
operations in our unoptimized prototype have acceptable
performance. Epoch length has direct impact on space overhead and
update cost and is the primary factor that determines performance.
5.3 Saturation Throughput
We now measure the saturation throughput of the storage service
prototype. The first experiment evaluates the maximum bandwidth a
storage service using SOAP/DIME based on WSE 2.0 can achieve. We issue
write requests to the service to store objects of controlled
sizes. The client follows the full protocol, while the server only
extracts the object from the SOAP message, validates it (when requests
are signed) and sends a response to acknowledge the operation. No
storage takes place. The server's CPU is
saturated. Figure 9 shows the saturation request rate and
the resulting data bandwidth for objects of different size with and
without using digital signatures. Although we are using 1Gbps LAN, the
observed data bandwidth peeks at approximately 15MB/s. This is the
best possible request rate that our storage service can
achieve. Importantly, the results show that digital signatures are
expensive, however, the relative cost signing a request decreases as object
size increases.
In the next experiments we measure the read and write saturation
throughput of our implementation under a traditional hot/cold workload
(80:20). We use the load generator to fully saturate the server and
measure the sustained throughput. We vary object size to study its
impact. Figure 10 shows the performance for write and
Figure 11 for read operations. As object size increases,
the request rate decreases and the transfer rate increases. With the
increase of object size, write performance increases relatively to the maximum
achievable request rate. The service offers
better write than read performance, which is due to its log-structured
design.
As object size increases the relative penalty of using digitally
signed communication decreases. 4KB signed writes achieve 42% of the
request rate of writes without signatures. This number increases to 86%
for object of size 256KB. The ratios are better for reads: 81% for
4KB, and 90% for 64KB. The log-structured design explains this
observation: the read workload is seek-dominated and the time spent
signing a request is smaller relative to the time spent obtaining the
data from the storage medium.
Overall, the experimental results show that our implementation offers
reasonable performance for both read and write operations and that the
cost of digital signatures is not prohibitive.
5.4 Workload Contention
In Section 5.2 we concluded that epoch length
has significant impact on performance. The storage service creates a
new epoch if it receives more than one update operation to the same
object in the same epoch. As a result of this design choice, the
performance of the service will be dependent on the contention present
in its workload. In the next experiments we study this relationship.
Figure 11:
Read saturation throughput for objects of different
size using 80:20 workload for configurations with and
without digital signatures. Performance is seek limited due to
the log-structured design.
|
We use workloads of different heat, ranging from uniform (100:100) to
highly skewed (80:1) and generate requests at controlled rates bellow
the server saturation level. Figure 12 shows the
observed epoch creation rate. For a given workload heat, processing
requests at a higher rate creates new epochs more frequently. As a
result, well-provisioned services processing high volumes of client
requests will produce a large number of state snapshots. Similarly,
more skewed workloads create new epochs at a higher rate. Clearly,
mechanisms are needed to allow services to discard state snapshots to
keep space overhead and auditing costs at an acceptable level. Dealing
with this problem is part of our future
work. Figure 13 shows the resulting epoch
lengths. Importantly, epoch length does not depend on request rate,
however, it can vary from 1400 updates for a uniform workload, to 200
updates for a highly skewed workload. These results suggest that for
typical usage scenarios index update operations (the primary cost
component of accountability) will be in the range from 300 to 600 microseconds (Figure 6).
Figure 12:
Rate of epoch creation as a function of request rate
and workload contention. Higher request rates and contention
create new epochs faster and can affect service longevity.
|
Challenges and audits are the primary mechanisms to ensure a service
behaves correctly over time. In the next experiments we study the
impact of these mechanisms on service performance. The metric of
concern is saturation throughput. For these
experiments we populate the service so that the 1,000,000 objects are
distributed among 100 epochs of length 10,000 updates. The resulting
index is approximately 15 times larger than the index with all objects
stored in an epoch of length 1,000,000. To isolate the impact of
storage access on auditing, communication is not signed.
Figure 13:
Epoch length as a function of request rate and
workload contention. Epoch length is independent on request
rate and is determined by workload contention.
|
Figure 14:
Auditing saturation throughput for different depths,
spans, and scopes. Smaller spans show better performance due
to increased locality. The impact of scope is less pronounced.
|
The cost of auditing operations depends on their depth, the number
of inspected snapshots, span, the total number of snapshots in
the examined interval, and scope, the fraction of objects that
are likely to be audited, e.g., in our framework objects are audited
only on access, and stale objects may never be audited. Using this
terminology, a challenge is an audit of depth 1 and span 1.
Figure 14 shows the auditing saturation throughput
for different combinations of span, scope, and depth. For a fixed
scope, auditing becomes more expensive as span increases. Similarly,
higher auditing depths are more expensive. Larger scope is also more
expensive, however, its impact is less pronounced. We can explain the
above results with the fact that the span and scope determine the
locality of auditing operations: smaller spans and scopes concentrate
audits on a portion of the index. Increasing the depth queries more
snapshots and reduces the total audits/seconds rate.
Controlling the rate of auditing is an important problem as it can be
used to mount denial of service attacks. This is a resource control
problem and solutions from the resource management domains are applicable.
For example, clients can be allocated auditing budgets and the service
can reject audits from a client if the client has exhausted her
budget. Importantly, the services can be challenged for such
rejections, to which it can reply with a collection of signed client
requests to show that the client has exhausted its budget.
6 Related Work
Butler Lampson summarizes accountability as follows:
``Accountability means that you can punish misbehavior''.
Our community often uses the term to
refer to a means of enforcing an
authorization policy by detecting and punishing violations
after the fact, as an alternative to incurring the cost
of preventing them in the first place [14].
More recent work seeks to enforce accountability for
performance behavior as essential to effective functioning
of networking markets [15].
Our notion of ``semantic'' accountability is different
and complementary.
We consider actors accountable if they can demonstrate that
their actions are semantically
correct as well as being properly authorized.
An accountable server can be held responsible if its
responses violate semantic expectations
for the service that it provides. Accountability is ``strong''
if evidence of misbehavior is independently verifiable by a third
party. Clients of a strongly accountable server are also
strongly accountable for their actions, since they cannot
deny their actions or blame the server.
Designing networked systems for accountability complements
classical approaches to building
trustworthy systems such as Byzantine Fault
Tolerance [8,28], secure
hardware [31], and secure
perimeters [14].
Secure perimeters attempt to prevent misbehavior by means of
authorization and authentication. However, when actors reside in
different administrative domains, there is no common perimeter to
defend. Once the integrity of the perimeter is violated, it offers no
protection, and even authorized actors may abuse the system to their
own advantage.
Byzantine fault tolerance (BFT) is a general and powerful technique to
tolerate misbehavior through replication and voting. However,
BFT is vulnerable to collusion: a majority of replicas may collude to
``frame'' another. Also, in its pure
form, BFT assumes that failures are independent, and thus it is
vulnerable to ``groupthink'' in which an attack succeeds
against a quorum of replicas.
BFT offers limited protection when a service (and
hence its replica set) is itself acting on behalf of an entity that
controls its behavior (typical of web services).
Strongly accountable systems can produce
proofs of misbehavior that do not depend on voting or consensus, which
makes statements of correctness or misbehavior provable to an
external actor.
Secure hardware offers foundational
mechanisms to ensure untampered execution at the hardware
level. While a secure hardware platform protects
the integrity of a programs code, it cannot ensure
that its
actions are semantically correct. Secure hardware can help
provide a trusted path to the user by avoiding corruption
of the software stack trusted by the user to correctly
represent the user's intent.
Secure logging and auditing can also be used to preserve a
tamper-evident record of
events [29,30]. In addition to
maintaining a tamper-evident record of service events, we address the
question of representing service state to make state management operations
verifiable.
CATS embodies the state of the art from research in authenticated data
structures [2,6,21,25], beginning with the well-known technique of Merkle
trees [24].
Relative to that work, it incorporates new primitives for secure
auditing and integrates concurrency and recovery techniques from the
database community.
Our approach is inspired by
Maniatis [21].
Our work incorporates
these techniques into a toolkit that can act as a substrate for
a range of accountable services.
The elements of CATS have been used in many previous systems for
similar goals of semantic accountability.
Many systems require
digitally signed communication and some
maintain some form of signed action histories [11,21].
Long-term historic state trails help
establish provable causality in distributed
systems [22].
Storage
systems often reference data using cryptographic hashes to ensure
tamper-evidence [26]. State digests are used
to prove authenticity in file systems
[10], applications running on untrusted
environments [19], and time-stamping
services [7].
The CATS toolkit is based on the storage abstraction of a binary
search tree.
The Boxwood Project [18] also provides a
toolkit for building storage infrastructures from
foundational search tree abstractions.
Boxwood does not address the problem of accountability.
SUNDR [17,23] and Plutus [13]
are two recent network storage systems that defend against attacks mounted
by a faulty storage server. These services
are safe in the sense that clients may protect data from the server,
and the clients can detect if the server modifies or misrepresents
the data. Plutus emphasizes efficient support for
encrypted sharing, while SUNDR defends against attacks on data integrity,
the most difficult of which is a ``forking attack''.
In both Plutus and SUNDR file system logic is implemented
by clients: the server only stores opaque
blocks of data. In SUNDR the server also participates in the
consistency protocol.
Both SUNDR and Plutus can detect various attempts by the server
to tamper with the contents of stored blocks.
However, the papers do not attempt to define
precise accountability properties. In general, they blame
any inconsistencies on the server: it is not
clear to what extent clients are accountable for their actions
or for managing
file system metadata correctly. For example, SUNDR does not show
how to defend against a client that
covertly deletes a file created by another user in the
same group.
We argue for a stronger notion of accountability in which the guilt or
innocence of the server or its clients is provable to a third
party. This is a subtle change of focus as compared to SUNDR, where
the primary concern is to build a tamper-evident system and terminate
its use once misbehavior is detected. CATS file semantics are
implemented and enforced by the server in the conventional way,
rather than implemented entirely by the clients.
Clients can independently verify
correct execution relative to published digests, rather than
``comparing notes'' to detect inconsistencies.
CATS uses similar techniques to SUNDR and Plutus to make
the stored data tamper-evident, but it also
defends against false accusations against a server , e.g., a malicious client
that ``frames'' a server by claiming falsely that it
accepted writes and later reverted them. Accountability extends to the
clients: for example, if a client corrupts shared data, the server can
identify the client and prove its guilt even after accepting writes to
other parts of the tree.
The BAR model [1] addresses the problem of building cooperative
peer-to-peer services across multiple administrative domains. This is
a Byzantine Fault Tolerance approach optimized for the presence of
rational peers. Since the underlying primitives depend on voting and
replication, BAR-based services are vulnerable to collusion. However,
BAR does not maintain history and does not use auditing to deal
with problems that may arise if peers collude. Our approach shares
similar goals with BAR and is complementary. We address the problem of
building an accountable service, within the control of a
single authority, that is accessed by multiple clients, who may reside
in different administrative domains. In this context, the service
implements all logic, and voting and replication are not
sufficient. Our methodology forces the service to preserve a faithful
record of its history to enable auditing in the future. BAR-based
services may be able to enforce performance guarantees, something we
currently do not support, although accusations are not provable
outside the system.
7 Summary and Conclusions
This paper presents the design, implementation, and evaluation of
CATS--a storage service and state storage toolkit
with strong accountability properties. A distributed system
is strongly accountable when participants have the means to verify
semantically correct operation of other participants, and assertions
or proofs of misbehavior are independently
verifiable by a third party based on cryptographically assured
knowledge, without reliance on voting or consensus.
CATS builds on a history of work on authenticated data structures,
and incorporates the state of the art in that area
into a prototype network storage service.
Challenge and audit interfaces allow clients, peers, or
auditors to verify the integrity of the storage service state through time, providing
probabilistic defense against reverted or replayed
writes or replayed requests and other attacks on the integrity
of the data or the write stream. The probability of detection of a reverted
state update is a function of the depth and rate of auditing.
Experimental results with the prototype show that the
CATS approach to strong accountability has potential
for practical use in mission-critical distributed services
with strong identity. The cost of authenticated communication is not
prohibitive and its relative overhead decreases with the size of
the object set and the stored objects.
Workload write contention and write-sharing are
the primary factors that affect
the cost of accountable storage in our prototype:
contention and sharing increase the storage,
computation, and auditing costs. The cost of auditing depends on object
age and the desired level of assurance.
The accountable storage service described in this paper is a simple example
of a strongly accountable service built using the CATS state storage
toolkit. It illustrates a state-based approach to building
accountable network services that separates service logic from internal state
representation and management, associates state elements with the
digitally signed requests of the clients responsible for them, and
supports verifiably faithful execution of state management
operations.
In future work we plan to explore use of the state-based approach to
build more advanced file services and application services with
strong accountability.
We thank the reviewers for their helpful comments, and especially our
shepherd, Erik Riedel. We also thank Petros Maniatis for his comments
and assistance in understanding some subtleties of previous work
on authenticated data structures, including his own. Partial support
for this research was provided by Duke University and by related
funding from IBM and Network Appliance. This research was not supported by the National
Science Foundation.
- 1
-
A. S. Aiyer, L. Alvisi, A. Clement, M. Dahlin, J.-P. Martin, and C. Porth.
BAR Fault Tolerance for Cooperative Services.
In Proceedings of the 20th ACM Symposium on Operating Systems
Principles, October 2005.
- 2
-
A. Anagnostopoulos, M. T. Goodrich, and R. Tamassia.
Persistent Authenticated Dictionaries and Their Applications.
In 4th International Conference on Information Security,
October 2001.
- 3
-
R. J. Anderson.
Why Cryptosystems Fail.
Communications of the Association for Computing Machinery,
37(11):32-40, November 1994.
- 4
-
R. Bayer and E. M. McCreight.
Organization and Maintenance of Large Ordered Indices.
Acta Informatica, 1:173-189, 1972.
- 5
-
J. Benaloh and M. de Mare.
One-way Accumulators: A Decentralized Alternative to Digital
Signatures (Extended Abstract).
In Proceedings of Advances on Cryptology, pages 480-494, May
1997.
- 6
-
A. Buldas, P. Laud, and H. Lipmaa.
Accountable Certificate Management Using Undeniable Attestations.
In Proceedings of the 7th ACM Conference of Computer and
Communications Security, pages 9-17, November 2000.
- 7
-
A. Buldas, P. Laud, H. Lipmaa, and J. Villemson.
Time-stamping with Binary Linking Schemes.
In Proceedings of Advances on Cryptology, August 1998.
- 8
-
M. Castro and B. Liskov.
Practical Byzantine Fault Tolerance.
In Proceedings of the Third USENIX Symposium on Operating
Systems Design and Implementation, February 1999.
- 9
-
J. Driscoll, N. Sarnak, D. D. Sleator, and R. Tarjan.
Making Data Structures Persistent.
Journal of Computer and System Sciences, 38:86-124, 1989.
- 10
-
K. Fu, M. F. Kaashoek, and D. Maziéres.
Fast and Secure Distributed Read-only File System.
In Proceedings of the 4th USENIX Symposium on Operating Systems
Design and Implementation, pages 181-196, October 2000.
- 11
-
Y. Fu, J. Chase, B. Chun, S. Schwab, and A. Vahdat.
SHARP: An Architecture for Secure Resource Peering.
In Proceedings of the 19th ACM Symposium on Operating System
Principles, pages 133-148, October 2003.
- 12
-
M. Goodrich, R. Tamassia, and A. Schwerin.
Implementation of an Authenticated Dictionary with Skip Lists and
Commutative Hashing.
In Proceedings of DARPA Information Survivability Conference
and Exposition, pages 68-82, January 2001.
- 13
-
M. Kallahalla, E. Riedel, R. Swaminathan, Q. Wang, and K. Fu.
Plutus: Scalable Secure File Sharing on Untrusted Storage.
In Proceedings of the Second USENIX Conference on File and
Storage Technologies, March 2003.
- 14
-
B. W. Lampson.
Computer Security in the Real World.
In Proceedings of the Annual Computer Security Applications
Conference, December 2000.
- 15
-
P. Laskowski and J. Chuang.
Network Monitors and Contracting Systems: Competition and
Innovation.
In Proceedings of SIGCOMM, September 2006.
- 16
-
P. L. Lehman and S. B. Yao.
Efficient Locking for Concurrent Operations on B-Trees.
ACM Transactions on Database Systems, 6:650-670, December
1981.
- 17
-
J. Li, M. N. Krohn, D. Mazières, and D. Shasha.
Secure Untrusted Data Repository (SUNDR).
In Proceedings of the 6th USENIX Symposium on Operating Systems
Design and Implementation, pages 91-106, December 2004.
- 18
-
J. MacCormick, N. Murphy, M. Najork, C. A. Thekkath, and L. Zhou.
Boxwood: Abstractions as the Foundation for Storage Infrastructure.
In Proceedings of the 6th Symposium on Operating Systems Design
and Implementation, pages 105-120, 2004.
- 19
-
U. Maheshwari, R. Vingralek, and W. Shapiro.
How to Build a Trusted Database System on Untrusted Storage.
In Proceedings of the 4th USENIX Symposium on Operating System
Design and Implementation, October 2000.
- 20
-
P. Maniatis.
Historic Integrity in Distributed Systems.
PhD thesis, Stanford University, August 2003.
- 21
-
P. Maniatis and M. Baker.
Enabling the Archival Storage of Signed Documents.
In Proceedings of the First USENIX Conference on File and
Storage Technologies, pages 31-45, January 2002.
- 22
-
P. Maniatis and M. Baker.
Secure History Preservation through Timeline Entanglement.
In Proceedings of the 11th USENIX Security Sysmposium, August
2002.
- 23
-
D. Mazières and D. Shasha.
Building Secure File Systems out of Byzantine Storage.
In Proceedings of the 21st Annual ACM Symposium on Principles of
Distributed Computing, pages 108-117, July 2002.
- 24
-
R. C. Merkle.
Protocols for Public Key Cryptosystems.
In Proceedings of the 1980 Sysmposium on Security and Privacy,
pages 122-133, April 1980.
- 25
-
M. Naor and K. Nissim.
Certificate Revocation and Certificate Update.
IEEE Journal on Selected Areas in Communications,
18(4):561-570, 2000.
- 26
-
S. Quinlan and S. Dorward.
Venti: a New Approach to Archival Storage.
In First USENIX conference on File and Storage Technologies,
January 2002.
- 27
-
M. Rosenblum and J. K. Ousterhout.
The Design and Implementation of a Log-Structured File System.
In Proceedings of the 13th ACM Symposium on Operating Systems
Principles, July 1991.
- 28
-
F. B. Schneider.
Implementing Fault-Tolerant Services Using the State Machine
Approach: A Tutorial.
ACM Computing Surveys, 22(4):299-319, December 1990.
- 29
-
B. Schneier and J. Kelsey.
Cryptographic Support for Secure Logs on Untrusted Machines.
In Proceedings of the 7th USENIX Security Symposium, pages
53-62, January 1998.
- 30
-
B. Schneier and J. Kelsey.
Secure Audit Logs to Support Computer Forensics.
ACM Transactions on Information and System Security (TISSEC),
2(2):159-176, May 1999.
- 31
-
S. W. Smith, E. R. Palmer, and S. Weingart.
Using a High-Performance, Programmable Secure Coprocessor.
In Financial Cryptography, pages 73-89, February 1998.
- 32
-
R. Tamassia and N. Triandopoulos.
On the Cost of Authenticated Data Structures, 2003.
- 33
-
Trusted Computing Group.
Trusted platform module specification.
https://www.trustedcomputinggroup.org/groups/tpm/.
- 34
-
M. Welsh, D. E. Culler, and E. A. Brewer.
SEDA: An Architecture for Well-Conditioned, Scalable Internet
Services.
In Proceedings of the 18th ACM Symposium on Operating Systems
Principles, October 2001.
- 35
-
A. Yumerefendi and J. S. Chase.
Trust but Verify: Accountability for Network Services.
In Proceedings of the 11th ACM SIGOPS European Workshop,
September 2004.
Strong Accountability for Network Storage
This document was generated using the
LaTeX2HTML translator Version 2002-2-1 (1.70)
Copyright © 1993, 1994, 1995, 1996,
Nikos Drakos,
Computer Based Learning Unit, University of Leeds.
Copyright © 1997, 1998, 1999,
Ross Moore,
Mathematics Department, Macquarie University, Sydney.
The command line arguments were:
latex2html -split 0 -show_section_numbers -local_icons paper.tex
The translation was initiated by Aydan Yumerefendi on 2006-12-20
Aydan Yumerefendi
2006-12-20
![\includegraphics[width=12cm]{figs/service}](service.png)
![\includegraphics[width=7cm]{figs/audit}](audit.png)
![\includegraphics[width=7cm]{figs/audit_success_new_embed_color}](audit_prob.png)
![\includegraphics[width=7cm]{figs/map}](tree.png)
![\includegraphics[width=10cm]{figs/stages}](stages.png)
![\includegraphics[width=7cm]{figs/external_insert_amortized_ema_embed_color}](graph1.png)
![\includegraphics[width=7cm]{figs/external_nodes_fast_embed_color}](graph2.png)
![\includegraphics[width=7cm]{figs/membership_proof_fast_embed_color}](graph3.png)
![\includegraphics[width=7cm]{figs/bandwidth_embed_color}](graph4.png)
![\includegraphics[width=7cm]{figs/write_new_embed_color}](graph5.png)
![\includegraphics[width=7cm]{figs/read_new_embed_color}](graph6.png)
![\includegraphics[width=7cm]{figs/epoch_rate_embed_color}](graph7.png)
![\includegraphics[width=7cm]{figs/epoch_length_writes_embed_color}](graph8.png)
![\includegraphics[width=7cm]{figs/audit_mixed_embed_color}](graph9.png)
