Perspective: Semantic data management for the home
Perspective: Semantic data management for the home
Brandon Salmon, Steven W. Schlosser*, Lorrie Faith Cranor, Gregory R. Ganger
Carnegie Mellon University, *Intel Research Pittsburgh
Abstract
Perspective is a storage system designed for the home,
with the decentralization and flexibility sought by home users
and a new semantic filesystem construct, the view,
to simplify management.
A view is a semantic description of a set of files, specified as
a query on file attributes, and the ID of the device on which they are stored.
By examining and modifying the views associated with a device, a user
can identify and control the files stored on it.
This approach allows users to reason about what is stored where in the same
way (semantic naming) as they navigate their digital content.
Thus, in serving as their own administrators, users do not have to deal
with a second data organization scheme (hierarchical naming) to
perform replica management tasks, such as specifying redundancy to increase
reliability and data partitioning to address device capacity exhaustion.
Experiences with Perspective deployments and user studies confirm the
efficacy of view-based data management.
1 Introduction
Distributed storage is coming home.
An increasing number of home and personal electronic devices create,
use, and display digitized forms of music, images, videos, as well as
more conventional files (e.g., financial records and contact lists).
In-home networks enable these devices to communicate,
and a variety of device-specific and datatype-specific tools are
emerging.
The transition to digital homes gives exciting new capabilities to users,
but it also makes them responsible for administration tasks usually
handled by dedicated professionals in other settings.
It is unclear that traditional data management practices will work
for "normal people" reluctant to put time into administration.
This paper presents the
Perspective
distributed filesystem,
part of an expedition into this new domain for distributed storage.
As with previous expeditions into new computing paradigms, such as distributed
operating systems (e.g., [23,27]) and ubiquitous
computing (e.g., [41]), we are building and utilizing
a system representing the vision in order to gain experience.
In this case, however, the researchers are not representative
of the user population.
Most will be non-technical people who just want to use the system,
but must (begrudgingly) deal with administration tasks or
live with the consequences.
Thus, organized user studies will be required as complements to systems
experimentation.
Perspective's design is motivated by a contextual analysis
and early deployment experiences [31].
Our interactions with users have made clear the need
for decentralization, selective replication,
and support for device mobility and dynamic membership.
An intriguing lesson is that home users
rarely organize and access their data via traditional hierarchical
naming-usually, they do so based on data attributes.
Computing researchers have long talked about attribute-based data
navigation (e.g., semantic filesystems [12,36]), while
continuing to use directory hierarchies.
However, users of home and personal storage live it.
Popular interfaces (e.g., iTunes, iPhoto, and even drop-down lists of
recently-opened Word documents)
allow users to navigate file collections via attributes
like publisher-provided metadata, extracted keywords, and date/time.
Usually, files are still stored in underlying hierarchical file systems,
but users often are insulated from naming at that level and are oblivious
to where in the namespace given files end up.
Users have readily adopted these higher-level navigation interfaces, leading
to a proliferation of semantic data location tools
[42,3,13,37,19].
In contrast, the abstractions provided by filesystems for managing files have
remained tightly tied to hierarchical namespaces.
For example, most tools require that specific subtrees be identified,
by name or by "volumes" containing them, in order to perform
replica management tasks, such as
partitioning data across computers for capacity management
or specifying that multiple copies of certain data be kept for reliability.
Since home users double as their own system administrators, this
disconnect between interface styles (semantic for data access activities and
hierarchical for management tasks) naturally creates difficulties.
The Perspective distributed filesystem allows a collection of
devices to share storage without requiring a central server.
Each device holds a subset of the data and can access
data stored on any other (currently connected) device.
However, Perspective does not restrict the subset stored
on each device to traditional volumes or subtrees.
To correct the disconnect between semantic data access and hierarchical
replica management, Perspective replaces the traditional volume abstraction
with a new primitive we call a view.
A view is a compact description of a set of files, expressed much
like a search query, and a device on which that data should be stored.
For example, one view might be "all files with type=music and
artist=Beatles stored on Liz's iPod" and another
"all files with owner=Liz stored on Liz's laptop".

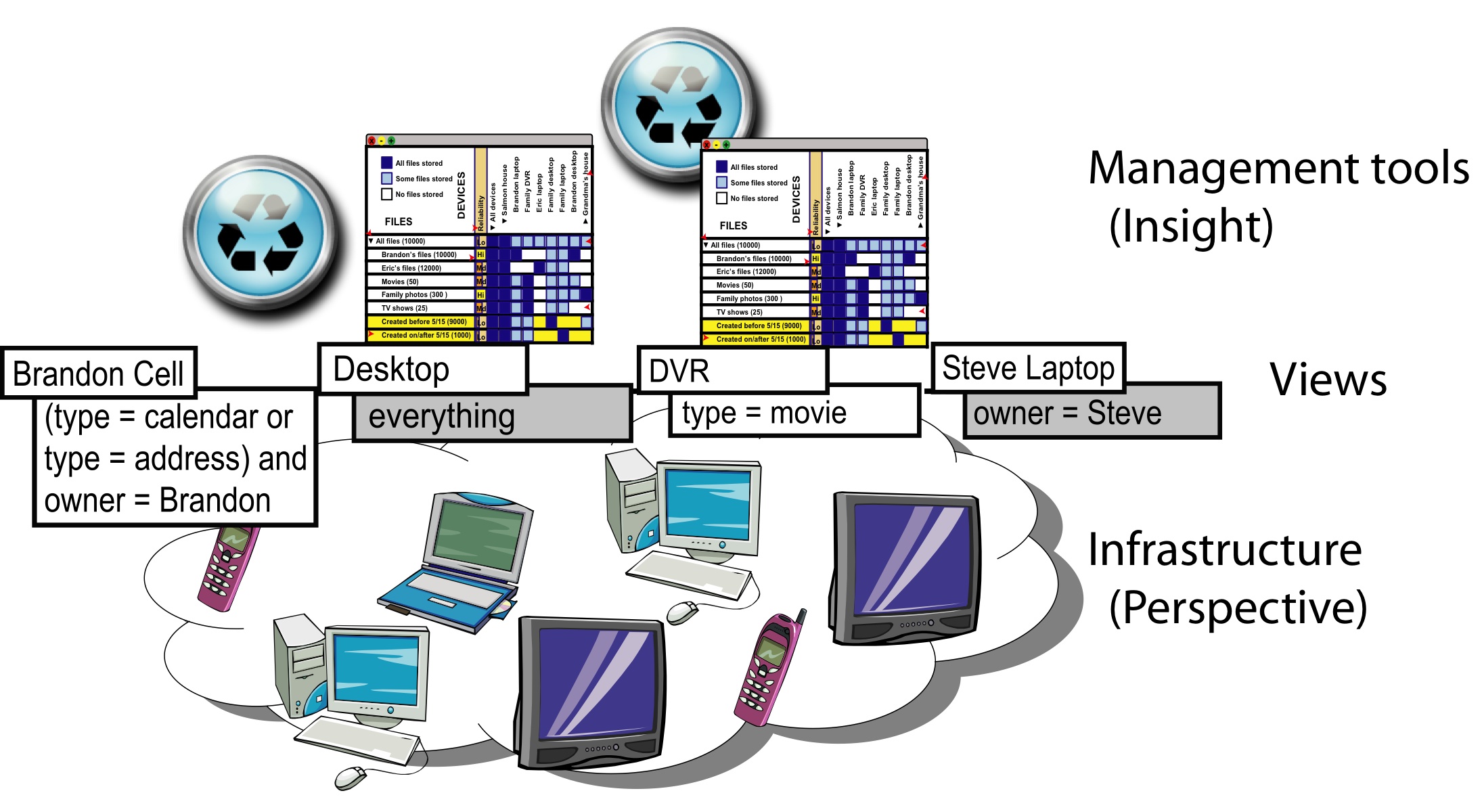

Each device participating in Perspective maintains and publishes
one or more views to describe the files that it stores.
Perspective ensures that any file that matches a view will
eventually be stored on the device named in the view.
Since views describe sets of files using the same attribute-based style
as users' other tools, view-based management replica management is easier
than hierarchical file management.

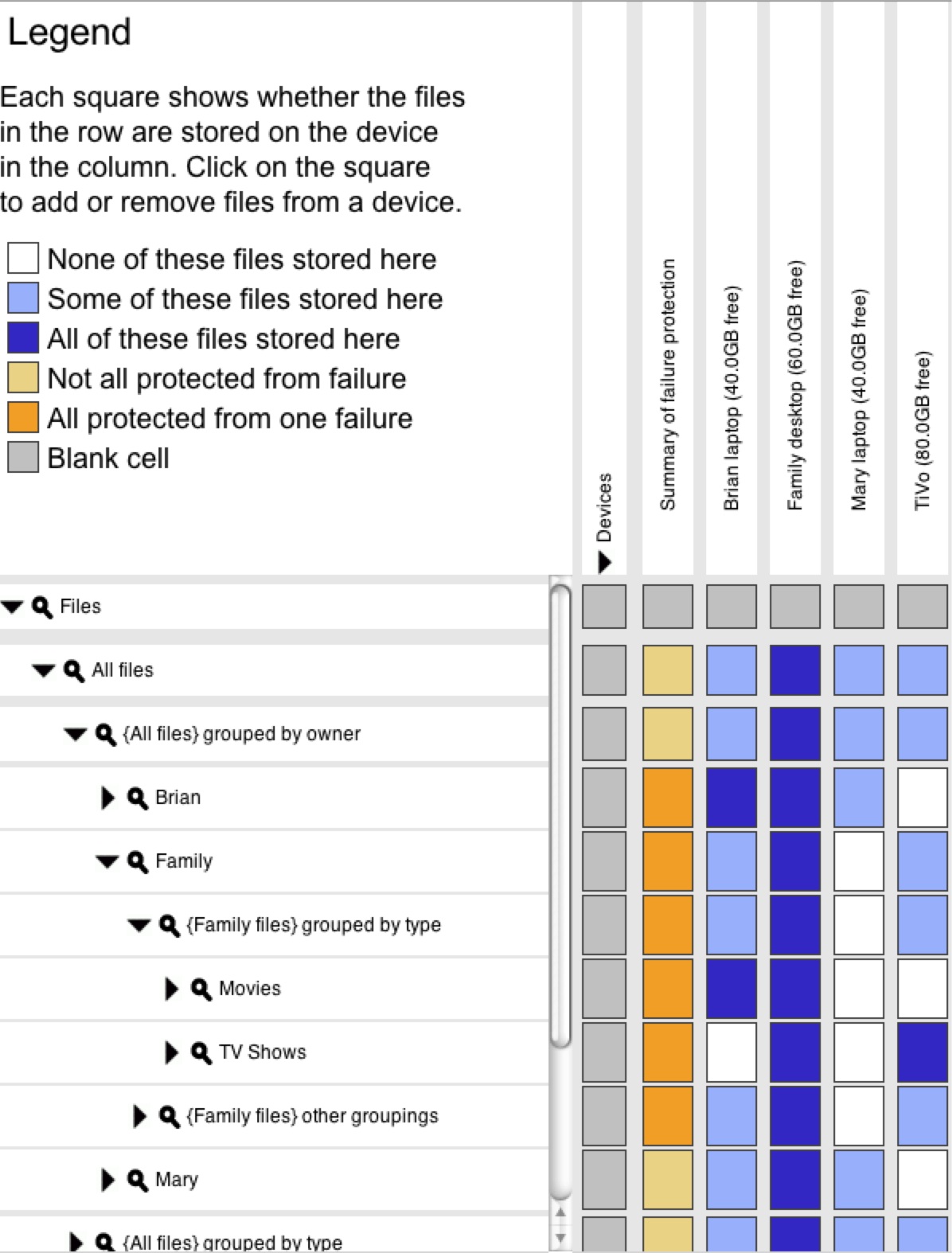

A user can see what is stored where, in a human-readable fashion,
by examining the set of views in the system.
She can control replication and data placement by
changing the views of one or more devices.
Views allow sets of files to overlap and to be described independently
of namespace structure, removing the need for users to worry about
application-internal file naming decisions or unfortunate volume boundaries.
Semantic management can also be useful for local management tasks,
such as setting file attributes and security, in addition to replica management.

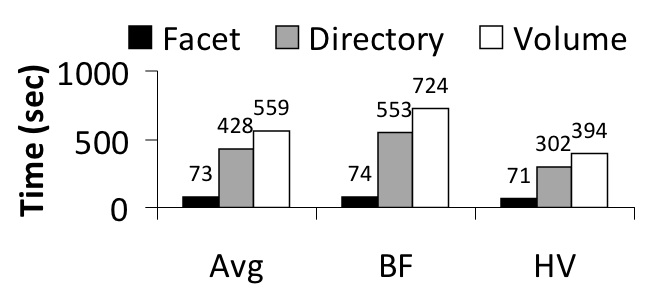

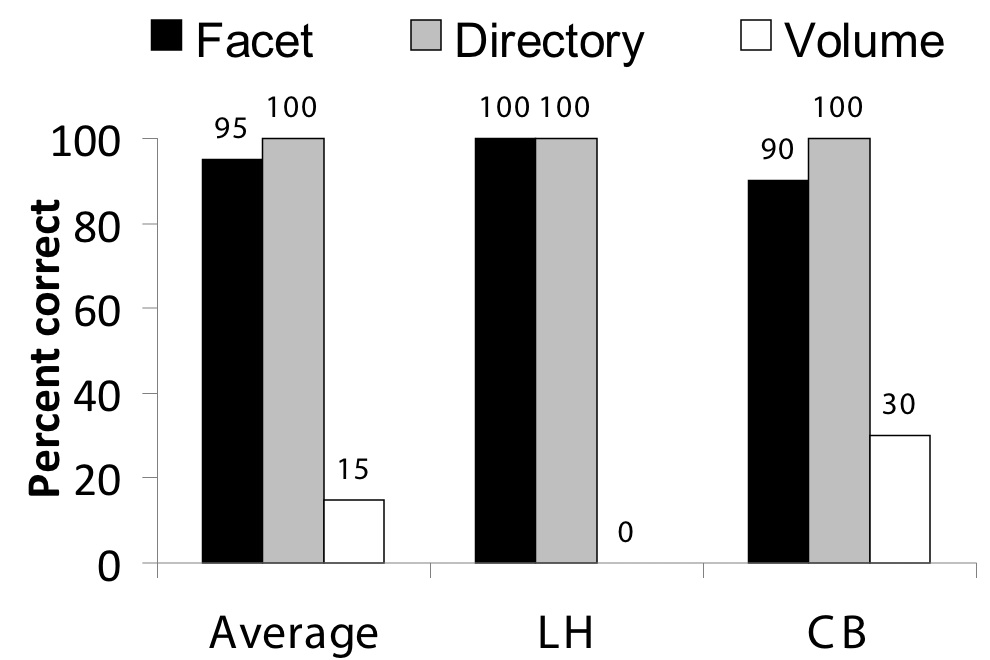

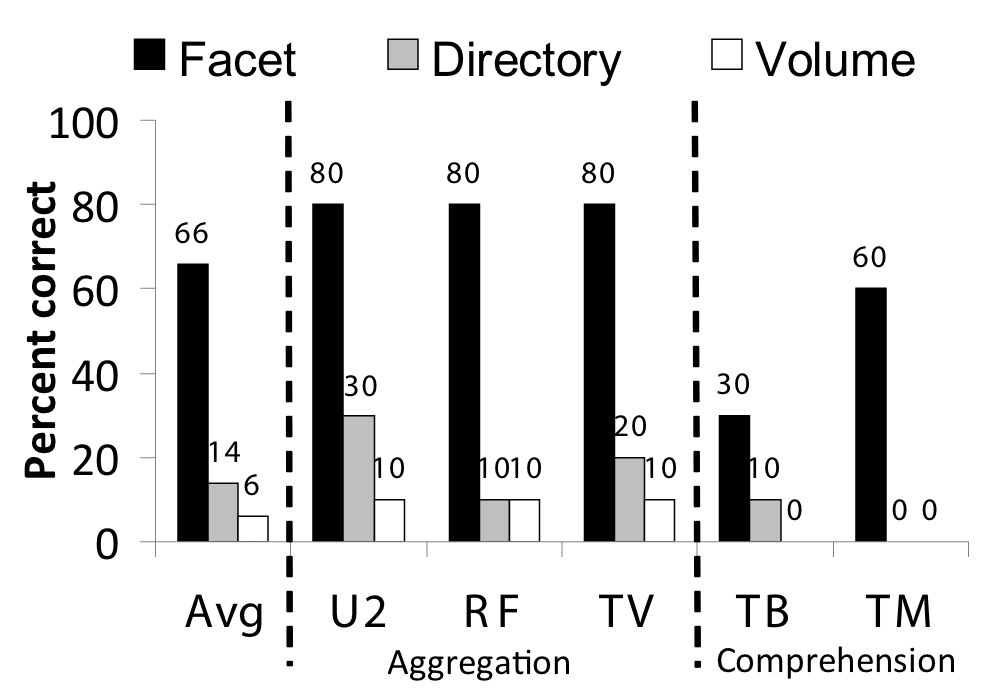

In addition to anecdotal experiences, an extensive lab study of 30 users
each performing 10 different management tasks confirms
that view-based management is easier for users than volume-based management.
This paper describes view-based management and our Perspective
prototype, which combines existing technologies with several new algorithms
to implement view-based distributed storage.
View-based data placement and view freshness allow
Perspective to manage and expose data mobility with views.
Distributed update rules allow Perspective to ensure and expose permanence
with views (which can be thought of as semantically-defined volumes).

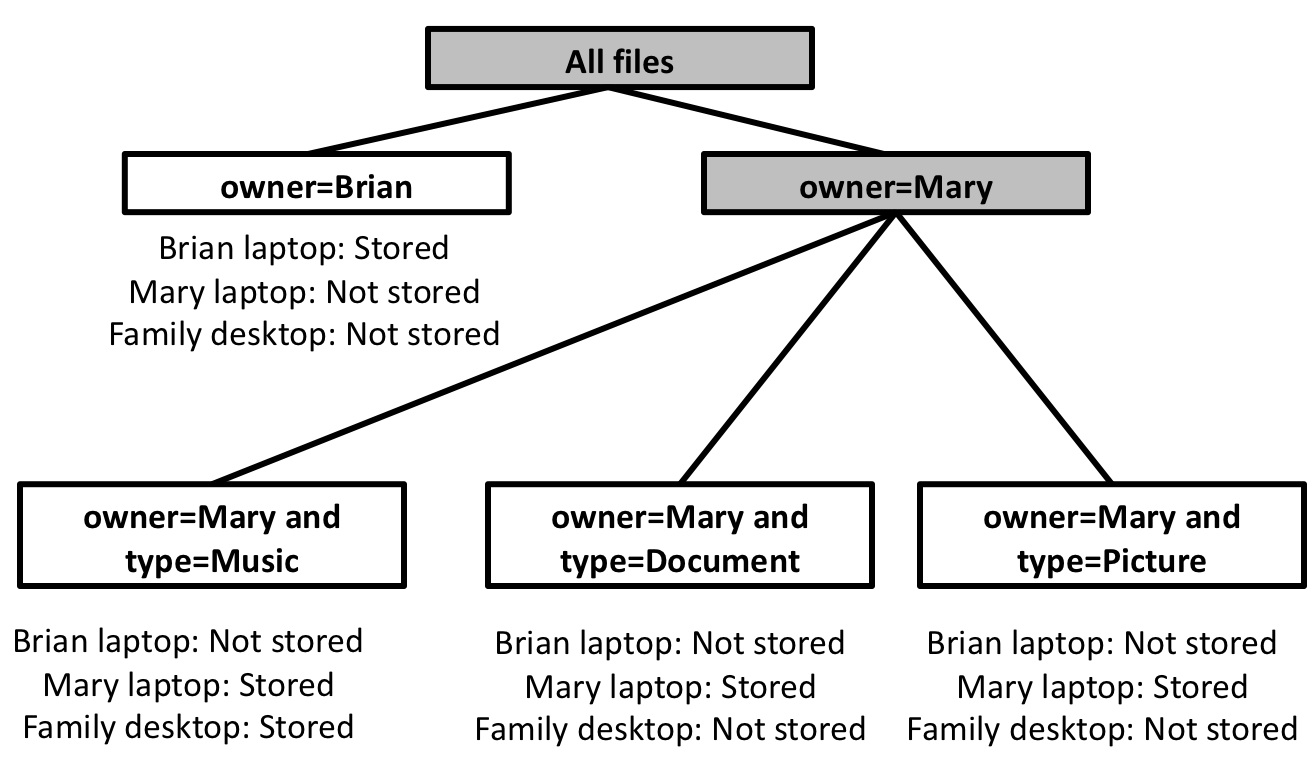

Perspective introduces
overlap trees as a mechanism for reasoning about
how many replicas exist of a particular dataset, and where
these files are stored, even when no view exactly matches the attributes
of the dataset.
Our Perspective prototype is a user-level filesystem which runs
on Linux and OS X.
In our deployments, Perspective provides normal file storage
as well as being the backing store for iTunes and MythTV
in one household and in our research environment lounge.
Experiments with the Perspective prototype confirm that it can provide
consistent, decentralized storage with reasonable performance.
Even with its application-level implementation (connected to the OS via FUSE [10]),
Perspective performance is within 3% of native filesystem performance for
activities of interest.
2 Storage for the home
Storage has become a component of many consumer electronics.
Currently, most stored content is captive to individual devices (e.g.,
DVRs, digital cameras, digital picture frames, and so on), with
human-intensive and proprietary interfaces (if any) for copying it to
other devices.
But, we expect a rapid transition toward exploiting wireless home
networking to allow increased sharing of content across devices.
Thus, we are exploring how to architect a distributed storage system
for the home.
The home is different from an enterprise.
Most notably, there are no sysadmins-household members
generally deal with administration (or don't) themselves.
The users also interact with their home storage differently, since
most of it is for convenience and enjoyment rather than employment.
However, much of the data stored in home systems, such as family photos,
is both important and irreplaceable, so home storage
systems must provide high levels of reliability in spite of lax
management practices.
Not surprisingly, we believe that home storage's unique requirements
would be best served by a design different than enterprise storage.
This section outlines insights gained from studying use of storage
in real homes and design features suggested by them.
2.1 What users want
A contextual analysis is an HCI research technique that provides a
wealth of in-situ data, perspectives, and
real-world anecdotes of the use of technology.
It consists of interviews conducted in the context of
the environment under study.
To better understand home storage, we extensively interviewed all members
of eight households (24 people total), in their homes and with all of their
storage devices present.
We have also gathered experiences from early deployments in real homes.
This section lists some guiding insights (with more detailed information available
in technical reports [31]).
Decentralized and Dynamic:
The users in our study
employed a wide variety of computers and devices.
While it was not uncommon for them to have a set of primary devices
at any given point in time, the set changed rapidly, the boundaries
between the devices were porous, and different data was "homed" on
different devices with no central server.
One household had set up a home server, at one point, but did not
re-establish it when they upgraded the machine due to setup complexity.
Money matters:
While the cost of storage continues to decrease, our interviews
showed that cost remains a critical concern for home users.
Note that our studies were conducted well before the Fall 2008 economic
crisis.
While the same is true of enterprises, home storage rarely has a clear
"return on investment," and the cost is instead balanced against other
needs (e.g., new shoes for the kids) or other forms of enjoyment.
Thus, users replicate selectively, and many adopted cumbersome data
management strategies to save money.
Semantic naming:
Most users navigated their data via attribute-based naming schemes provided
by their applications, such as iPhoto, iTunes, and the like.
Of course, these applications stored the content into files in the
underlying hierarchical file system,
but users rarely knew where.
This disconnect created problems when they needed
to make manual copies or configure backup/synchronization tools.
Need to feel in control:
Many approaches to manageability in the home tout automation as the answer.
While automation is needed, the users expressed a need
to understand and sometimes control the decisions being made.
For example, only 2 of the 14 users who backed up data
used backup tools.
The most commonly cited reason was that they did not understand
what the tool was doing and, thus, found it more difficult to
use the tool than to do the task by hand.
Infrequent, explicit data placement:
Only 2 of 24 users had devices on which they
regularly placed data in anticipation of needs in the near future.
Instead, most users decided on a type of data that belonged on a device
(e.g., "all my music" or "files for this semester") and rarely revisited
these decisions, usually only when prompted by environmental changes.
Many did regularly copy new files matching each device's data criteria
onto it.
2.2 Designing home storage
From the insights above, we extract guidance that has
informed our design of Perspective.
Peer-to-peer architecture:
While centralization can be appealing from a system simplicity standpoint,
and has been a key feature in many distributed filesystems, it seems to
be a non-starter with home users.
Not only do many users struggle with the concept of managing a central server,
many will be unwilling to invest the money necessary to build a server
with sufficient capacity and reliability.
We believe that a decentralized, peer-to-peer architecture more cleanly
matches the realities we encountered in our contextual analysis.
Single class of replicas:
Many previous systems have differentiated between two classes:
permanent replicas stored on server devices and
temporarily replicas stored on client devices (e.g., to provide mobility)
[32,25].
While this distinction can simplify system design, it introduces extra
complexity for users,
and prevents users from utilizing the capacity
on client devices for reliability, which can be important for cost-conscious
home consumers.
Having only a single replica class removes the client-server distinction
from the user's perception and allows all peers to contribute capacity
to reliability.
Semantic naming for management:
Using the same type of naming for both data access and management
should be much easier for users who serve as their own administrators.
Since home storage users have chosen semantic interfaces for data
navigation, replica management tools should be adapted
accordingly-users should be able to specify replica management policies
applied to sets of files identified by semantic naming.
In theory, applications could limit the mismatch by aligning the
underlying hierarchy to the application representation.
But, this alternative seems untenable, in practice.
It would limit the number of attributes that could be handled,
lock the data into a representation for a particular application,
and force the user to sort data in the way the application desires.
Worse, for data shared across
applications, vendors would have to agree on a common underlying namespace
organization.
Rule-based data placement:
Users want to be able to specify file types (e.g.,
"Jerry's music files") that should be stored on particular devices.
The system should allow such rules to be expressed by users and enforced
by the system as new files are created.
In addition to helping users to get the right data onto the right devices,
such support will help users to express specific replication
rules at the right granularity, to balance their reliability and cost goals.
Transparent automation:
Automation can simplify storage management, but many home users
(like enterprise sysadmins) insist on understanding and being able to
affect the decisions made.
By having automation tools use the same flexible semantic naming schemes
as users do normally, it should be possible to create interfaces
that express human-readable policy descriptions and allow users to
understand automated decisions.
3 Perspective architecture
Perspective is a distributed filesystem designed
for home users.
It is decentralized,
enables any device to store and access any data,
and allows decisions about what is stored where to be expressed
or viewed semantically.
Perspective provides flexible and
comprehensible file organization through the use of views.
A view is a concise description of the data stored on a given
device. Each view describes a particular set of data, defined by a
semantic query, and a device on which the data is stored.
A view-based replica management system
guarantees that any object that matches the view query will
eventually be stored on the device named in the view.
We will describe our query language in detail in Section 4.1.
Figure 1 illustrates a combination of management
tools and storage infrastructure that we envision, with views serving
as the connection between the two layers.
Users can set policies through management tools,
such as those described in Section 5,
from any device in the system at any time.
Tools implement these changes by manipulating views,
and the underlying infrastructure (Perspective)
in turn enforces those policies by keeping files in sync
among the devices according to the views.
Views provide a clear division point between tools
that allow users to manage data replicas and the underlying
filesystem that implements the policies.
View-based management enables the design points outlined in Section 2.2.
Views provide a primitive allowing users to
specify meaningful rule-based placement policies.
Because views are semantic, they unify the naming used for data access
and data management.
Views are also defined in a human-understandable
fashion, providing a basis for transparent automation.
Perspective provides data reliability using views without
restricting their flexibility,
allowing it to use a single
replica class.
3.1 Placing file replicas
In Perspective, the views control the distribution of data among the
devices in the system. When a file is created or updated, Perspective
checks the attributes of the file against the current list of views in
the system and sends an update message to each device with a view
that contains that file. Each device can then independently pull a
copy of the update.
When a device, A, receives an update message from another device, B,
it checks that the updated file does, indeed, match one or more views
that A has registered. If the file does match, then A applies the
update from B. If there is no match, which can occur if the
attributes of a file are updated such that it is no longer covered by
a view, then A ensures that there is no
replica of the file stored locally.
This simple protocol
automatically places new files, and also keeps current files
up to date according to the current views in the system.
Simple rules described in Section 4.3 assure that
files are never dropped due to view changes.
Each device is represented by a file in the
filesystem that describes the device and its characteristics. Views
themselves are also represented by files. Each device registers a
view for all device and view files to assure they are replicated
on all participating
devices.
This allows applications to manage views through the standard
filesystem interfaces, even if not all devices are
currently present.
3.2 View-based data management
Figure 1: View-based architecture. Views are the interface between management tools and the underlying heterogeneous, disconnected infrastructure. By manipulating the views, tools can specify data policies that are then enforced by the filesystem.
This subsection presents three
scenarios to illustrate view-based management.
Traveling:
Harry is visiting Sally at her house and would like to play a new U2
album for her while he is at her house. Before leaving, he checks the views
defined on his wireless music player and notices the songs are not stored on
the device, though he can play them from his laptop where they
are currently stored. He asks the music player to pull a copy of all
U2 songs, which the player does by creating a new view for this data.
When the synchronization is complete, the filesystem marks the view
as complete, and the music player informs Harry.
He takes the music player over to Sally's house. Because the views on
his music player are defined only for his household and the views on
Sally's devices for her household, no files are synchronized.
But, queries for "all music" initiated from Sally's digital stereo
can see the music files on Harry's music player, so they can listen
to the new U2 album off of Harry's
music player on the nice stereo speakers, while he is visiting.
Crash:
Mike's young nephew Oliver accidentally pushes the family desktop off
of the desk onto the floor and breaks it. Mike and his wife Carol have
each configured the system to store their files both on their respective laptop
and on the desktop, so their data is safe.
When they set up the replacement computer,
a setup tool pulls the device objects and views from other
household devices.
The setup tool gives them the option to
replace an old device with this computer, and they choose the old
desktop from the list of devices. The tool then creates views on the
device that match the views on the old desktop and deletes the device
object for the old computer. The data from Mike and Carol's laptops
is transferred to the new desktop in the background over the weekend.
Short on space:
Marge is working on a project for work on her laptop in the house.
While she is working, a capacity automation tool on her laptop
alerts her that the laptop is short on space.
It recommends that files created
over two years ago be moved to the family desktop, which has spare space.
Marge, who is busy with her project, decides to allow the capacity
tool to make the change.
She later decides to keep her older files on the
external hard drive instead, and makes the change using a view-editing
interface on the desktop.
4 Perspective design
This section details three
aspects of Perspective: semantic search and naming, consistent partial
replication of sets of files, and reliability maintenance and reasoning.
The Perspective prototype is implemented in C++ and runs at user-level
using FUSE [10] to
connect with the system. It currently runs on both Linux and
Macintosh OS X. Perspective stores file data in files in a repository on
the machine's local filesystem and metadata in a SQLite database with an XML
wrapper.
Our prototype implements all of the features described in this paper
except garbage collection and some advanced update log features.
The prototype system has supporting one researcher's household's
DVR, which is under heavy use; it is the exclusive television for
him and his four roommates, and is also frequently used by
sixteen other friends in the same complex. It has also stored
one researcher's personal data for about a year. It
has also been the backing store for the DVR in the lounge
for our research group for several months.
We are preparing the system for deployment in several non-technical
households for a wider, long-term user study over several months.
4.1 Search and naming
All naming in Perspective uses semantic metadata.
Therefore, search is a very common operation both for users and for
many system operations. Metadata queries can be made from any device
and Perspective will return references to all matching files
on devices currently accessible (e.g., on the local subnet),
which we will call the current device ensemble [33].
Views allow Perspective to route queries to
devices containing all needed files and, when other devices suffice,
avoid sending queries to power-limited devices.
While specialized applications may use
the Perspective API directly, we expect most applications to
access files through the standard VFS layer, just as they
access other filesystems.
Perspective provides this access using
front ends that support a variety of user-facing naming
schemes. These names are then converted
to Perspective searches, which are then passed on
to the filesystem. Our current prototype system implements four
front ends that each support a different organization: directory
hierarchies, faceted metadata, simple search, and
hierarchies synthesized from the values of specific tags.
Query language and operations:
We use a query language based on a subset of the XPath language used
for querying XML. Our language includes logic for comparing
attributes to literal values with equality, standard mathematical operators,
string search,
and an operator to determine if a document contains a given attribute.
Clauses can be combined with the logical operators
and, or, and not.
Each attribute is allowed to have a single value, but multi-value
attributes can be expressed in terms of single value attributes, if
necessary. We require all comparisons to be between attributes and
constant values.
In addition to standard queries, we support two
operations needed for efficient naming and reliability
analysis. The first is the enumerate values query, which
returns all values of an attribute found in files matching a given
query. The second is the enumerate attributes query,
which returns all the unique attributes found in files matching a given query.
These operations must be efficient; fortunately we can support them at
the database level using indices, which negate the need for full
enumeration of the files matching the query.
This language is expressive enough to capture many common data
organization schemes (e.g., directories, unions [27], faceted
metadata [43], and keyword search) but is still simple
enough to allow Perspective to efficiently reason
about the overlap of queries.
Perspective can support any of the
replica management functions described in this paper for any naming
scheme that can be converted into this language.
Overlap evaluation is commonly used to compare two queries.
The overlap evaluation operation returns one of
three values when applied to two queries: one query subsumes
the other, the two queries have no-overlap, or the relationship
between them is unknown.
Note that the comparison operator is used for efficiency but not correctness,
allowing for a trade-off between language complexity and efficiency.
For example, Perspective can determine
that the query all files where date < January, 2008 is subsumed
by the query all files where date < June, 2008,
and that the query all files where owner=Brandon does not
overlap with the query all files where owner=Greg. However, it cannot
determine the relationship between the queries
all files where type=Music
and all files where album=The Joshua Tree. Perspective
will correctly handle operations on the latter two queries, but at
some cost in efficiency.
4.2 Partial replication
Perspective supports partial replication among the devices in a home.
Devices in Perspective can each store disjoint sets of files - there
is no requirement that any master device store all files or that any
device mirror another in order to maintain reliability.
Previous systems have supported either partial replication [16,32] or topology independence [40],
but not both. PRACTI [7] provided a combination of the two
properties tied to directories, but probably could be extended to work
in the semantic case. Recently, Cimbiosis [28]
has also provided
partial replication with effective topology independence, although it requires
all files to be stored on some master device.
We present Perspective's algorithms to show that it is possible to build
a simple, efficient consistency protocol for a view-based system, but
a full comparison with previous techniques is beyond the scope of this
paper.
The related work section presents the differences and similarities
with previous work.
Synchronization:
Devices that are not currently accessible at the time of an update
will receive that update at
synchronization time, when the two devices exchange information
about updates that they may have missed.
Device and view files are always synchronized before other files, to make
sure the device does not miss files matching new views.
Perspective employs a modified update log to limit the exchanges to
only the needed information, much like the approach used in
Bayou [40]. However, the flexibility of views
makes this task more challenging.
For each update, the log contains the metadata for the file both
before and after the update. Upon receiving a sync request, a device
returns all updates that match the views for the calling device
either before or after the update. As in Bayou, the update log is only
an optimization; we can always fall back on full file-by-file synchronization.
Conventional full synchronization can be problematic for
heterogeneous devices with partial replication, especially
for resource- and battery-limited devices.
For example, if a cell phone
syncs with a desktop computer, it is not feasible for the cell phone
to process all of the files on the desktop, even occasionally.
To address this problem, Perspective includes a second synchronization
option. Continuing the example, the cell phone first asks the desktop
how many updates it would
return. If this number is too large, the cell phone can pass the metadata
of all the files it
owns to the desktop, along with the view query, and ask the desktop for
updates for any files that match the view or are contained in the set
of files currently on the cell phone. At each synchronization,
the calling device can choose either of these two methods, reducing
synchronization costs to O(Nsmaller), where Nsmaller is the number of files
stored on the smaller device.
Full synchronizations will only return the most recent version of
a file, which may cause gaps in the update logs.
If the update log has a gap in the
updates for a file, recognizable by a gap in the versions of the before
and after metadata, the calling
device must pass this update back to other devices on synchronization
even if the metadata does not match the caller's
views, to avoid missing updates to files which used to match
a view, but now do not.
Consistency:
As with many file systems that support some form of eventual
consistency, Perspective uses version vectors and epidemic propagation
to ensure that all file replicas eventually converge to the same
version. Version vectors in Perspective are similar to those used in
many systems; the vector contains a version for each replica that has
been modified.
Because Perspective does not have the concept of volumes, it
does not support volume-level consistency like Bayou.
Instead, it supports file-level consistency, like
FICUS [16].
To keep all file replicas consistent, we need to
assure that updates will eventually reach all replicas.
If all devices in the household sync with one
another occasionally, this property will be assured. While this is a
reasonable assumption in many homes, we do not require full pair-wise
device synchronization.
Like many systems built on epidemic propagation,
a variety of configurations satisfy this property.
For example, even if some remote device (e.g., a work computer)
never returns home, the property will still hold as long as some
other device that syncs with the remote device and does return home
(e.g., a laptop) contains all the data stored on the remote device.
System tools might even create views on such devices to facilitate
such data transfer, similar to the routing done in Footloose [24].
Alternately, a sync tree, as that used in Cimbiosis [28]
could be
layered on top of Perspective to provide connectedness guarantees.
By tracking the timestamps of the latest complete sync operation for each
device in the household, devices provide a freshness timestamp for
each view. Perspective can guarantee that all file versions
created before the freshness timestamp for a view are stored on that
view's device. It can also recommend sync operations needed to advance the
freshness timestamp for any view.
Conflicts:
Any system that supports disconnected operation must deal with
conflicts, where two devices modify the same file without
knowledge of the other device's modification.
We resolve conflicts first with a pre-resolver, which
uses the metadata of the two versions to deterministically choose a
winning and losing version. Our pre-resolver can be run
on any device without any global agreement.
It uses the file's modification time and then
the sorted version vector in the case of a tie. But, instead of
eliminating the losing version, the pre-resolver creates a new file,
places the losing version in this new file. It then tags the new
file with all metadata from the losing version, as well as
tags marking it as a conflict file and tying it to the winning version.
Later, a full resolver, which may ask for user input or use more
sophisticated logic, can search for conflict objects, remove duplicates,
and adjust the resolution as desired.
Capacity management:
Pushing updates to other devices can be problematic if those devices
are at full capacity. In this case, the full device will
refuse subsequent updates,
and mark the device file noting
that the device is out of space. Until a user or tool corrects
the problem, the device will continue to refuse updates, although
other devices will be able to continue. However, management tools
built on top of Perspective should help users address capacity
problems before they arise.
File deletion:
As in many other distributed filesystems, when a file is removed,
Perspective
keeps a tombstone marker that assures
all replicas of the file in the system are deleted, but is ignored by all
naming operations.
Perspective uses a two-phase garbage collection mechanism, like that
used in FICUS, between all devices with views that match
the file to which the tombstone belongs.
Note that deletion of a file
removes all replicas of a file in the system, which is a different operation
from dropping a particular replica of a file (done by manipulating
views).
This distinction also exists in any distributed filesystem
allowing replication.
View and device objects:
Each device is only required to store view and device objects from devices
that contain replicas of files it stores, although they must also
temporarily store view and device files for devices in the current
ensemble in order to access their files. Because views are very small
(hundreds of bytes), this is tractable, even for small devices like
cell phones.
4.3 Reliability with partial replication
In order to manage data semantically, users must be able to
provide fault-tolerance on data split semantically across a distributed set of
disconnected, eventually-consistent devices. Perspective enables semantic
fault-tolerance through two new algorithms, and
provides a way to efficiently reason
about the number of replicas of arbitrary sets of files. It also assures
that data is never lost despite arbitrary and disconnected view manipulation
using three simple distributed update rules.
Reasoning about number of replicas:
Reasoning about the reliability of a storage system - put simply,
determining the level of replication for each data item - is a
challenge in a partially-replicated filesystem. Since devices can
store arbitrary subsets of the data, there are no simple rules that
allow all of the replicas to be counted. A naïve solution would be
to enumerate all of the files on each device and count replicas.
Unfortunately, this would be prohibitively expensive and would be
possible only if all devices are currently accessible.
Fortunately, Perspective's views compactly and fully describe the
location of files in terms of their attributes. Since there are far fewer
views than there are file replicas in the system, it is cheaper to
reason about the number of times a particular query is
replicated among all of the views in the system than to enumerate all
replicas. The files in question could be replicated exactly
(e.g., all of the family's pictures are on two devices), they
could be subsumed by multiple views (e.g., all files are on the
desktop and all pictures are on the laptop), or they could be replicated
in part on multiple devices but never in full on any one device (e.g.,
Alice's pictures are on her laptop and desktop,
while Bob's pictures are on his laptop and desktop -
among all devices, the entire family's pictures have two replicas).
To efficiently reason about how views overlap,
Perspective uses overlap trees.
An overlap tree encapsulates the location of general subsets of data
in the system, and thus simplifies the task of determining the location
of the many data groupings needed by management tools.
An overlap tree is currently created each time a management
application starts, and then used throughout the application's runtime
to answer needed overlap queries.
Overlap trees are created using the enumeration queries described
in Section 4.1.
Each node contains a query, that describes the set of data the node
represents.
Each leaf node represents a subset of files whose location
can be precisely quantify using the views and records
the devices that store that subset.
Each interior node of the tree encodes a subdivision of the attribute
space, and contains a list of child nodes, each of which represents
a subset of the files that the parent node represents.
We begin building the tree by enumerating all of the
attributes that are used in the views found in the household.
We create a root node for the tree to represent all files,
choose the first attribute in our attribute list, and use
the enumerate values query to find all values of this
attribute for the current node's query.
We then create a child node from each value with a query
of the form < parent query > and attribute=value. We
compare the query for each child node against the complete views on
all devices. If the compare operator can give a precise answer (i.e.,
not unknown) for whether the query for this node is stored on
each device in the home, then this node is a leaf and we can stop dividing.
Otherwise,
we recursively perform this operation on the child node, dividing it
by the next attribute in our list. Figure 2 shows
an example overlap tree.
The ordering of the attribute list could be optimized to improve
performance of the overlap tree, but in the current implementation we leave
it unordered.
When we create an overlap tree,
we may
not have all the information needed to construct the tree. For example,
if we currently only have access to Brian's files, we may incorrectly
assume that all music files in the household are owned by Brian, when
music files owned by Mary exist elsewhere in the system.
The tree construction mechanism makes a notation in a node
if it cannot guarantee that all matching files are available
via the views. When checking for overlaps, if a marked node is required
the tree will return an unknown value,
but it will still correctly compute
overlaps for queries that do not require these nodes.
To avoid this restriction, devices are free to cache and update an overlap
tree, rather than recreating the overlap tree when each management
application starts.
The tree is small, making caching it easy. To keep it up to date,
a device can publish a view for all files,
and then use the updates to keep the cached tree up to date.
Once we have constructed the overlap tree, we can use it to
determine the location and number
of full copies in the system of the files for any given query.
Because the tree caches much of the overlap processing, each
individual query request can be processed efficiently.
We do so by traversing all of the leaf nodes
and finding those that overlap with the given view or query.
We may occasionally need to perform more costly overlap
detection, if the attribute in a leaf node does not match any of the
attributes in the query. For example, in the overlap tree in Figure
2, if we were checking to see if the query
album=Joshua Tree was contained in the node
owner=Mary and type=Music we
would use the enumerate values query to determine the values of "type" for
the query album=Joshua Tree and owner=Mary.
If "Music" is the only value, then we can count this node as a full match
in our computations. Otherwise, we cannot.
This extra comparison is only valid if we can determine via the views that
all files in
the query for which we are computing overlaps are accessible
Attributes with larger cardinalities can be handled more
efficiently by
selectively expanding the tree. For example, if a view is defined on
date < T, we need only expand the attribute date into three
sub-nodes,
one for date < T, one for date ³ T, and one
for has no date attribute.
Note that the number of
attributes used in views at any one time is likely to be much smaller
than the total number of attributes in the system, and both of these
will be much smaller than the total number of files or replicas. For example,
in our contextual analysis, most households described settings requiring
around 20 views and 5 attributes. None of households we interviewed
described more than 30 views, or more than 7 attributes.
Because the number of relevant attributes is small, overlap tree computations are fast enough to allow us to compute them in
real time as the user browses files. We will present a performance
comparison of overlap trees to the naïve
approach in Section 6.
Figure 2: Overlap tree. This figure shows an example overlap tree, constructed from a three-device, three-view scenerio: Brian's files stored on Brian's laptop, Mary's files stored on Mary's laptop, and Mary's music stored on the Family desktop. Shaded nodes are interior nodes, unshaded nodes are leaf nodes. Each leaf node lists whether this query is stored on each device the household.
Update rules:
Perspective maintains
permanence by guaranteeing that files will
never be lost by changes to views or addition or removal of devices,
regardless of the order, timing, or
origin of the changes, freeing the user from worrying about these
problems when making view changes.
We also provide a guarantee that, once a
version of a file is stored on the devices associated with all
overlapping views, it will always be stored in all overlapping views,
which provides a strong assurance on the number
of copies in the system based on the current views.
View freshness timestamps, as
described in Section 4.2, allow Perspective to
guarantee that all updates created before a given timestamp
are safely stored in the correct locations, and thus have
the fault-tolerance implied by the views.
These guarantees are assured by careful
adherence to three
simple rules:
1) When a file replica is modified by a device, it is marked as
"modified." Devices cannot evict modified replicas. Once a
modified replica has been pulled by a device holding a view
covering it, the file can be marked as unmodified and then removed.
2) A newly created view cannot be considered complete
until it has synced with all devices with overlapping views or
synced with one device with a view that subsumes the new view.
3) When a view is removed, all replicas in it are marked
as modified. The replicas are then removed when they
conform to rule 1.
These rules ensure that devices will not evict modified
replicas until they are safely on some "stable" location (i.e., in a
completely created view). The rules also assure that a device will not drop a
file until it has confirmed that another up-to-date replica of the
file exists somewhere in the system. However, a user can force the
system to drop a file replica without assuring another replica exists,
if she is confident that another replica exists and is willing to forgo
this system protection. With these rules, Perspective
can provide permanence guarantees without requiring central control or
limiting when or where views can be changed.
4.4 Security and cross-household sharing
Security is not a focus in this paper, but is certainly a concern for
users and system designers alike. While Perspective does not
currently support it, we envision using mechanisms such as those promoted by
the UIA project [8].
Our current prototype supports voluntary
access control using simplified access control lists.
While all devices are able to communicate and share replicas with one
another, even aside from security concerns it is helpful to divide households
from one another to divide management and view specification. To do so,
Perspective maintains a
household ID for each device and each file. Views are specified on files
within the given household, to avoid undesired cross-syncing. However,
the fundamental architecture of Perspective places no restrictions on
how these divisions are made.
5 View manager interface
To explore view-based management, we built a view manager tool
to allow users to manipulate views.
Customizable faceted metadata:
One way of visualizing and accessing semantic data is through the use
of faceted metadata [43]. Faceted metadata allows a user to
choose a first attribute to use to divide the data and a value at
which to divide. Then, the user can
choose another attribute to divide on, and so on.
Faceted metadata helps users browse semantic
information by giving them the flexibility to divide the data as needed.
But, it can present the user with a dizzying array of
choices in environments with large numbers of attributes.
To curb this problem, we developed customizable faceted metadata (CFM),
which exposes a small user-selected set of attributes
as directories plus one additional other groupings
directory that contains a full list of possible attributes.
The user can customize which attributes are displayed in the original list by
moving folders between the base directory and the other
groupings directory. These preferences are saved in a
customization object in the filesystem.
The file structure on
the left side of the interface in
Figure 3
illustrates CFM.
Perspective exposes CFM through the VFS layer,
so it can be accessed in the same way as a normal hierarchical filesystem.
View manager interface:
The view manager interface
(Figure 3), allows
users to create and delete views on devices and to see the
effects of these actions.
This GUI is built in Java and makes calls into the view library
of the underlying filesystem.
The GUI is built on
Expandable Grids [29], a user interface concept initially
developed to allow users to view and edit file system permissions.
Each row in the grid represents a file or file group, and each column
represents a device in the household. The color of a square represents whether
the files in the row are stored on the device in the column. The
files can be "all stored" on the device, "some stored" on the
device, or "not stored" on the device. Each option is represented
by a different color in the square. By clicking on a square a user can add
or remove the given files from the given device. Similarly to file
permissions, this allows users to manipulate actual
storage decisions, instead of rule lists.
An extra column, labeled "Summary of failure protection," shows
whether the given set of files is protected from one failure or not,
which is true if there are at least two copies
of each file in the set. By clicking on an unbacked-up square, the
user can ask the system to assure that two copies of the files are
stored in the system, which it will do by placing any extra needed
replicas on devices with free space.
An extra row contains all unique views and where they are stored,
allowing a user to see precisely what data is stored on each device at
a glance.
Figure 3: View manager interface. A screen shot of the view manager GUI. On the left are files, grouped using faceted metadata. Across the top are devices. Each square shows whether the files in the row are stored on the device in the column.
6 Evaluation
Our experience from working with many home storage users
suggests that users are very
concerned about the time and effort spent managing their devices and
data at home, which has motivated our design of Perspective, as well
as our evaluation. Therefore, we focus our study primarily on the
usability of Perspective's management capabilities and secondarily on
its performance overhead.
We conducted a lab study in which
non-technical users used Perspective, outfitted with appropriate user
interfaces, to perform home data
management tasks. We measured accuracy and completion
time of each task.
In order to
insulate our results as much as possible from the particulars of the
user interface used for each primitive, we built similar user interfaces for each
primitive using the Expandable Grids UI toolkit [29].
Views-facet interface: The views-facet
interface was described in Section 5. It
uses CFM to describe data, and allows users to
place any set of data described by the faceted metadata on any device
in the home.
Volumes interface: This user interface represents a
similar interface built on top of a more conventional volume-based
system with directory hierarchies.
Each device is classified
as a client or server, and this distinction is listed in the column
along with the device name. The volumes abstraction only allows
permanent copies of data to be placed on servers, and it restricts server
placement policies on volume boundaries. We defined each root level
directory (based on user) as a volume. The abstraction allows
placement of a copy of any subtree of the data on any client device,
but these replicas are only temporary caches and are not guaranteed
to be permanent or complete. The interface distinguishes between temporary
and permanent replicas by color.
The legend displays a summary of the rules for servers and
permanent data and for clients and temporary data.
Views-directory interface:
To tease apart the effects of semantic naming and using a single replica
class, we evaluated an intermediate interface,
which replaces the CFM organization with a traditional directory
hierarchy. Otherwise, it is identical to the views-facet interface.
In particular, it allows
users to place any subtree of the hierarchy on any device.
6.1 Experiment design
Our user pool consisted of students and staff from nearby universities in
non-technical fields who stated that they did not use their computers
for programming.
We did a between-group comparison, with each
participant using one of the three interfaces described above. We
tested 10 users in each group, for a total of 30 users overall.
The users performed a think-aloud study in which they spoke out
loud about their current thoughts and read out loud any text they
read on the screen, which provides insight into the difficulty of
tasks and users' interpretation.
All tasks were performed in a latin
square configuration, which guarantees that every task occurs in each
position in the ordering, and each task is equally likely to follow
any other task.
We created a filesystem with just over 3,000 files, based on
observations from our contextual analysis.
We created a setup with two users, Mary and Brian, and a
third "Family" user with some shared files.
We modeled Brian's file layout on the Windows music and pictures tools
and Mary's on Apple's iTunes and iPhoto file trees.
Our setup included four
devices: two laptops, a desktop, and a DVR.
We also provided the user with iTunes and iPhoto, with the libraries filled
with all of the matching data from the filesystem. This allowed us to
evaluate how users convert from structures in the applications to
the underlying filesystem.
Each participant performed the same set of tasks, which we designed
based on our
contextual analysis.
We started each user with a 5 to 10 minute training task, after which
our participants performed 10 data management tasks.
While space constraints preclude us including the full
text for all of them, as we discuss each class of tasks,
we include the text of one example task. For this study, we chose tasks
to illustrate the differences between the approaches. A base-case task
that was similar in all interfaces confirmed that, on these similar tasks,
all interfaces performed similarly. The tasks were divided into two
types: single replica tasks, and data organization tasks.
Single replica tasks:
Two single replica tasks (LH and CB) required the user to deal
with distinctions between
permanent and temporary replicas to be successful.
Example task, Mary's laptop comes home (LH):
"Mary has not
taken her laptop on a trip with her for a while now, so she has
decided to leave it in the house and make an extra copy of her files
on it, in case the Family desktop fails. However, Brian has asked her
not to make extra copies of his files or of the Family files. Make
sure Mary's files are safely stored on her laptop."
Mary's laptop was initially a client in the volume case. This task
asked the user to change it to a server before storing data there.
This step was not required for the single replica class interfaces,
as all devices are equivalent.
Note that because server/client systems, unlike Perspective,
are designed around non-portable servers for simplicity, it is not
feasible to simply make all devices servers.
Indeed, the volume interface actually makes this task much
simpler than current systems; in the volume interface, we allow
the user to switch a device from server to client
using a single menu option, where current distributed filesystems
require an offline device reformat.
Data organization tasks:
The data organization tasks required users
to convert from structures in the iTunes and iPhoto applications
into the appropriate structures in the filesystem.
This allowed us to test the differences between a hierarchical
and semantic, faceted systems.
The data organization tasks are divided into three types:
aggregation, comprehension, and sparse collection tasks.
Aggregation:
One major difference between semantic and hierarchical systems
is that because the hierarchy forces a single tree, tasks that
do not match the current tree require the user to aggregate data
from multiple directories. This is a
natural case as homes fill with aggregation devices and data is
shared across users and devices. However, in a hierarchical system, it is
difficult for users to know all the folders that correspond to a given
application grouping. Users often erroneously assumed all the files
for a given collection were in the same folder. The semantic structure
mitigates this problem, since the user is free to use a filesystem grouping
suited to the current specific task.
Example task, U2 (U2):
"Mary and Brian share music at home.
However, when Mary is on trips, she finds that she can't listen to all
the songs by U2 on her laptop. She doesn't listen to any other music
and doesn't want other songs taking up space on her laptop, but she
does want to be able to listen to U2. Make sure she can listen to all
music by the artist U2 on her trips."
As may often be the case in the home, the U2 files were spread across
all three user's trees in the hierarchical interfaces. The user
needed to use iTunes to locate the various folders. The semantic
system allowed the user to view all U2 files in a single grouping.
Aggregation is also needed when applications sort data
differently from what is needed for the current task.
For example, iPhoto places modified photos
in a separate folder tree from originals, making it tricky for users to get all the files for a particular
event.
The semantic structure allows applications to set and use attributes,
while allowing the user to group data as desired.
Example task, Rafting (RF):
"Mary and Brian went on a rafting
trip and took a number of photos, which Mary remembers they labeled as
`Rafting 2007'. She wants to show her mother these photos on Mary's
laptop. However, she doesn't want to take up space on her laptop for
files other than the `Rafting 2007' files. Make sure Mary can show the
photos to her mother during her visit."
The rafting photos were
initially in Brian's files, but iPhoto places modified copies of
photos in a separate directory in the iPhoto tree. To find both
folders, the user needed to explore the group in iPhoto. The
semantic system allows iPhoto to make the distinction, while
allowing the user to group all files from this roll in one
grouping.
Comprehension:
Applications can allow users to set
policies on application groupings,
and then convert them
into the underlying hierarchy. However, in addition to requiring
multiple implementations and methods for the same system tasks, this
leads to extremely messy underlying policies, which make it
difficult for users to understand, especially when viewing it from another
application.
In contrast, semantic systems
can retain a description of the policy as specified by the application, making
them easier for users to understand.
Example task, Traveling Brian (TB):
"Brian is taking a trip
with his laptop. What data will he be able to access while on his
trip? You should summarize your answer into two classes of data."
Brian's laptop contained all of his files and all of the music files
in the household. However, because iTunes places TV shows in the
Music repository, the settings included all of the music subfolders,
but not the "TV Shows" subfolder, causing confusion.
In contrast, the semantic system allows the
user to specify both of these policies in a single view, while still
allowing applications to sort the data as needed.
Note that this particular task would be simpler if iTunes chose
to sort its files differently, but the current iTunes organization is
critical for other administrative tasks, such as backing up a user's full
iTunes library. It is impossible to find a single hierarchical grouping that
will be suited to all needed operations. This task illustrates how
these kinds of mismatches occur even for common tasks and
well-behaved applications.
Sparse collection:
Two sparse collection tasks (BF and HV)
required users to make policies on collections that contain single
files from across the tree, such as song playlists. These structures
do not lend themselves well to a hierarchical structure, so
they are kept externally in application structures,
forcing users to re-create these policies by hand.
In contrast, semantic structures allow applications to push these
groupings into the filesystem.
Example task, Brian favorites (BF):
"Brian is taking a trip
with his laptop. He doesn't want to copy all music onto his laptop
as he is short on space, but he wants to have all of the songs on
the playlist "Brian favorites"."
Because the playlist does not
exist in the hierarchy, the user had to add the nine files in the playlist
individually,
after looking up the locations using
iTunes. In the semantic system, the playlist is included as a tag,
allowing the user to specify the policy in a single step.
6.3 Results
All of the statistically significant comparisons are in favor of
the facet interface over the alternative approaches, showing
the clear advantage of semantic management for these tasks.
For the single replica tasks the facet and directory interfaces
perform comparably, as expected, with an average accuracy of 95% and 100%
respectively, compared to an average of 15% for the volume interface.
For the data organization tasks, the facet interface outperforms the
directory and volume interfaces with an average accuracy of 66% compared
to 14% and 6% respectively. Finally, while the accuracy of sparse tasks
is not significantly different, the average time for completion for the facet
interface is 73 seconds, compared to 428 seconds for the directory
interface and 559 seconds for the volume interface.
We discuss our statistical comparisons and the tasks in more detail
in this section.
Statistical analysis: We performed a statistical analysis
on our accuracy results in order to test the strength of our findings.
Because our data was not well-fitted to the chi-squared test, we used
a one-sided Fisher's Exact Test for accuracy and a t-test to compare times.
We used Benjamini-Hochberg correction to
adjust our p values to correct for our use of
multiple comparisons. As is conventional in HCI studies, we used
a = .05. All the comparisons mentioned in this section
were statistically significant, except where explicitly mentioned.
Single replica tasks:
Figure 4 shows results from the single replica tasks.
As expected, the directory and view interfaces, which both have a single replica
class, perform equivalently,
while the volume interface suffers heavily due to the extra complexity of
two distinct replica classes.
The comparisons between the single replica interfaces and the volume interface
are all statistically significant. We do not show times, because they showed
no appreciable differences.
Figure 4: Single replica task results. This graph shows the results of the single replica tasks.
Data organization tasks:
Results from the three aggregation tasks (U2, RF, and TV),
and the two comprehension tasks (TB and TM)
are shown in Figure 5. As expected, the
faceted metadata approach performs significantly better than the
alternative approaches, as the filesystem structure more closely matches
that of the applications. The facet interface is statistically better
than both the other interfaces in the aggregation tasks, but we would
need more data for statistical significance for the comprehension tasks.
Figure 5: Data organization task results. This graph shows the results from the aggregation and comprehension tasks.
Figure 6 shows the
accuracy and time metrics for the sparse tasks (BF and HV).
Note that none of the accuracy comparisons are statistically significant.
This is because in the sparse tasks, each file is in a unique location,
making the correlation between application structure
and filesystem structure clear, but very inconvenient.
In contrast, for the other aggregation tasks the correlation
between application and structures and the filesystem was hazy,
leading to errors.
However, setting the policy on each individual file was extremely
time consuming, leading to a statistically significant difference
in times. The one exception is the HV task, where too few
volume users correctly performed the task to allow comparison with
the other interfaces.
Indeed, the hierarchical interfaces took an order
of magnitude longer than the facet interface for these tasks.
Thus re-creating the groups was difficult, leading to frustration and frequent grumbling that
"there must be a better way to do this."
Figure 6: Sparse collection task results. This graph shows the results from all of the sparse collection tasks.
6.4 Performance evaluation
We have found that Perspective generally incurs negligible overhead over the
base filesystem, and its performance is sufficient for everyday use.
Using overlap trees to reason about the location of files based
on the available views is a significant improvement over simpler
schemes.
All our tests were run on a MacBook Pro 2.5GHz Intel Core Duo with 2GB RAM
running Macintosh OS X 10.5.4.
Performance overhead:
Our benchmark
writes 200 4MB files,
clearing the cache by writing a large amount of data elsewhere
and then re-reading all 800MB. This sequential workload on
small files simulates common media workloads.
For these tasks, we compared
Perspective to HFS+, the standard OS X filesystem.
Writing the files on HFS+ and Perspective took 18.1 s
and 18.6 s, respectively. Reading them took 17.0 s
and 17.2 s, respectively.
Perspective has less than a 3%
overhead in both phases of this benchmark.
In a more real-world scenario, Perspective has been used by the authors for several months as the backing store for
several multi-tuner DVRs, without performance problems.
Overlap trees:
Overlap trees allow us to efficiently compute how many copies of a
given file set are stored in the system, despite the more flexible
storage policies that views provide. It is important to make this
operation efficient because, while it is only used in administration
tasks, these tasks require calculation of a large number of these
overlaps in real time as the user browses and manipulates data
placement policies.
Figure 7 summarizes the benefits of
overlap trees. We compared overlap trees to a simple method that
enumerates all matching files and compares them against the views
in the system. We break out the cost for tree creation and then the
cost to compute an overlap. The "probe" case uses a query and view
set that requires the overlap tree to probe the filesystem to compute
the overlap, while the "no probe" case can be determined solely
through query comparisons. Overlap trees take a task
that would require seconds or minutes and turns it into a task
requiring milliseconds.
Figure 7: Overlap tree benchmark. This table shows the results from the overlap tree benchmark. It compares the time to create a tree and perform an overlap comparison, with or without probes, and compares to the simple enumerate approach. The results are the average of 10 runs.
7 Related work
A primary contribution of Perspective is the use of semantic
queries to manage the replication of data. Specifically,
it allows the system to provide accessibility and reliability guarantees
over semantic, partially replicated data. This builds on
previous semantic systems that used queries to locate
data, and hierarchies to manage data.
Our user study evaluation shows that,
by supporting semantic management, Perspective can simplify important
management tasks for end users.
Another contribution is a filesystem design
based on in-situ analysis of the home environment.
This overall design could be implemented on top of a variety of underlying
filesystem implementations, but we believe that a fully
view-based system provides simplicity to both user and designer
by keeping the primitives similar throughout the system.
While no current system provides all of the
features of Perspective, Perspective builds on a wealth of previous
work in data placement, consistency, search and publish/subscribe event
notification.
In this section we discuss this related work.
Data placement: Views allow flexible data placement
used to provide both reliability and mobility. Views are another
step in a long progression of increasingly flexible data placement
schemes.
The most basic approach to storing data in the
home is to put all of the data on a single server and make all other
devices in the home clients of this server. Variations of this
approach centralize control, while allowing data to be cached on
devices [18,35].
To provide better reliability, AFS [34] expanded the
single server model to include a tier of
replicated servers, each connected in a peer-to-peer fashion. However,
clients cannot access data when they are out of contact with
the servers. Coda [32] addressed this problem by
allowing devices to enter a disconnected mode, in which devices use
locally cached data defined by user hoarding priorities.
However, hoarded replicas do not provide the reliability guarantees
allowed by volumes because devices make no guarantee about what data resides
on what devices, or how long they will keep the data they currently store.
Views extend this notion by
allowing volume-style reliability guarantees along with the
flexibility of hoarding in the same abstraction.
A few filesystems suggested even more flexible methods of organizing
data. BlueFS extended the hoarding primitive to allow client devices to
access data hoarded on portable storage devices,
in addition to the local device, but did not explore the use of
this primitive for accessibility or reliability beyond that provided
by Coda [21].
Footloose [24] proposed allowing individual devices to
register for data types in this kind of system as an alternative to
hoarding files, but did not expand it to general publish/subscribe-style
queries, or explore how to use this primitive for mobility and reliability
management or for distributed search.
Consistency:
Perspective supports decentralized, topology-independent consistency for
semantically-defined, partially replicated data,
a critical feature for the home environment.
While no previous system provides these properties out of the box,
PRACTI [7] also provides a framework for topology-independent
consistency of partially replicated data over directories,
in addition to allowing a group of sophisticated consistency guarantees.
PRACTI could probably be extended to use semantic
groupings fairly simply, and thus provide consistency properties like
Perspective. Recently, Cimbiosis [28] has also built
on a view-style
system of partial replication and topology independence, with a
different consistency model.
Cimbiosis also presents a sync tree which provides a distributed
algorithm to ensure connectedness, and routes updates in a more flexible
manner. This sync tree could be layered on top of Perspective or
PRACTIs consistency mechanisms to provide these advantages.
We chose our approach over Cimbiosis because it does not require any device
to store all files, while Cimbiosis has this requirement. Many of
the households in our contextual analysis did not have any such master
device, leading us to believe requiring it could be a problem.
Perspective also does not require small devices to track
any information about the data stored on other devices,
while PRACTI requires them to store imprecise summaries.
However, there are advantages to each of these approaches as well.
For example, PRACTI provides a more flexible consistency model than
Perspective, and Cimbiosis a more compact log structure.
A full comparison of the differences between these approaches, and
the relative importance of these differences, is beyond the scope of this paper.
We present
Perspective's algorithms to show that it is possible to build
a simple, efficient consistency protocol for a view-based system.
Previous peer-to-peer systems such as
Bayou [40], FICUS [16] and Pangaea [30]
extended synchronization
and consistency algorithms to accommodate mobile devices,
allowing these systems to blur or eliminate the distinction
between server and client. However, none of these systems fully
support topology-independent consistency with partial replication.
EnsemBlue [25] takes a middle ground,
providing support for groups of client devices
to form device ensembles [33], which can share data
separately from a server through the creation of a temporary
pseudo-server, but requiring a central server for consistency and reliability.
Search: We believe that effective home data management
will use search on data attributes to allow flexible access to data
across heterogeneous devices. Perspective takes the naming techniques
of semantic systems and applies them to the replica
management tasks of mobility and reliability as well.
Naturally, Perspective borrows its semantic naming structures and search
techniques from a rich history of previous work. The Semantic
Filesystem [12] proposed the use of attribute queries to
locate data in a file system, and subsequent systems showed how these
techniques could be extended to include
personalization [14]. Flamenco [43] uses "faceted
metadata," a scheme much like the semantic filesystem's. Many newer
systems [3,13,19,37]
borrow from the Semantic Filesystem by adding semantic information to
filesystems with traditional hierarchical naming. Microsoft's
proposed WinFS filesystem also incorporated semantic
naming [42].
Perspective also uses views to provide efficient distributed search,
by guiding searches to appropriate devices.
The most similar work is HomeViews [11], which
uses a primitive similar to Perspective's views
to allow users to share read-only data.
HomeViews combines capabilities with persistent queries to provide an
extended version of search over data, but do not use them
to target replica management tasks like reliability.
Replica indices and publish/subscribe:
In order to provide replica coherence
and remote data access, filesystems need a replica indexing system
that forwards updates to the correct
file replicas and locates the replicas of a given file when it is accessed
remotely.
Previous systems have used volumes to index replicas
[32,34],
but did not support replica indexing in a partially replicated peer-ensemble.
EnsemBlue [25] extended the volume model to support
partially replicated peer-ensembles by allowing
devices to store a single copy of all replica locations onto a temporarily
elected pseudo-server device.
EnsemBlue also showed how its replica indexing system could be
leveraged to provide more general application-level event notification.
Perspective takes an inverse approach; it
uses a publish/subscribe model to implement replica indexing
and, thus, application-level event notification.
This matches the semantic nature of views.
This work does not propose algorithms beyond
the current publish/subscribe literature
[1,4,6,26,38],
it applies publish/subscribe algorithms to the new area of
file system replica indices.
Using a publish/subscribe method for replica indexing provides
advantages over a pseudo-server scheme, such as efficient
ensemble creation, but also disadvantages, such as requiring view changes
to move replicas. Again, a full comparison
of alternative approaches is beyond the scope of the paper. We present
Perspective's algorithms to show that replica indexing can be
performed efficiently using views.
User studies: While we believe our contextual analysis
is the first focused on home data organization and reliability,
researchers have conducted a wealth of studies on technology use and
management, especially in the home [2,5,9,15,17,20,22,39].
We borrow our methods from these previous studies, and use
them to ground our exploration and analysis.
8 Conclusion
Home users struggle with replica management tasks that are normally
handled by professional administrators in other environments.
Perspective provides distributed storage for the home with a new
approach to data location management: the view.
Views simplify replica management tasks for home storage users, allowing
them to use the same attribute-based naming style for such tasks as for
their regular data navigation.
Acknowlegements
We thank Rob Reeder, Jay Melican, and Jay Hasbrouck for helping
with the users studies.
We also thank the members and companies of the PDL Consortium
(including APC, Cisco, DataDomain, EMC, Facebook, Google, HP,
Hitachi, IBM, Intel, LSI, Microsoft, NetApp, Oracle, Seagate,
Sun, Symantec, and VMware)
for their interest, insights, feedback, and support.
This material is based on research sponsored in part by the
National Science Foundation, via grants #CNS-0326453 and #CNS-0831407,
and by the Army Research
Office, under agreement number DAAD19-02-1-0389.
Brandon Salmon is supported in part by an Intel Fellowship.
References
[1] Marcos K. Aguilera, Robert E. Strom, Daniel C. Sturman,
Mark Astley, and Tushar D. Chandra. Matching events
in a content-based subscription system. PODC. (Atlanta,
GA, 04-06 May. 1999), pages 53-61. ACM, 1999.
[2] R. Aipperspach, T. Rattenbury, A. Woodruff, and
J. Canny. A Quantitative Method for Revealing and Com-
paring Places in the Home. UBICOMP (Orange County,
CA, Sep. 2006), 2006.
[3] Beagle web page, http://beagle-project.org, 2007.
[4] Sumeer Bhola, Yuanyuan Zhao, and Joshua Auerbach.
Scalably supporting durable subscriptions in a publish/subscribe system. DSN. (San Francisco, CA, 22-25
Jun. 2003), pages 57-66. IEEE, 2003.
[5] A. J. Bernheim Brush and Kori M. Inkpen. Yours, Mine
and Ours? Sharing and Use of Technology in Domestic
Environments. UBICOMP 07, 2007.
[6] Antonio Carzaniga, David S. Rosenblum, and Alexander L. Wolf. Achieving Expressiveness and Scalability in
an Internet-Scale Event Notification Service. Nineteenth
ACM Symposium on Principles of Distributed Computing
(PODC2000) (Portland, OR, Jul. 2000), pages 219?227,
2000.
[7] Mike Dahlin, Lei Gao, Amol Nayate, Arun Venkataramana, Praveen Yalagandula, and Jiandan Zheng. PRACTI
Replication. NSDI. (May. 2006), 2006.
[8] Bryan Ford, Jacob Strauss, Chris Lesniewski-Laas, Sean
Rhea, Frans Kaashoek, and Robert Morris. Persistent
personal names for globally connected mobile devices.
OSDI. (Seattle, WA, 06-08 Nov. 2006), pages 233-248.
USENIX Association, 2006.
[9] David M. Frohlich, Susan Dray, and Amy Silverman.
Breaking up is hard to do: family perspectives on the future of the home PC. International Journal of Human-Computer Studies, 54(5):701-724, May. 2001.
[10] Filesystem in User Space. http://fuse.sourceforge.net/.
[11] Roxana Geambasu, Magdalena Balazinska, Steven D.
Gribble, and Henry M. Levy. HomeViews: Peer-to-Peer
Middleware for Personal Data Sharing Applications. SIGMOD., 2007.
[12] David K. Gifford, Pierre Jouvelot, Mark A. Sheldon, and
James W. O?Toole Jr. Semantic file systems. SOSP.
(Asilomar, Pacific Grove, CA). Published as Operating
Systems Review, 25(5):16?25, 13?16 Oct. 1991.
[13] Google desktop web page, http://desktop.google.com,
Aug. 2007.
[14] Burra Gopal and Udi Manber. Integrating Content-
based Access Mechanisms with Heirarchical File Systems. OSDI. (New Orleans, LA, Feb. 1999), 1999.
[15] Rebecca E Grinter, W Keith Edwards, Mark W Newman,
and Nicolas Ducheneaut. The work to make a home
network work. European Conference on Computer Sup-
ported Cooperative Work (ESCW) (Paris, France, 18?22
Sep. 2005), 2005.
[16] Richard G. Guy. Ficus: A Very Large Scale Reliable Dis-
tributed File System. PhD thesis, published as Ph.D. The-
sis CSD-910018. University of California, Los Angeles,
1991.
[17] Thomas Karagiannis, Elias Athanasopoulos, Christos
Gkantsidis, and Peter Key. HomeMaestro: Order from
Chaos in Home Networks. MSR-TR 2008-84. Microsoft
Research, May. 2008.
[18] Alexandros Karypidis and Spyros Lalis. OmniStore:
A system for ubiquitous personal storage management.
IEEE International Conference on Pervasive Computing
and Communications. IEEE, 2006.
[19] Dahlia Malkhi and Doug Terry. Concise Version Vectors
in WinFS. DISC. (Cracow, Poland, Sep. 2005), 2005.
[20] Catherine C Marshall. Rethinking Personal Digital
Archiving, Part 1: Four Challenges from the Field. DLib
Magazine, 14(3/4), Mar. 2008.
[21] Edmund B. Nightingale and Jason Flinn. Energy-
efficiency and storage flexibility in the Blue file system.
OSDI. (San Francisco, CA, 06?08 Dec. 2004), pages
363?378. USENIX Association, 2004.
[22] Jon O'Brien, Tom Rodden, Mark Rouncefield, and John
Hughes. At home with the technology: an ethnographic
study of a set-top-box trial. CHI, 1999.
[23] John K. Ousterhout, Andrew R. Cherenson, Fredrick
Douglis, Michael N. Nelson, and Brent B. Welch. The
Sprite network operating system. IEEE Computer,
21(2):23?36, Feb. 1988.
[24] Justin Mazzola Paluska, David Saff, Tom Yeh, and
Kathryn Chen. Footloose: A Case for Physical Even-
tual Consistency and Selective Conflict Resolution. IEEE
Workshop on Mobile Computing Systems and Applications (Monterey, CA, 09?10 Oct. 2003), 2003.
[25] Daniel Peek and Jason Flinn. EnsemBlue: Integrating dis-
tributed storage and consumer electronics. OSDI (Seattle,
WA, 06?08 Nov. 2006), 2006.
[26] Peter R. Pietzuch and Jean M. Bacon. Hermes: A Dis-
tributed Event-Based Middleware Architecture. Interna-
tional Workshop on Distributed Event-Based Systems (Vienna, Austria), 2002.
[27] Rob Pike, Dave Presotto, Ken Thompson, and Howard
Trickey. Plan 9 from Bell Labs. United Kingdom
UNIX systems User Group (London, UK, 9?13 Jul. 1990),
pages 1?9. United Kingdom UNIX systems User Group,
Buntingford, Herts, 1990.
[28] Venugopalan Ramasubramanian, Thomas L. Rodeheffer,
Douglas B. Terry, Meg Walraed-Sullivan, Ted Wobbler,
Catherine C. Marshall, and Amin Vahdat. Cimbiosys:
A Platform for content-based partial replication. NSDI.
(Boston, MA, Apr. 2009), 2009.
[29] Robert W. Reeder, Lujo Bauer, Lorrie Faith Cranor,
Michael K. Reiter, Kelli Bacon, Keisha How, and Heather
Strong. Expandable grids for visualizing and authoring
computer security policies. CHI (Florence, Italy, 2007),
2007.
[30] Yasushi Saito and Christos Karamanolis. Name space
consistency in the Pangaea wide-area file system. HP
Laboratories SSP Technical Report HPL?SSP?2002?12.
HP Labs, Dec. 2002.
[31] Brandon Salmon, Frank Hady, and Jay Melican. Learning to Share: A Study of Sharing Among Home Storage
Devices. Technical Report CMU-PDL-07-107. Carnegie
Mellon University, Oct. 2007.
[32] M. Satyanarayanan. The evolution of Coda. ACM Transactions on Computer Systems, 20(2):85?124. ACM Press,
May. 2002.
[33] Bill Schilit and Uttam Sengupta. Device Ensembles.
IEEE Computer, 37(12):56?64. IEEE, Dec. 2004.
[34] Bob Sidebotham. VOLUMES ? the Andrew file system
data structuring primitive. EUUGAutumn. (Manchester,
England, 22?24 Sep. 1986), pages 473?480. EUUG Secretariat, Owles Hall, Buntingford, Herts SG9 9PL, Sep.
1986.
[35] Sumeet Sobti, Nitin Garg, Fengzhou Zheng, Junwen Lai,
Yilei Shao, Chi Zhang, Elisha Ziskind, Arvind Krishnamurthy, and Randolph Y. Wang. Segank: a distributed
mobile storage system. FAST. (San Francisco, CA, 31
Mar.?02 Apr. 2004), pages 239?252. USENIX Association, 2004.
[36] Craig A. N. Soules and Gregory R. Ganger. Connections: Using Context to Enhance File Search. SOSP.
(Brighton, United Kingdom, 23?26 Oct. 2005), pages
119?132. ACM, 2005.
[37] Spotlight web page, http://www.apple.com/macosx/features/spotlight, Aug. 2007.
[38] Peter Sutton, Rhys Arkins, and Bill Segall. Supporting
Disconnectedness - Transparent Information Delivery for
Mobile and Invisible Computing. International Symposium on Cluster Computing and the Grid (CCGrid), 2001.
[39] Alex S. Taylor, Richard Harper, Laurel Swan, Shahram
Izadi, Abigail Sellen, and Mark Perry. Homes that make
us smart. Personal and Ubiquitous Computing. Springer
London, 2006.
[40] Douglas B. Terry, Marvin M. Theimer, Karin Petersen,
Alan J. Demers, Mike J. Spreitzer, and Carl H. Hauser.
Managing update conflicts in Bayou, a weakly connected
replicated storage system. SOSP. (Copper Mountain Resort, CO, 3?6 Dec. 1995). Published as Operating Systems Review, 29(5), 1995.
[41] Mark Weiser. The computer for the 21st century. Scientific American, Sep. 1991.
[42] WinFS 101: Introducing the New Windows File System,
March 2007. http://msdn.microsoft.com/en-us/library/aa480687.aspx.
[43] Ping Yee, Kirsten Swearingen, Kevin Li, and Marti
Hearst. Faceted Metadata for Image Search and Browsing. CHI, 2003.
File translated from
TEX
by
TTH,
version 3.38.
On 14 Jan 2009, 02:13.
