4th USENIX Symposium on Networked Systems Design & Implementation
Pp. 29–42 of the Proceedings
Cobra: Content-based Filtering and Aggregation of Blogs and
RSS Feeds
Ian Rose, Rohan Murty, Peter Pietzuch, Jonathan
Ledlie,
Mema Roussopoulos, and Matt Welsh
School of Engineering and Applied Sciences
Harvard University
{ianrose,rohan,prp,jonathan,mema,mdw}@eecs.harvard.edu
Abstract
Blogs and RSS feeds are becoming increasingly popular. The blogging
site LiveJournal has over 11 million user accounts, and according to
one report, over 1.6 million postings are made to blogs every day.
The "Blogosphere" is a new hotbed of
Internet-based media that represents a shift from
mostly static content to dynamic, continuously-updated discussions.
The problem is that finding and tracking blogs with interesting
content is an extremely cumbersome process.
In this paper, we present Cobra (Content-Based RSS Aggregator),
a system that crawls, filters, and aggregates vast numbers of
RSS feeds, delivering to each user a personalized feed based on their
interests. Cobra consists of a three-tiered network of crawlers that
scan web feeds, filters that match crawled articles to user subscriptions,
and reflectors that provide recently-matching articles on each subscription
as an RSS feed, which can be browsed using a standard RSS reader.
We present the design, implementation, and evaluation of Cobra
in three settings: a dedicated cluster, the Emulab testbed, and on
PlanetLab. We present a detailed performance study of the Cobra system,
demonstrating that the system is able to scale well to support a large
number of source feeds and users; that the mean update detection latency
is low (bounded by the crawler rate); and that an offline service provisioning
step combined with several performance optimizations are effective
at reducing memory usage and network load.
1 Introduction
Weblogs, RSS feeds, and other sources of "live" Internet content
have been undergoing a period of explosive growth. The popular
blogging cite LiveJournal reports over 11 million accounts, just over
1 million of which are active over the last month [2].
Technorati, a blog tracking site, reports a total of
50 million blogs worldwide; this number is currently doubling
every 6 months [38]. In July 2006, there were over
1.6 million blog postings every day. These numbers are staggering and
suggest a significant shift in the nature of Web content from mostly
static pages to continuously updated conversations.
The problem is that finding interesting content in this burgeoning
blogosphere is extremely difficult. It is unclear that conventional
Web search technology is well-suited
to tracking and indexing such rapidly-changing content. Many users make
use of RSS feeds, which in conjunction with an appropriate reader, allow
users to receive rapid updates to sites of interest. However,
existing RSS protocols require each client to periodically poll to
receive new updates. In addition, a conventional RSS feed only covers an
individual site, such as a blog. The current approach used by many users is
to rely on RSS aggregators, such as SharpReader and FeedDemon, that collect
stories from multiple sites along thematic lines (e.g., news or sports).
Our vision is to provide users with the ability to perform content-based
filtering and aggregation across millions of Web feeds,
obtaining a personalized feed containing only those articles that
match the user's interests. Rather than requiring users to keep tabs on
a multitude of interesting sites, a user would receive near-real-time
updates on their personalized RSS feed when matching articles are
posted. Indeed, a number of "blog search" sites have recently sprung up,
including Feedster, Blogdigger, and Bloglines. However, due to their proprietary architecture, it is unclear how well
these sites scale to handle large numbers of feeds, vast numbers of
users, and maintain low latency for pushing matching articles to
users. Conventional search engines, such as Google, have recently
added support for searching blogs as well but also without any
evaluation.
This paper describes Cobra (Content-Based RSS Aggregator), a
distributed, scalable system that provides users with a personalized
view of articles culled from potentially millions of RSS feeds.
Cobra consists of a three-tiered network of crawlers that pull
data from web feeds, filters that match articles against user
subscriptions, and reflectors that serve matching articles on
each subscription as an RSS feed, that can be browsed using a standard
RSS reader. Each of the three tiers of the Cobra network is
distributed over multiple hosts in the Internet, allowing network and
computational load to be balanced, and permitting locality
optimizations when placing services.
The core contributions in this paper are as follows.
First, Cobra makes use of a novel offline service provisioning technique
that determines the minimal amount of physical resources required to host
a Cobra network capable of supporting a given number of source feeds
and users. The technique determines the configuration of the network
in terms of the number of crawlers, filters, and reflectors, and the
interconnectivity between these services. The provisioner takes into
account a number of characteristics including models of the bandwidth
and memory requirements for each service and models of the feed content
and query keyword distribution.
Our second contribution is a set of optimizations designed
to improve scalability and performance of Cobra under heavy load. First,
crawlers are designed to intelligently filter source feeds using a
combination of HTTP header information, whole-document and per-article
hashing. These optimizations result in a 99.8% reduction in bandwidth
usage. Second, the filter service makes use of an efficient text
matching algorithm [18,29] allowing over 1 million
subscriptions to match an incoming article in less than 20 milliseconds.
Third, Cobra makes use of a novel approach for assigning source feeds
to crawler instances to improve network locality. We perform network
latency measurements using the King [24] method to assign
feeds to crawlers, improving the latency for crawling operations and
reducing overall network load.
The third contribution is a full-scale experimental evaluation of
Cobra, using a cluster of machines at Harvard, on the Emulab network
emulation testbed, and on PlanetLab.
Our results are based on measurements of 102,446 RSS feeds
retrieved from syndic8.com and up to 40 million
emulated user queries. We present a detailed performance
study of the Cobra system, demonstrating that the system is able to
scale well to support a large number of source feeds and users; that
the mean update detection latency is low (bounded by the crawler rate);
and that our offline provisioning step combined with the various
performance optimizations are effective at reducing overall memory
usage and network load.
2 Related Work
Our design of Cobra is motivated by the rapid expansion of blogs and RSS
feeds as a new source of real-time content on the Internet.
Cobra is a form of content-based publish-subscribe system that is
specifically designed to handle vast numbers of RSS feeds and a large
user population.
Here, we review previous work in pub-sub systems, both traditional and
peer-to-peer designs. The database community has also developed systems
for querying large numbers of real-time streams, some of which are
relevant to Cobra.
Traditional Distributed Pub-Sub Systems: A number of distributed
topic-based pub-sub systems have been proposed where subscribers
register interest in a set of specific topics. Producers that generate
content related to those topics publish the content on the corresponding
topic channels [12,22,27,5,6,7] to which the users are
subscribed and users receive asynchronous updates via these channels.
Such systems require publishers and subscribers to agree up front about
the set of topics covered by each channel, and do not permit arbitrary
topics to be defined based on a user's specific interests.
The alternative to the topic-based systems are content-based
pub-sub systems [39,37,13,40].
In these systems, subscribers describe content attributes of interest
using an expressive query language and the system filters and matches
content generated by the publishers to the subscribers' queries. Some
systems support both topic-based and content-based
subscriptions [32]. For a detailed survey of pub-sub
middleware literature, see [31].
Cobra differentiates itself from other pub-sub systems in two ways.
First, distributed content-based pub-sub systems such as
Siena [13] leave it up to the network administrator to
choose an appropriate overlay topology of filtering nodes. As a result,
the selected topology and the number of filter nodes may or may not
perform well with a given workload and distribution of publishers and
subscribers in the network. By providing a separate provisioning
component that outputs a custom-tailored topology of processing
services, we ensure that Cobra can support a targeted work load. Our
approach to pub-sub system provisioning is independent from our
application domain of RSS filtering and could be used to provision a
general-purpose pub-sub system like Siena, as long as appropriate
processing and I/O models are added to the service provisioner.
Second, Cobra integrates directly with existing protocols for delivering
real-time streams on the Web - namely, HTTP and RSS. Most other
pub-sub systems such as Siena do not interoperate well with the current
Web infrastructure, for example, requiring publishers to change the way
they generate and serve content, and requiring subscribers to register
interest using private subscription formats. In addition, the filtering
model is targeted at structured data conforming to a well-known schema,
in contrast to Cobra's text-based queries on (relatively unstructured)
RSS-based web feeds.
Peer-to-Peer Overlay Networks: A number of content-delivery
and event notification systems have been developed using
peer-to-peer overlay networks, where the premise is that these systems
are highly dynamic and can contain a large number of nodes exhibiting
high rates of churn.
As we explain in Section , we do not envision
running Cobra in a peer-to-peer setting where nodes are contributed
by volunteers, but instead assume the use of well-provisioned hosting
centers, as is currently the norm for commercial Internet services.
Nonetheless, it is worth describing some of the other design
differences with these systems.
Corona [34] is a pub-sub system for the Web
built on top of Pastry [35]. Users specify interest in
specific URLs and updates are sent to users using instant message
notifications. The main goal of Corona is to mitigate the polling
overhead placed on monitored URLs, which is accomplished by spreading
polling load among cooperating peers and amortizing the overhead of
crawling across many users interested in the same URL. An informed algorithm
determines the optimal assignment of polling tasks to peers to meet
system-wide goals such as minimizing update detection time or minimizing
load on content servers.
Corona is strictly concerned with allowing users to monitor an individual
URL and focuses on the efficiency of the polling operation.
Unlike Cobra, Corona does not permit an individual user to monitor a
large number of web feeds simultaneously, nor specify content-based
predicates on which content should be pushed to the user.
Like Cobra, Corona can interoperate seamlessly with the current pull-based
Web architecture.
A number of application-level multicast
systems [36,43] have been built using DHTs that
construct an information dissemination tree with the multicast group
members as leaf nodes. The resulting application-level multicast service
is similar to the aforementioned topic-based pub-sub systems without
content-based filtering. The multicast tree is formed by joining the
routes from each subscriber node to a root node. In contrast, Cobra
constructs an overlay topology using a service provisioning technique,
taking into account the required resources to support a target number of
source feeds and users.
Real-time Stream Querying: There has been much recent work from
the database community on
continuous querying of real-time data streams located at geographically
dispersed data sources. These include Medusa [15],
PIER [25], IrisNet [21],
Borealis [14], and Stream-Based Overlay
Networks [33]. These systems provide
a general-purpose service for distributed querying of data streams,
tend to assume a relational data model, and
provide an elaborate set of operators to applications. Cobra, on
the other hand, is
specifically designed
to filter and deliver relatively unstructured RSS feeds,
provides a simple keyword-based query format to the user, and has models
of the resource consumption of its crawler, filter, and reflector
services used for provisioning.
Blog Search Engines:
Recently, a number of "blog search engines" have come online,
including Feedster, Blogdigger, Bloglines, IceRocket, and Technorati.
Apart from Google and MSN's blog search services, most of these sites
appear to be backed by small startup companies and little is known
about how they operate. In particular, their ability to scale to large
numbers of feeds and users, use network resources efficiently, and
maintain low update latencies is unknown.
In Section we attempt to measure the update latency of
several of these sites. As for MSN and Google, we expect
these sites leverage the vast numbers of server resources distributed
across many data centers to rapidly index updates to blogs.
Although an academic research group cannot hope to garner these kinds
of resources, by developing Cobra we hope to shed light on important
design considerations and tradeoffs for this interesting application.
3 Cobra System Design
Figure 1: The Cobra content-based RSS aggregation network.
The overall architecture of Cobra is shown in Figure 1.
Cobra consists of a three-tiered network of crawlers,
filters, and reflectors. Crawlers are responsible for
periodically crawling web feeds, such as blogs, news sites, and
other RSS feeds, which we collectively call source feeds.
A source feed consists of a series of articles. The number of
articles provided by a source feed at any time depends on how it is
configured; a typical blog or news feed will only report the most
recent 10 articles or so. As described below, Cobra crawlers employ
various techniques to reduce polling load by checking for updates in
the source feeds in a lightweight manner.
Crawlers send new articles to the filters, which match the content
of those articles against the set of user subscriptions,
using a case-insensitive, index-based matching algorithm.
Articles matching a given subscription are pushed to the appropriate
reflector, which presents to the end user a personalized RSS feed that
can be browsed using a standard RSS reader. The reflector caches the
last k matching articles for the feed (where k is typically 10),
requiring that the user poll the feed periodically to ensure that all
matching articles will be detected. This behavior matches that of many
existing RSS feeds that limit the number of articles included in the
feed. Although the reflector must be polled by the user (as required by
current RSS standards), this polling traffic is far less than requiring
users to poll many thousands of source feeds. Also, it is possible to
replace or augment the reflector with push-based notification mechanisms
using email, instant messaging, or SMS; we leave this to future work.
The Cobra architecture uses a simple congestion control scheme that applies
backpressure when a service is unable to keep up with the incoming rate of data
from upstream services. Each service maintains a 1MB data buffer for each
upstream service. If an upstream service sends data faster than it
can be processed, the data buffer will fill and any further send attempts
will block until the downstream service can catch up, draining the buffer and
allowing incoming data again. This ensures that the crawlers do not send new
articles faster than the filters can process them, and likewise that the filters
do not pass on articles faster than the reflectors can process them. The
provisioner (detailed in section ) takes this throttling
behavior into account when verifying that each crawler will be able to finish
crawling its entire list of feeds every 15 minutes (or whatever the crawl-rate
is specified to be).
3.1 Crawler service
The crawler service takes in a list of source feeds (given as URLs)
and periodically crawls the list to detect new articles. A naive
crawler would periodically download the contents of each source feed
and push all articles contained therein to the filters. However, this
approach can consume a considerable amount of bandwidth, both for
downloading the source data and sending updates to the filters.
In a conventional usage of RSS, many users periodically polling
a popular feed can have serious network impact [34].
Although Cobra amortizes the cost of crawling each feed across all
users, the sheer number of feeds demands that we are careful about the
amount of network bandwidth we consume.
The Cobra crawler includes a number of optimizations designed to
reduce bandwidth usage. First, crawlers attempt to use the HTTP
Last-Modified and ETag headers to check whether a
feed has been updated since the last polling interval. Second, the
crawler makes use of HTTP delta encoding
for those feeds that support it.
When it is necessary to download the content for a feed (because its
HTTP headers indicate it has changed, or if the server does not provide
modification information), the crawler filters out
articles that have been previously pushed to filters, reducing bandwidth
requirements further and preventing users from seeing duplicate results.
We make use of two techniques. First, a whole-document
hash using Java's hashCode function is computed; if it matches the previous hash for this feed, the
entire document is dropped. Second, each feed that has changed is broken
up into its individual articles (or entries), which are henceforth
processed individually. A hash is computed on each of
the individual articles, and those matching a previously-hashed article
are filtered out. As we show in Section , these techniques
greatly reduce the amount of traffic between source feeds and crawlers
and between crawlers and filters.
3.2 Filter service
The filter service receives updated articles from crawlers and matches
those articles against a set of subscriptions. Each subscription
is a tuple consisting of a subscription ID, reflector ID,
and list of keywords. The subscription ID uniquely identifies
the subscription and the reflector ID is the address of the
corresponding reflector for that user. Subscription IDs are allocated
by the reflectors when users inject subscriptions into the system.
Each subscription has a list of keywords that may be related by either
conjunctions (e.g. "law AND internet"), disjunctions
(e.g. "copyright OR patent"), or a combination of both
(e.g. "(law AND internet) OR (privacy AND internet)"). When an
article is matched against a given subscription, each word of the
subscription is marked either true or false based on whether
it appears anywhere in the article; if the resulting boolean expression
evaluates to true
then the article is considered to have matched the subscription.
Given a high volume of traffic from crawlers and a large number of
users, it is essential that the filter be able to match articles
against subscriptions efficiently. Cobra uses the matching algorithm
proposed by Fabret et al. [18,29]. This
algorithm operates in two phases. In the first phase, the filter
service uses an index to determine the set of all words (across all
subscriptions) that are matched by any article. This has the
advantage that words that are mentioned in multiple subscriptions are
only evaluated once. In the second phase, the filter determines the
set of subscriptions in which all words have a match. This is
accomplished by ordering subscriptions according to overlap and by
ordering words within subscriptions according to selectivity, to test
the most selective words first. If a word was not found in the first
phase, all subscriptions that include that word can be discarded
without further consideration. As a result, only a fraction of the
subscriptions are considered if there is much overlap between them.
Due to its sub-linear complexity, the matching algorithm is extremely efficient: matching a single article
against 1 million user subscriptions has a 90th percentile latency of
just 10 ms (using data from real Web feeds and synthesized
subscriptions, as discussed in Section ).
In contrast, a naive algorithm (using a linear search
across the subscription word lists) requires more than 10 sec across the
same 1 million subscriptions, a difference of four orders of magnitude.
3.3 Reflector service
The final component of the Cobra design is the reflector service, which
receives matching articles from filters and reflects them as
a personalized RSS feed for each user. In designing the
reflector, several questions arose. First, should the filter service
send the complete article body, a summary of the article, or only a
link to the article? Clearly, this has implications for bandwidth
usage. Second, how should filters inform each reflector of the set of
matching subscriptions for each article? As the number of matching
subscriptions increases, sending a list of subscription IDs could
consume far more bandwidth than the article contents themselves.
In our initial design, for each matching article, the filter would
send the reflector a summary consisting of the title, URL, and first 1 KB
of the article body, along with a list of matching subscription IDs.
This simplifies the reflector's design as it must simply
link the received article summary to the personalized RSS
feed of each of the matching subscription IDs.
Article summaries are shared across subscriptions,
meaning if one article matches multiple subscriptions, only one copy is
kept in memory on the reflector.
However, with many active subscriptions, the user list could grow to
be very large: with 100,000 matching subscriptions on an article and
32-bit subscription IDs, this translates into 400KB of overhead
per article being sent to the reflectors. One alternative is to use
a bloom filter to represent the set of matching users; we estimate
that a 12KB filter could capture a list of 100,000 user IDs with a
false positive rate of 0.08%. However, this would require the
reflector to test each user ID against the filter on reception,
involving a large amount of additional computation.
In our final design, the filter sends the complete article body to the
reflector without a user list, and the reflector re-runs the
matching algorithm against the list of active subscriptions it stores
for the users it is serving. Since the matching algorithm is so
efficient (taking 10ms for 1 million subscriptions), this appears to
be the right trade-off between bandwidth consumption and CPU
overhead. Instead of sending the complete article, we could instead
send only the union of matching words across all matching
subscriptions, which in the worst case reduces to sending the full
text.
For each subscription, Cobra caches the last k matching articles,
providing a personalized feed which the user can access using a
standard RSS reader. The value of k must be chosen to bound memory
usage while providing enough content that a user is satisfied with the
"hits" using infrequent polling; typical RSS readers poll every
15-60 minutes [28]. In our current design, we set k=10,
a value that is typical for many popular RSS feeds (see
Figure ). Another approach might be to
dynamically set the value of k based on the user's individual
polling rate or the expected popularity of a given subscription. We
leave these extensions to future work.
In the worst case, this model of user feeds leads to a memory usage
of k*subscriptions*1KB (assuming articles are capped at 1KB
of size). However, in practice the memory usage is generally much
lower since articles can be shared across multiple subscriptions. In
the event that memory does become scarce, a reflector will begin
dropping the content of new articles that are received, saving to users'
feeds only the articles' titles and URLs. This greatly slows
the rate of memory consumption, but if memory continues to dwindle then
reflectors will begin dropping all incoming articles (while logging
a warning that this is happening). This process ensures
a graceful degradation in service quality when required.
A user subscribes to Cobra by visiting a web site that allows the user
to establish an account and submit subscription requests in the form
of keywords. The web server coordinates with the reflectors and
filters to instantiate a subscription, by performing two
actions: (1) associating the user with a specific reflector node; and
(2) injecting the subscription details into the reflector node and the
filter node(s) that feed data into that reflector. The response to the
user's subscription request is a URL for a private RSS feed hosted by
the chosen reflector node. In our current prototype, reflector nodes are
assigned randomly to users by the Web server, but a locality-aware
mechanism such as Meridian [42] or OASIS [20]
could easily be used instead.
3.4 Hosting model
Although "peer to peer," self-organizing systems based on shared resources
contributed by volunteers are currently en vogue, we are not sure
that this model is the best for provisioning and running a service
like Cobra. Rather, we choose to exploit conventional approaches to
distributed systems deployment, making use of well-provisioned
hosting centers, which is the norm for commercial Internet services.
Each of the three tiers of Cobra can be distributed over multiple hosts
in the Internet, allowing computational and network load to
be balanced across servers and hosting centers. Distribution also
allows the placement of Cobra services to take advantage of
improved locality when crawling blogs or pushing updates to users.
The use of a hosting center model allows us to make certain assumptions
to simplify Cobra's design. First, we assume that physical resources in a
hosting center can be dedicated to running Cobra services, or at
least that hosting centers can provide adequate
virtualization [4,10] and resource
containment [9] to provide this illusion.
Second, we assume that Cobra services can be replicated within a
hosting center for increased reliability. Third, we assume
that hosting centers are generally well-maintained and that
catastrophic outages of an entire hosting center will be rare. Cobra
can tolerate outages of entire hosting centers, albeit with
reduced harvest and yield [19].
Finally, we assume that allocating resources to Cobra services and
monitoring their performance at runtime can be performed centrally.
These assumptions strongly influence our approach to service provisioning as we are less
concerned with tolerating unexpected variations in CPU and network load
and intermittent link and node failures, as is commonly seen on
open experimental testbeds such as PlanetLab [30].
3.5 Service provisioning
 |  |
| (a) Configuration for 4x CPU and 25 Mbps bandwidth | (b) Configuration for 1x CPU and 100 Mbps bandwidth
|
Figure 2: Operation of the Cobra network provisioner.
These figures show how provisioner results can vary for different constraint
combinations; in both of these cases the network is provisioned for 800,000 feeds,
8 million subscriptions, and 1024 MB of memory, but the CPU and bandwidth constraints
differ.
(a) Shows the resulting configuration when the CPU constraint is 4x
the default value (see text) and the bandwidth constraint is 25 Mbps.
(b) Shows the resulting configuration when the CPU constraint is the default value (1x)
and the bandwidth constraint is 100 Mbps.
Compared to (a), this configuration requires
half the number of crawlers, 50% more reflectors and
three times as many filters (on account of the much greater processing needs).
As the number of source feeds and users grows, there is a significant
challenge in how to provision the service in terms of computational
horsepower and network bandwidth. Server and network resources cost
money; additionally, a system may have limitations on the amount of
physical resources available. Our goal is to determine the minimal
amount of physical resources required to host a Cobra network
capable of supporting a given number of source feeds and users.
For this purpose, we make use of an offline service
provisioning technique that determines the configuration of the
Cobra network in terms of the number of crawlers, filters, and
reflectors, as well as the interconnectivity between these services. Due
to space constraints, we only provide an informal description of the
service provisioning algorithm.
The provisioner takes as inputs the target number of source feeds and
users, a model of the memory, CPU and bandwidth requirements for
each service, as well as other parameters such as distribution of
feed sizes and the per-user polling rate. The provisioner also
takes as input a set of node constraints,
consisting of limits on inbound and outbound bandwidth, maximum memory
available to the JVM, and CPU processing power. Note that this last
value is difficult to measure directly and thus we model it simply as
a dimensionless parameter relative to the processing performance
observed on Emulab's pc3000 machines 1.
For example, a CPU constraint of 0.75 implies that the
provisioner should assume that nodes
will process messages only 75% as fast as the pc3000s. The provisioner's
output is a graph
representing the topology of the Cobra network graph, including the
number of feeds assigned to each crawler and the number of subscriptions
assigned to each reflector and each filter.
The provisioner models each Cobra service as running on a separate
physical host with independent memory, CPU and bandwidth constraints.
This results in a conservative estimate of resource requirements as
it does not permit multiple services within a hosting center to share
resources (e.g., bandwidth). A more sophisticated algorithm could take
such resource sharing into account.
The provisioner attempts to configure the network to meet the target
number of source feeds and users while minimizing the number of
services. The algorithm operates as follows. It starts with a simple 3-node
topology with one crawler, one filter, and one reflector. In each
iteration, the algorithm identifies any constraint
violations in the current configuration, and greedily resolves them
by decomposing services as described below. When no more
violations exist, the algorithm terminates and reports success, or if
a violation is found that cannot be resolved, the algorithm terminates
and reports failure.
An out-decomposition resolves violations by replacing a single
service with n replicas such that all incoming links from the original
service are replicated across the replicas, whereas the outgoing links
from the original services are load balanced across the replicas. An
in-decomposition does the opposite: a single service is replaced
by n replicas such that all outgoing links from the original
service are replicated across the replicas, whereas the incoming links
from the original services are load balanced across the replicas.
In resolving a violation on a service, the choice of decomposition type (in- or out-)
depends both on the type of violation (in-bandwidth, out-bandwidth, CPU,
or memory) and the type of service (crawler, filter or reflector).
Figure shows which decomposition is used in
each situation.
| Service | Violation | Decomposition | Reason |
| Crawler | In-BW | In | Reduces the number of feeds crawled. |
| Out-BW | In | Reduces the rate that updates are found and output to filters. |
| CPU | None | Not modeled |
| Memory | None | Not modeled |
| Filter | In-BW | In | Reduces the number of crawlers that send updates to each filter. |
| Out-BW | In | Reduces the rate that articles are received, and thus also the rate that articles are output to reflectors. |
| CPU | Out | Reduces the number of subscriptions that articles must match against. |
| Memory | Out | Reduces the number of subscriptions that must be stored on the filter. |
| Reflector | In-BW | None | Not resolvable because reflectors must receive updates from all feeds (otherwise users will not receive all articles that match their subscription). |
| Out-BW | Out | Reduces the subscriptions held by each reflector, which reduces the expected frequency of web queries by users. |
| CPU | Out | Reduces the number of subscriptions that each incoming articles must be matched against and the number of article-queues that must be updated. |
| Memory | Out | Reduces the number of subscriptions and article lists that must be stored. |
Figure 3: Provisioner choice of decomposition for each service/violation combination.
When faced with multiple violations, the algorithm uses a few simple
heuristics to choose the order in which to resolve them.
Some violations have the potential to be resolved indirectly in the
course of resolving other violations. For example, if a crawler
service has both in-bandwidth and out-bandwidth violations, resolving
the in-bandwidth violation is likely to also resolve the
out-bandwidth violation (by reducing the number of feeds crawled, we
also implicitly reduce the number of feed updates that are found and
output by the crawler). Thus it is preferable in this case to resolve
the in-bandwidth violation first as it may solve both violations with
one decomposition. In general, when choosing which of multiple violations
to resolve first, the algorithm will choose the violations with the
least potential to be resolved indirectly, thus saving the
violations with higher potential until as late as possible (in the hopes
that they will "happen to be resolved" in the mean time).
Although this greedy approach might lead to local minima and may in fact
fail to find a topology that satisfies the input constraints when such a
configuration does exist, in practice the algorithm produces network
topologies with a modest number of nodes to handle large loads.
We chose this greedy iterative approach
because it was conceptually simple and easy to implement.
Figure 2 shows two provisioner topologies produced
for different input constraints.
3.6 Service instantiation and monitoring
The output of the provisioner is a virtual graph (see
Figure 2) representing
the number and connectivity of the services in the Cobra network. Of
course, these services must be instantiated on physical hosts. A wide
range of instantiation policies could be used, depending on the
physical resources available. For example, a small startup might use a
single hosting center for all of the services, while a larger company
might distribute services across multiple hosting centers to achieve
locality gains. Both approaches permit incremental scalability by
growing the number of machines dedicated to the service.
The Cobra design is largely independent of the mechanism used for
service instantiation. In our experiments described in
Section , we use different strategies based on the
nature of the testbed environment. In our dedicated cluster and Emulab
experiments, services are mapped one-to-one with physical hosts in a
round-robin fashion. In our PlanetLab experiments, services are
distributed randomly to achieve good coverage in terms of locality
gains for crawling and reflecting (described below). An alternate
mechanism could make use of previous work on network-aware service
placement to minimize bandwidth usage [8,33].
After deployment, it is essential that the performance of the Cobra
network be monitored to validate that it is meeting targets in terms
of user-perceived latency as well as bandwidth and memory constraints.
Also, as the user population and number of source feeds grow it will
be essential to re-provision Cobra over time. We envision this process
occurring over fairly coarse-grained time periods, such as once a
month or quarter.
Each Cobra node is instrumented
to collect statistics on memory usage, CPU load, and inbound and
outbound bandwidth consumption. These statistics can be collected
periodically to ascertain whether re-provisioning is necessary.
3.7 Source feed mapping
Once crawler services have been instantiated, the final step in
running the Cobra network is to assign source feeds to crawlers. In
choosing this assignment, we are concerned not only with spreading
load across multiple crawlers, but also reducing the total
network load that the crawlers will induce on the network. A good
way of reducing this load is to optimize the locality of crawlers and
their corresponding source feeds. Apart from being good network
citizens, improving locality also reduces the latency for crawling
operations, thereby reducing the update detection latency as perceived
by users. Because the crawlers use fairly aggressive timeouts (5 sec)
to avoid stalling on slow feeds, reducing crawler-feed latency also
increases the overall yield of a crawling cycle.
In Cobra, we assign source feeds to crawlers in a latency-aware
fashion. One approach is to have each crawler measure the latency to
all of the source feeds, and use this information to perform a
coordinated allocation of the source feed list across the crawlers.
Alternately, we could make use of network coordinate systems, such as
Vivaldi [17], which greatly reduces ping load by mapping
each node into a low-dimensional coordinate space, allowing an
estimate of the latency between any two hosts to be measured as the
Euclidean distance in the coordinate space. However, such schemes
require end hosts to run the network coordinate software, which is not
possible in the case of oblivious source feeds.
Instead, we perform an offline measurement of the latency between each
of the source feeds and crawler nodes using King [24]. King
estimates the latency between any two Internet hosts by performing an
external measurement of the latency between their corresponding DNS
servers; King has been reported to have a 75th percentile error of
20% of the true latency value. It is worth noting that many source
feeds are hosted by the same IP address, so we achieve a significant
reduction in the measurement overhead by limiting probes to those
nodes with unique IP addresses. In our sample of 102,446 RSS feeds,
there are only 591 unique IP addresses.
Given the latency matrix between feeds and crawlers, we perform
assignment using a simple first-fit bin-packing algorithm. The
algorithm iterates through each crawler Cj and calculates i* = argminl(Fi, Cj), where l(·) is the latency between Fi
and Cj. Fi* is then assigned to Cj. Given F feeds
and C crawlers, we assign F/C feeds to each crawler (assuming
F > C). We have considered assigning varying number of feeds to
crawlers, for example, based on the posting activity of each feed, but
have not yet implemented this technique.

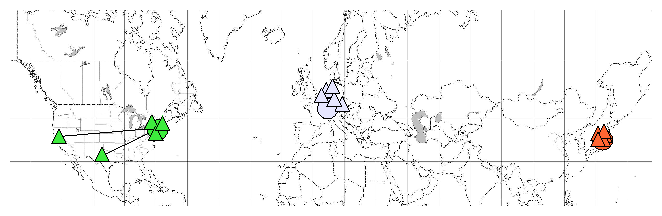

Figure 4: An example of locality-aware source feed mapping.
Three crawlers are shown as circles and the 5 nearest source
feeds, according to estimated latency, are shown as triangles.
Colors indicate the mapping from feeds to crawlers, which is also
evident from the geographic layout.
Figure 4 shows an example of the source feed mapping from
one of our experiments. To reduce clutter in the map we show only
3 crawlers (one in the US, one in Switzerland, and one in Japan) and
the 5 nearest crawlers, according to estimated latency, for each.
The mapping process is clearly effective at achieving good locality
and naturally minimizes traffic over transoceanic links.
3.8 Implementation
Our prototype of Cobra is implemented in Java, and makes use of our
substrate for stream-based overlay networks (SBONs) [33]
for setting up and managing data flows between services. Note,
however, that the placement of Cobra services onto physical hosts is
determined statically, at instantiation time, rather than dynamically
as described in our previous work [33].
A central controller node handles provisioning and instantiation
of the Cobra network. The provisioner outputs a logical graph which is
then instantiated on physical hosts using a (currently random)
allocation of services to hosts. The instantiation mechanism depends
on the specific deployment environment.
Our implementation of Cobra consists of 29178 lines of
Java code in total. The crawler service is 2445 lines, the filter service is 1258 lines, and the
reflector is 622 lines. The controller code
is 377 lines, while the remaining 24476 consists of our underlying
SBON substrate for managing the overlay network.
4 Evaluation
We have several goals in our evaluation of Cobra. First, we show that
Cobra can scale well to handle a large number of source feeds
and user subscriptions. Scalability is limited by service resource
requirements (CPU and memory usage) as well as network bandwidth requirements.
However, a modestly-sized Cobra network (Figure 2)
can handle 8M users and 800,000 source feeds. Second, we show that
Cobra offers low latencies for discovering matching articles and
pushing those updates to users. The limiting factor for update latency
is the rate at which source feeds can be crawled, as well as the
user's own polling interval.
We also present data comparing these
update latencies with three existing blog search engines: Google Blog
Search, Feedster, and Blogdigger.
We present results from experiments on three platforms: a local
cluster, the Utah Emulab testbed [41], and PlanetLab.
The local cluster allows us to measure service-level performance in a
controlled setting, although scalability is limited. Our Emulab
results allow us to scale out to larger configurations.
The PlanetLab experiments are intended to highlight the value of
source feed clustering and the impact of improved locality.
We use a combination of real and synthesized web feeds to measure
Cobra's performance. The real feeds consist of a list of
102,446 RSS feeds from syndic8.com, an RSS directory site.
The properties of these feeds were studied in detail by Liu et
al. in [28]. To scale up to larger numbers, we implemented
an artificial feed generator. Each generated feed consists
of 10 articles with words chosen randomly from a
distribution of English words based on popularity rank from the
Brown corpus [3].
Generated feed content changes dynamically with update intervals
similar to those of real feeds, based on data from [28].
The feed generator is integrated into the crawler service and is
enabled by a runtime flag.
Simulated user subscriptions are similarly generated with a keyword list
consisting of the same distribution as that used to generate feeds.
We exclude the top 29 most popular words, which are considered excessively
general and would match essentially any article.
(We assume that these words would normally be ignored by
the subscription web portal when a user initially submits
a subscription request.)
The number of words in each query is chosen from a distribution
based on a Yahoo study [11]
of the number of words used in web searches; the
median subscription length is 3 words with a
maximum of 8. All simulated user subscriptions contain only conjunctions
between words (no disjunctions).
In Cobra, we expect that users will typically submit
subscription requests with many keywords to ensure that the subscription
is as specific as possible and does not return a large number of
irrelevant articles. Given the large number of simulated
users, we do not actively poll Cobra reflectors, but rather estimate
the additional network load that this process would generate.
4.1 Properties of Web feeds
| median | 90th percentile |
| Size of feed (bytes) | 7606 | 22890 |
| Size of feed (articles) | 10 | 17 |
| Size of article (bytes) | 768 | 2426 |
| Size of article (words) | 61 | 637 |
Figure 5: Properties of Web feeds used in our study.
Figure 6: Relationship between feed size and crawl time.
Liu et al. [28] present a detailed evaluation of the
properties of RSS feeds, using the same list of 102,446 RSS feeds used in
our study. Figure 5 summarizes the size of the
feeds and individual articles observed in a typical crawl of this set
of feeds between October 1-5, 2006. The median feed size is under 8 KB and
the median number of articles per feed is 10.
Figure 6 shows a scatterplot of the size
of each feed compared to its crawl time from a PlanetLab node running
at Princeton. The figure shows a wide variation in the size and crawl
time of each feed, with no clear relationship between the two.
The large spike around size 8000 bytes represents a
batch of 36,321 RSS feeds hosted by topix.net. It turns out
these are not static feeds but dynamically-generated aggregation feeds
across a wide range of topics, which explains the large variation
in the crawl time.
4.2 Microbenchmarks
Figure 7: Memory usage of the reflector service over time. The x-axis
of this figure is the total number of articles received by the reflector.
For context, we estimate that a set of 1 million feeds can be expected to produce
an average of ~ 48.5 updated articles every second, or ~ 2910 each minute.
Our first set of experiments measure the performance of the individual
Cobra services.
Memory usage
Figure 7 shows the memory usage of a single Reflector
service as articles are received over time. In each case, the usage
follows a logarithmic trend.
However, the curves' obvious offsets make it clear that the number of
subscriptions stored on each reflector strongly influences its memory usage.
For example, with a half-million subscriptions, the memory usage reaches
~ 310 MB after receiving 60,000 articles, whereas with 1 million subscriptions
the memory usage reaches nearly 500 MB. This is not surprising;
not only must reflectors store each actual subscription (for matching), but also
each user's list of articles.
However, after the initial burst of article storage, the rate of memory
consumption slows dramatically due
to the cap (of k=10) on each user's list of stored articles.
This cap prevents users with
particularly general subscriptions (that frequently match articles)
from continually using up memory. Note that in this experiment
no articles (or article contents) were dropped by the
reflectors' scarce memory handling logic (as described in section 3.3).
The only time that articles were dropped was
when a user's list of stored articles exceeded the size cap.
This experiment assumes that articles are never expired
from memory (except when a user's feed grows beyond length k). It is easy to
envision an alternative design in which a user's article list is cleared whenever
it is polled (by the user's RSS reader) from a reflector. Depending on the frequency of user
polling, this may decrease overall memory usage on reflectors but an analysis of the
precise benefits is left to future work.
In contrast, the memory usage of the crawler and filter services does not change as
articles are processed. For crawlers, the memory usage while running is
essentially constant since crawlers are unaffected by the number of subscriptions.
For filters, the memory usage was found to vary linearly with
the number of subscriptions ( ~ 0.16 MB per 1000 subscriptions held) and thus
changes only when subscriptions are added or removed.
Crawler performance
Figure 8: Bandwidth reduction due to intelligent crawling.
This graph shows the amount of data generated by the crawler
using different techniques: (a) crawl all feeds;
(b) filter based on last-modified header;
(c) filter based on whole-document hash; and
(d) filter based on per-article hashes.
Figure 8 shows the bandwidth reduction
resulting from optimizations in the crawler to avoid crawling
feeds that have not been updated. As the figure shows, using
last-modified checks for reading data from feeds reduces the inbound
bandwidth by 57%. The combination of techniques for avoiding
pushing updates to the filters results in a 99.8% reduction in the
bandwidth generated by the crawlers, a total of 2.2 KB/sec for 102,446
feeds. We note that none of the feeds in our
study supported the use of HTTP delta encoding, so while
this technique is implemented in Cobra it does not yield any
additional bandwidth savings.
Figure 9: Effect of locality-aware clustering.
This is a CDF of the time to crawl 34092 RSS feeds
across 481 separate IP addresses
from 11 PlanetLab hosts, with and without the locality aware
clustering.
The use of locality-aware clustering should reduce the time to crawl a
set of source feeds, as well as reduce overall network load.
From our initial set of 102,446 feeds, we filtered out those that
appeared to be down as well as feeds from two aggregator sites,
topix.net and izynews.de, that together constituted 50,953
feeds. These two sites host a large number of dynamically-generated
feeds that exhibit a wide variation in crawl times, making it difficult
to differentiate network effects.
Figure 9 shows the time to crawl the remaining
34,092 RSS feeds distributed across 481 unique IP addresses.
11 crawlers were run on PlanetLab distributed across North
America, Europe, and Asia. With locality aware mapping,
the median crawl time per feed drops from 197 ms to 160 ms,
a reduction of 18%.
Figure 10: Article match time versus number of
subscriptions and number of words per article.
The median time to match an article is a function of the number
of subscriptions and the number of words per article.
Filter performance
Figure 10 shows the median time for the
filter's matching algorithm to compare a single article against an
increasing number of user subscriptions.
The matching algorithm is very fast, requiring less than 20 ms to
match an article of 2000 words against 1 million user subscriptions.
Keep in mind that according to Figure 5 that
the median article size is just 61 words, so in practice the matching
time is much faster: we see a 90th percentile of just 2 ms per article
against 1 million subscriptions. Of course, as the number of incoming
articles increases, the overall matching time may become a performance
bottleneck, although this process is readily distributed across
multiple filters.
4.3 Scalability measurements
| Subs | Feeds | Crawlers | Filters | Reflectors |
| 10M | 1M | 1 | 28 | 28 |
| 20M | 500,000 | 1 | 25 | 25 |
| 40M | 250,000 | 1 | 28 | 28 |
| 1M | 100,000 | 1 | 1 | 1 |
Figure 11: Topologies used in scalability measurements. The last
topology (100K feeds, 1M subscriptions) is meant to emulate a topology using
the live set of 102,446 feeds.
To demonstrate the scalability of Cobra with a large number of feeds
and user subscriptions, we ran additional experiments using the Utah Emulab testbed.
Here, we are interested in two key metrics: (1) The bandwidth
consumption of each tier of the Cobra network, and (2) The
latency for an updated article from a source feed to propagate
through the three tiers of the network. In total, we evaluated four
different topologies, summarized in Figure 11.
Each topology was generated by the provisioner with a bandwidth constraint
of 100 Mbps 2,
a memory constraint of 1024 MB, and a CPU constraint of the
default value (1x). In addition, we explicitly over-provisioned by 10%
as a guard against bursty traffic or unanticipated bottlenecks when scaling
up, but it appears that this was an largely unnecessary precaution.
Each topology was run for four crawling intervals of 15 minutes each and
the logs were checked at the end of every experiment to confirm that
none of the reflectors dropped any articles (or article contents) to save
memory (a mechanism invoked when available memory runs low, as discussed
in section 3.3).
Figure 12: Bandwidth consumption of each tier.
The bandwidth of each tier is a function both of the number of feeds that are
crawled and of the fan-out from each crawler to the filters.
Figure 12 shows the total bandwidth consumption
of each tier of the Cobra network for each of the four topologies evaluated.
As the figure shows, total bandwidth consumption remains
fairly low despite the large number of users and feeds, owing mainly
to the effective use of intelligent crawling. Note that due to the relatively
large number of subscriptions in each topology, the
selectivity of the filter tier is nearly 1; every article will match
some user subscription, so there is no noticeable reduction in bandwidth
from the filter tier (the very slight increase in bandwidth is due to
the addition of header fields to each article). One potential area for
future work is finding ways to reduce the selectivity of the filter tier.
If the filters' selectivity can be reduced, that will reduce not only the
filters' bandwidth consumption, but also the number of
reflectors needed to process and store the (fewer) articles sent from the filters.
One way to lower filter selectivity may be to assign subscriptions to filters based on
similarity (rather than the current random assignment); if all of the
subscriptions on a filter tend towards a single, related set of topics,
then more articles may fail to match any those subscriptions.
We are also interested in the intra-network latency for an
updated article passing through the three tiers of the Cobra network.
To gather this data, we instrumented the crawler, filter, and
reflector to send a packet to a central logging host every time a
given article was (1) generated by the crawler, (2) received at a filter,
(2) matched by the filter, and (3) delivered to the reflector.
Although network latency between
the logging host and the Cobra nodes can affect these results, we
believe these latencies to be small compared to the Cobra overhead.
Figure 13: CDF of intra-network latency for various topologies.
This experiment shows that the intra-network latency is largely a factor of the
processing load on filter and reflectors.
Figure 13 shows a CDF of the latency for each
of the four topologies. As the figure shows, the fastest update times
were observed on the 1M feeds / 10M subs topology, with
a median latency of 5.06 sec, whereas the slowest update times were
exhibited by the 250K feeds / 40M subs topology, with a
median latency of 34.22 sec. However, the relationship is not simply
that intra-network latency increases with the number of users; the median
latency of the 100K feeds / 1M subs topology was 30.81 sec - nearly
as slow as the 250K feeds / 40M subs topology. Instead, latency
appears more closely related to
the number of subscriptions stored per node (rather than in total),
as shown in Figure .
Figure 14: Intra-network latency as a function of subscriptions per Filter.
This figure shows the relationship between intra-network latency and the number
of subscriptions stored on each Filter (note that in each of these topologies, the
number of filters equals the number of reflectors, and thus the x-axis is equivalent
to "Subscriptions per Reflector (K)").
As mentioned at the end of section 3.2,
nodes are able to throttle the rate at which they are passed data from other
nodes. This is the primary source of intra-network latency; article updates
detected by crawlers are delayed in reaching reflectors because of
processing congestion on filters and/or reflectors. Since the time for a filter
(or reflector) to process an article is related to the number of subscriptions
that must be checked (see figure 10), topologies with
larger numbers of subscriptions per node exhibit longer processing times,
leading to rate-throttling of upstream services and thus larger intra-network
latencies. Figure 14 shows a clear relationship
between the number of subscriptions per node and the intra-network latencies.
However, even in the the worst of
these cases, the latencies are still fairly low overall. As the system is
scaled to handle more subscriptions and more users,
Cobra will naturally load-balance across multiple hosts in each tier,
keeping latencies low.
Note that the user's perceived update latency is bounded by the sum of
the intra-network latency once an article is crawled by Cobra,
and the crawling interval, that is, the rate at which source
feeds are crawled. In our current system, we set the crawling
interval to 15 minutes, which dominates the intra-network latencies
shown in Figure 13. The intra-network latency is in
effect the minimum latency that Cobra can support, if updates to feeds
could be detected instantaneously.
4.4 Comparison to other search engines
Given the number of other blog search engines on the Internet, we were
curious to determine how well Cobra's update latency compared to these
sites. We created blogs on two popular blogging sites, LiveJournal
and Blogger.com, and posted articles containing a sentence of several
randomly-chosen words to
each of these blogs.3 We then searched for our blog postings on
three sites: Feedster, Blogdigger, and Google Blog Search, polling
each site at 5 sec intervals.
We created our blogs at least 24 hours prior to posting, to give the
search engines enough time to index them. Neither Feedster or Blogdigger
detected any of our postings to these blogs, even after a period
of over four months (from the initial paper submission to the final
camera-ready). We surmise that our blog was not indexed by these
engines, or that our artificial postings were screened out by spam
filters used by these sites.
Google Blog Search performed incredibly well, with a detection latency
as low as 83 seconds. In two out of five cases, however, the latency was
87 minutes and 6.6 hours, respectively, suggesting that the performance
may not be predictable. The low update latencies are likely the result
of Google using a ping service, which receives updates from the
blog site whenever a blog is updated [1]. The
variability in update times could be due to crawler throttling:
Google's blog indexing engine attempts to throttle its crawl rate to
avoid overloading [16]. As part of future
work, Cobra could be extended to provide support for a ping service
and to tune the crawl rate on a per-site basis.
We also uncovered what appears to be a bug in
Google's blog indexer: setting our unique search term as the title of
the blog posting with no article body would cause Google's site to
return a bogus results page (with no link to the matching blog),
although it appears to have indexed the search term. Our latency
figures ignore this bug, giving Google the benefit of the doubt although the
correct result was not returned.
In contrast, Cobra's average update latency is a function of the
crawler period, which we set at 15 minutes. With a larger number
of crawler daemons operating in parallel, we believe that we
could bring this interval down to match Google's performance.
To our knowledge, there are no published details on how Google's blog search is
implemented, such as whether it simply leverages Google's static web
page indexer.
5 Conclusions and Future Work
We have presented Cobra, a system that offers real-time content-based
search and aggregation on Web feeds. Cobra is designed to be
incrementally scalable, as well as to make careful use of network resources
through a combination of offline provisioning, intelligent crawling
and content filtering, and network-aware clustering of services.
Our prototype of Cobra scales well with modest resource requirements
and exhibits low latencies for detecting and pushing updates to users.
Mining and searching the dynamically varying blogosphere offers
many exciting directions for future research.
We plan to host Cobra as a long-running service on a local cluster and
perform a measurement study generated from real subscription activity.
We expect our experience to inform our choice of parameters, such as how often
to re-provision the system and how to set the number of articles cached
for users (perhaps adaptively, depending on individual user activity). We
also plan to investigate whether more sophisticated filtering
techniques are desirable. Our current matching algorithm does not rank
results by relevance, but rather only by date. Likewise, the algorithm
is unconcerned with positional characteristics of matched keywords; as
long as all keywords match an article, it is delivered to the user.
Unlike Web search engines, it is unclear what constitutes a good ranking
function for search results on RSS feeds. For example, the link-based
context such as that used by PageRank [23] may need to be
modified to be relevant to Web feeds such as blog postings, which have
few inbound links but often link to other (static) Web pages.
Incorporating this contextual information is extremely challenging
given the rapidly-changing nature of Web feeds.
Another open question is how to rapidly discover new Web feeds and
include them into the crawling cycle. According to one
report [38], over 176,000 blogs were created
every day in July 2006. Finding new blogs on popular sites such
as Blogger and LiveJournal may be easier than more generally across the
Internet. While the crawler could collect lists of RSS and Atom URLs
seen on crawled pages, incorporating these into the crawling process
may require frequent rebalancing of crawler load. Finally, exploiting
the wide distribution of update rates across Web feeds offers new
opportunities for optimization. If the crawler services could learn
which feeds are likely to be updated frequently, the crawling rate
could be tuned on a per-feed basis.
References:
[1] Google Blog Search FAQ. http://www.google.com/help/blogsearch/about_pinging.html.
[2] Livejournal. http://www.livejournal.com.
[3] Net dictionary index - brown corpus frequent word lising. http://www.edict.com.hk/lexiconindex/.
[4] Vmware esx server. http://www.vmware.com/products/vi/esx/.
[5] Js-javaspaces service specification, 2002. http://www.jini.org/nonav/standards/davis/doc/specs/html/js-spec.html.
[6] Tibco publish-subscribe, 2005. http://www.tibcom.com.
[7] Tspaces, 2005. http://www.almaden.ibm.com/cs/TSpaces/.
[8] Y. Ahmad and U. C etintemel. Network-Aware Query Processing for
Stream-based Applications. In Proc. of VLDB04, Toronto, Canada,
Aug. 2004.
[9] G. Banga, P. Druschel, and J. Mogul. Resource containers: A new
facility for resource management in server systems. In Proc. the
Third OSDI (OSDI '99), February 1999.
[10] P. Barham, B. Dragovic, K. Fraser, S. Hand, T. Harris, A. Ho,
R. Neugebauer, I. Pratt, and A. Warfield. Xen and the Art of Virtualization.
In SOSP, Oct. 2003.
[11] D. Bogatin. Yahoo Searches More Sophisticated and Specific.
http://blogs.zdnet.com/micro-markets/index.php?p=27, May 18 2006.
[12] N. Carriero and D. Gelernter. Linda in Context. Communications of
the ACM, 32(4):444-458, Apr. 1989.
[13] A. Carzaniga, D. Rosenblum, and A. Wolf. Design and Evaluation
of a Wide-Area Event Notification Service. ACM Transactions on
Computer Systems, 19(3):332-383, 2001.
[14] U. Centintemel, M. Cherniack, J.-H. Hwang, W. Lindner,
A. ag S. Maskey, A. Rasin, E. Ryvkina, N. Tatbul, Y. Xing, and
S. Z. k. The Design of the Borealis Stream Processing Engine. In
Proc. of CIDR, Asilomar, CA, Jan. 2005.
[15] M. Cherniack, H. Balakrishnan, M. Balazinska, et al. Scalable Distributed
Stream Processing. In Proc. of CIDR, Asilomar, CA, Jan.
2003.
[16] M. Cutts. More webmaster console goodness. Matt Cutts:
Gadgets, Google, and SEO (blog), http://www.mattcutts.com/blog/more-webmaster-console-goodness/, October
20 2006.
[17] F. Dabek, R. Cox, F. Kaashoek, and R. Morris. Vivaldi: A Decentralized
Network Coordinate System. In SIGCOMM, Aug. 2004.
[18] F. Fabret, H. A. Jacobsen, F. Llirbat, J. Pereira, and K. A.
Ross. Filtering Algorithms and Implementation for Very Fast Publish/Subscribe Systems. In Proceedings of ACM SIGMOD, 2001.
[19] A. Fox and E. A. Brewer. Harvest, yield and scalable tolerant systems.
In Proc. the 1999 Workshop on Hot Topics in Operating Systems,
Rio Rico, Arizona, March 1999.
[20] M. J. Freedman, K. Lakshminarayanan, and D. Mazieres. OASIS:
Anycast for Any Service. In Proc. USENIX/ACM NSDI, San Jose,
CA, 2006.
[21] P. B. Gibbons, B. Karp, Y. Ke, S. Nath, and S. Seshan. IrisNet:
An Architecture for a World-Wide Sensor Web. IEEE Pervasive
Computing, 2(4), Oct. 2003.
[22] B. Glade, K. Birman, R. Cooper, and R. van Renesse. Light-Weight
Process Groups in the ISIS System. Distributed Systems Engineering,
1(1):29-36, 1993.
[23] S. Grin and L. Page. The Anatomy of a Large-scale Hypertextual
Web Search Engine. In WWW7, 1998.
[24] K. Gummadi, S. Saroiu, and S. D. Gribble. King: Estimating Latency
between Arbitrary Internet End Hosts. In Second Usenix/ACM
SIGCOMM Internet Measurement Workshop, Nov. 2002.
[25] R. Huebsch, J. M. Hellerstein, N. Lanham, B. T. Loo, S. tt Shenker,
and I. Stoica. Querying the Internet with PIER. In Proc. of VLDB,
Berlin, Germany, Sept. 2003.
[26] S.-J. Lee, P. Sharma, S. Banerjee, S. Basu, and R. Fonseca. Measuring
Bandwidth between PlanetLab Nodes. In Proc. Passive and
Active Measurement Workshop, Boston, MA, March 2005.
[27] L.F.Cabera, M. Jones, and M. Theimer. Herald: Achieving a Global
Event Notification Service. In Workshop on Hot Topics in Operating
Systems, 2001.
[28] H. Liu, V. Ramasubramanian, and E. Sirer. Client Behavior and
Feed Characteristics of RSS, a Publish-Subscribe System for Web
Micronews. In Proc. of ACM Internet Measurement Conference,
Oct. 2005.
[29] J. Pereira, F. Fabret, F. Llirbat, and D. Shasha. Efficient Matching
for Web-Based Publish-Subscribe Systems. In Proceedings of the
7th International Conference on Cooperative Information Systems
(CoopIS), 2000.
[30] L. Peterson, A. Bavier, M. E. Fiuczynski, and S. Mui. Experiences
Building PlanetLab. OSDI, Nov. 2006.
[31] P. Pietzuch. Hermes: A Scalable Event-Based Middleware. PhD
thesis, University of Cambridge, Feb. 2004.
[32] P. Pietzuch and J. M. Bacon. Hermes: A Distributed Event-Based
Middelware Architecture. In 1st Workshop on Distributed Event-
Based Systems, jul 2002.
[33] P. Pietzuch, J. Ledlie, J. Shneidman, M. R. M.Welsh, and M. Seltzer.
Network-Aware Operator Placement for Stream-Processing Systems.
In ICDE, Apr. 2006.
[34] V. Ramasubramanian, R. Peterson, and G. Sirer. Corona: A High
Performance Publish-Subscribe System for theWorldWideWeb. In
NSDI, 2006.
[35] A. Rowstron and P. Druschel. Pastry: Scalable, Decentralized Object
Location and Routing for Large-Scale Peer-to-Peer Systems. In
Middleware), Nov. 2001.
[36] A. Rowstron, A. Kermarrec, M. Castro, and P. Druschel. SCRIBE:
The design of a large-scale event notification infrastructure. In NGC,
2001.
[37] B. Segall, D. Arnold, J. Boot, M. Henderson, and T. Phelps. Content
Based Routing with Elvin. In Proceedingsof AUUG2K, 2000.
[38] D. Sifry. State of the Blogosphere, August 2006. http://www.sifry.com/alerts/archives/000436.html.
[39] R. Strom, G. Banavar, T. Chandra, M. Kaplan, and K. Miller.
Gryphon: An Information Flow Based Approach to Message Brokering.
In Proceedings of the International Symposium on Software
Reliability Engineering, 1998.
[40] R. van Renesse, K. Birman, and W. Vogels. A Robust and Scalable
Technology for Distributed Systems Monitoring, Management, and
Data Mining. ACM Transactions on Computer Systems, 21(2):164-206, 2003.
[41] B. White, J. Lepreau, L. Stoller, R. Ricci, S. Guruprasad, M. Newbold,
M. Hibler, C. Barb, and A. Joglekar. An integrated experimental
environment for distributed systems and networks. In OSDI,
Dec. 2002.
[42] B. Wong, A. Slivkins, and G. Sirer. Meridian: A Lightweight Network
Location Service without Virtual Coordinates. In SIGCOMM,
Aug. 2005.
[43] S. Zhuang, B. Zhao, A. Joseph, R. Katz, and J. Kubiatowicz.
Bayeux: An Architecture for Scalable and Fault-tolerantWide-Area
Data Dissemination. In NOSSDAV, June 2001.
Footnotes:
13.0 GHz 64-bit Xeon processors
2We feel that the 100 Mbps bandwidth figure is
not unreasonable; bandwidth measurements from PlanetLab indicate
that the median inter-node bandwidth across the Internet is
at least this large [].
3An example posting was "certified venezuela
gribble spork." Unsurprisingly, no extant blog entries matched a
query for these terms.
|
