TightLip: Keeping Applications from Spilling the Beans
Aydan Yumerefendi, Benjamin Mickle, and Landon P. Cox
{aydan, bam11, lpcox}@cs.duke.edu
Duke University, Durham, NC
Abstract:
|
Access control misconfigurations are widespread and can result in
damaging breaches of confidentiality. This paper presents
TightLip, a privacy management system that helps users define
what data is sensitive and who is trusted to see it rather than
forcing them to understand or predict how the interactions of their
software packages can leak data.
The key mechanism used by TightLip to detect and prevent breaches is
the doppelganger process. Doppelgangers are sandboxed copy
processes that inherit most, but not all, of the state of an
original process. The operating system runs a doppelganger
and its original in parallel and uses divergent process outputs to
detect potential privacy leaks.
Support for doppelgangers is compatible with legacy-code, requires
minor modifications to existing operating systems, and imposes
negligible overhead for common workloads. SpecWeb99 results show
that Apache running on a TightLip prototype exhibits a 5% slowdown
in request rate and response time compared to an unmodified server
environment.
|
1 Introduction
Email, the web, and peer-to-peer file sharing have created countless
opportunities for users to exchange data with each other. However,
managing the permissions of the shared spaces that these applications
create is challenging, even for highly skilled system
administrators [15]. For untrained PC users, access
control errors are routine and can lead to damaging privacy leaks. A
2003 usability study of the Kazaa peer-to-peer file-sharing network
found that many users share their entire hard drive with the rest of
the Internet, including email inboxes and credit card
information [12]. Over 12 hours, the study found 156
distinct users who were sharing their email inboxes. Not only were
these files available for download, but other users could be observed
downloading them. Examples of similar leaks abound [16,17,22,31].
Secure communication channels [3,9] and intrusion
detection systems [7,11] would not have
prevented these exposures. Furthermore, the impact of these leaks
extends beyond the negligent users themselves since leaked sensitive
data is often previous communication and transaction records involving
others. No matter how careful any individual is, her privacy will
only be as secure as her least competent confidant. Prior approaches
to similar problems are either incompatible with legacy
code [10,14,19,26], rely on
expensive binary rewriting and
emulation [5,20], or require
changes to the underlying
architecture [8,28,29].
We are exploring new approaches to preventing leaks due to access
control misconfigurations through a privacy management system called
TightLip. TightLip's goal is to allow organizations and users
to better manage their shared spaces by helping them define
what data is important and who is trusted, rather than
requiring an understanding of the complex dynamics of how data
flows among software components. Realizing this goal requires
addressing three challenges: 1) creating file and host meta-data to
identify sensitive files and trusted hosts, 2) tracking the
propagation of sensitive data through a system and identifying
potential leaks, and 3) developing policies for dealing with potential
leaks. This paper focuses a new operating system object we have
developed to deal with the second challenge: doppelganger
processes.
Doppelgangers are sandboxed copy processes that inherit most, but not
all, of the state of an original process. In TightLip,
doppelgangers are spawned when a process tries to read sensitive data.
The kernel returns sensitive data to the original and scrubbed
data to the doppelganger. The doppelganger and original then run in
parallel while the operating system monitors the sequence and
arguments of their system calls. As long as the outputs for both
processes are the same, then the original's output does not depend on
the sensitive input with very high probability. However, if the
operating system detects divergent outputs, then the original's output
is likely descended from the sensitive input.
A breach arises when such an output is destined for an endpoint that
falls outside of TightLip's control, such as a socket connected to an
untrusted host. When potential breaches are detected, TightLip
invokes a policy module, which can direct the operating system to fail
the output, ignore the alert, or even swap in the doppelganger for the
original. Using doppelgangers to infer the sensitivity of processes'
outputs is attractive because it requires only minor changes to
existing operating systems and no modifications to the underlying
architecture or legacy applications.
We have added support for doppelgangers to the Linux kernel and
currently support their use of the file system, UNIX domain sockets,
pipes, network sockets, and GUIs. Early experience with this
prototype has shown that doppelgangers are useful for an important
subset of applications: servers which read files, encode the files'
content, and then write the resulting data to the network.
Micro-benchmarks of several common file transfer applications as well
as the SpecWeb99 benchmark demonstrate that doppelgangers impose
negligible performance overhead under moderate server workloads. For
example, SpecWeb99 results show that Apache running on TightLip
exhibits only a 5% slowdown in request rate and response time
compared to an unmodified server environment.
2 Overview
Access control misconfigurations are common and potentially damaging:
peer-to-peer users often inadvertently share emails and credit card
information [12], computer science department faculty have
been found to set the permissions of their email files to
all-readable [31], professors have inadvertently left
students' grade information in their public web space [22],
a database of 20,000 Hong Kong police complainants' personal
information was accidentally published on the web and ended up in
Google's cache [16], and UK employees unintentionally
copied sensitive internal documents to remote Google servers via
Google Desktop [17]. Because these breaches were not the
result of buggy or malicious software, they present a different threat
model than is normally assumed by the privacy and security literature.
TightLip addresses this problem in three phases: 1) help users
identify sensitive files, 2) track the propagation of sensitivity
through a running system and detect when sensitive data may leave the
system, and 3) enable policies for handling potential breaches. The
focus of this paper is on the mechanisms used in phase two, but the
rest of this section provides an overview of all three.
To identify sensitive data, TightLip periodically scans each file in a
file system and applies a series of diagnostics, each
corresponding to a different sensitive data type. These diagnostics
use heuristics about a file's path, name, and content to infer whether
or not it is of a particular sensitive type. For example, the email
diagnostic checks for a ``.pst'' file extension, placement below a
``mail'' directory, and the ASCII string ``Message-ID'' in the file.
This scanning process is similar to anti-virus software that uses a
periodically updated library of definitions to scan for infected
files. The difference is that rather than prompting users when they
find a positive match, diagnostics silently mark the file as sensitive
and invoke the type's associated scrubber.
Scrubbers use a file's content to produce a non-sensitive
shadow version of the file. For example, the email scrubber
outputs a properly formatted shadow email file of the same size as the
input file, but marks out each message's sender, recipient, subject,
and body fields. Attachments are handled by recursively invoking
other format-preserving, MIME-specific scrubbers. When the system
cannot determine a data source's type it reverts to the default
scrubber, which replaces each character from the sensitive data source
with the ``x'' character.

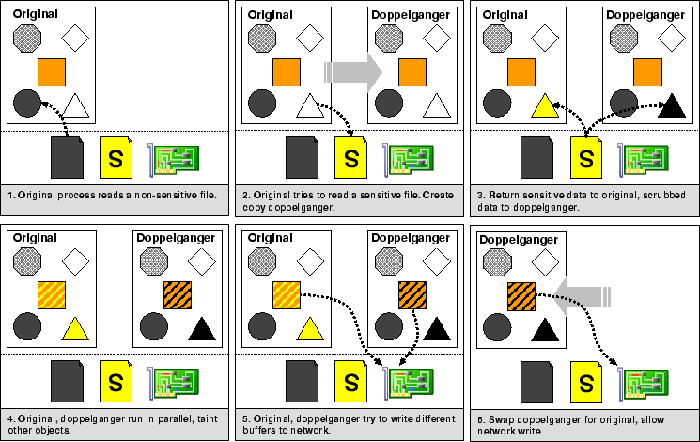

Figure 1:
Using doppelgangers to avoid a breach.
 |
Once files have been labeled, TightLip must track how sensitive
information propagates through executing processes and prevent it from
being copied to an untrusted destination. This problem is an instance
of information-flow tracking, which has most commonly been used
to protect systems from malicious exploits such as buffer overflows
and format string attacks. Unfortunately, these solutions either
suffer from incompatibly with legacy
applications [10,14,19,26,32],
require expensive binary
rewriting [5,6,8,20,28],
or rely on hardware support [29].
Instead, TightLip offers a new point in the design space of
information-flow secure systems based on doppelganger
processes. Doppelgangers are sandboxed copy processes that inherit
most, but not all, of the state of an original process.
Figure 1 shows a simple example of how doppelgangers
can be used to track sensitive information. Initially, an original
process runs without touching sensitive data. At some point, the
original attempts to read a sensitive file, which prompts the TightLip
kernel to spawn a doppelganger. The kernel returns the sensitive
file's content to the original and the scrubbed content of the shadow
file to the doppelganger.
Once the reads have been satisfied, the original and doppelganger are
both placed on the CPU ready queue and, when scheduled, modify their
private memory objects. The operating system subsequently tracks
sensitivity at the granularity of a system call. If the doppelganger
and original generate the same system call sequence with the same
arguments, then these outputs do not depend on either the sensitive or
scrubbed input with high probability and the operating system does
nothing. This might happen when an application such as a virus
scanner handles sensitive files, but does not act on their content.
However, if the doppelganger and original make the same system call
with different arguments, then the original's output likely depends on
sensitive data and the objects the call modifies are marked as
sensitive. As long as updated objects are within the operating
system's control, such as files and pipes, then they can be
transitively labeled. However, if the system call modifies an object
that is outside the control of the system, such as a socket connected
to an untrusted host, then allowing the original's system call may
compromise confidentiality.
By tracking information-flow at a relatively course granularity,
TightLip avoids many of the drawbacks of previous approaches. First,
because TightLip does not depend on any language-level mechanisms, it
is compatible with legacy applications. Second, comparing the
sequence and arguments of system calls does not require hardware
support and needs only minor changes to existing operating systems.
Third, the performance penalty of introducing doppelgangers is modest;
the overhead of scheduling an additional process is negligible for
most workloads.
Finally, an important limitation of existing information-flow tracking
solutions is that they cannot gracefully transition a process from a
tainted (i.e., having accessed sensitive data) and to an untainted
state. A list of tainted memory locations or variables is not enough
to infer what a clean alternative would look like. Bridging this
semantic gap requires understanding a process's execution logic and
data structure invariants. Because of this, once a breach has been
detected, prior solutions require all tainted processes associated
with the breach to be rebooted. While rebooting purges taint, it also
wipes out untainted connections and data structures.
Doppelgangers provide TightLip with an internally consistent, clean
alternative to the tainted process; as long as shadow files are
generated properly, doppelgangers will not contain any sensitive
information. This allows TightLip to swap doppelgangers in for their
original processes--preserving continuous execution without
compromising confidentiality.
Once the operating system detects that sensitive data is about to be
copied onto a destination outside of TightLip's control, it invokes
the disclosure policy module. Module policies specify how the
kernel should handle attempts to copy sensitive data to untrusted
destinations. Our current prototype supports actions such as
disabling a process's write permissions, terminating the process,
scrubbing output buffers, or swapping the doppelganger in for the
original.
TightLip provides default policies, but also notifies users of
potential breaches so that they can define their own policies. Query
answers can be delivered synchronously or asynchronously (e.g. via
pop-up windows or emails). Answers can also be cached to minimize
future interactions with the user.
3 Limitations
Though TightLip is attractive for its low overhead, compatibility with
legacy applications and hardware, and support for continuous
execution, it is not without its limitations. First, in TightLip the
operating system is completely trusted. TightLip is helpless to stop
the kernel from maliciously or unintentionally compromising
confidentiality. For example, TightLip cannot prevent an in-kernel
NFS server from leaking sensitive data.
Second, TightLip relies on scrubbers to produce valid data. An
incorrectly formatted shadow file could crash the doppelganger. In
addition, swapping in a doppelganger is only safe if scrubbers can
remove all sensitive information. While feasible for many data types,
it may not be possible to meet these requirements for all data
sources.
Third, scrubbed data can lead to false negatives in some pathological
cases. For example, an original process may accept a network query
asking whether a sensitive variable is even or odd. TightLip could
generate a scrubbed value that is different from the sensitive
variable, but of the same parity. The output for the doppelganger and
original would be the same, despite the fact that the original is
leaking information. The problem is that it is possible to generate
``unlucky'' scrubbed data that can lead to a false negative. Such
false negatives are unlikely to arise in practice since the
probability of a collision decreases geometrically with the number of
bits required to encode a response.
Fourth, TightLip avoids the overhead of previous approaches by
focusing on system calls, rather than individual memory locations.
Unfortunately, if a process reads sensitive data from multiple
sources, TightLip cannot compute the exact provenance of a sensitive
output. While this loss of information makes more fine-grained
confidentiality policies impossible, it allows us to provide practical
application performance.
Fifth, TightLip does not address the problem of covert channels. An
application can use a variety of covert channels to transmit sensitive
information [24,29]. Since it is
unlikely that systems can close all possible covert
channels [29], dealing with covert channels is
beyond the scope of this paper.
Finally, TightLip relies on comparisons of process outputs to track
sensitivity and transitively label objects. If the doppelganger
generates a different system call than its original, it has entered a
different execution state and may no longer provide information about
the relationship between the sensitive input and the original's
output. Such divergence might happen if scrubbed input induced a
different control flow in the doppelganger. Without the doppelganger
as a point of comparison, any object subsequently modified by the
original must be marked sensitive; this can lead to incorrectly
labeled objects and false positives.
This limitation of doppelgangers is similar to those faced by
taint-flow analysis of ``implicit flow.'' Consider the following code
fragment, in which variable x is tainted:
if(x)
{ y=1; } else
{ y=0; }. Variable y should be flagged since its value
depends on the value of x. Tainting each variable written
inside a conditional block captures all dependencies, but can also
implicate innocent variables and raise false positives. In practice,
following dependencies across conditionals is extremely difficult
without carefully-placed programmer annotations [32].
Every taint-checker for legacy code that we are aware of ignores
implicit flow to avoid false positives.
Despite the challenges of conditionals, for an important subset of
applications, it is reasonable to assume that scrubbed input will not
affect control flow. Web servers, peer-to-peer clients, distributed
file systems, and the sharing features of Google Desktop blindly copy
data into buffers without interpreting it. Early experience with our
prototype confirms such behavior and the rest of this paper is focused
on scenarios in which scrubbed data does not affect control flow.
Much of the rest of our discussion of TightLip describes how to
eliminate sources of divergence between an original and doppelganger
process so that differences only emerge from the initial scrubbed
input. If any other input or interaction with the system causes a
doppelganger to enter an alternate execution state, TightLip may
generate additional false positives.
4 Design
There are two primary challenges in designing support for doppelganger
processes. First, because doppelgangers may run for extended periods
and compete with other processes for CPU time and physical memory,
they must be as resource-efficient as possible. Second, since
TightLip relies on divergence to detect breaches, all doppelganger
inputs and outputs must be carefully regulated to minimize false
positives.
Our first challenge was limiting the resources consumed by
doppelgangers. A doppelganger can be spawned at any point in the
original's execution. One option is to create the doppelganger
concurrently with the original, but doing so would incur the cost of
monitoring in the common case when taint is absent.
Instead, TightLip only creates a doppelganger when a process attempts
to read from a sensitive file. For the vast majority of processes,
reading sensitive files will occur rarely, if ever. However, some
long-lived processes that frequently handle sensitive data such as
virus scanners and file search tools may require a doppelganger
throughout their execution. For these applications, it is important
that doppelgangers be as resource-efficient as possible.
Once created, doppelgangers are inserted into the same CPU ready queue
as other processes. This imposes a modest scheduling overhead and
adds processor load. However, unlike taint-checkers, the fact that
doppelgangers have a separate execution context enables a degree of
parallelization with other processes, including the original. Though
we assume a uni-processor environment throughout this paper, TightLip
should be able to take advantage of emerging multi-core architectures.
To limit memory consumption, doppelgangers are forked from the
original with their memory marked copy-on-write. In addition, nearly
all of the doppelganger's kernel-maintained process state is shared
read-only with the original, including its file object table and
associated file descriptor namespace. The only separate, writable
objects maintained for the doppelganger are its execution context,
file offsets, and modified memory pages.
2 Doppelganger Inputs and Outputs
In TightLip the kernel must manage doppelganger inputs and outputs to
perform three functions: prevent external effects, limit the sources
of divergence to the initial scrubbed input, and contain sensitive
data. To perform these functions, the kernel must regulate information
that passes between the doppelganger and kernel through system calls,
signals, and thread schedules.
Kernel-doppelganger interactions fall into one of the following
categories: kernel updates, kernel reads,
non-kernel updates, and non-kernel reads.
Table 1 lists each type, provides an example system
call, and briefly describes how TightLip regulates the interaction.
1 Updates to Kernel State
As with speculative execution
environments [4,21], TightLip must prevent
doppelgangers from producing any external effects so that it remains
unintrusive. As long as an application does not try to leak sensitive
information, it should behave no differently than in the case when
there is no doppelganger.
This is why original processes must share their kernel state with the
doppelganger read-only. If the doppelganger were allowed to update
the original's objects, it could alter its execution. Thus, system
calls that modify the shared kernel state must be strictly ordered so
that only the original process can apply updates.
System calls that update kernel state include, but are not limited to,
exit, fork, time, lseek, alarm, sigaction, gettimeofday, settimeofday,
select, poll, llseek, fcntl, bind, connect, listen, accept, shutdown,
and setsockopt.
TightLip uses barriers and condition variables to implement these
system calls. A barrier is placed at the entry of each kernel
modifying call. After both processes have entered, TightLip checks
their call arguments to verify that they are the same. If the
arguments match, then the original process executes the update, while
the doppelganger waits. Once the original finishes, TightLip notifies
the doppelganger of the result before allowing it to continue
executing.
If the processes generate different updates and the modified objects
are under the kernel's control, TightLip applies the original's update
and records a transfer of sensitivity. For example, the kernel
transitively marks as sensitive objects such as pipes, UNIX domain
sockets, and files. Subsequent reads of these objects by other
processes may spawn doppelgangers.
It is important to note that processes will never block indefinitely.
If one process times out waiting for the other to reach the barrier,
TightLip assumes that the processes have diverged and discards the
doppelganger. The kernel will then have to either mark any
subsequently modified objects sensitive or invoke the policy module.
Signals are a special kernel-doppelganger interaction since they
involve two phases: signal handler registration, which modifies kernel
data, and signal delivery, which injects data into the process.
Handler registration is managed using barriers and condition variables
as other kernel state updates are; only requests from the original are
actually registered. However, whenever signals are delivered, both
processes must receive the same signals in the same order at the same
points in their execution. We discuss signal delivery in
Section 4.2.2.
Of course, doppelgangers must also be prevented from modifying
non-kernel state such as writing to files or network sockets. Because
it may not be possible to proceed with these writes without invoking a
disclosure policy and potentially involving the user, modifications of
non-kernel state are treated differently. We discuss updates to
non-kernel state in Section 4.2.3.
2 Doppelganger Inputs
To reduce the false positive rate TightLip must ensure that sources of
divergence are limited to the scrubbed input. For example, both
processes must receive the same values for time-of-day requests,
receive the same network data, and experience the same signals.
Ensuring that reads from kernel state are the same is trivial, given
that updates are synchronized. However, preventing non-kernel reads,
signal delivery, and thread-interleavings from generating divergence
is more challenging.
The values returned by non-kernel reads, such as from a file, a
network socket, and the processor's clock, can change over time. For
example, consecutive calls to gettimeofday or consecutive reads from a
socket will each return different data. TightLip must ensure that
paired accesses to non-kernel state return the same value to both the
original and doppelganger. This requirement is similar to the
Environment Instruction Assumption ensured by hypervisor-based
fault-tolerance [2].
To prevent the original from getting one input and the doppelganger
another, TightLip assigns a producer-consumer buffer to each data
source. For each buffer, the original process is the producer and the
doppelganger is the consumer. System calls that use such queues
include read, readv, recv, recvfrom, and gettimeofday.
If the original (producer) makes a read request first, it is satisfied
by the external source and the result is copied into the buffer. If
the buffer is full, the original must block until the doppelganger
(consumer) performs a read from the same non-kernel source and
consumes the same amount of data from the buffer. Similarly, if the
doppelganger attempts to read from a non-kernel source and the buffer
is empty, it must wait for the original to add data.
The mechanism is altered slightly if the read is from another
sensitive source. In this case, the kernel returns scrubbed
buffers to the doppelganger and updates a list of sensitive inputs to
the process. Otherwise, the producer-consumer queue is handled
exactly the same as for a non-sensitive source. As before, neither
process will block indefinitely.
In Section 4.2.1, we explained that signals are a
two-phase interaction: a process registers a handler and the kernel
may later deliver a signal. We treat the first phase as a kernel
update. Since modifications to kernel state are synchronized, any
signal handler that the original successfully registers is also
registered for the doppelganger.
The TightLip kernel delivers signals to a process as it transitions
into user mode. Any signals intended for a process are added to its
signal queue and then moved from the queue to the process's stack as
it exits kernel space. A process can exit kernel space either because
it has finished a system call or because it had been pre-empted and is
scheduled to start executing again.
To prevent divergence, any signals delivered to the doppelganger and
original must have the same content, be delivered in the same order,
and must be delivered to the same point in their execution. If any
of these conditions are violated, the processes could stray. TightLip
ensures that signal content and order is identical by copying any
signal intended for the original to both the original's and
doppelganger's signal queue.
Before jumping back into user space, the kernel places pending
signals on the first process's stack. Conceptually, when the process
re-enters user space, it handles the signals in order before returning
from its system call. The same is true when the second process
(whether the doppelganger or original) re-enters user space. For the
second process, a further check is needed to ensure that only signals
that were delivered to the first are delivered to the second.
In previous sections, we have described how the original and
doppelganger must be synchronized when entering system call code in
the kernel so that TightLip can detect divergence. Unfortunately,
simply synchronizing the entry to system calls between processes is
insufficient to ensure that signals are delivered to the same
execution state.
This is because some system calls can be interrupted by a signal
arriving while the kernel is blocked waiting for an external event
to complete the call. In such cases, the kernel delivers the
signal to the process and returns an ``interrupted'' error code
(e.g. EINTR in Linux). Interrupting the system call allows the kernel
to deliver signals without waiting (potentially forever) for the
external event to occur.
Properly written user code that receives an interrupted error code
will retry the system call. If TightLip only synchronizes on system
call entry-points, retrying an interrupted system call can lead to
different system call sequences. Consider the following example taken
from the execution of the SSH daemon, sshd, where Process 1 and 2
could be either the doppelganger or original:
- Process 1 (P1) calls
and waits for Process
2 (P2).
-
- P2 calls
, wakes up P1, completes
, returns to user-mode, calls
, and waits for P1 to call
.
-
- P1 wakes up and begins to complete
.
-
- A signal arrives for the original process.
-
- The kernel puts the signal handler on P1's stack and sets the
return value of P1's
to EINTR.
-
- P1 handles the signal, sees a return code of EINTR for
, retries
, and waits for P2
to call
.
In this example, divergence arose because P1's and P2's calls to
generated different return values, which led P1 to
call
twice. To prevent this, TightLip must ensure
that paired system calls generate the same return values. Thus,
system call exit-points must be synchronized as well as entry-points.
In our example, paired exit-points prevent P2's
from
returning a different return value than P1's: both P1 and P2 are
returned either EINTR or the number of written bytes.
Figure 2:
Signaling that leads to divergence.
 |
Parallel control flows as well as lock-step system call entry and exit
points make it likely that signals will be delivered to the same point
in processes' execution, but they are still not a guarantee. To see
why, consider the processes in Figure 2. In the
example, a user-level thread library uses an alarm signal to pre-empt
an application's threads. When the signal is handled determines how
much progress the user-level thread makes. In this case, it
determines the order in which threads acquire a lock. The problem is
that the doppelganger and original have been pre-empted at different
instructions, which forces them to handle the same signal in different
states. Ideally, the processor would provide a recovery
register, which can be decremented each time an instruction is
retired; the processor then generates an interrupt once it becomes
negative. Unfortunately, the x86 architecture does not support such a
register.
Even without a recovery register, TightLip can still limit the
likelihood of divergence by deferring signal delivery until the
processes reach a synchronization point. Most programs make system
calls throughout their execution, providing many opportunities to
handle signals. However, for the rare program that does not make any
system calls, the kernel cannot wait indefinitely without compromising
program correctness. Thus, the kernel can defer delivering signals on
pre-emption re-entry only a finite number of times. In our limited
experience with our prototype kernel, we have not seen process
divergence due to signal delivery.
Managing multi-threaded processes requires two additional mechanisms.
First, the kernel must pair doppelganger and original threads entering
and exiting the kernel. Second, the kernel must ensure that
synchronization resources are acquired in the same order for both
processes. Assuming parallel control flows, if control is transferred
between threads along system calls and thread primitives such as
lock/unlock pairs, then TightLip can guarantee that the original and
doppelganger threads will enter and exit the kernel at the same
points.
3 Updates to Non-kernel State
The last process interactions to be regulated are updates to
non-kernel state. As with other system calls, these updates are
synchronized between the processes using barriers and condition
variables. The difference between these modifications and those to
kernel state is that TightLip does not automatically apply the
original's update and return the result to both processes. TightLip's
behavior depends on whether the original and the doppelganger have
generated the same updates.
If both processes generate the same update, then TightLip assumes that
the update does not depend on the sensitive input and that releasing
it will not compromise confidentiality. The kernel applies the
update, returns the result, and takes no further action.
If the updates differ and are to an object outside of the kernel's
control, TightLip assumes that a breach is about to occur and queries
the disclosure policy module. Our prototype currently supports
several disclosure policies: do nothing (allow the potentially
sensitive data to pass), disable writes to the network (the system
call returns an error), send the doppelganger output instead of the
original's, terminate the process, and swap the doppelganger for the
original process.
If the user chooses to swap in the doppelganger, the kernel sets the
original's child processes' parent to the doppelganger, discards the
original, and associates the original's process identifier with the
doppelganger's process state. While the swap is in-progress, both
processes must be removed from the CPU ready queue. This allows
related helper processes to make more progress than they might have
otherwise, which can affect the execution of the swapped-in process in
subtle but not incorrect ways. We will describe an example of such
behavior in Section 6.1.
Swapped-in processes require an extra mechanism to run the
doppelganger efficiently and safely. For each swapped-in process,
TightLip maintains a fixed-size list of open files inherited from the
doppelganger. Anytime the swapped-in process attempts to read from a
sensitive file, the kernel checks whether the file is on the list. If
it is, TightLip knows that the process had previously received
scrubbed data from the file and returns more scrubbed data. If the
file is not on the list and the file is sensitive, TightLip spawns a
new doppelganger.
These lists are an optimization to avoid spawning doppelgangers
unnecessarily. Particularly for large files that require multiple
reads, spawning a new doppelganger for every sensitive read can lead
to poor performance. Importantly, leaving files off of the list
can only hurt performance and will never affect correctness or
compromise confidentiality. Because of this guarantee, TightLip can
remove any write restrictions on the swapped-in process since its
internal state is guaranteed to be untainted.
Unfortunately, swapping is not without risk. In some cases, writing
the doppelganger's buffer to the network and keeping the doppelganger
around to monitor the original may be the best option. For example,
the user may want the original to write sensitive data to a local file
even if it should not write it to the network. However, maintaining
both processes incurs some overhead and non-sensitive writes would
still be identical for both the original and the swapped-in process
with very high probability.
Furthermore, the doppelganger can stray from the original in
unpredictable ways. This is similar to the uncertainty generated by
failure-oblivious computing [23]. To reduce this risk,
TightLip can monitor internal divergence in addition to external
divergence. External symptoms of straying are obvious--when the
doppelganger generates different sequences of system calls or uses
different arguments. Less obvious may be if the scrubbed data or some
other input silently shifts the process's control flow. Straying of
this form may not generate external symptoms, but can still leave the
doppelganger in a different execution state than the original.
We believe that this kind of divergence will be rare for applications
such as file servers, web servers, and peer-to-peer clients; these
processes will read a sensitive file, encode its contents, and write
the result to the network. Afterward, the doppelganger and original
will return to the same state after the network write. In other
cases, divergence will likely manifest itself as a different sequence
of system calls or a crash [18].
For additional safety, TightLip can take advantage of common processor
performance counters, such as those offered by the
Pentium4 [27] to detect internal divergence. If the number
of instructions, number of branches taken and mix of loads and stores
are sufficiently similar, then it is unlikely that the scrubbed input
affected the doppelganger's control flow. TightLip can use these
values to measure the likelihood that the doppelganger and original
are in the same execution state and relay this information to the
user.
To demonstrate the design of the TightLip kernel, it is useful to step
through an example of copying a sensitive file from a TightLip-enabled
remote host via the secure copy utility, scp.
Secure copy requests are accepted by an SSH daemon, sshd, running on
the remote host. After authenticating the requester, sshd forks a
child process,
, which runs under the uid of the
authenticated user and will transfer encrypted file data directly to
the requester via a network socket,
.
creates a child process of its own,
, which reads the requested data from the file system
and writes it to a UNIX domain socket,
, connecting
and
.
As soon as
attempts to read a sensitive file, the
kernel spawns a doppelganger,
. Once
and
have returned from their
respective reads, they both try to write to
. Since
is under the kernel's control, the actual file data
from
is buffered and
is
transitively marked sensitive.
, meanwhile, selects
on
and is woken up when there is data available for
reading.
When
attempts to read from
(which is
now sensitive), the kernel forks another doppelganger,
, and returns the actual buffer content (sensitive
file data) to
and scrubbed data to
.
and
both encrypt their data and attempt to write the result to
. Since their output buffers are different, the
breach is detected. By default, the kernel writes
's encrypted scrubbed data to
,
sets the parent process of
and
to
, and swaps in
for
.
4 Future Work
Though TightLip supports most interactions between doppelgangers and
the operating system, there is still some work to be done. For
example, we currently do not support communication over shared memory.
TightLip could interpose on individual loads and stores to shared
memory by setting the page permissions to read-only. Though this
prevents sensitive data from passing freely, it also generate a page
fault on every access of the shared pages.
In addition, TightLip currently lacks a mechanism to prevent a
misconfigured process from overwriting sensitive data. Our design
targets data confidentiality, but does not address data integrity.
However, it is easy to imagine integrating integrity checks with our
current design. For example, anytime a process attempts to write to a
sensitive file, TightLip could invoke the policy module, as it
currently does for network socket writes.
Finally, we believe that it will be possible to reduce the memory
consumed by a long-lived doppelganger by periodically comparing its
memory pages to the original's. This would make using the
doppelganger solely to generate untainted network traffic--as opposed
to swapping it in for the original--more attractive.
Though doppelgangers will copy-on-write memory pages as they execute,
many of those pages may still be identical to the original's. This
would be true for pages that only receive updates that are independent
of the scrubbed input. These pages could be remarked copy-on-write
and shared anew by the two processes.
Furthermore, even if a page initially contained bytes that depended on
the scrubbed input, over time those bytes may be overwritten with
non-sensitive values. These pages could also be recovered. Carried
to its logical conclusion, if all memory pages of the original and
doppelganger converged, then the doppelganger could be discarded
altogether. We may be able to apply the memory consolidation
techniques used in the VMware hypervisor [30] to this
problem and intend to explore these mechanisms and others in our
future work.
5 Implementation
Our TightLip prototype consists of several hundred lines of C code
scattered throughout the Linux 2.6.13 kernel. We currently support
signals, inter-process communication via pipes, UNIX domain sockets,
and graphical user interfaces. Most of the code deals with monitoring
doppelganger execution, but we also made minor modifications to the
ext3 file system to store persistent sensitivity labels.
Sensitivity is currently represented as a single bit co-located
on-disk with file objects. If more complex classifications become
necessary, using one bit could be extended to multiple bits. To query
sensitivity, we added a predicate to the kernel file object that
returns the sensitivity status of any file, socket, and pipe.
TightLip currently only supports sensitivity in the ext3 file
system, though this implementation is backwards-compatible with
existing ext3 partitions. Adding sensitivity to future file
systems should be straightforward since manipulating the sensitivity
bit in on-disk ext3 inodes only required an extra three lines of
code.
Our prototype also provides a new privileged system call to manage
sensitivity from user-space. The system call can be used to read,
set, or clear the sensitivity of a given file. This is used by
TightLip diagnostics and by a utility for setting sensitivity by hand.
Our prototype augments several existing Linux data structures and adds
one new one, called a completion structure. Completion
structures buffer the results of an invoked kernel function. This
allows TightLip to apply an update or receive a value from a
non-kernel source once, but pass on the result to both the original
and doppelganger. Minimally, completion structures consist of
arguments to a function and its return value. They may also contain
instructions for the receiving process, such as a divergence
notification or instructions to terminate.
TightLip also required several modifications to the Linux task
structure. These additions allow the kernel to map doppelgangers to
and from originals, synchronize their actions, and pass messages
between them. The task structure of the original process also stores
a list of buffers corresponding to kernel function calls such as bind,
accept, and read. Finally, all process structures contain a list of
at most 10 open sensitive files from which scrubbed data should be
returned. Once a sensitive file is closed, it is removed from this
list.
System call entry and exit barriers are crucial for detecting and
preventing divergence. For example, correctly implementing the exit
system call requires that peers synchronize in the kernel to
atomically remove any mutual dependencies between them. We have
inserted barriers in almost all implemented system calls. In the
future, we may be able to relax these constraints and eliminate some
unnecessary barriers.
We began implementing TightLip by modifying read system calls for
files and network sockets. Next, we modified the write system call to
compare the outputs of the original and the doppelganger. The
prototype allows invocation of a custom policy module when TightLip
determines that a process is attempting to write sensitive data.
Supported policies include allowing the sensitive data to be written,
killing the process, closing the file/socket, writing the output of
the doppelganger, and swapping the doppelganger for the original
process.
After read and write calls, we added support for reads and
modifications of kernel state, including all of the socket system
calls. We have instrumented most, but not all relevant system calls.
Linux currently offers more than 290 system calls, of which we have
modified 28.
TightLip implements process swapping in several stages. First, it
synchronizes the processes using a barrier. Then the original process
notifies the doppelganger that swapping should take place. The
doppelganger receives the message and exchanges its process identifier
with the original's. To do this requires unregistering both processes
from the global process table and then re-registering them under the
exchanged identifiers. The doppelganger must then purge any pointers
to the original process's task structure.
Once the doppelganger has finished cleaning up, it acknowledges the
original's notification. After receiving this acknowledgment, the
original removes any of its state that depends on the doppelganger and
sets its parent to the init process. This avoids a child death
signal from being delivered to its actual parent. The original also
re-parents all of its children to the swapped-in doppelganger. Once
these updates are in place, the original safely exits.
There are still several features of our design that remain
unimplemented. The major goal of the current prototype has been to
evaluate our design by running several key applications such as a web
server, NFS server, and sshd server. We are currently working on
support for multi-threaded applications. Our focus on single-threaded
applications, pipes, UNIX domain sockets, files, and network sockets
has given us valuable experience with many of the core mechanisms of
TightLip and we look forward to a complete environment in the very
near future.
6 Evaluation
In this section we describe an evaluation of our TightLip prototype
using a set of data transfer micro-benchmarks and SpecWeb99. Our goal
was to examine how TightLip affects data transfer time, resource
requirements, and application saturation throughput.
We used several unmodified server applications: Apache-1.3.34, NFS
server 2.2beta47-20, and sshd-3.8. Each of these applications is
structured differently, leading to unique interactions with the
kernel. Apache runs as a collective of worker processes that are
created on demand and destroyed when idle for a given period. The NFS
server is a single-threaded, event-driven process that uses signals to
handle concurrent requests.
sshd forks a shell process to represent the user requesting a
connection. The shell process serves data transfer requests by forking
a worker process to fetch files from the file system. The worker sends
the data to the shell process using a UNIX domain socket, and the
shell process encrypts the data and sends it over the network to the
client. All sshd forked processes belonging to the same session are
destroyed when the client closes the connection.
All experiments ran on a Dell Precision 8300 workstation with a single
3.0 GHz Pentium IV processor and 1GB RAM. We ran all client
applications on an identical machine connected to the TightLip host
via a closed 100Mbs LAN. All graphs report averages together with a
95% confidence interval obtained from 10 runs of each experiment. It
should be noted that we did not detect any divergence prior to the
network write for any applications during our experiments.
1 Application Micro-benchmarks
In this set of experiments we examined TightLip's impact on several
data transfer applications. We chose these applications because they
are typical of those likely to inadvertently leak data, as exemplified
by the motivating Kazaa, web server, and distributed file system
misconfigurations [12,16,22,31].
Our methodology was simple; each experiment consisted of a single
client making 100 consecutive requests for 100 different files, all of
the same size. As soon as one request finished, the client
immediately made another.
For each trial, we examined four TightLip configurations. To capture
baseline performance, each server initially ran with no
sensitive files. The server simply read from the file system,
encoded the files' contents, and returned the results over the
network.
Next, we ran the servers with all files marked sensitive and applied
three more policies. The continuous policy created a
doppelganger for each process that read sensitive data and ran the
doppelganger alongside the original until the original
exited. Subsequent requests to the original process were also
processed by the doppelganger.
The swap policy followed the continuous policy, but swapped in
the doppelganger for the original after each network write. If the
swapped-in process accessed sensitive data again, a new doppelganger
was created and swapped in after the next write.
The optimized swap policy remembered if a process had been
swapped in. This allowed TightLip to avoid creating doppelgangers
when the swapped process attempted to further read from the same
sensitive source; the system could return scrubbed data without
creating a new doppelganger.
Figure 3, Figure 4, and
Figure 5 show the relative transfer times for the above
applications when clients fetched sensitive files of varying sizes.
Note that the cost of the additional context switches TightLip
requires to synchronize the original and doppelganger may be high
relative to the baseline transfer time for smaller files. This
phenomenon is most noticeable for the NFS server in
Figure 4, where fetching files of size 1K and 4K was 30%
and 25% more expensive, respectively, than fetching non-sensitive
files. As file size increases, data transfer began to dominate the
context switch overhead induced by TightLip; the NFS server running
under all policies transferred 256KB within 10% of the baseline time.
Figure 3 shows that our Apache web server was the least
affected by the TightLip. The overhead under all three policies was
within 5% of the baseline, with continuous execution being slightly
more expensive than the other two. This result can be explained by the
fact that fetching static files from the web server was I/O bound and
required little CPU time. Continuous execution was slightly more
expensive, since the original and the doppelganger both parsed every
client request.
Figure 5 shows that the overhead of using doppelgangers
for sshd was within 10% of the baseline for most cases. This was
initially surprising, since the original and doppelganger performed
encryption on the output concurrently. However, the overhead of
performing extra symmetric encryption was low and masked by the more
dominant cost of I/O.
Figure 3:
Apache relative transfer time.
 |
Figure 4:
NFS relative transfer time.
 |
Figure 5:
SSH relative transfer time.
 |
Table 2:
Average total number of additional pages created during a run
of the data transfer micro-benchmarks. Each run transfers 600 files
for a total of 133MB.
| Server |
Continuous |
Swap |
Optimized |
|---|
| apache |
852 |
76634 |
5389 |
| sshd |
76277 |
166055 |
38085 |
| nfsd |
58 |
233017 |
42395 |
|
The swap policy performed better than the continuous execution policy
for Apache and NFS. This result was expected since process swapping
reduces the overhead of running a doppelganger. The benefit from
process swapping was application-dependent though, as the time spent
swapping the doppelganger for the original sometimes outweighed the
overhead incurred by running the doppelganger--while swapping took
place, the process was blocked and could not make any
progress. Transferring 4K size files from sshd illustrated this point:
sshd was almost done transferring all of its data after the first
write to the network. Swapping the doppelganger for the original only
delayed completion of the request.
To our surprise, the swapping policy applied to sshd actually reduced
transfer times for 16K and 64K files. The reason for this behavior was
that during swapping, the sshd shell process blocked and could not
consume data from the UNIX domain socket. However, the worker process
continued to feed data to the socket, which increased the amount of
data the shell process found on its next read.
Since the shell process had a larger read buffer than the worker
process, swapping caused the shell process to perform larger reads
and, as a result, fewer network writes relative to not swapping.
Performing fewer system calls improved the transfer time observed by
the client. The impact of swapping decreased as file size increased
since the fixed-size buffer of the UNIX domain socket forced worker
processes to block if the socket was full.
The optimized swap policy had the best overall performance among all
three policies. Since all servers perform repeated reads from the
same sensitive source, creating doppelgangers after every read was
unnecessary. Even though this policy often improved performance, it
did not apply in all cases. The policy assumed that sensitive writes
depended on all sensitive sources that a process had opened.
Thus, future reads from these sensitive sources always produced
scrubbed data.
Doppelgangers affected memory usage as well as response time.
Table 2 shows the average total number of extra memory
pages allocated while running the entire benchmark. Each cell
represents the additional number of pages created during the transfer
of all 600 files (133MB).
We observed that the server applications behave differently under our
policies. The best memory policy for Apache and nfsd was continuous
execution since for both servers' process executes until the end of
the benchmark. For these two servers any other policy increased the
number of doppelgangers created and required more page
allocations. Since an sshd process only executes for the duration of a
single file transfer, continuous execution was not as good as
swap-optimized execution. For all three servers, the swap policy
produced the most page allocations, since it created more
doppelgangers.
Overall, our micro-benchmark results suggest that TightLip has low
impact on data transfer applications. The overhead depends on the
policy used to deal with sensitive writes. In most cases the overhead
was within 5%, and it never exceeded 30%. Even with doppelgangers
running continuously, TightLip outperformed prior taint-checking
approaches by many orders of magnitude. For example, Apache running
under TaintCheck and serving 10KB files is nearly 15 times slower than
an unmodified server. For 1KB files, it is 25 times
slower [20]. Thus, even in the worst case, using
doppelgangers provides a significant performance improvement for data
transfer applications.
Figure 6:
SpecWeb99 throughput.
 |
Our final set of experiments used the SpecWeb99 benchmark on an Apache
web server running on a TightLip machine. We used two configurations
for these experiments--no sensitive files and continuous execution
with all files marked sensitive. Since the benchmark verified the
integrity of every file, we configured TightLip to return the data
supplied by the original instead of the scrubbed data supplied by the
doppelganger. This modification was only for test purposes, so that we
could run the benchmark over our kernel. Even with this modification
it was impossible to use SpecWeb99 on Apache with process swapping,
since we could not completely eliminate the effect of data scrubbing;
the swapped-in doppelgangers still had some scrubbed data in their
buffers.
We configured SpecWeb99 to request static content of varying
sizes. Figure 6 shows the server throughput as
a function of the number of clients, and
Figure 7 shows the response time. Our results
show that the overhead of handling sensitive files was within 5%.
The above graphs show that the saturation point for both
configurations was in the range of 110-130 clients. These results
further demonstrate that doppelgangers can provide privacy protection
at negligible performance cost.
Figure 7:
SpecWeb99 response time.
 |
7 Related Work
Several recent system designs have observed the trouble that users and
organizations have managing their sensitive data [3,25,29]. RIFLE [29] and
InfoShield [25] both propose new hardware support for
information-flow analysis and enforcement; SANE [3]
enforces capabilities in-network. All of these approaches are
orthogonal to TightLip. An interesting direction for our future work
will be to design interfaces for exporting sensitivity between these
layers and TightLip.
A simple way to prevent leaks of sensitive data is to revoke the
network write permissions of any process that reads a sensitive file.
The problem is that this policy can needlessly punish processes that
use the network legitimately after reading sensitive data. For
example, virus scanners often read sensitive files and later contact a
server for new anti-virus definitions while Google Desktop and other
file indexing tools may aggregate local and remote search results.
A number of systems perform information-flow analysis to transitively
label memory objects by restricting or modifying application source
code. Static solutions compute information-flow at compile time and
force programmers to use new programming languages or annotation
schemes [19,26]. Dynamic solutions rely on
programming tools or new operating system
abstractions [10,14,32]. Unlike TightLip,
both approaches require modifying or completely rewriting
applications.
It is also possible to track sensitivity without access to source code
by moving information flow functionality into
hardware [6,8,28,29].
The main drawback of this work is the lack of such support in
commodity machines. An alternative to hardware-level tracking is
software emulation through binary
rewriting [5,7,20]. The
main drawback of this approach is poor performance. Because these
systems must interpose on each memory access, applications can run
orders of magnitude more slowly. In comparison, TightLip's use of
doppelgangers runs on today's commodity hardware and introduces
modest overhead.
A recent taint checker built into the Xen
hypervisor [13] can avoid emulation overhead as long
as there are no tainted resident memory pages. The hypervisor tracks
taint at a hardware byte granularity and can dynamically switch a
virtual machine to emulation mode from virtualized mode once it
requires tainted memory to execute. This allows untainted systems to
run at normal virtual machine speeds.
While promising, tracking taint at a hardware byte granularity has its
own drawbacks. In particular, it forces guest kernels to run in
emulation mode whenever they handle tainted kernel memory. The system
designers have modified a Linux guest OS to prevent taint from
inadvertently infecting the kernel stack, but this does not address
taint spread through system calls. For example, if email files were
marked sensitive, the system would remain in emulation mode as long as
a user's email remained in the kernel's buffer cache. This would
impose a significant global performance penalty, harming tainted and
untainted processes alike. Furthermore, the tainted data could remain
in the buffer cache long after the tainted process that placed it
there had exited.
TightLip's need to limit the sources of divergence after scrubbed data
has been delivered to the doppelganger is similar to the state
synchronization problems of primary/backup fault
tolerance [1]. In the seminal primary/backup paper,
Alsberg describes a distributed system in which multiple processes run
in parallel and must be kept consistent. The primary process
answers client requests, but any of the backup processes can be
swapped in if the primary fails or to balance load across replicas.
Later, Bressoud and Schneider applied this model to a
hypervisor running multiple virtual machines [2].
The main difference between doppelgangers and primary/backup fault
tolerance is that TightLip deliberately induces a different state and
then tries to eliminate any future sources of divergence. In
primary/backup fault tolerance, the goal is to eliminate all
sources of divergence.
Doppelgangers also share some characteristics with speculative
execution [4,21]. Both involve ``best-effort''
processes that can be thrown away if they stray. The key difference
is that speculative processes run while the original is blocked, while
doppelgangers run in parallel with the original.
8 Conclusions
Access control configuration is tedious and error-prone. TightLip
helps users define what data is sensitive and who is trusted to see it
rather than forcing them to understand or predict how the interactions
of their software packages can leak data. TightLip introduces new
operating system objects called doppelganger processes to track
sensitivity through a system. Doppelgangers are spawned from and run
in parallel with an original process that has handled sensitive data.
Careful monitoring of doppelganger inputs and outputs allows TightLip
to alert users of potential privacy breaches.
Evaluation of the TightLip prototype shows that the overhead of
doppelganger processes is modest. Data transfer micro-benchmarks show
an order of magnitude better performance than similar taint-flow
analysis techniques. SpecWeb99 results show that Apache running on
TightLip exhibits a negligible 5% slowdown in request rate and
response time compared to an unmodified server environment.
Acknowledgements
We would like to thank the anonymous reviewers and our shepherd, Alex
Snoeren, for their valuable insight. We would also like to thank
Jason Flinn, Sam King, Brian Noble, and Niraj Tolia for their early
input on this work.
