15th USENIX Security Symposium

Pp. 321–336 of the Proceedings

Designing voting machines for verification

Designing voting machines for verification

Naveen Sastry1, Tadayoshi Kohno2, David Wagner3

Abstract

We provide techniques to help vendors, independent testing agencies, and others verify critical security properties in direct recording electronic (DRE) voting machines. We rely on specific hardware functionality, isolation, and architectural decision to allow one to easily verify these critical security properties; we believe our techniques will help us verify other properties as well. Verification of these security properties is one step towards a fully verified voting machine, and helps the public gain confidence in a critical tool for democracy. We present a voting system design and discuss our experience building a prototype implementation based on the design in Java and C.

1  Introduction

With a recent flurry of reports criticizing the trustworthiness of direct recording electronic (DRE) voting machines, computer scientists have not been able to allay voters' concerns about this critical infrastructure [17,29,33,38]. The problems are manifold: poor use of cryptography, buffer overflows, and in at least one study, poorly commented code. Given these problems, how can we reason about, or even prove, security properties of voting machines?
The ultimate security goal would be a system where any voter, without any special training, could easily convince themselves about the correctness of all relevant security properties. Our goal is not so ambitious; we address convincing those with the ability to understand code the correctness of a few security properties. For clarity, we focus on two important security properties in the body of this paper. Verification of these properties, as well as the others we describe elsewhere in this paper, are a step towards the full verification of a voting machine.
Property 1 None of a voter's interactions with the voting machine, including the final ballot, can affect any subsequent voter's sessions4.
One way to understand this property is to consider a particular voting system design that exhibits the property. A DRE can be "memoryless," so that after indelibly storing the ballot, it erases all traces of the voter's actions from its RAM. This way, a DRE cannot use the voter's choices in making future decisions. A DRE that achieves Property 1 will prevent two large classes of attacks: one against election integrity and another against privacy. A DRE that is memoryless cannot decide to change its behavior in the afternoon on election day if it sees the election trending unfavorably for one candidate. Similarly, successful verification of this property guarantees that a voter, possibly with the help of the DRE or election insider, cannot access a prior voter's selections.
A second property is:
Property 2 A ballot cannot be cast without the voter's consent to cast.
Property 2 ensures the voter's ballot is only cast with their consent; combined with other security properties, the property helps ensure the voter's ballot is cast in an unmodified form.
In Section 8, we discuss additional target properties for our architecture, and we discuss strategies for how to prove and implement those properties successfully.
Current DREs are not amenable to verification of these security properties; for instance, version 4.3.1 of the Diebold AccuVote-TS electronic voting machine consists of 34 7125 lines of vendor-written C++ source code, all of which must be analyzed to ensure Properties 1 and 2. One problem with current DRE systems, in other words, is that the trusted computing base (TCB) is simply too large. The larger problem, however, is the code simply is not structured to verify security properties.
In this paper, we develop a new architecture that significantly reduces the size of the TCB for verification of these properties. Our goal is to make voting systems more amenable to efficient verification, meaning that implementations can be verified to be free of malicious logic. By appropriate architecture design, we reduce the amount of code that would need to be verified (e.g., using formal methods) or otherwise audited (e.g., in an informal line-by-line source code review) before we can trust the software, thereby enhancing our ability to gain confidence in the software. We stress that our architecture assumes voters will be diligent: we assume that each voter will closely monitor their interaction with the voting machines and look for anomalous behavior, checking (for example) that her chosen candidate appears in the confirmation page.
We present techniques that we believe are applicable to DREs. We develop a partial voting system, but we emphasize that this work is not complete. As we discuss in Section 2, voting systems comprise many different steps and procedures: pre-voting, ballot preparation, audit trail management, post-election, recounts, and an associated set of safeguard procedures. Our system only addresses the active voting phase. As such, we do not claim that our system is a replacement for an existing DRE or a DRE system with a paper audit trail system. See Section 7 for a discussion of using paper trails with our architecture.
Technical elements of our approach. We highlight two of the key ideas behind our approach. First, we focus on creating a trustworthy vote confirmation process. Most machines today divide the voting process into two phases: an initial vote selection process, where the voter indicates who they wish to vote for; and a vote confirmation process, where the voter is shown a summary screen listing their selections and given an opportunity to review and confirm these selections before casting their ballot. The vote selection code is potentially the most complex part of the system, due to the need for complex user interface logic. However, if the confirmation process is easy to verify, we can verify many important security properties without analyzing the vote selection process. Our architecture splits the vote confirmation code into a separate module whose integrity is protected using hardware isolation techniques. This simple idea greatly reduces the size of the TCB and means that only the vote confirmation logic (but not the vote selection logic) needs to be examined during a code review for many security properties, such as Property 2.
Second, we use hardware resets to help ensure Property 1. In our architecture, most modules are designed to be stateless; when two voters vote in succession, their execution should be independent. We use hard resets to restore the state of these components to a consistent initial value between voters, eliminating the risk of privacy breaches and ensuring that all voters are treated equally by the machine.
Our architecture provides several benefits. It preserves the voting experience that voters are used to with current DREs. It is compatible with accessibility features, such as audio interfaces for voters with visual impairments, though we stress that we do not implement such features in our prototype. It can be easily combined with a voter-verified paper audit trail (VVPAT). Our prototype implementation contains only 5 085 lines of trusted code.

2  Voting overview

DREs. A direct recording electronic (DRE) voting machine is typically a stand-alone device with storage, a processor, and a computer screen that presents a voter with election choices and records their selections so they can be counted as part of the canvass. These devices often use an LCD and touch screen to interact with the voter. Visually impaired voters can generally use alternate input and output methods, which presents a boon to some voters who previously required assistance to vote.
Figure 1: Major steps in the voting process when using DREs. The shaded portions are internal to the DREs. In this work, we mainly address voter authentication, interaction, and vote storage.
Pre-election setup. The full election process incorporates many activities beyond what a voter typically experiences in the voting booth. Although the exact processes differ depending on the specific voting technology in question, Figure 1 overviews the common steps for DRE-based voting. In the pre-voting stage, election officials prepare ballot definition files describing the parameters of the election. Ballot definition files can be very complex [24], containing not only a list of races and values indicating how many selections a voter can make for each race, but also containing copies of the ballots in multiple languages, audio tracks for visually impaired voters (possibly also in multiple languages), fields that vary by precinct, and fields that vary by the voter's party affiliation for use in primaries. Election officials generally use external software to help them generate the ballot definition files. After creating the ballot definition files, an election worker will load those files onto the DRE voting machines. Before polls open, election officials generally print a "zero tape," which shows that no one cast a ballot prior to the start of the election.
Active voting. When a voter Alice wishes to vote, she must first interact with election officials to prove that she is eligible to vote. The election officials then give her some token or mechanism to allow her to authenticate herself to the DRE as an authorized voter. Once the DRE verifies the token, the DRE displays the ballot information appropriate for Alice, e.g., the ballot might be in Alice's native language or, for primaries, be tailored to Alice's party affiliation. After Alice selects the candidates she wishes to vote for, the DRE displays a "confirmation screen" summarizing Alice's selections. Alice can then either accept the list and cast her ballot, or reject it and return to editing her selections. Once she approves her ballot, the DRE stores the votes onto durable storage and invalidates her token so that she cannot vote again.
Finalization & post-voting. When the polls are closed, the DRE ensures that no further votes can be cast and then prints a "summary tape," containing an unofficial tally of the number of votes for each candidate. Poll workers then transport the removable storage medium containing cast ballot images, along with the zero tape, summary tape, and other materials, to a central facility for tallying. During the canvass, election officials accumulate vote totals and cross-check the consistency of all these records.
Additional steps. In addition to the main steps above, election officials can employ various auditing and testing procedures to check for malicious behavior. For example, some jurisdictions use parallel testing, which involves sequestering a few machines, entering a known set of ballots, and checking whether the final tally matches the expected tally. Also, one could envision repeating the vote-tallying process with a third-party tallying application, although we are unaware of any instance where this particular measure has been used in practice. While these additional steps can help detect problems, they are by no means sufficient.

3  Goals and assumptions

Security goals. For clarity, in the body of this paper we focus on enabling efficient verification of Properties 1 and 2 (see Section 1), though we hope to enable the efficient verification of other properties as well. Property 1 reflects a privacy goal: an adversary should not be able to learn any information about how a voter voted besides what is revealed by the published election totals. Property 2 reflects an integrity goal: even in the presence of an adversary, the DRE should record the voter's vote exactly as the voter wishes. Further, an adversary should not be able to undetectably alter the vote once it is stored. We wish to preserve these properties against the classes of adversaries discussed below.
Wholesale and retail attacks. A wholesale attack is one that, when mounted, has the potential of affecting a broad number of deployed DREs. A classic example might be a software engineer at a major DRE manufacturer inserting malicious logic into her company's DRE software. Prior work has provided evidence that this it is a concern for real elections [3]. Such an attack could have nationwide impact and could compromise the integrity of entire elections, if not detected. Protecting against such wholesale attacks is one of our primary goals. In contrast, a retail attack is one restricted to a small number of DREs or a particular polling location. A classic retail attack might be a poll worker stuffing ballots in a paper election, or selectively spoiling ballots for specific candidates.
Classes of adversaries. We desire a voting system that:
  • Protects against wholesale attacks by election officials, vendors, and other insiders.
  • Protects against retail attacks by insiders when the attacks do not involve compromising the physical security of the DRE or the polling place (e.g., by modifying the hardware or software in the DRE or tampering with its surrounding environment).
  • Protects against attacks by outsiders, e.g., voters, when the attacks do not involve compromising physical security.
We explicitly do not consider the following possible goals:
  • Protect against retail attacks by election insiders and vendors when the attacks do involve compromising physical security.
  • Protect against attacks by outsiders, e.g., voters, when the attacks do involve compromising physical security.
On the adversaries that we explicitly do not consider. We explicitly exclude the last two adversaries above because we believe that adversaries who can violate the physical security of the DRE will always be able to subvert the operation of that DRE, no matter how it is designed or implemented. Also, we are less concerned about physical attacks by outsiders because they are typically retail attacks: they require modifying each individual voting machine one-by-one, which is not practical to do on a large scale. For example, to attack privacy, a poll worker could mount a camera in the voting booth or, more challenging but still conceivable, an outsider could use Tempest technologies to infer a voter's vote from electromagnetic emissions [18,37]. To attack the integrity of the voting process, a poll worker with enough resources could replace an entire DRE with a DRE of her own. Since this attack is possible, we also do not try to protect against a poll worker that might selectively replace internal components in a DRE. We assume election officials have deployed adequate physical security to defend against these attacks.
We assume that operating procedures are adequate to prevent unauthorized modifications to the voting machine's hardware or software. Consequently, the problem we consider is how to ensure that the original design and implementation are secure. While patches and upgrades to the voting system firmware and software may occasionally be necessary, we do not consider how to securely distribute software, firmware, and patches, nor do we consider version control between components.
Attentive voters. We assume that voters are attentive. We require voters to check that the votes shown on the confirmation screen do indeed accurately reflect their intentions; otherwise, we will not be able to make any guarantees about whether the voter's ballot is cast as intended. Despite our reliance on this assumption, we realize it may not hold for all people. Voters are fallible and not all will properly verify their choices. To put it another way, our system offers voters the opportunity to verify their vote. If voters do not take advantage of this opportunity, we cannot help them. We do not assume that all voters will avail themselves of this opportunity, but we try to ensure that those who do, are protected.

4  Architecture

We focus this paper on our design and implementation of the "active voting" phase of the election process (cf. Figure 1). We choose to focus on this step because we believe it to be one of the most crucial and challenging part of the election, requiring interaction with voters and the ability to ensure the integrity and privacy of their votes. We remark that we attempt to reduce the trust in the canvassing phase by designing a DRE whose output record is both privacy-preserving (anonymized) and integrity-protected.

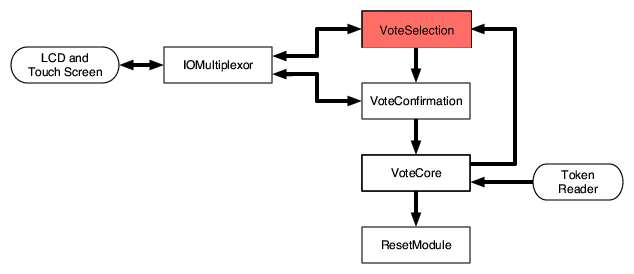

Figure 2: Our architecture, at an abstract level. For the properties we consider, the VoteSelection module need not be trusted, so it is colored red.

4.1  Architecture motivations

To see how specific design changes to traditional voting architectures can help verify properties, we will go through a series of design exercises starting from current DRE architectures and finishing at our design. The exercises will be motivated by trying to design a system that clearly exhibits Properties 1 and 2.
Resetting for independence. A traditional DRE, for example the Diebold AccuVote-TS, is designed as a single process. The functions of the DRE-validating the voter, presenting choices, confirming those choices, storing the ballot, and administrative functions-are all a part of the same address space.
Let us examine one particular strategy we can use to better verify Property 1 ("memorylessness"), which requires that one voter's selections must not influence the voting experience observed by the next voter. Suppose after every voter has voted, the voting machine is turned off and then restarted. This is enough to ensure that the voting machine's memory will not contain any information about the prior voter's selections when it starts up. Of course, the prior voter's selections must still be recorded on permanent storage (e.g., on disk) for later counting, so we also need some mechanism to prevent the machine from reading the contents of that storage medium. One conservative strategy would be to simply require that any file the DRE writes to must always be opened in write-only mode, and should never be opened for reading. More generally, we can allow the DRE to read from some files, such as configuration files, as long as the DRE does not have the ability to write to them. Thus the set of files on permanent storage are partitioned into two classes: a set of read-only files (which cannot be modified by the DRE), and a set of write-only files (which cannot be read by the DRE). To summarize, our strategy for enforcing Property 1 involves two prongs:
  1. Ensure that a reboot is always triggered after a voter ends their session.
  2. Check every place a file can be opened to ensure that data files are write-only, and configuration files are read-only.
There must still be a mechanism to prevent the DRE from overwriting existing data, even if it cannot read that data.
We introduce a separate component whose sole job is to manage the reset process. The BallotBox triggers the ResetModule after a ballot is stored. The reset module then reboots a large portion of the DRE and manages the startup process. We use a separate component so that it is simple to audit the correctness of the ResetModule .
We emphasize this design strategy is not the only way to verify this particular property. Rather, it is one technique we can implement that reduces the problem of enforcing Property 1 to the problem of enforcing a checklist of easier-to-verify conditions that suffice to ensure Property 1 will always hold.
Isolation of confirmation process. In considering Property 2, which requires the voter's consent to cast in order for the ballot to be stored, we will again see how modifying the DRE's architecture in specific ways can help verify correctness of this property.
The consent property in consideration requires auditors to confidently reason about the casting procedures. An auditor (perhaps using program analysis tools) may have an easier time reasoning about the casting process if it is isolated from the rest of the voting process. In our architecture, we take this approach in combining the casting and confirmation process, while isolating it from the vote selection functionality of the DRE. With a careful design, we only need to consider this sub-portion to verify Property 2.
From our DRE design in the previous section, we introduce a new component, called the VoteConfirmation module. With this change, the voter first interacts with a VoteSelection module that presents the ballot choices. After making their selections, control flow passes to the VoteConfirmation module that performs a limited role: presenting the voter's prior selections and then waiting for the voter to either 1) choose to modify their selections, or 2) choose to cast their ballot. Since the VoteConfirmation module has limited functionality, it only needs limited support for GUI code; as we show in Section 6.1 we can more easily analyze its correctness since its scope is limited. If the voter decides to modify the ballot, control returns to the VoteSelection module.
Note the voter interacts with two separate components: first the VoteSelection component and then VoteConfirmation . There are two ways to mediate the voter's interactions with the two components: 1) endow each component with its own I/O system and screen; 2) use one I/O system and a trusted I/O "multiplexor" to manage which component can access the screen at a time. The latter approach has a number of favorable features. Perhaps the most important is that it preserves the voter's experience as provided by existing DRE systems. A voting machine with two screens requires voters to change their voting patterns, and can introduce the opportunity for confusion or even security vulnerabilities. Another advantage is cost: a second screen adds cost and complexity. One downside is that we must now verify properties about the IOMultiplexor . For example, it must route the input and output to the proper module at the appropriate times.
In the the final piece of our architecture, we introduce a VoteCore component. After the voter interacts with the VoteSelection system and then the VoteConfirmation module to approve their selection, the VoteCore component stores the ballot on indelible storage in its BallotBox and then cancels the voter's authentication token. Then, as we described above, it initiates a reset with the ResetModule to clear the state of all modules.
Let us return to our original property: how can we verify that a ballot can only be cast with the voter's approval? With our architecture, it suffices to verify that:
  1. A ballot can only enter the VoteCore through the VoteConfirmation module.
  2. The VoteCore gives the voter the opportunity to review the exact contents of the ballot.
  3. A ballot can only be cast if the voter unambiguously signals their intent to cast.
To prove the last condition, we add hardware to simplify an auditor's understanding of the system, as well as to avoid calibration issues with the touch screen interface. A physical cast button, enabled only by the confirmation module, acts as a gate to stop the ballot between the VoteSelection and VoteCore modules. The software in the VoteConfirmation module does not send the ballot to the VoteCore until the CastButton is depressed; and, since it is enabled only in the VoteConfirmation module, it is easy to gain assurance that the ballot cannot be cast without the voter's consent. Section 6.1 will show how we achieve this property based on the code and architecture.
There is a danger if we must adjust the system's architecture to meet each particular security property: a design meeting all security properties may be too complex. However, in Section 8, we discuss other security properties and sketch how we can verify them with the current architecture. Isolating the confirmation process is a key insight that can simplify verifying other properties. The confirmation process is at the heart of many properties, and a small, easily understood confirmation process helps not just in verifying Property 2.

4.2  Detailed module descriptions

Voter authentication. After a voter signs in at a polling station, an election official would give that voter a voting token. In our implementation, we use a magnetic stripe card, but the token could also be a smartcard or a piece of paper with a printed security code. Each voting token is valid for only one voting machine. To begin voting, the voter inserts the token into the designated voting machine. The VoteCore module reads the contents of the token and verifies that the token is designated to work on this machine (via a serial number check), is intended for this particular election, has not been used with this machine before, and is signed using some public-key signature scheme. If the verification is successful, the VoteCore module communicates the contents of the voting token to the VoteSelection module.
Vote selection. The VoteSelection module parses the ballot definition file and interacts with the voter, allowing the voter to select candidates and vote on referenda. The voting token indicates which ballot to use, e.g., a Spanish ballot if the voter's native language is Spanish or a Democratic ballot if the voter is a Democrat voting in a primary. The VoteSelection module is intended to follow the rules outlined in the ballot definition file, e.g., allowing the voter to choose up to three candidates or to rank the candidates in order of preference. Of course, the VoteSelection module is untrusted and may contain malicious logic, so there is no guarantee that it operates as intended. The VoteSelection module interacts with the voter via the IOMultiplexor .
Vote confirmation. After the voter is comfortable with her votes, the VoteSelection module sends a description of the voter's preferences to the VoteConfirmation module. The VoteConfirmation module interacts with the voter via the IOMultiplexor , displaying a summary screen indicating the current selections and prompting the voter to approve or reject this ballot. If the voter approves, the VoteConfirmation module sends the ballot image6 to the VoteCore module so it can be recorded. The VoteConfirmation module is constructed so that the data that the VoteConfirmation module sends to the VoteCore module is exactly the data that it received from the VoteSelection module.
Storing votes and canceling voter authentication tokens. After receiving a description of the votes from the VoteConfirmation module, the VoteCore atomically stores the votes and cancels the voter authentication token. Votes are stored on a durable, history-independent, tamper-evident, and subliminal-free vote storage mechanism [25]. By "atomically," we mean that once the VoteCore component begins storing the votes and canceling the authentication token, it will not be reset until after those actions complete. After those actions both complete, the VoteCore will trigger a reset by sending a message to the ResetModule . Looking ahead, the only other occasion for the ResetModule to trigger a reset is when requested by VoteCore in response to a user wishing to cancel her voting session.
Cleaning up between sessions. Upon receiving a signal from the VoteCore , the ResetModule will reset all the other components. After those components awake from the reset, they will inform the ResetModule . After all components are awake, the ResetModule tells all the components to start, thereby initiating the next voting session and allowing the next voter to vote. We also allow the VoteCore module to trigger a reset via the ResetModule if the voter decides to cancel their voting process; when a voter triggers a reset in this way, the voter's authentication token is not canceled and the voter can use that token to vote again on that machine at a later time. Although the VoteCore has access to external media to store votes and canceled authentication tokens, all other state in this component is reset.
Enforcing a trusted path between the voter and the VoteConfirmation module. Although the above discussion only mentions the IOMultiplexor in passing, the IOMultiplexor plays a central role in the security of our design. Directly connecting the LCD and touch screen to both the VoteSelection module and the VoteConfirmation module would be unsafe: it would allow a malicious VoteSelection module to retain control of the LCD and touch screen forever and display a spoofed confirmation screen, fooling the voter into thinking she is interacting with the trusted VoteConfirmation module when she is actually interacting with malicious code. The IOMultiplexor mediates access to the LCD and touch screen to prevent such attacks. It enforces the invariant that only one module may have control over the LCD and touch screen at a time: either VoteConfirmation or VoteSelection may have control, but not both. Moreover, VoteConfirmation is given precedence: if it requests control, it is given exclusive access and VoteSelection is locked out. This allows our system to establish a trusted path between the voter interface and the VoteConfirmation module.

4.3  Hardware-enforced separation

Our architecture requires components to be protected from each other, so that a malicious VoteSelection component cannot tamper with or observe the state or code of other components. One possibility would be to use some form of software isolation, such as putting each component in a separate process (relying on the OS for isolation), in a separate virtual machine (relying on the VMM), or in a separate Java applet (relying on the JVM).
Instead, we use hardware isolation as a simple method for achieving strong isolation. We execute each module on its own microprocessor (with its own CPU, RAM, and I/O interfaces). This relies on physical isolation in an intuitive way: if two microprocessors are not connected by any communication channel, then they cannot directly affect each other. Verification of the interconnection topology of the components in our architecture consequently reduces to verifying the physical separation of the hardware and verifying the interconnects between them. Historically, the security community has focused primarily on software isolation because hardware isolation was viewed as prohibitively expensive [32]. However, we argue that the price of a microprocessor has fallen dramatically enough that today hardware isolation is easily affordable, and we believe the reduction in complexity easily justifies the extra cost.
With this approach to isolation, the communication elements between modules acquire special importance, because they determine the way that modules are able to interact. We carefully structured our design to simplify the connection topology as much as possible. Figure 3 summarizes the interconnectivity topology, and we describe several key aspects of our design below.
We remark that when multiple hardware components are used, one should ensure that the same versions of code run on each component.

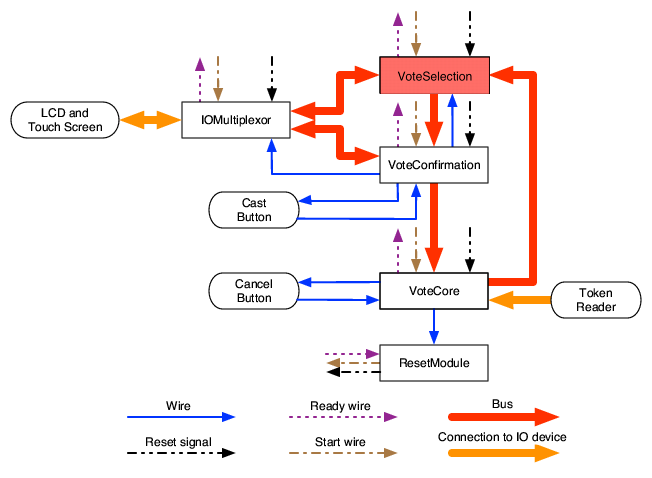

Figure 3: Our architecture, showing the hardware communication elements.
Buses and wires. Our hardware-based architecture employs two types of communication channels: buses and wires. Buses provide high-speed unidirectional or bidirectional communication between multiple components. Wires are a simple signaling element with one bit of state; they can be either high or low, and typically are used to indicate the presence or absence of some event. Wires are unidirectional: one component (the sender) will set the value of a wire but never read it, and the other component (the receiver) will read the value of the wire but never set it. Wires are initially low, and can be set, but not cleared; once a wire goes high, it remains high until its controlling component is reset. We assume that wires are reliable but buses are potentially unreliable.
To deal with dropped or garbled messages without introducing too much complexity, we use an extremely simple communication protocol. Our protocol is connectionless and does not contain any in-band signaling (e.g., SYN or ACK packets). When a component in our architecture wishes to transmit a message, it will repeatedly send that message over the bus until it is reset or it receives an out-of-band signal to stop transmitting. The sender appends a hash of the message to the message. The receiver accepts the first message with a valid hash, and then acknowledges receipt with an out-of-band signal. This acknowledgment might be conveyed by changing a wire's value from low to high, and the sender can poll this wire to identify when to stop transmitting. Components that need replay protection can add a sequence number to their messages.
Using buses and wires. We now describe how to instantiate the communication paths in our high-level design from Section 4.2 with buses and wires. Once the VoteCore module reads a valid token, it repeatedly sends the data on the token to VoteSelection until it receives a message from VoteConfirmation . After storing the vote and canceling the authentication token, the VoteCore module triggers a reset by setting its wire to the ResetModule high.
To communicate with the voter, the VoteSelection component creates a bitmap of an image, packages that image into a message , and repeatedly sends that message to the IOMultiplexor . Since the VoteSelection module may send many images, it includes in each message a sequence number; this sequence number does not change if the image does not change. Also included in the message is a list of virtual buttons, each described by a globally unique button name and the x- and y-coordinates of the region. The IOMultiplexor will continuously read from its input source (initially the VoteSelection module) and draw to the LCD every bitmap that it receives with a new sequence number. The IOMultiplexor also interprets inputs from the touch screen, determines whether the inputs correspond to a virtual button and, if so, repeatedly writes the name of the region to the VoteSelection module until it has new voter input. Naming the regions prevents user input on one screen from being interpreted as input on a different screen.
When the voter chooses to proceed from the vote selection phase to the vote confirmation phase, the VoteConfirmation module will receive a ballot from the VoteSelection module. The VoteConfirmation module will then set its wire to the IOMultiplexor high. When the IOMultiplexor detects this wire going high, it will empty all its input and output bus buffers, reset its counter for messages from the VoteSelection module, and then only handle input and output for the VoteConfirmation module (ignoring any messages from VoteSelection ). If the VoteConfirmation module determines that the user wishes to return to the VoteSelection module and edit her votes, the VoteConfirmation module will set its wire to the VoteSelection module high. The VoteSelection module will then use its bus to VoteConfirmation to repeatedly acknowledge that this wire is high. After receiving this acknowledgment, the VoteConfirmation module will reset itself, thereby clearing all internal state and also lowering its wires to the IOMultiplexor and VoteSelection modules. Upon detecting that this wire returns low, the IOMultiplexor will clear all its input and output buffers and return to handling the input and output for VoteSelection . The purpose for the handshake between the VoteConfirmation module and the VoteSelection module is to prevent the VoteConfirmation module from resetting and then immediately triggering on the receipt of the voter's previous selection (without this handshake, the VoteSelection module would continuously send the voter's previous selections, regardless of whether VoteConfirmation reset itself).

4.4  Reducing the complexity of trusted components

We now discuss further aspects of our design that facilitate the creation of implementations with minimal trusted code.
Resets. Each module (except for the ResetModule ) interacts with the ResetModule via three wires, the initial values of which are all low: a ready wire controlled by the component and reset and start wires controlled by the ResetModule . The purpose of these three wires is to coordinate resets to avoid a situation where one component believes that it is handling the i-th voter while another component believes that it is handling the (i+1)-th voter.
The actual interaction between the wires is as follows. When a component first boots, it waits to complete any internal initialization steps and then sets the ready wire high. The component then blocks until its start wire goes high. After the ready wires for all components connected to the ResetModule go high, the ResetModule sets each component's start wire high, thereby allowing all components to proceed with handling the first voting session.
Upon completion of a voting session, i.e., after receiving a signal from the VoteCore component, the ResetModule sets each component's reset wire high. This step triggers each component to reset. The ResetModule keeps the reset wires high until all the component ready wires go low, meaning that the components have stopped executing. The ResetModule subsequently sets the reset wire low, allowing the components to reboot. The above process with the ready and start wires is then repeated.
Cast and cancel buttons. Our hardware architecture uses two physical buttons, a cast button and a cancel button. These buttons directly connect the user to an individual component, simplifying the task of establishing a trusted path for cast and cancel requests. Our use of a hardware button (rather than a user interface element displayed on the LCD) is intended to give voters a way to know that their vote will be cast. If we used a virtual cast button, a malicious VoteSelection module could draw a spoofed cast button on the LCD and swallow the user's vote, making the voter think that they have cast their vote when in fact nothing was recorded and leaving the voter with no way to detect this attack. In contrast, a physical cast button allows attentive voters to detect these attacks (an alternative might be to use a physical "vote recorded" light in the VoteCore ). Additionally, if we used a virtual cast button, miscalibration of the touch screen could trigger accidental invocation of the virtual cast button against the voter's wishes. While calibration issues may still affect the ability of a user to scroll through a multi-screen confirmation process, we anticipate that such a problem will be easier to recover from than touch screen miscalibrations causing the DRE to incorrectly store a vote. To ensure that a malicious VoteSelection module does not trick the user into pressing the cast button prematurely, the VoteConfirmation module will only enable the cast button after it detects that the user paged through all the vote confirmation screens.
We want voters to be able to cancel the voting process at any time, regardless of whether they are interacting with the VoteSelection or VoteConfirmation modules. Since the VoteSelection module is untrusted, one possibility would be to have the IOMultiplexor implement a virtual cancel button or conditionally pass data to the VoteConfirmation module even when the VoteSelection module is active. Rather than introduce these complexities, we chose to have the VoteCore module handle cancellation via a physical cancel button. The cancel button is enabled (and physically lit by an internal light) until the VoteCore begins the process of storing a ballot and canceling an authentication token.

5  Prototype implementation

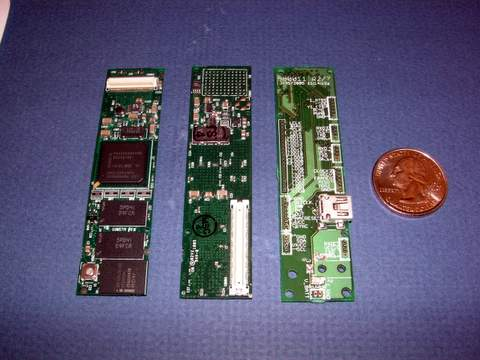

Figure 4: We show the front and back of a gumstix as well as an expansion board through which the GPIO and serial ports are soldered. The quarter gives an indication of the physical size of these components.

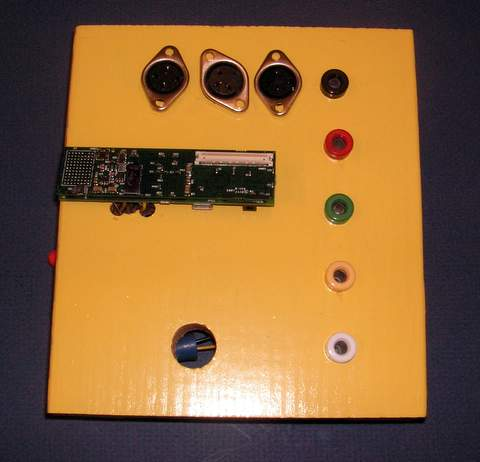

Figure 5: The mounting board for a single component. It contains three serial ports (along the top), 4 GPIO pins and a ground pin (along the right side), as well as a gumstix processor board mounted atop an expansion board.
To evaluate the feasibility of the architecture presented in Section 4, we built a prototype implementation. Our prototype uses off-the-shelf "gumstix connex 400xm" computers. These computers measure 2cm by 8cm in size, cost $144 apiece, and contain an Intel XScale PXA255 processor with a 400 MHz StrongARM core, 64 MB of RAM, and 16 MB of flash for program storage. We enable hardware isolation by using a separate gumstix for each component in our architecture.
We do not claim that the gumstix would be the best way to engineer an actual voting system intended for use in the field. However, the gumstix have many advantages as a platform for prototyping the architecture. In conjunction with an equally sized expansion board, the processors support three external RS-232 serial ports, which transmit bidirectional data at 115200 kbps. We use serial ports as our buses. Additionally, each gumstix supports many general purpose input/output (GPIO) registers, which we use for our wires. Finally, the XScale processor supports an LCD and touch screen interface.
The gumstix platform's well-designed toolchain and software environment greatly simplified building our prototype. The gumstix, and our prototype, use a minimal Linux distribution as their operating system. Our components are written in Java and run on the Microdoc J9 Java VM; its JIT provides a significant speed advantage over the more portable JamVM Java interpreter. Our choice of Java is twofold: it is a type-safe language and so prevents a broad range of exploits; secondly, several program verification tools are available for verifying invariants in Java code [8,19]. C# is another natural language choice since it too is type-safe and the Spec# [5] tool could aid in verification, but C# is not supported as well on Linux. We view a rich stable of effective verification tools to be just as important as type-safety in choosing the implementation language since software tools can improve confidence in the voting software's correctness. Both can eliminate large classes of bugs.

5.1  Implementation primitives

Our architecture requires implementations of two separate communications primitives: buses and wires. It is straightforward to implement buses using serial ports on the gumstix. To do so, we expose connectors for the serial ports via an expansion board connected to the main processor. Figures 4 and 5 show an example of such an expansion board. We additionally disable the getty terminal running on the serial ports to allow conflict free use of all three serial ports. The PXA255 processor has 84 GPIO pins, each controlled by registers; we implement wires using these GPIOs. A few of the pins are exposed on our expansion board and allow two components to be interconnected via their exposed GPIO pins. Each GPIO pin can be set in a number of modes. The processor can set the pin "high" so that the pin has a 3.3 volt difference between the reference ground; otherwise, it is low and has a 0 voltage difference between ground. Alternatively, a processor can poll the pin's state. To enforce the unidirectional communication property, particularly when a single wire is connected to more than two GPIOs, we could use a diode, which allows current to flow in only one direction 7. We currently rely on software to enforce that once a GPIO is set high, it cannot ever be set low without first restarting the process; this is a property one could enforce in hardware via a latch, though our current prototype does not do so yet.

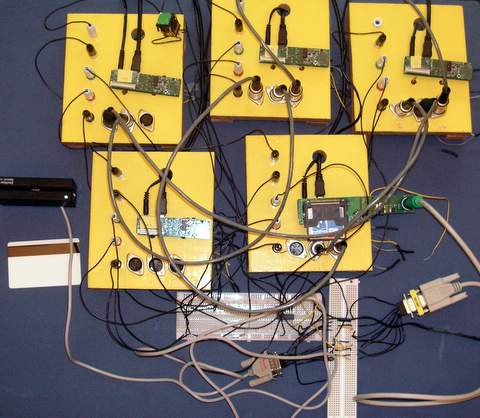

Figure 6: A picture of our prototype implementation. There is one board for each component in the system. The magnetic swipe card (along the left) is used for authentication, while the cast button is in the upper left component.
In addition to the GPIOs, the PXA255 exposes an NRESET pin. Applying a 3.3v signal to the NRESET pin causes the processor to immediately halt execution; when the signal is removed, the processor begins in a hard boot sequence. The gumstix are able to reboot in under 10 seconds without any optimizations, making the NRESET pin nearly ideal to clear a component's state during a reset. Unfortunately, the specifics of the reboot sequence causes slight problems for our usage. While the NRESET wire is held high, the GPIO pins are also high. In the case where one component reboots before another (or where selective components are reboot), setting the GPIOs high will inadvertently propagate a signal along the wire to the other components. Ideally, the pins would be low during reset. We surmise that designing a chip for our ideal reset behavior would not be difficult given sufficient hardware expertise. Since the microprocessors in our platform do not exhibit our ideal behavior, in our prototype we have a separate daemon connected to an ordinary GPIO wire that stops the Java process running the component code when the reset pin goes high and then resets all wire state to low. The daemon starts a new component process when the signal to its reset pin is removed. This is just a way of emulating, in software, the NRESET semantics we prefer. Of course, a production-quality implementation would enforce these semantics in trusted hardware.
We use a Kanecal KaneSwipe GIT-100 magnetic card reader for authorizing voters to use the machine. A voter would receive a card with authentication information on it from poll workers upon signing in. The voter cannot forge the authentication information (since it contains a public key signature), but can use it to vote once on a designated DRE. The reader has an RS-232 interface, so we are able to use it in conjunction with the serial port on the gumstix.
Finally, our implementation of the VoteCore  component uses a compact flash card to store cast ballot images and invalid magcard identifiers. Election officials can remove the flash card and transport it to county headquarters after the close of polls. A deployed DRE might use stronger privacy-protection mechanisms, such as a history-independent, tamper-evident, and subliminal-free data structure [25]. For redundancy, we expect a deployed DRE to also store multiple copies of the votes on several storage devices. A full implementation of the VoteSelection component would likely also use some kind of removable storage device to store the ballot definition file. In our prototype, we hard-code a sample ballot definition file into the VoteSelection component. This suffices for our purposes in gauging the feasibility of other techniques.
Figure 7: The right image shows a screenshot of the VoteSelection  component displaying referenda from the November 2005 election in Berkeley, CA. We flipped a coin to choose the response shown on this screen.
Our prototype consists of five component boards wired together in accordance with Figure 3. We implement all of the functionality except for the cancel button. See Figure 6 for a picture showing the five components and all of their interconnections. Communication uses physical buses and wires. The I/O multiplexer, after each update operation, sends an image over a virtual bus connected (connected via the USB network) to the PC for I/O. It sends the compressed image it would ordinarily blit to the framebuffer to the PC so that the PC can blit it to its display. The gumstix only recently supported LCD displays, and we view our PC display as an interim solution. The additional software complexity for using the LCD is minimal as it only requires blitting an image to memory.
Figure 7 shows our voting software running on the gumstix. We used ballot data from the November 2005 election in Alameda County, California.

6  Evaluation

6.1  Verifying the desired properties


1 grabio.set();
2  ... UPDATE DISPLAY ...
3  castenable.set();
4  if (cast.isSet()) {
5   while (true) {
6 toVoteCore.write(ballot);
7   }
8  }
Confirm.java




1 byte []  ballot =
2 fromVoteConf.read();
3  if (ballot != null) {
4   ... INVALIDATE VOTER TOKEN ...
5   ballotbox.write (ballot);
6   while (true) {
7 resetWire.set();
8   }
9  }
VoteCore.java

Figure 8: Code extracts from the VoteConfirmation and VoteCore modules, respectively. Examining these code snippets with the connection topology helps us gain assurance that the architecture achieves Properties 1 and 2.
Property 1. Recall that to achieve "memorylessness" we must be able to show the DRE is always reset after a voter has finished using the machine, and the DRE only opens a given file read-only or write-only, but not both. To show that the DRE is reset after storing a vote, we examine a snippet of the source code from VoteCore.java, the source code for the VoteCore module in Figure 8. In line 7, after storing the ballot into the ballot box, the VoteCore module continuously raises the reset wire high. Looking at the connection diagram from Figure 3, we note the reset wire terminates at the ResetModule and induces it to restart all components in the system. Further inspecting code not reproduced in Figure 8 reveals the only reference to the ballotbox is in the constructor and in line 5, so writes to it are confined to line 5.
Finally, we need merely examine every file open call to make sure they are either read-only or write only. In practice, we can guarantee this by ensuring writable files are append-only, or for more sophisticated vote storage mechanisms as proposed by Molnar et al., that the storage layer presents a write-only interface to the rest of the DRE.
Property 2. For the "consent-to-cast" property, we need to verify two things: 1) the ballot can only enter the VoteCore through the VoteConfirmation module, and 2) the voter's consent is required before the ballot can leave the VoteConfirmation module.
Looking first at Confirm.java in Figure 8, the VoteConfirmation module first ensures it has control of the touch screen as it signals the IOMultiplexor with the "grabio" wire. It then displays the ballot over the bus, and subsequently enables the cast button. Examining the hardware will show the only way the wire can be enabled is through a specific GPIO, in fact the one controlled by the "castenable" wire. No other component in the system can enable the cast button, since it is not connected to any other module. Similarly, no other component in the system can send a ballot to the VoteCore module: on line 6 of Confirm.java, the VoteConfirmation sends the ballot on a bus named "toVoteCore", which is called the "fromVoteConf" bus in VoteCore.java. The ballot is demarshalled on line 1. Physically examining the hardware configuration confirms these connections, and shows the ballot data structure can only come from the VoteConfirmation module. Finally, in the VoteCore module, we see the only use of the ballotbox is at line 5 where the ballot is written to the box. There are only two references to the BallotBox in the VoteCore.java source file (full file not shown here), one at the constructor site and the one shown here. Thus we can be confident that the only way for a ballot to be passed to the BallotBox is if a voter presses the cast button, indicating their consent. We must also verify that the images displayed to the voter reflect the contents of the ballot.

6.2  Line counts

Java C (JNI) Total
Communications 2314 677 2991
Display 416 52 468
Misc. (interfaces) 25 0 25
VoteSelection 377 0 377
VoteConfirmation 126 0 126
IOMultiplexor 77 0 77
VoteCore 846 54 900
ResetModule 121 0 121
Total 4302 783 5085
Table 1: Non-comment, non-whitespace lines of code.
One of our main metrics of success is the size of the trusted computing base in our implementation. Our code contains shared libraries (for communications, display, or interfaces) as well as each of the main four modules in the TCB (VoteConfirmation , IOMultiplexor , VoteCore , and ResetModule ). The VoteSelection  module can be excluded from the TCB when considering Properties 1 and 2. Also included in the TCB, but not our line count figures, are standard libraries, operating system code, and JVM code.
In Table 1, we show the size of each trusted portion as a count of the number of source lines of code, excluding comments and whitespace.
The communications libraries marshal and unmarshal data structures and abstract the serial devices and GPIO pins. The display libraries render text into our user interface (used by the VoteConfirmation  component) and ultimately to the framebuffer.

7  Applications to VVPATs and cryptographic voting protocols

So far we've been considering our architecture in the context of a stand-alone paperless DRE machine. However, jurisdictions such as California require DREs to be augmented with a voter verified paper audit trail. In a VVPAT system, the voter is given a chance to inspect the paper audit trail and approve or reject the printed VVPAT record. The paper record, which remains behind glass to prevent tampering, is stored for later recounts or audits.
VVPAT-enabled DREs greatly improve integrity protection for non-visually impaired voters. However, a VVPAT does not solve all problems. Visually impaired voters who use the audio interface have no way to visually verify the selections printed on the paper record, and thus receive little benefit from a VVPAT. Also, a VVPAT is only an integrity mechanism and does not help with vote privacy. A paper audit trail cannot prevent a malicious DRE from leaking one voter's choices to the next voter, to a poll worker, or to some other conspirator. Third, VVPAT systems require careful procedural controls over the chain of custody of paper ballots. Finally, a VVPAT is a fall-back, and even in machines that provide a VVPAT, one still would prefer the software to be as trustworthy as possible.
For these reasons, we view VVPAT as addressing some, but not all problems. Our methods can be used to ameliorate some of the remaining limitations, by providing better integrity protection for visually impaired voters, better privacy protection for all voters, reducing the reliance on procedures for handling paper, and reducing the costs of auditing the source code. Combining our methods with a VVPAT would be straightforward: the VoteConfirmation module could be augmented with support for a printer, and could print the voter's selections at the same time as they are displayed on the confirmation screen. While our architecture might be most relevant to jurisdictions that have decided, for whatever reason, to use paperless DREs, we expect that our methods could offer some benefits to VVPAT-enabled DREs, too.
Others have proposed cryptographic voting protocols to enhance the security of DREs [10,16,26,27]. We note that our methods could be easily combined with those cryptographic schemes.

8  Extensions and discussion

In addition to the properties we discussed, there are other relevant security properties which we considered in designing our voting system. We have not rigorously validated that the design provides these properties, though we outline directions we will follow to do so.
Property 3 The DRE cannot leak information through the on-disk format. Additionally, it should be history-independent and tamper evident.
Property 3 removes the back-end tabulation system from the trusted path. Without this property, the tabulation system may be in the trusted path because the data input to the tabulation system may reveal individual voter's choices. With this property, it is possible to make the outputs of each individual DRE publicly available, and allow multiple parties to independently tabulate the final results. We believe we can use the techniques from Molnar et al. in implementing Property 3 [25].
Property 4 The DRE only stores ballots the voter approves.
Property 4 refers to a few conditions. The DRE must not change the ballot after the voter makes their selection in the VoteSelection module; software analysis techniques could prove useful in ensuring the ballot is not modified. Additionally, there will need to be some auditing of the code to ensure display routines accurately display votes to the screen.
Property 5 The ballot contains nothing more than the voter's choices.
In particular, the ballot needs to be put into a canonical form before being stored. Violation of Property 5 could violate the voter's privacy, even if the voter approves the ballot. Suppose the voter's choice, "James Polk" were stored with an extra space: "James Polk". The voter would not likely notice anything were amiss, but this could convey privacy leaking information in a subliminal channel [16]. We expect software analysis techniques could ensure that canonicalization functions are run on all program paths. Combined with Property 4 to ensure the ballot doesn't change, this would help ensure the ballot is canonicalized.
We do not expect these to be an exhaustive list of the desirable security properties; rather, they are properties that we believe are important and that we can easily achieve with this architecture without any changes.
Minimizing the underlying software platform. Our prototype runs under an embedded Linux distribution that is custom designed for the gumstix platform. Despite its relatively minimal size (4MB binary for kernel and all programs and data), it still presents a large TCB, most of which is unnecessary for a special-purpose voting appliance. We expect that a serious deployment would dispense with the OS and build a single-purpose embedded application running directly on the hardware. For instance, we would not need virtual memory, memory protection, process scheduling, filesystems, dual-mode operation, or most of the other features found in general-purpose operating systems. It might suffice to have a simple bootloader and a thin device driver layer specialized to just those devices that will be used during an election. Alternatively, it may be possible to use ideas from nanokernels [11], microkernels [14,31], and operating system specialization [30] to reduce the operating system and accordingly the TCB size.
Deploying code. Even after guaranteeing the software is free of vulnerabilities, we must also guarantee that the image running on the components is the correct image. This is not an easy problem, but the research community has begun to address the challenges. SWATT [34] is designed to validate the code image on embedded platforms, though their model does not allow for CPUs with virtual memory, for example. TCG and NGSCB use a secure hardware co-processor to achieve the same ends, though deploying signed and untampered code to devices still requires much work. Additionally, a human must then check that all components are running the latest binary and must ensure that the binaries are compatible with each other - so that a version 1.0 VoteCore  is not running with a version 1.1 IOMultiplexor  module, for example.
This concern is orthogonal to ours, as even current voting machines must deal with versioning. It illustrates one more challenge in deploying a secure voting system.

9  Related work

There has been a great deal of work on high-assurance and safety-critical systems, which are designed, implemented, and tested to achieve specific safety, reliability, and security properties. We use many classic techniques from that field, including minimization of the size of the TCB and decomposing the application into clearly specified components. One contribution of this paper is that we show in detail how those classic techniques may be applied in the e-voting context.
Modularity is widely understood to be helpful in building high-reliability systems. Deep space applications often use multiple components for reliability and fault tolerance [41]. Telephone switches use redundant components to upgrade software without loss of availability [41]. In avionics, Northrop Grumman has proposed an architecture for future avionics systems suitable to the Department of Defense's Joint Vision 2020 [39]. Their MLS-PCA architecture is intended to support tens to hundreds of thousands of separate processors. MLS-PCA uses isolation for several purposes, including mission flexibility, multi-level security when interoperating with NGOs, and reduction in the amount of trusted software over traditional federated architectures. Of these reasons, the last is most related to our setting. Others have articulated composibility of security as one of the key challenges in applying modularity to the security setting [21].
Rebooting is widely recognized in industry as a useful way to prevent and rectify errors [9]. Rebooting returns the system to its original state, which is often a more reliable one. Others use preventative rebooting to mitigate resource leaks and Heisenbugs [15]. In contrast, our work uses rebooting for what we believe is a new purpose: privacy. Prior work focuses on availability and recoverability, while we use it to simplify our task in verifying privacy preserving properties.
The Starlight Interactive Link is a hardware device that allows a workstation trusted with secret data to safely interact with an unclassified network [2]. The Starlight Interactive Link acts as a data diode. A chief concern is secret data leaking onto the untrusted network. Many of these ideas led to the design of our IOMultiplexor .
Our design shares similarities with existing DRE voting machines from major vendors, such as Diebold, Hart Intercivic, Sequoia Voting Systems, and Election Systems and Software. A criticism of the machines, however, is that people must trust the software running on the machines since the voter cannot be sure their vote was properly recorded. Rebecca Mercuri has called for vendors to augment DRE machines with a voter verified paper audit trail (VVPAT) [22,23]. In this DRE variant, the voter must approve a paper copy of their selections that serves as the permanent record. The paper copy is typically held behind glass so the voter cannot tamper with it. Even in spite of malicious software, the paper copy accurately reflects the voter's selections.
The principle of isolation for systems is well established [4,7,12,20,28,31,32,35,36,40]. Isolation has been proposed as a technique to improve security in two existing voting systems. The FROGS and Pnyx.DRE systems both separate the vote selection process from vote confirmation [1,6]. However, FROGS significantly alters the voting experience while it is not clear the Pnyx.DRE was designed for verification nor does it provide our privacy protections.
Finally, Hall discusses the impact of disclosing the source for voting machines for independent audit [13].

10  Conclusions

Democracy deserves the best efforts that computer scientists can deliver in producing accurate and verifiable voting systems. In this work, we have proposed better DRE based voting designs, whether VVPAT-enabled or not. In both cases, our architecture provides stronger security properties than current voting systems.
Our approach uses hardware to isolate components from each other and uses reboots to guarantee voter privacy. In particular, we have shown how isolating the VoteSelection  module, where much of the hairiness of a voting system resides, into its own module can eliminate a great deal of complex code from the TCB. Though isolation is not a novel idea, the way we use it to improve the security of DREs is new. This work shows that it is possible to improve existing DREs without modifying the existing voter experience or burdening the voter with additional checks or procedures.
The principles and techniques outlined here show that there is a better way to design voting systems.

Acknowledgments

We thank David Jefferson for early discussions that led to this work. Umesh Shankar, Chris Karlof, Rob Johnson, and Mike Reiter provided invaluable feedback on the presentation, organization, and provided great insight into the thinking and organization of the work. We thank Matt Bishop and David Molnar for helpful discussions about related works.

References

[1]
Auditability and voter-verifiability for electronic voting terminals. https://www.scytl.com/docs/pub/a/PNYX.DRE-WP.pdf, December 2004. White paper.
[2]
M. Anderson, C. North, J. Griffin, R. Milner, J. Yesberg, and K. Yiu. Starlight: Interactive Link. In Proceedings of the 12th Annual Computer Security Applications Conference (ACSAC), 1996.
[3]
J. Bannet, D. W. Price, A. Rudys, J. Singer, and D. S. Wallach. Hack-a-vote: Demonstrating security issues with electronic voting systems. IEEE Security and Privacy Magazine, 2(1):32-37, Jan./Feb. 2004.
[4]
P. Barham, B. Dragovic, K. Fraser, S. Hand, T. Harris, A. Ho, R. Neugebauer, I. Pratt, and A. Warfield. Xen and the art of virtualization. In Proceedings of the 19th ACM Symposium on Operating Sstems Principles (SOSP 2003), October 2003.
[5]
M. Barnett, K. R. Leino, and W. Schulte. The Spec# programming system: An overview. In Proceedings of Construction and Analysis of Safe, Secure and Interoperable Smart Devices (CASSIS), 2004.
[6]
S. Bruck, D. Jefferson, and R. Rivest. A modular voting architecture ("Frogs"). https://www.vote.caltech.edu/media/documents/wps/vtp_wp3.pdf, August 2001. Voting Technology Project Working Paper.
[7]
E. Bugnion, S. Devine, and M. Rosenblum. Disco: Running commodity operating systems on scalable multiprocessors. In Proceedings of the 16th ACM Symposium on Operating Systems Principles (SOSP), October 1997.
[8]
L. Burdy, Y. Cheon, D. Cok, M. Ernst, J. Kiniry, G. Leavens, K. R. Leino, and E. Poll. An overview of JML tools and applications. International Journal on Software Tools for Technology Transfer (STTT), 7(3):212-232, June 2005.
[9]
G. Candea, S. Kawamoto, Y. Fujiki, G. Friedman, and A. Fox. Microreboot - a technique for cheap recovery. In 6th Symposium on Operating System Design and Implementation (OSDI), December 2004.
[10]
D. Chaum. Secret-ballot receipts: True voter-verifiable elections. IEEE Security & Privacy Magazine, 2(1):38-47, Jan.-Feb. 2004.
[11]
D. Engler, M. F. Kaashoek, and J. O'Toole. Exokernel: An operating system architecture for application-level resource management. In Proceedings of the 15th ACM Symposium on Operating Systems Principles (SOSP), October 1995.
[12]
I. Goldberg, D. Wagner, R. Thomas, and E. Brewer. A secure environment for untrusted helper applications: Confining the wily hacker. In Proceedings of the 6th USENIX Security Symposium, August 1996.
[13]
J. Hall. Transparency and access to source code in e-voting. Unpublished manuscript.
[14]
G. Heiser. Secure embedded systems need microkernels. USENIX ;login, 30(6):9-13, December 2005.
[15]
Y. Huang, C. Kintala, N. Kolettis, and N. D. Fulton. Software rejuvenation: Analysis, module and applications. In Twenty-Fifth International Symposium on Fault-Tolerant Computing, 1995.
[16]
C. Karlof, N. Sastry, and D. Wagner. Cryptographic voting protocols: A systems perspective. In Fourteenth USENIX Security Symposium, August 2005.
[17]
T. Kohno, A. Stubblefield, A. D. Rubin, and D. S. Wallach. Analysis of an electronic voting system. In IEEE Symposium on Security and Privacy, pages 27-40, May 2004.
[18]
M. Kuhn. Optical time-domain eavesdropping risks of CRT displays. In IEEE Symposium on Security and Privacy, May 2002.
[19]
G. Leavens and Y. Cheon. Design by contract with JML. ftp://ftp.cs.iastate.edu/pub/leavens/JML/jmldbc.pdf.
[20]
J. Liedtke. Toward real microkernels. Communications of the ACM, 39(9):70, September 1996.
[21]
D. McCullough. Noninterference and the composability of security properties. In IEEE Symposium on Security and Privacy, May 1988.
[22]
R. Mercuri. Electronic Vote Tabulation Checks & Balances. PhD thesis, School of Engineering and Applied Science of the University of Pennsylvania, 2000.
[23]
R. Mercuri. A better ballot box? IEEE Spectrum, 39(10):46-50, October 2002.
[24]
D. Mertz. XML Matters: Practical XML data design and manipulation for voting systems. https://www-128.ibm.com/developerworks/xml/library/x-matters36.html, June 2004.
[25]
D. Molnar, T. Kohno, N. Sastry, and D. Wagner. Tamper-evident, history-independent, subliminal-free data structures on PROM storage -or- How to store ballots on a voting machine (extended abstract). In IEEE Symposium on Security and Privacy, May 2006.
[26]
C. A. Neff. A verifiable secret shuffle and its application to e-voting. In 8th ACM Conference on Computer and Communications Security (CCS 2001), pages 116-125, November 2001.
[27]
C. A. Neff. Practical high certainty intent verification for encrypted votes. https://www.votehere.net/vhti/documentation, October 2004.
[28]
N. Provos, M. Friedl, and P. Honeyman. Preventing privilege escalation. In Proceedings of the 12th USENIX Security Symposium, August 2003.
[29]
RABA Innovative Solution Cell. Trusted agent report Diebold AccuVote-TS voting system, January 2004.
[30]
M. Rajagopalan, S. Debray, M. Hiltunen, and R. Schlichting. Automated operating system specialization via binary rewriting. Technical Report TR05-03, University of Arizona, February 2005.
[31]
R. Rashid Jr., A. Tevanian, M. Young, M. Young, D. Golub, R. Baron, D. Black, W. Bolosky, and J. Chew. Machine-independent virtual memory management for paged uniprocessor and multiprocessor architectures. In Proceedings of the 2nd Symposium on Architectural Support for Programming Languages and Operating Systems (ASPLOS), October 1987.
[32]
J. Rushby. Design and verification of secure systems. In Proceedings of the 8th ACM Symposium on Operating Systems Principles (SOSP), December 1981.
[33]
Science Applications International Corporation (SAIC). Risk assessment report Diebold AccuVote-TS voting system and processes, September 2003.
[34]
A. Seshadri, A. Perrig, L. van Doorn, and P. Khosla. SWAtt: Software-based attestation for embedded devices. In Proceedings of the IEEE Symposium on Security and Privacy, May 2004.
[35]
M. Swift, M. Annamalai, B. Bershad, and H. Levy. Recovering device drivers. In Proceedings of the 6th ACM/USENIX Symposium on Operating System Design and Implementation, December 2004.
[36]
M. Swift, B. Bershad, and H. Levy. Improving the reliability of commodity operating systems. In Proceedings of the 19th ACM Symposium on Operating Sstems Principles (SOSP 2003), October 2003.
[37]
W. van Eck. Electromagnetic radiation from video display units: An eavesdropping risk? Computers & Security, 4, 1985.
[38]
D. Wagner, D. Jefferson, M. Bishop, C. Karlof, and N. Sastry. Security analysis of the Diebold AccuBasic interpreter. California Secretary of State's Voting Systems Technology Assessment Advisory Board (VSTAAB), February 2006.
[39]
C. Weissman. MLS-PCA: A high assurance security architecture for future avionics. In Proceedings of the 19th Annual Computer Security Applications Conference (ACSAC 2003), 2003.
[40]
A. Whitaker, M. Shaw, and S. Gribble. Denali: A scalable isolation kernel. In 10th ACM SIGOPS European Workship, September 2002.
[41]
I.-L. Yen and R. Paul. Key applications for high-assurance systems. IEEE Computer, 31(4):35-45, April 1998.

Footnotes:

1nks@cs.berkeley.edu. Supported by NSF CNS-0524252 and by the Knight Foundation under a subcontract through the Caltech/MIT Voting Technology Project.
2tkohno@cs.ucsd.edu. Supported by NSF CCR-0208842, NSF ANR-0129617, and NSF CCR-0093337. Part of this research was performed while visiting the University of California at Berkeley.
3daw@cs.berkeley.edu. Supported by NSF CCR-0093337 and CNS-0524252.
4Note that we do allow certain unavoidable interactions, e.g., after the ballot storage device becomes "full," a voting machine should not allow subsequent voters to vote.
5 Kohno et al.  count the total number of lines in their paper [17]; for a fair comparison with our work, we look at source lines of code, which excludes comments and whitespace from the final number. Hence, the numbers cited in their paper differ from the figure we list.
6A ballot image is merely a list of who this voter has voted for. It need not be an actual image or picture.
7Even this may not be enough, since an actual diode does not behave as the idealized diode we rely upon.

File translated from TE X by TT H, version 3.74.
On 11 May 2006, 22:46.
Last changed: 21 June 2006 jel
