SpyProxy: Execution-based Detection of Malicious Web Content
Alexander Moshchuk, Tanya Bragin, Damien Deville, |
Abstract:This paper explores the use of execution-based Web content analysis to protect users from Internet-borne malware. Many anti-malware tools use signatures to identify malware infections on a user's PC. In contrast, our approach is to render and observe active Web content in a disposable virtual machine before it reaches the user's browser, identifying and blocking pages whose behavior is suspicious. Execution-based analysis can defend against undiscovered threats and zero-day attacks. However, our approach faces challenges, such as achieving good interactive performance, and limitations, such as defending against malicious Web content that contains non-determinism.
To evaluate the potential for our execution-based technique, we designed, implemented, and measured a new proxy-based anti-malware tool called SpyProxy. SpyProxy intercepts and evaluates Web content in transit from Web servers to the browser. We present the architecture and design of our SpyProxy prototype, focusing in particular on the optimizations we developed to make on-the-fly execution-based analysis practical. We demonstrate that with careful attention to design, an execution-based proxy such as ours can be effective at detecting and blocking many of today's attacks while adding only small amounts of latency to the browsing experience. Our evaluation shows that SpyProxy detected every malware threat to which it was exposed, while adding only 600 milliseconds of latency to the start of page rendering for typical content.
Web content is undergoing a significant transformation. Early Web pages contained simple, passive content, while modern Web pages are increasingly active, containing embedded code such as ActiveX components, JavaScript, or Flash that executes in the user's browser. Active content enables a new class of highly interactive applications, such as integrated satellite photo/mapping systems. Unfortunately, it also leads to new security threats, such as “drive-by-downloads” that exploit browser flaws to install malware on the user's PC.
This paper explores a new execution-based approach to combating Web-borne malware. In this approach we render and execute Web content in a disposable, isolated execution environment before it reaches the user's browser. By observing the side-effects of the execution, we can detect malicious behavior in advance in a safe environment. This technique has significant advantages: because it is based on behavior rather than signatures, it can detect threats that have not been seen previously (e.g., zero-day attacks). However, it raises several crucial questions as well. First, can execution-based analysis successfully detect today's malware threats? Second, can the analysis be performed without harming browser responsiveness? Third, what are the limitations of this approach, in particular in the face of complex, adversarial scripts that contain non-determinism?
Our goal is to demonstrate the potential for execution-based tools that protect users from malicious content as they browse the Web. To do this, we designed, prototyped, and evaluated a new anti-malware service called SpyProxy. SpyProxy is implemented as an extended Web proxy: it intercepts users' Web requests, downloads content on their behalf, and evaluates its safety before returning it to the users. If the content is unsafe, the proxy blocks it, shielding users from the threat. Our intention is not to replace other anti-malware tools, but to add a new weapon to the user's arsenal; SpyProxy is complementary to existing anti-malware solutions.
SpyProxy combines two key techniques. First, it executes Web content on-the-fly in a disposable virtual machine, identifying and blocking malware before it reaches the user's browser. In contrast, many existing tools attempt to remove malware after it is already installed. Second, it monitors the executing Web content by looking for suspicious “trigger” events (such as registry writes or process creation) that indicate potentially malicious activity [28]. Our analysis is therefore based on behavior rather than signatures.
SpyProxy can in principle function either as a service deployed in the network infrastructure or as a client-side protection tool. While each has its merits, we focus in this paper on the network service, because it is more challenging to construct efficiently. In particular, we describe a set of performance optimizations that are necessary to meet our goals.
In experiments with clients fetching malicious Web content, SpyProxy detected every threat, some of which were missed by other anti-spyware systems. Our evaluation shows that with careful implementation, the performance impact of an execution-based malware detector can be reduced to the point where it has negligible effect on a user's browsing experience. Despite the use of a “heavyweight” Internet proxy and virtual machine techniques for content checking, we introduce an average delay of only 600 milliseconds to the start of rendering in the client browser. This is small considering the amount of work performed and relative to the many seconds required to fully render a page.
The remainder of the paper proceeds as follows. Section 2 presents the architecture and implementation of SpyProxy, our prototype proxy-based malware defense system. Section 3 describes the performance optimizations that we used to achieve acceptable latency. In section 4 we evaluate the effectiveness and performance of our SpyProxy prototype. Section 5 discusses related work and we conclude in Section 6.
This section describes SpyProxy—an execution-based proxy system that protects clients from malicious, active Web objects. We begin our discussion by placing SpyProxy in the context of existing malware defenses and outlining a set of design goals. We next describe the architecture of SpyProxy and the main challenges and limitations of our approach.
Over the past several years, attackers have routinely exploited vulnerabilities in today's Web browsers to infect users with malicious code such as spyware. Our crawler-based study of Web content in October 2005 found that a surprisingly large fraction of pages contained drive-by-download attacks [28]. A drive-by-download attack installs spyware when a user simply visits a malicious Web page.
Many defenses have been built to address this problem, but none are perfect. For example, many users install commercial anti-spyware or anti-virus tools, which are typically signature-based. Many of these tools look only for malware that is already installed, attempting the difficult operation of removing it after the fact. Firewall-based network detectors can filter out some well-known and popular attacks, but they typically rely on static scanning to detect exploits, limiting their effectiveness. They also require deployment of hardware devices at organizational boundaries, excluding the majority of household users. Alternatively, users can examine blacklists or public warning services such as SiteAdvisor [41] or StopBadware [43] before visiting a Web site, but this can be less reliable [5, 44].
None of these defenses can stop zero-day attacks based on previously unseen threats. Furthermore, signature databases struggle to keep up with the rising number of malware variants [9]. As a result, many of today's signature-based tools fail to protect users adequately from malicious code on the Web.
SpyProxy is a new defense tool that is designed for today's Web threats. It strives to keep Web browsing convenient while providing on-the-fly protection from malicious Web content, including zero-day attacks. Our SpyProxy architecture has three high-level goals:
Providing safety while maintaining responsiveness is challenging. To achieve both, SpyProxy uses several content analysis techniques and performance-enhancing optimizations that we next describe.
Figure 1 shows the architecture of a simplified version of SpyProxy. Key components include the client browser, SpyProxy, and remote Web servers. When the client browser issues a new request to a Web server, the request first flows through SpyProxy where it is checked for safety.
When a user requests a Web page, the browser software generates an HTTP request that SpyProxy must intercept. Proxies typically use one of two methods for this: browser configuration (specifying an HTTP proxy) or network-level forwarding that transparently redirects HTTP requests to a proxy. Our prototype system currently relies on manual browser configuration.
The SpyProxy front end module receives clients' HTTP requests and coordinates their processing, as shown in Figure 1(a). First, it fetches the root page using a cache module (we use Squid in our prototype). If the cache misses, it fetches the data from the Web, caching it if possible and then returning it to the front end. Second, the front end statically analyzes the page (described below) to determine whether it is safe. If safe, the proxy front end releases the root page content to the client browser, and the client downloads and renders it and any associated embedded objects.
If the page cannot be declared safe statically, the front end sends the page's URL to a virtual machine (VM) worker for dynamic analysis (Figure 1(b)). The worker directs a browser running in its VM to fetch the requested URL, ultimately causing it to generate a set of HTTP requests for the root page and any embedded objects. We configure the VM's browser to route these requests first through the front end and then through the locally running Squid Web cache. Routing it through the front end facilitates optimizations that we will describe in Section 3. Routing the request through Squid lets us reduce interactions with the remote Web server.
The browser in the VM worker retrieves and renders the full Web page, including the root page and all embedded content. Once the full page has been rendered, the VM worker informs the front end as to whether it has detected suspicious activity; this is done by observing the behavior of the page during rendering, as described below. If so, the front end notifies the browser that the page is unsafe. If not, the front end releases the main Web page to the client browser, which subsequently fetches and downloads any embedded objects (Figure 1(c)).
On receiving content from the Internet, the SpyProxy front end first performs a rudimentary form of static analysis, as previously noted. The goal of static analysis is simple: if we can verify that a page is safe, we can pass it directly to the client without a sophisticated and costly VM-based check. If static analysis were our only checking technique, our analysis tool would need to be complex and complete. However, static analysis is just a performance optimization. Content that can be analyzed and determined to be safe is passed directly to the client; content that cannot is passed to a VM worker for additional processing.
Our static analyzer is conservative. If it cannot identify or process an object, it declares it to be potentially unsafe and submits it to a VM worker for examination. For example, our analyzer currently handles normal and chunked content encodings, but not compressed content. Future improvements to the analyzer could reduce the number of pages forwarded to the VM worker and therefore increase performance.
When the analyzer examines a Web page, it tries to determine whether the page is active or passive. Active pages include executable content, such as ActiveX, JavaScript, and other code; passive pages contain no such interpreted or executable code. Pages that contain active content must be analyzed dynamically.
It is possible for seemingly passive content to compromise the user's system if the renderer has security holes. Such flaws have occurred in the past in both the JPEG and PNG image libraries. For this reason, we consider any non-HTML content types to be unsafe and send them for dynamic processing. In principle, a browser's HTML processor could have vulnerabilities in it as well; it is possible to configure SpyProxy to disable all static checking if this is a concern.
We validated the potential benefits of static checking with a small measurement study, where we collected a 17-hour trace of Web requests generated by the user population in our department. We saw that 54.8% of HTML pages transferred contain passive content. Thus, there can be significant benefit in identifying these pages and avoiding our VM-based check for them.
A drive-by download attack occurs when a Web page exploits a flaw in the victim's browser. In the worst case, an attack permits the attacker to install and run arbitrary software on the victim's computer. Our execution-based approach to detecting such attacks is adapted from a technique we developed in our earlier spyware measurement study [28], where we used virtual machines to determine whether a Web page had malicious content. We summarize this technique here.
Our detection method relies on the assumption that malicious Web content will attempt to break out of the security sandbox implemented by the browser. For example, the simple act of rendering a Web page should never cause any of the following side-effects: the creation of a new process other than known helper applications, modifications to the file system outside of safe folders such as the browser cache, registry modifications, browser or OS crashes, and so on. If we can determine that a Web page triggers any of these unacceptable conditions, we have proof that the Web page contains malicious content.
To analyze a Web page, we use a “clean” VMware [45] virtual machine configured with unnecessary services disabled. We direct an unmodified browser running in the VM to fetch and render the Web page. Because we disabled other services, any side effects we observe must be caused by the browser rendering the Web page. We monitor the guest OS and browser through “triggers” installed to look for sandbox violations, including those listed above. If a trigger fires, we declare the Web page to be unsafe. This mechanism is described in more detail in [28].
Note that this technique is behavior-based rather than signature-based. We do not attempt to characterize vulnerabilities; instead, we execute or render content to look for evidence of malicious side-effects. Accordingly, given a sufficiently comprehensive set of trigger conditions, we can detect zero-day attacks that exploit vulnerabilities that have not yet been identified.
Our approach is effective, but has a number of challenges and limitations. First, the overhead of cloning a VM, rendering content within it, and detecting trigger conditions is potentially high. In Section 3 we describe several optimizations to eliminate or mask this overhead, and we evaluate the success of these optimizations in Section 4. Second, our trigger monitoring system should be located outside the VM rather than inside it, to prevent it from being tampered with or disabled by the malware it is attempting to detect. Though we have not done so, we believe we could modify our implementation to use techniques such as VM introspection [18] to accomplish this. Third, pre-executing Web content on-the-fly raises several correctness and completeness issues, which we discuss below.
With SpyProxy in place, Web content is rendered twice, once in the VM's sandboxed environment and once on the client. For our technique to work, all attacks must be observed by the VM: the client must never observe an attack that the VM-based execution missed. This will be true if the Web content is deterministic and follows the same execution path in both environments. In this way, SpyProxy is ideal for deterministic Web pages that are designed to be downloaded and displayed to the user as information.
However, highly interactive Web pages resemble general-purpose programs whose execution paths depend on non-deterministic factors such as randomness, time, unique system properties, or user input. An attacker could use non-determinism to evade detection. For example, a malicious script could flip a coin to decide whether to carry out an attack; this simple scheme would defeat SpyProxy 50% of the time.
As a more pertinent example, if a Web site relies on JavaScript to control ad banner rotation, it is possible that the VM worker will see a benign ad while the client will see a malicious ad. Note, however, that much of Internet advertising today is served from ad networks such as DoubleClick or Advertising.com. In these systems, a Web page makes an image request to the server, and any non-determinism in picking an ad happens on the server side. In this case, SpyProxy will return the same ad to both the VM worker and the client. In general, only client-side non-determinism could cause problems for SpyProxy.
There are some potential solutions for handling non-determinism in SpyProxy. Similar to ReVirt [12], we could log non-deterministic events in the VM and replay them on the client; this likely would require extensive browser modifications. We could rewrite the page to make it deterministic, although a precise method for doing this is an open problem, and is unlikely to generalize across content types. The results of VM-based rendering can be shipped directly to the client using a remote display protocol, avoiding client-side rendering altogether, but this would break the integration between the user's browser and the rest of their computing environment.
None of these approaches seem simple or satisfactory; as a result, we consider malicious non-determinism to be a fundamental limitation to our approach. In our prototype, we did not attempt to solve the non-determinism problem, but rather we evaluated its practical impact on SpyProxy's effectiveness. Our results in Section 4 demonstrate that our system detected all malicious Web pages that it examined, despite the fact that the majority of them contained non-determinism. We recognize that in the future, however, an adversary could introduce non-determinism in an attempt to evade detection by SpyProxy.
Our technique requires that the Web page rendering process terminates so that we can decide whether to block content or forward it to the user. SpyProxy uses browser interfaces to determine when a Web page has been fully rendered. Unfortunately, for some scripts termination depends on timer mechanisms or user input, and in general, determining when or whether a program will terminate is not possible.
To prevent “timebomb-based” attacks, we speed up the virtual time in the VM [28]. If the rendering times out, SpyProxy pessimistically assumes the page has caused the browser to hang and considers it unsafe. Post-rendering events, such as those that fire because of user input, are not currently handled by SpyProxy, but could be supported with additional implementation. For example, we could keep the VM worker active after rendering and intercept the events triggered because of user input to forward them to the VM for pre-checking. The interposition could be accomplished by inserting run-time checks similar to BrowserShield [33].
In theory, the execution environment in the VM and on the client should be identical, so that Web page rendering follows the same execution path and produces the same side-effects in both executions. Differing environments might lead to false positives or false negatives.
In practice, malware usually targets a broad audience and small differences between the two environments are not likely to matter. For our system, it is sufficient that harmful side-effects produced at the client are a subset of harmful side-effects produced in the VM. This implies that the VM system can be partially patched, which makes it applicable for all clients with a higher patch level. Currently, SpyProxy uses unpatched Windows XP VMs with an unpatched IE browser. As a result, SpyProxy is conservative and will block a threat even if the client is patched to defend against it.
There is a possibility that a patch could contain a bug, causing a patched client to be vulnerable to an attack to which the unpatched SpyProxy is immune [24]. We assume this is a rare occurrence, and do not attempt to defend against it.
As we hinted before, SpyProxy has a flexible implementation: it can be deployed in the network infrastructure, or it can serve as a client-side proxy. There are many tradeoffs involved in picking one or the other. For example, a network deployment lets clients benefit from the workloads of other clients through caching of both data and analysis results. On the other hand, a client-side approach would remove the bottleneck of a centralized service and the latency of an extra network hop. However, clients would be responsible for running virtualization software that is necessary to support SpyProxy's VM workers. Many challenges, such as latency optimizations or non-determinism issues, apply in both scenarios.
While designing our prototype and carrying out our evaluation, we decided to focus on the network-based SpyProxy. In terms of effectiveness, the two approaches are identical, but obtaining good performance with a network deployment presents more challenges.
The simple proxy architecture described in section 2 will detect and block malicious Web content effectively, but it will perform poorly. For a given Web page request, the client browser will not receive or render any content until the proxy has downloaded the full page from the remote Web server, rendered it in a VM worker, and satisfied itself that no triggers have fired. Accordingly, many of the optimizations that Web browsers perform to minimize perceived latency, such as pipelining the transfer of embedded objects and the rendering of elements within the main Web page, cannot occur.
To mitigate the cost of VM-based checking in our proxy, we implemented a set of performance optimizations that either enable the browser to perform its normal optimizations or eliminate proxy overhead altogether.
Web page popularity is known to follow a Zipf distribution [6]. Thus, a significant fraction of requests generated by a user population are repeated requests for the same Web pages. Web proxy caches take advantage of this fact to reduce Web traffic and improve response times [1, 13, 15, 21, 52, 53]. Web caching studies generally report hit rates as high as 50%.
Given this, our first optimization is caching the result of our security check so that repeated visits to the same page incur the overhead of our VM-based approach only once. In principle, the hit rate in our security check cache should be similar to that of Web caches.
This basic idea faces complications. The principle of complete mediation warns against caching security checks, since changes to the underlying security policy or resources could lead to caching an incorrect outcome [34]. In our case, if any component in a Web page is dynamically generated, then different clients may be exposed to different content. However, in our architecture, our use of the Squid proxy ensures that no confusion can occur: we cache the result of a security check only for objects that Squid also caches, and we invalidate pages from the security cache if any of the page's objects is invalid in the Squid cache. Thus, we generate a hit in the security cache only if all of the Web page content will be served out of the Squid proxy cache. Caching checks for non-deterministic pages is dangerous, and we take the simple step of disabling the security cache for such pages.
In the unoptimized system shown in Figure 1, the Web client will not receive any content until the entire Web page has been downloaded, rendered, and checked by SpyProxy. As a result, the network between the client and the proxy remains idle when the page is being checked. If the client has a low-bandwidth network connection, or if the Web page contains large objects, this idle time represents a wasted opportunity to begin the long process of downloading content to the client.
To rectify this, SpyProxy contains additional components and protocols that overlap several of the steps shown in Figure 1. In particular, a new client-side component acts as a SpyProxy agent. The client-side agent both prefetches content from SpyProxy and releases it to the client browser once SpyProxy informs it that the Web page is safe. This improves performance by transmitting content to the client in parallel with checking the Web page in SpyProxy. Because we do not give any Web page content to the browser before the full page has been checked, this optimization does not erode security.
In our prototype, we implemented the client-side agent as an IE plugin. The plugin communicates with the SpyProxy front end, spooling Web page content and storing it until SpyProxy grants it authorization to release the content to the browser.
Although prefetching allows content to be spooled to the client while SpyProxy is performing its security check, the user's browser cannot begin rendering any of that content until the full Web page has been rendered and checked in the VM worker. This degrades responsiveness, since the client browser cannot take advantage of its performance optimizations that render content well before the full page has arrived.
We therefore implemented a “staged release” optimization. The goal of staged release is to present content considered safe for rendering to the client browser in pieces; as soon as the proxy believes that a slice of content (e.g., an object or portion of an HTML page) is safe, it simultaneously releases and begins transmitting that content to the client.
Figure 2 depicts the process of staged release. A page consists of a root page (typically containing HTML) and a set of embedded objects referred to from within the root page. As a Web browser downloads and renders more and more of the root page, it learns about embedded objects and begins downloading and rendering them.
Without staged release, the proxy releases no content until the full Web page and its embedded objects have been rendered in the VM. With staged release, once the VM has rendered an embedded object, it releases that object and all of the root page content that precedes its reference. If the client browser evaluates the root page in the same order as the VM browser, this is safe to do; our results in Section 4 confirm this optimization is safe in practice. Thus, a pipeline is established in which content is transmitted and released incrementally to the client browser.
In Figures 2(a) and 2(b), only part of the main Web page has been downloaded and rendered by the VM browser. In Figure 2(c), all of the first embedded object has been rendered by the VM, which causes that object and some of the main Web page content (shown in black) to be released and transmitted to the client browser. More of the main Web page and the second embedded object is downloaded and rendered in Figure 2(d), until finally, in Figures 2(e) and 2(f), the full Web page is released.
Many Web pages contain dozens of embedded images. For example, CNN's Web page contains over 32 embedded objects. Faced with such a Web page, our staged release optimization quickly starts feeding the client browser more and more of the root page and associated embedded objects. As a result, the user does not observe expensive Web access delay.
Note that staged release is independent from prefetching. With prefetching, content is pushed to the client-side agent before SpyProxy releases it to the client browser; however, no content is released until the full page is checked. With staged release, content is released incrementally, but released content is not prefetched. Staged release can be combined with prefetching, but since it does not require a client-side agent to function, it may be advantageous to implement staged release without prefetching. We evaluate each of these optimizations independently and in combination in Section 4.
SpyProxy contains a few additional optimizations. First, the VM worker is configured to have a browser process already running inside, ready to accept a URL to retrieve. This avoids any start-up time associated with booting the guest OS or launching the browser. Second, the virtual disk backing the VM worker is stored in a RAM-disk file system in the host OS, eliminating the disk traffic associated with storing cookies or files in the VM browser. Finally, instead of cloning a new VM worker for every client request, we re-use VM workers across requests, garbage collecting them only after a trigger fires or a configurable number of requests has occurred. Currently, we garbage collect a worker after 50 requests.
This section evaluates the effectiveness and performance of our SpyProxy architecture and prototype. The prototype includes the performance optimizations we described previously. Our results address three key questions: how effective is our system at detecting and blocking malicious Web content, how well do our performance optimizations mask latency from the user, and how well does our system perform given a realistic workload?
We first consider the ability of SpyProxy to successfully block malicious content. To quantify this, we manually gathered a list of 100 malicious Web pages on 45 distinct sites. Each of these pages performs an attack of some kind. We found these pages using a combination of techniques, including: (1) searching Google for popular Web categories such as music or games, (2) mining public blacklists of known attack sites, and (3) examining public warning services such as SiteAdvisor.
Some of the Web pages we found exploit browser vulnerabilities to install spyware. Others try to “push” malicious software at clients spontaneously, requiring user consent to install it; we have configured SpyProxy to automatically accept such prompts to evaluate its effectiveness at blocking these threats. The pages include a diversity of attack methods, such as the WMF exploit, ActiveX controls, applet-based attacks, JavaScript, and pop-up windows. A successful attack inundates the victim with adware, dialer, and Trojan downloader software.
Table 1 quantifies the effectiveness of our system. SpyProxy detected and blocked 100% of the attack pages, despite the diversity of attack methods to which it was exposed. Further, most of these attack pages contained some form of non-deterministic content; in practice, none of the attacks we found attempted to evade detection by “hiding” inside non-deterministic code.
The table also shows the advantage of our on-the-fly approach compared to a system like SiteAdvisor, which provides static recommendations based on historical evidence. SiteAdvisor misclassified 20% of the malicious sites as benign. While we cannot explain why SiteAdvisor failed on these sites, we suspect it is due to a combination of incomplete Web coverage (i.e., not having examined some pages) and stale information (i.e., a page that was benign when examined has since become malicious). SpyProxy's on-the-fly approach examines Web page content as it flows towards the user, resulting in a more complete and effective defense.
For an interesting example of how SpyProxy works in practice, consider www.crackz.ws, one of our 100 malicious pages. This page contains a specially crafted image that exploits a vulnerability in the Windows graphics rendering engine. The exploit runs code that silently downloads and installs a variety of malware, including several Trojan downloaders. Many signature-based anti-malware tools would not prevent this attack from succeeding; they would instead attempt to remove the malware after the exploit installs it.
In contrast, when SpyProxy renders a page from www.crackz.ws in a VM, it detects the exploit when the page starts performing unacceptable activity. In this case, as the image is rendered in the browser, SpyProxy detects an unauthorized creation of ten helper processes. SpyProxy subsequently blocks the page before the client renders it. Note that SpyProxy does not need to know any details of the exploit to stop it. Equally important, in spite of the fact that the exploit attacks a non-browser flaw that is buried deep in the software stack, SpyProxy's behavior-based detection allowed it to discover and prevent the attack.
This section measures the performance of the basic unoptimized SpyProxy architecture we described in Section 2.3. These measurements highlight the limitations of the basic approach; namely, unoptimized SpyProxy interferes with the normal browser rendering pipeline by delaying transmission until an entire page is rendered and checked. They also suggest opportunities for optimization and provide a baseline for evaluating the effectiveness of those optimizations.
We ran a series of controlled measurements, testing SpyProxy under twelve configurations that varied across the following three dimensions:
For each of the twelve configurations, we created a timeline showing the latency of each step from the client's Web page request to the final page rendering in the client. We broke the end-to-end latency into several components, including WAN transfer delays, the overhead of rendering content in the VM worker before releasing it to the client, and internal communication overhead in the SpyProxy system itself. We cleared all caches in the system to ensure that content was retrieved from the original Web servers in all cases.

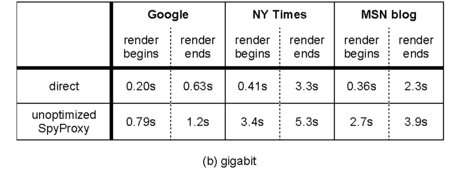

For each configuration, Table 2 shows the time until content first begins to render on the user's screen and the time until the Web page finishes rendering. In all cases, the unoptimized SpyProxy implementation added less than three seconds to the total page download time. However, the time until rendering began was much higher on the unoptimized system, growing in some cases by a factor of ten. This confirms that our system can perform well, but, without optimizations, it interferes with the browser's ability to reduce perceived latency by pipelining the transfer and rendering of content.

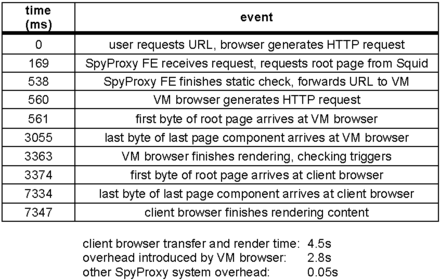

Table 3 provides a more detailed timeline of events when fetching the New York Times page from a broadband client using the unoptimized SpyProxy. Downloading and rendering the page in the VM browser introduced 2.8 seconds of overhead. Since no data flows to the client browser until SpyProxy finishes rendering and checking content, this VM rendering latency is responsible for delay experienced by the user.
To reduce the overhead introduced by the unoptimized SpyProxy system, we previously described three optimization techniques: prefetching content to a client-side agent, the staged release of content to the client browser, and caching the results of security checks. We now present the results of a set of microbenchmarks that evaluate the impact of each optimization.

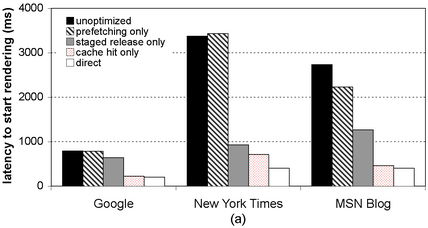

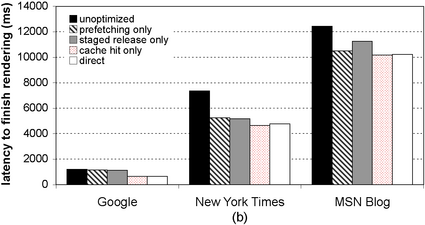

Figure 3 summarizes the benchmark results. Both figures show the latency to download three different pages to a client on the emulated broadband connection. For each page, we show latency for five cases: (1) the unoptimized SpyProxy, (2) SpyProxy with only prefetching enabled, (3) SpyProxy with only staged release enabled, (4) SpyProxy with a hit in the enabled security cache, and (5) the base case of a client fetching content directly from Web servers. Figure 3(a) shows the latency before page rendering begins in the client browser, while Figure 3(b) shows the latency until page rendering ends.
In combination, the optimizations serve to reduce the latency before the start of rendering in the client. With all of the the optimizations in place, the page load “feels” nearly as responsive through SpyProxy as it does without SpyProxy. In either case, the page begins rendering about a second after the request is generated. The optimizations did somewhat improve the total rendering latency relative to the unoptimized implementation (Figure 3(b)), but this was not nearly as dramatic. Page completion time is dominated by transfer time over the broadband network, and our optimizations do nothing to reduce this.

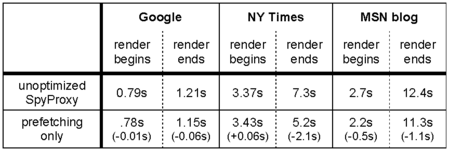

Prefetching by itself does not yield significant benefits. As shown in Table 4, it did not reduce rendering start-time latency. With prefetching alone, the client browser effectively stalls while the VM browser downloads and renders the page fully in the proxy. That is, SpyProxy does not release content to the client's browser until the VM-based check ends.
However, we did observe some improvement in finish-time measurements. For example, the time to fully render the New York Times page dropped by 2.1 seconds, from 7.3 seconds in the unoptimized SpyProxy to 5.2 seconds with prefetching enabled. Prefetching successfully overlaps some transmission of content to the client-side agent with SpyProxy's security check, slightly lowering overall page load time.
Staged release very successfully reduced initial latency before rendering started; this time period has the largest impact on perceived responsiveness. As shown in Table 5, staged release reduced this latency by several seconds for both the New York Times and MSN blog pages. In fact, from the perspective of a user, the New York Times page began rendering nearly four times more quickly with staged release enabled. For all three pages, initial rendering latency was near the one-second mark, implying good responsiveness.
The staged release optimization also reduced the latency of rendering the full Web page to nearly the same point as prefetching. Even though content does not start flowing to the client until it is released, this optimization releases some content quickly, causing an overlap of transmission with checking that is similar to prefetching.
Staged release outperforms prefetching in the case that matters—initial time to rendering. It also has the advantage of not requiring a client-side agent. Once SpyProxy decides to release content, it can simply begin uploading it directly to the client browser. Prefetching requires the installation of a client-side software component, and it provides benefits above staged release only in a narrow set of circumstances (namely, pages that contain very large embedded objects).
To better visualize the impact of staged release, Figure 4 depicts the sequence of Web object completion events that occur during the download and rendering of a page. Figure 4(a) shows completion events for the New York Times page. The unoptimized SpyProxy (top) does not transmit or release events to the client browser until the full page has rendered in the VM. With staged release (4(a) bottom), as objects are rendered and checked by the SpyProxy VM, they are released and transmitted to the client browser and then rendered. Accordingly, the sequence of completion events is pipelined between the two browsers. This leads to much more responsive rendering and an overall lower page load time.
Figure 4(b) shows a similar set of events for the MSN blog page. Since this page consists of few large embedded images, the dominant cost in both the unoptimized and staged-release-enabled SpyProxy implementations is the time to transmit the images to the client over broadband. Accordingly, though staged release permits the client browser to begin rendering more quickly, most objects queue up for transmission over the broadband link after being released by SpyProxy.
When a client retrieves a Web page using the optimized SpyProxy, both the outcome of the security check and the page's content are cached in the proxy. When a subsequent request arrives for the same page, if any of its components are cached and still valid, our system avoids communicating with the origin Web server. In addition, if all components of the page are cached and still valid, the system uses the previous security check results instead of incurring the cost of a VM-based evaluation.

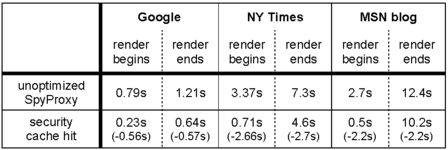

In Table 6, we show the latency improvement of hitting in the security cache compared with the unoptimized SpyProxy. As with the other optimizations, the primary benefit of the security cache is to improve the latency until the page begins rendering. Though the full page load time improves slightly, the transfer time over the broadband connection still dominates. However, on a security cache hit, the caching optimization is extremely effective, since it eliminates the need to evaluate content in a VM.
Previous sections examined the individual impact of each of our optimizations. In the end, however, the question remains: how does SpyProxy perform for a “typical” user Web-browsing workload? A more realistic workload will cause the performance optimizations — caching, static analysis, and staged release — to be exercised together in response to a stream of requests.
To study the behavior of SpyProxy when confronted with a realistic request stream, we measured the response latencies of 1,909 Web page requests issued by our broadband Web client. These requests were generated with a Zipf popularity distribution drawn from a list of 703 different safe URLs from 124 different sites. We chose the URLs by selecting a range of popular and unpopular sites ranked by the Alexa ranking service. By selecting real sites, we exercised our system with the different varieties and complexities of Web page content to which users are typically exposed. By generating our workload with a Zipf popularity distribution, we gave our caching optimization the opportunity to work in a realistic scenario. None of the sites we visited contained attacks; our goal was simply to evaluate the performance impact of SpyProxy on browsing.

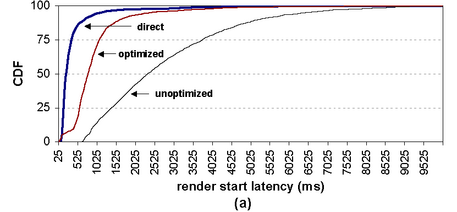

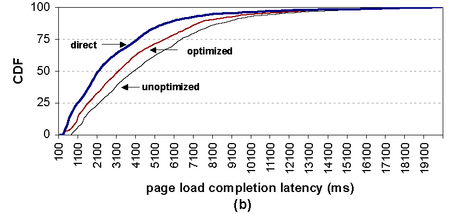

Figure 5(a) presents a cumulative distribution function for the time to start page rendering in the client browser. This is the delay the user sees before the browser responds to a request. Figure 5(b) shows the CDF for full-page-load latencies. Each figure depicts distributions for three cases: (1) directly connecting to the Web site without SpyProxy, (2) using the optimized SpyProxy implementation, and (3) using SpyProxy with optimizations disabled. We flushed all caches before gathering the data for each distribution.
Our results demonstrate that the optimized SpyProxy system delivers content to browsers very quickly. The median time until rendering began was 0.8 seconds in the optimized system compared to 2.4 seconds in the unoptimized system. There is still room to improve; the median start time for the direct connection was 0.2 seconds. However, the optimized system feels acceptably fast to a user. In contrast, the unoptimized system seems noticeably sluggish compared to the optimized system and direct connections.
A typical request flowing through the optimized system involves several potential sources of overhead, including interacting with the Squid proxy cache and pre-executing content in a virtual machine. In spite of this, the optimized SpyProxy effectively masks latency, resulting in an interactive, responsive system. In addition, our system generated very few false positives: only 4 of the 1,909 Web page requests resulted in an alarm being raised. Even though the offending pages were benign, they did in fact attempt to install software on the user's computer, albeit by requesting permission from the user first. For example, one of the pages prompted the user to install a browser plug-in for the QuickTime media player. We chose not to deal with such opt-in installers, as SpyProxy is primarily intended for zero-day attacks that never ask for permission before installing malware. However, we do reduce the number of false positives by including the most common browser plug-ins, such as Flash, in the base VM image.
SpyProxy is designed to service many concurrent users in an organizational setting. Our implementation runs on a cluster of workstations, achieving incremental scalability by executing VM workers on additional nodes. We now provide some back-of-the-envelope estimations of SpyProxy's scalability. We have not performed an explicit scaling benchmark, but our calculations do provide an approximate indication of how many CPUs would be necessary to support user population of a given size.
Our estimate is based on the assumption that the CPU is likely to be the bottleneck of a deployed system; for this to be true, the system must be configured with an adequate amount of memory and network bandwidth to support the required concurrent virtual machines and Web traffic. While performing the evaluation in section 4.4, we measured the amount of CPU time required to process a Web page in SpyProxy. On a 2.8GHz Pentium 4 machine with 4GB of RAM and a single 80GB 7200 RPM disk, we found the average CPU time consumed per page was 0.35 seconds.
There is little published data on the number of Web pages users view per day. In a study of Internet content-delivery systems [38], users requested 930 HTTP objects per day on average, and another study found that an average Web page contains about 15 objects [27]. Combining these, we conservatively estimate that a typical user browses through 100 pages per day. Assuming this browsing activity is uniformly distributed over an 8-hour workday, one CPU can process 82286 Web pages per day, implying a single-CPU SpyProxy could support approximately 822 users. A single quad-core machine should be able to handle the load from an organization containing a few thousand people.
This section evaluated the effectiveness and performance of our SpyProxy prototype. Our measurements demonstrated that SpyProxy effectively detects malicious content. In our experiments, SpyProxy correctly detected and blocked every threat, including several that SiteAdvisor failed to identify. Our experiments with fully optimized SpyProxy show that a proxy-based spyware checker can be implemented with only minimal performance impact on the user. On average, the use of SpyProxy added only 600 milliseconds to the user-visible latency before rendering starts. In our experience using the system, this small additional overhead does not noticeably degrade the system's responsiveness.
We now discuss related research on spyware detection and prevention, intrusion detection and firewall systems, and network proxies.
In previous work, we used passive network monitoring to measure adware propagation on the University of Washington campus [37]. In a follow-on study, we used Web crawling to find and analyze executable programs and Web pages that lead to spyware infections [28]; the trigger-based VM analysis technique in that work forms the foundation for SpyProxy's detection mechanism.
Strider HoneyMonkey [49] and the commercial SiteAdvisor service [41] both use a VM-based technique similar to ours to characterize malicious Web sites and pages. Our work differs in two main ways: we show that our VM-based technique can be used to build a transparent defense system rather than a measurement tool, and we examine optimizations that enable our system to perform efficiently and in real time.
Our system detects malicious Web content by executing it and looking for evidence of malicious side-effects. Other systems have attempted to detect malware by examining side-effects, including Gatekeeper [51], which monitors Windows extensibility hooks for evidence of spyware installation. Another recent detector identifies spyware by monitoring API calls invoked when sensitive information is stolen and transmitted [20]. However, these systems only look for malware that is already installed. In contrast, SpyProxy uses behavioral analysis to prevent malware installation.
Other works have looked at addressing limitations of signature-based detection. Semantics-aware malware detection [8] uses an instruction-level analysis of programs to match their behavior against signature templates. This technique improves malware detection, but not prevention. Several projects explore automatic generation of signatures for detection of unknown malware variants [7, 29, 40, 46, 48]. These typically need attack traffic and time to generate signatures, leaving some clients vulnerable when a new threat first appears.
Some commercial client-side security tools have begun to incorporate behavioral techniques, and two recent products, Prevx1 [32] and Primary Response SafeConnect [35], use purely behavioral detection. However, these tools must run on systems packed with client-installed programs, which limits their behavioral analysis. In contrast, SpyProxy pre-executes content in a clean sandbox, where it can apply a much stricter set of behavioral rules.
Other approaches prevent Web-based malware infestations by protecting the user's system from the Web browser using VM isolation [10], OS-level sandboxing [16, 36], or logging/rollback [17]. Fundamentally, this containment approach is orthogonal to our prevention approach. Although these tools provide strong isolation, they have different challenges, such as data sharing and client-side performance overhead.
Remote playgrounds move some of the browser functionality (namely, execution of untrusted Java applets) away from the client desktop and onto dedicated machines [26]; the client browser becomes an I/O terminal to the actual browser running elsewhere. Our architecture is different — SpyProxy pre-executes Web pages using an unmodified browser and handles any form of active code, allowing it to capture a wider range of attacks. Nevertheless, SpyProxy could benefit from this technique in the future, for example by forwarding user input to the VM worker in AJAX sites.
Several projects tackle the detection and prevention of other classes of malware, including worms, viruses, and rootkits [19, 39, 50]. SpyProxy complements these defenses with protection against Web-borne attacks, resulting in better overall desktop security.
Intrusion detection systems (e.g., Bro [31] and snort [42]) protect networks from attack by searching through incoming packets for known attack signatures. These systems are typically passive, monitoring traffic as it flows into a network and alerting a system administrator when an attack is suspected. More sophisticated intrusion detection systems attempt to identify suspicious traffic using anomaly detection [3, 4, 22, 23]. A related approach uses protocol-level analysis to look for attacks that exploit specific vulnerabilities, such as Shield [47]. The same idea has been applied at the HTML level in client-side firewalls and proxies [25, 30, 33].
These systems typically look for attack signatures for well-established protocols and services. As a result, they cannot detect new or otherwise undiscovered attacks. Since they are traditionally run in a passive manner, attacks are detected but not prevented. Our system executes potentially malicious content in a sandboxed environment, using observed side-effects rather than signatures to detect attacks and protect clients.
Shadow honeypots combine network intrusion detection systems and honeypots [2]. They route risky network traffic to a heavily instrumented version of a vulnerable application, which detects certain types of attacks at run-time. In contrast, SpyProxy does not need to instrument the Web browser that it guards, and its run-time checks are more general and easier to define.
Proxies have been used to introduce new services between Web clients and servers. For example, they have been used to provide scalable distillation services for mobile clients [14], Web caching [1, 13, 15, 21, 52, 53], and gateway services for onion-routing anonymizers [11]. SpyProxy builds on these advantages, combining active content checking with standard proxy caching. SpyBye [30] is a Web proxy that uses a combination of blacklisting, whitelisting, ClamAV-based virus scanning, and heuristics to identify potentially malicious Web content. In contrast, SpyProxy uses execution-based analysis to identify malicious content.
This paper described the design, implementation, and evaluation of SpyProxy, an execution-based malware detection system that protects clients from malicious Web pages, such as drive-by-download attacks. SpyProxy executes active Web content in a safe virtual machine before it reaches the browser. Because SpyProxy relies on the behavior of active content, it can block zero-day attacks and previously unseen threats. For performance, SpyProxy benefits from a set of optimizations, including the staged release of content and caching the results of security checks.
Our evaluation of SpyProxy demonstrates that it meets its goals of safety, responsiveness, and transparency:
Execution-based analysis does have limitations. We described several of these, including issues related to non-determinism, termination, and differences in the execution environment between the client and the proxy.
There are many existing malware detection tools, and although none of them are perfect, together they contribute to a “defense in depth” security strategy. Our goal is neither to build a perfect tool nor to replace existing tools, but to add a new weapon to the Internet security arsenal. Overall, our prototype and experiments demonstrate the feasibility and value of on-the-fly, execution-based defenses against malicious Web-page content.
We would like to thank the Computer Science and Engineering support staff and the Computing and Communications staff at the University of Washington for enabling our research. This research was supported in part by the National Science Foundation under grants CNS-0627367, NSF-614975, and ANI-0132817, by the Torode Family Endowed Career Development Professorship, and by the Wissner-Slivka Chair.
