Towards a deployable IP Anycast service
Hitesh Ballani, Paul Francis
Cornell University
{hitesh,francis}@cs.cornell.edu
Abstract
Since it was first described in 1993, IP anycast has been a
promising technology for simple, efficient, and robust service
discovery, and for connectionless services. Due to scaling issues,
the difficulty of deployment, and lack of application-specific
features such as load balancing and connection affinity, the use
of IP anycast is limited to a small number of critical low-level
services such as DNS root server replication. More commonly,
application-layer anycast, such as DNS-based redirection, is used.
As the number of P2P and overlay services grows, however, the
advantages of IP anycast become more appealing. This paper
proposes a new proxy overlay deployment model for IP anycast that
overcomes most of the limitations of native IP
anycast.
We believe that this makes IP anycast a viable option for easing deployment
and improving the
robustness and efficiency of many P2P and overlay technologies.
We describe the new deployment model, some of its uses for P2P and overlay
networks, its pros and cons
relative to application-layer anycast, and discuss research
issues.
1 Motivation
IP anycast is an IP addressing mode (v4 or v6)
whereby multiple geographically disperse hosts are assigned the
same IP address, with the result that IP routing delivers packets
destined to the address to the nearest1 such host [1]. This
works without any changes to unicast routing as routers do not
distinguish between multiple routes to multiple different hosts
and multiple routes to the same host.
There are three broad uses for IP anycast: service
discovery, query/reply services, and routing services. With
service discovery, IP anycast routes the client's packets to a
nearby server, which then redirects the client to a server
(possibly itself) which is subsequently accessed using IP unicast.
With query/reply services, the entire exchange is done using IP
anycast. With routing services, IP anycast routes the client's
packets to a routing infrastructure (eg. IP multicast), which then
continues to forward the packet using whatever technology is
appropriate.
Together these constitute a powerful set of
tools that can ease configuration, and improve robustness and
efficiency for many applications or lower-layer protocols. There
are three primary reasons for the simplicity and the power
of by IP anycast:
First, it operates at a low level, depending only on the IP
routing substrate. This makes it robust, scalable for
large anycast groups (though not for large numbers of groups),
and simple for clients to use (once it is in place).
Second, it automatically discovers
nearby resources, eliminating the need for complex proximity
discovery mechanisms [21].
Finally, packets are delivered directly to the target destination
without the need for a redirect (frequently required by application-layer
anycast approaches).
This saves at least one packet round trip, which can be important for
short lived exchanges.
Examples of IP anycast routing services include routing IP
multicast packets to shared multicast tree rendezvous
points [3, 6] and routing IPv6 packets (tunnelled
over IPv4) to IPv4/IPv6 transition devices [2]. The
only wide-scale deployments of IP anycast in a production
environment are query/reply services for DNS: transparently
replicating the root DNS servers [7, 5], primarily to
spread load as a defense against DDoS attacks, and establishing
``sink-holes'' for DNS PTR queries to private addresses [14].
On a local scale, IP anycast is used by operators to simplify and
improve local DNS server availability [15] as well as to
establish sink-holes [15].
In spite of the power of IP anycast, there are several major
problems that currently limit its use to a small number of
critical applications like DNS root server replication. They
include:
-
IP anycast is incredibly wasteful of addresses. Because the
routing infrastructure won't accept IP prefixes longer than a /22
(or a pre-CIDR /24), a single IP anycast group consumes 1024 (or
256) scarce IP addresses. The alternative would be to modify
routing policy to accept larger prefixes, but that would open the
door to huge routing tables, which leads us to the second problem:
- IP anycast scales poorly by the number of
anycast groups. Each such group requires a BGP routing entry in
the global routing system. GIA [8] proposed router
modifications to improve scalability, but expecting core router
upgrades for this purpose is almost certainly a non-starter.
- IP anycast is difficult and in some cases,
impossible for users to deploy. It requires that the user obtain a
block of IP addresses and an AS number, something that is
currently outside the normal allocation policies of registration
authorities (i.e. ARIN, RIPE, etc.). Even if such a block is
obtained, each IP anycast destination (target) must run a routing
protocol with the upstream ISP, which requires negotiations with
the ISP, a significant amount of manual configuration, and a
certain level of expertise.
- IP anycast is
subject to the limitations of IP routing, in several ways. First,
IP may suddenly route packets to a different anycast target, thus
breaking the notion of connection affinity2, which in turn breaks stateful protocols like TCP.
Second, IP routing has no notion of load---not even link/router
load, let alone server load. This problem is addressed
in [19], but again by requiring changes in routers. Finally,
BGP sometimes converges slowly, making a destination unreachable
for many seconds or even minutes [16].
Because of these limitations, anycast today is
typically implemented at the application layer. This offers what
is essentially anycast service discovery---DNS-based approaches
use DNS redirection while URL-rewriting approaches dynamically
rewrite the URL links as part of redirecting a client to the
appropriate server. These application layer approaches are easier
to deploy (as they do not require any router modifications),
provide fine grained control over target server load, and
naturally maintain connection affinity. Because of these
advantages, application-layer anycast is the method of choice for
Content Distribution Networks (CDN) today.
Imagine for the moment that the shortcomings of IP anycast could
be eliminated without sacrificing (at least not by much) its
advantages. Were this possible, the uses for IP anycast would
expand dramatically, especially for overlay and P2P technologies.
For instance, IP anycast could be used to bootstrap members of a
DHT (eg. Chord [11]), P2P multicast overlay [24],
or P2P file sharing [25] network without requiring a
central server to redirect joining members to existing members.
Indeed, eliminating the bottleneck and single points of failure
imposed by the central server(s) remains an open problem for P2P
networks of all kinds [26]. This would work by having
each member join the IP anycast group once it becomes a member.
Subsequently newly joining members would transmit ``member
discovery'' messages to the anycast group, thus discovering a
nearby member.
Likewise, IP anycast could be used by clients of a DHT to simply
and efficiently query the DHT, or to query services that
themselves are built on DHTs, like DNS-style name
resolution [27]. IP anycast could be used to send HTTP
queries to nearby web proxies, without the need for explicit
configuration of the web proxies or the latency overhead of a DNS
query or an HTTP redirect.
IP anycast could be used to efficiently transmit packets into
overlay networks like RON [12] or i3 [9]. RON is a
particularly interesting case, as it would allow nodes that are
not aware of the RON overlay to never-the-less use the RON
overlay. The basic idea here is that all N members of a RON
overlay would join an identical set of N anycast groups. The
anycast address of each group would represent one of the RON
nodes. Packets from a non-RON node J to a given RON node X would
be routed via IP anycast to the nearest RON node Y.
RON node Y could then forward the packet to X via the RON overlay.
Likewise, return packets from X to J could be sent through the RON
network to Y and then forwarded using unicast to J. This would
greatly expand the scope of a RON network: from only being able to
transmit packets between RON members to being able to transmit
packets between RON members and any node in the Internet.
If the IP anycast service could be extended so that a node could
be both a client and a target3 (i.e., IP anycast packets sent by a member of the
anycast group would be forwarded to the nearest group member
other than the sender), then still more uses can be
envisioned. For instance, networked game players could find nearby
partners, and members of a P2P multicast overlay could find nearby
peers.
2 Proxy IP Anycast Service (PIAS)
PIAS is an IP anycast deployment approach that overcomes most of
the limitations of native IP anycast while maintaining most of its
strengths. The basic idea is to implement IP anycast in an
overlay, in much the same spirit as implementing IP multicast in
the mbone overlay. Specifically, a large number of anycast proxies
are deployed around the Internet. These are router-like boxes that
advertise a block of IP anycast addresses into the routing fabric
(BGP, IGPs), but are not themselves the anycast target
destinations. Instead, packets that reach the anycast proxies
through native IP anycast are subsequently tunnelled (or NATed) to
the true target destinations4
using unicast IP (see figure A). Hosts become anycast targets by
registering with a nearby anycast proxy, which is itself
discovered using native IP anycast!

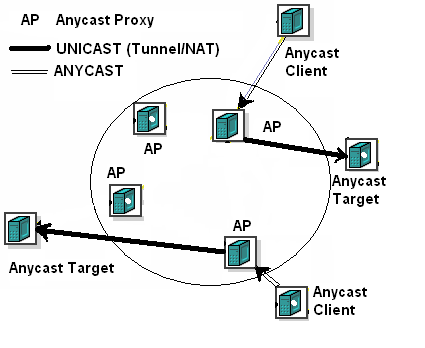

Fig
A. Proxy Architecture
The PIAS architecture solves
the first three limitations of IP anycast cited above. It solves
the problem of inefficient address usage because all the IP
addresses in the prefix advertised by the proxies can be used by
different anycast groups. In fact, PIAS does one better. It
identifies an IP anycast group by the full transport
address (TA), i.e. IP address and TCP/UDP port, thus allowing
thousands of anycast groups per IP address. Likewise, it solves
the routing scaling problem by allowing so many anycast groups to
share a single address prefix. Finally, it makes it very easy for
a host to become an IP anycast target. All the host has to do is
register with a proxy. There are no special routing requirements.
The task of obtaining the address block/AS numbers falls upon the
infrastructure operator; the effort put into this deployment is
amortized across all the groups the infrastructure can support.
Of course, the reader may (and should) argue that all we've done
is push the scaling and addressing problems from IP routing into
the proxy overlay. This is very true, and quite intentional: the
problems are much easier to solve when isolated from IP routing in
this way. We now address scaling and other design issues in the
proxy overlay. We start by stating our design goals:
-
Scale by the number of groups
- Scale by
the size of any group.
- Scale by group
dynamics, by both continuous member churn and flash crowds,
including those caused by DDoS attacks.
- Scale to ~105 proxies. 50 proxies in each of the largest
200 ISPs, which strikes us as plenty of proxies, gives us
~104 proxies; to be safe we target for an order of
magnitude more.
- Backwards compatible,
implying no changes at the clients and minimal changes (at least
no network stack changes) at the targets5.
- Offer features associated with
application-layer anycast: load balancing, connection affinity,
and the ability for a target to also be a client.
The first design goal dictates that we cannot require each proxy
to know of all groups. As a result, for each group we designate a
small number of proxies, called Rendezvous Anycast Proxies (RAP),
to keep track of the membership of the group. We map groups to
RAPs using consistent hashing[10], thus spreading the load
of maintaining membership information evenly over the set of
proxies. Each group is assigned a small number of replicated RAPs,
for reliability reasons. Note that we require all proxies to know
the status of all other proxies. This is justified by the maximum
number of expected proxies (105) and the stable nature of the
proxies. The proxies may maintain this global information through
flooding, gossip [22] or a hierarchical
structure [18]. Such an arrangement ensures that we
attain a simple one-hop DHT and hence, limit the latency overhead
of routing through the proxy overlay.
The RAP approach described above doesn't scale if a given group is
very large, or has a lot of churn (second & third goals), since
each of a small number of RAPs have to maintain membership for the
whole group. A large group would risk overwhelming the RAPs with
state information while a group with a lot of churn would lead to
a stream of update information to the RAPs. Thus, we add another
tier of membership management in the form of the Join Anycast
Proxy (JAP). Specifically, the JAP is the proxy that is contacted
by a target when it joins the group. The fact that the join is
done through native IP anycast implies that the JAP is close to
the target. The JAP is responsible for authenticating targets,
and for maintaining liveness status
of targets. The JAP also tells the RAP
approximately how many targets it has for a given group
(i.e. within 20% or 30% of the exact number). This way some number of
targets can join or quit a given JAP without the RAP needing to be
told. As a result, for very large groups, the RAP at worst scales
according to the number of proxies, and for very dynamic groups
the rate of updates to the RAPs is bounded and tunable.
This two tier JAP/RAP architecture results in packet paths as
shown in Figures B and C. When a client of the anycast service
sends the first packet to the group, it reaches the Ingress
Anycast Proxy (IAP) through native IP anycast routing. If the IAP
does not know of any JAPs for the transport address (TA) this
packet is destined to, the IAP resolves the TA to a RAP and
tunnels the packet there. The RAP selects a JAP based on certain
criteria (proximity to the IAP, load balance, or affinity, or some
combination of these, as specified by the sixth goal) and tunnels
the packet there. It also informs the IAP of the selected JAP so
that subsequent packets are tunnelled directly from the IAP to the
JAP (Figure C). Finally, the JAP sends the packet to the target,
either by tunnelling if the target can de-tunnel packets, or using
NAT otherwise (fifth goal)6. Note that since the IAP is close to the client,
and the JAP is close to the target, the extra distance required to
traverse those proxies typically not significant. We evaluated the
overhead of this 3-segment path through simulations involving
synthetic topologies generated using GT-ITM[23] and the
results confirmed our intuition about the minimal overhead.
|
|
|
Fig B. Initial packet path - 4 Segments long
|
Fig C. Subsequent packet path - 3 Segments long
|
The
reverse path transits the JAP, but avoids the IAP. The reverse
path must go through at least one proxy, because the target is
unlikely to be able to spoof the source address to be that of the
anycast group, and the client expects a packet from the anycast
group (fifth goal). By sending the return packet through the JAP
and not the IAP, we allow the JAP to better (passively) monitor
the health of the target, and to maintain NAT state. Note that it
makes no sense for the IAP to try to monitor the health of the
target, because packets may be flowing to the target through many
IAPs, but through only one JAP.
Finally, the JAP is responsible for flushing the cached state from
IAPs should it lose all of its targets (or enough of its targets
that it should shed some of its load). Hence, if all the targets
for a TA go down and the JAP receives a packet for the same TA,
the JAP can send a control message to the IAP asking it to
invalidate the cache entry. This forces the IAP to go back to the
RAP for the group and ask for the address of some other JAP for
the same group. As a result, the IAP is able to safely cache
information for a long time. In case the JAP crashes, the IAP must
learn of this and go to the RAP for subsequent packets. This would
be attained using a health monitoring system7 where each
proxy's health is monitored by a small group of other proxies and
a proxy's demise is disseminated using a flood through the
overlay. The crashing of the JAP does not affect the target, whose
packets will be anycasted to some other proxy, which takes up the
job of the JAP for this target by asking it to register
again.
2.1 Advanced Features
As stated above, the RAP may select the JAP based
on a number of criteria, including proximity, connection affinity,
and load balancing. The JAP subsequently selects a target,
possibly also based on connection affinity and load balancing criteria.
It is this selection process that imbues PIAS with features
normally found only in application-layer anycast. As such, this
aspect of PIAS deserves more discussion.
The first thing to point out is that these three criteria are in
fact at odds with each other. If both load balance and proximity
are important criteria, and the JAP nearest to the IAP is heavily
loaded, then one or the other criteria must be compromised. This
is of course true of application-level anycast as well.
The second thing to point out is that the overlay structure of
PIAS actually weakens its ability to find a target near a client,
as compared to native ``E2E'' IP anycast.
With PIAS, we know that
the client is near the IAP, and the target is near the
JAP (because both paths are discovered by native IP anycast), but
anycast cannot be used to insure that the IAP and JAP are near each
other.
Therefore, the proxies must explicitly determine their distance
to each other.
While we haven't settled on the best way to do this, we note that
scalable proximity addressing schemes like Vivaldi [20] provide one
reasonable approach.
Because of the way we scale the RAPs (give them only ``rough''
information about the targets at a given JAP), and because we use
multiple RAPs for each group, we cannot provide exact load balance
for all groups (though we might be able to do so for a small number of
select groups). Instead, we aim for ``statistical'' load balancing.
Never-the-less, this is much better than what is provided by
native IP anycast.
Finally, we note that proxies could potentially base their target
selection on still other criteria. For instance, in the case where
a target in a given anycast group is also a client of that group,
proxies can exclude that target from their selection. A proxy
could select a random target, something that might be useful for
instance for spreading gossip. A proxy could use some kind of
administrative scoping to select a target, for instance selecting
a target with the same (unicast) IP prefix as the client. A proxy
could even replicate packets and send them to multiple targets.
2.2 Implementation
We have implemented and tested the basic PIAS
system in the laboratory as a sanity check for our ideas and to
get a better grip on the implementation issues facing us. With the
system geared towards router-like boxes, the current implementation
has 2 components:
1. A user-space component responsible for the overlay management
tasks, such as handling proxy join/leaves, target join/leaves, health
monitoring etc.
2. A kernel-space component responsible for the actual forwarding
of packets through the use of Netfilter hooks[13].
This involves tunnelling of the packets when sending them between
2 proxy nodes, and using a NAT[17] when handling packets
to/from a target. The current kernel implementation doubles up the
packet forwarding time as compared to the normal packet forwarding
by the unmodified kernel. The actual figures are not presented as
they do
not offer any additional insight into the overhead involved.
While such an implementation is geared towards a scenario where we
have our own infrastructure, piggybacking our deployment on an
existing research testbed (e.g. RON [12]) would necessitate
a pure user-level implementation. This would involve a
not-too-difficult porting of the kernel level component to user
space.
We feel that this implementation, although useful as a sanity
check, does not have much to offer in terms of understanding the
issues that we need to deal with (for an actual deployment).
Hence, our main challenge, is deploying PIAS on the Internet and
convincing applications to use our infrastructure service. For
this purpose, we are looking at several possible deployment
opportunities and have acquired an address block (a /22) and an AS
number from ARIN for this purpose.
3 Discussion and Research Issues
PIAS solves the major issues that limit IP
anycast deployment. In doing so, it slightly weakens some of the
major strengths of native IP anycast. In particular, we've lost
some of the natural robustness of IP anycast, since we now rely on
more than just IP routing. In addition, we've lost some of the
simple nearness properties of native IP anycast. Nevertheless, we
believe that PIAS is adequately robust and will provide good
nearness properties in addition to the problems it solves.
Because PIAS uses indirection, it deserves comparison with
i3 [9]. One major difference is that i3 requires changes to
the network stack8 to add the i3 layer between the current network and
transport layers. PIAS requires no changes in clients whatsoever,
and can operate with no changes in servers (if some surrogate node
registers on its behalf). This makes deployment of PIAS easier
than that of i3. A second important difference is that PIAS uses
IP anycast, thus making it straightforward to derive proximity.
Indeed, i3 could benefit from using PIAS, both as a means of i3
node discovery and routing packets to nearby i3 nodes.
One major problem that we haven't yet discussed is connection affinity.
The issue is how to maintain affinity when native IP
routing causes a different IAP to be selected during a given client
connection
(if the same IAP is always used, then the IAP will continue to use
the same JAP that it initially cached). Application-layer anycast
doesn't have this problem, because it always makes its target
selection decision at connection start time, and subsequently
uses unicast. A simple solution would be
to have RAPs select JAPs based on the identity of the client. This
way, for instance, even if IP routing caused packets from a given
client to select a different IAP, it could be routed to the same
JAP. Unfortunately, this approach completely sacrifices proximity and
load balance.
A better alternative would be to identify groups of IAPs among
which any route changes are highly likely to take place.
For instance, all IAPs in an ISP, a given POP, or a metro area.
These IAPs could then coordinate in some way to provide affinity.
How best to do this, or indeed determining if it is even
necessary, will require experimentation.
Fortunately such complex affinity mechanisms may in fact not be
necessary---the affinity provided by IP routing may in
fact be good enough. We ran some measurements
against existing anycasted DNS root servers and anycast sink holes
to determine how often IP routing selected different destinations.
We found that native IP anycast itself provides good affinity.
Over 9 days of measurements at a rate of a probe every minute from
40 Planetlab sites to six anycast targets, 93.75% of the
source-destination pairs never changed. The remaining 6.25% of
the source-destination pairs (15 pairs) experienced a total of 120
route changes over the entire duration (i.e over ~ 13000*15
probes), with at most 8 changes for any given source-destination
pair. These experiments were also repeated with higher probe rates
(once every 10 seconds) to make sure we were not missing out on
very frequent flaps---the results appear similar.
To put this in more concrete terms, the probability that a two minute
connection would experience a change is roughly 1 in 13,000, and
the probability that a one hour connection would experience a change
is roughly 1 in 450.
If these numbers hold (or improve!) across a larger anycast deployment,
then it is clear that most, though not all, applications would not
require any affinity mechanisms beyond those provided by IP routing.
This is one area that requires further experimentation.
A second main area for further research is how to run BGP and IGP
routing so that both routing changes and routing failures are
minimized, and so that routing selects good paths to proxies.
There are concerns that the use of policies in inter-domain
routing adversely impact it's ability to find nearby destinations.
We tried to measure the stretch between anycast latencies and the
shortest unicast path to the afore-mentioned DNS root servers and
sink-holes, but found it difficult to get conclusive results, in
part because of hierarchical nature of these anycast
deployments[7]. On a bright note, measurements by operators
of J-root[28], which is anycasted at 16 different
locations, have shown that anycast does provide a decent amount of
correlation between the position of the server and the clients
that use it. The impact of BGP instability is one area where PIAS
seems to be worse as compared to native IP anycast due to the
addition of the proxies between the end hosts. Modelling the
systems so as to rely on IGPs for faster convergence and using
redundancy9 to counter the
occasional BGP event seem to be the only options to ensure that
PIAS is not severely hit by these factors.
Another concern is the impact of such a large anycast deployment
on BGP dynamics.
While we hope that the fact that the anycast prefix is being advertised
from a large number of locations will lead to localized and rarer
BGP hold downs [16], the opposite could occur.
While we do not have space to delve into the deployment model,
some questions that need to be addressed for a practical service
include the billing model, the security of the infrastructure,
provision of a flexible and efficient interface to the customers
and so on. There is also the issue of the number of proxies and
their locations (in terms of number of tier-x ISPs and number of
proxies in each POP for each selected ISP) so as to provide some
form of load balance and to keep the overhead of traversing the
proxy infrastructure limited.
Ultimately, the only way we can resolve these research issues is
with deployment of a working PIAS and experimentations with
real applications.
References
-
[1]
- C. Partridge et. al., ``HostAnycasting Service'', RFC 1546, November 1993.
- [2]
- C. Huitema, ``An Anycast Prefix for 6to4 Relay Routers'', RFC 3068, June 2001
- [3]
- D. Kim et. al., ``Anycast Rendevous Point (RP) mechanism using Protocol Independent Multicast (PIM) and Multicast Source Discovery Protocol (MSDP)'', RFC 3446, January 2003
- [4]
- Y. Rekhter et. al., ``A Border Gateway Protocol 4 (BGP-4)'', RFC 1771, March 1995
- [5]
- T. Hardy, ``Distributing Authoritative Name Servers via Shared Unicast Addresses'', RFC 3258, April 2002
- [6]
- Dina Katabi, ``The Use of IP-Anycast for Building Efficient Multicast Trees'', Global Internet'99, Costa Rica, 1999
- [7]
- J. Abley, ``Hierarchical Anycast for Global Service Distribution'', ISC Technical Note ISC-TN-2003-1, https://www.isc.org/tn/isc-tn-2003-1.html
- [8]
- Katabi, D. et. al., ``A Framework for Global IP-Anycast (GIA),'' ACM SIGCOMM 2000
- [9]
- I. Stoica et. al., ``Internet indirection infrastructure,'' ACM SIGCOMM, August 2002.
- [10]
- Karger, D. et. al., Consistent hashing and random trees: Distributed caching protocols for relieving hot spots on the World Wide Web. ACM Symposium on Theory of Computing (El Paso, TX, May 1997).
- [11]
- Ion Stoica et. al. ``Chord: A scalable peer-to-peer lookup service for internet applications''. ACM SIGCOMM, August 2001.
- [12]
- David G. Andersen, et. al., ``Resilient Overlay Networks,'' ACM SOSP, Canada, October 2001
- [13]
- https://www.netfilter.org
- [14]
- https://www.as112.net/
- [15]
- https://www.nanog.org/mtg-0310/miller.html
- [16]
- Z. Mao et. al., ``Route Flap Dampening exacerabtes Internet routing convergence'', SIGCOMM'02.
- [17]
- P. Tsuchiya et. al., "Extending the IP Internet Through Address Reuse," ACM SIGCOMM Computer Communications Review, 23(1):16-33.
- [18]
- A. Gupta et. al., ``One Hop Lookups for Peer-to-Peer Overlays'', HotOS-IX, May2003.
- [19]
- W. T. Zaumen et. al., ``Load-Balanced Anycast Routing in Computer Networks'', ISCC 2000.
- [20]
- Frank Dabek et. al., ``Vivaldi: A Decentralized Network Coordinate System,'' SIGCOMM '04.
- [21]
- https://www.akamai.com/en/resources/pdf/whitepapers/ Akamai_Internet_Bottlenecks_Whitepaper.pdf .
- [22]
- R. Rodrigues et. al.,``The Design of a Robust Peer-to-Peer System'', ACM SIGOPS European Workshop,Sep. 2002.
- [23]
- Ellen W. Zegura et. al. ``How to model an internetwork'', IEEEInfocom, March 1996.
- [24]
- Dejan Kostic, et. al., "Bullet: High Bandwidth Data Dissemination Using an Overlay Mesh" SOSP 2003
- [25]
- P. Karbhari, et. al., "Bootstrapping in Gnutella: A Measurement Study", PAM'04
- [26]
- M. Castro, et. al. "One ring to rule them all: Service discovery and binding in structured peer-topeer overlay networks", SIGOPS European Workshop, 2002.
- [27]
- V. Ramasubramanian et. al., "The Design and Implementation of a Next Generation Name Service for the Internet", SIGCOMM, August 2004.
- [28]
- P.Barber et. al., "Life and Times of J-Root", Nanog Presentation, https://www.nanog.org/mtg-0410/kosters.html
- 1
- nearest according
to the routing metrics used by the routing protocols---this
meaning holds throughout the paper
- 2
- tendency of
subsequent packets of a ``connection'' to be delivered to the same
target - referred hereon as affinity. While lack of affinity is
perceived as a major anycast weakness, preliminary measurements
discussed later show that this perception may be overly
pessimistic
- 3
- in much the same way that a
member of an IP multicast group can be both a sender and a
receiver.
- 4
- members of an anycast group
- 5
- we would like to
be able to support legacy server-side applications and are able to
do so.
- 6
- Figures B,C assume that the
JAP uses a NAT
- 7
- here we are
concerned with the health of the proxies rather than the JAP
keeping track of the health of one of its targets
- 8
- though this could be done through the
use of a proxy on the end-host, allowing legacy applications to
use i3
- 9
- using multiple anycast prefixes - each service
is given more than one transport address
This document was translated from LATEX by
HEVEA.
|
