LISA '06 Paper
Centralized Security Policy Support for Virtual Machine
Nguyen Anh Quynh, Ruo Ando, and Yoshiyasu Takefuji -
Keio University
Pp. 79-87 of the Proceedings of LISA '06: 20th Large Installation System Administration Conference (Washington, DC: USENIX
Association, December 3-8, 2006).
Abstract
For decades, researchers have pointed out that Mandatory Access
Control (MAC) is an effective method to protect computer systems from
being misused. Unfortunately, MAC is still not widely deployed because
of its complexity. The problem is even worse in a virtual machine
environment, because the current architecture is not designed to
support MAC in a site-wide manner: machines with multiple virtual
hosts needs to have multiple MAC security policies, and each of these
policies must be updated and managed separately inside each virtual
host.
In order to ease the burden on administrators when deploying
security policies in a virtual environment, this paper proposes an
architecture named Virtual Mandatory Access Control
(VMAC) to centralize security policies, so that all policy
management can easily be done from a central machine. VMAC securely
centralizes the security logging information from all virtual hosts
into a central machine so intrusion detection analysis on the logging
data is straightforward.
To arrive at the architecture presented here, we have investigated
various popular MAC schemes, and implemented several schemes with VMAC
on the Xen Virtual Machine. This paper presents our experiences in the
development process.
Introduction
In today's world, in which almost everything relies on a computer
to work, information assurance becomes very important. Computer
security is primarily done through the enforcement of security policy,
which sets a context within which the notion of a secure system can be
defined. If we consider a system to be a finite-state automaton with a
set of states, a security policy is a statement that partitions the
states into secure and non-secure states.
Basically, we can classify security polices into two classes. The
first class, discretionary security policy, consists of any
security policy which ordinary users can define, alter or assign. The
second class, mandatory security policy is different: this kind
of policy must be defined and controlled tightly by the system
administrators, enforced at the operating system level.
Correspondingly, a security policy may use two types of access
control: Discretionary Access Control (or DAC in short)
or Mandatory Access Control (or MAC in short). It is
also possible to combine them together, as usually seen in current
practice.
-
With DAC, a user can set an access control mechanism to allow or deny
others access to a system object he owns. DAC bases access rights on
the identity of the subject and the identity of the object involved,
in which the owner of the object can specify which subjects can access
the object, with particular rights.
-
In contrast with DAC, MAC does not rely on the identity of the
subject: when the access control is set on an object (typically by the
system administrator), the owner of that object cannot modify the
access right. In this case, the OS is responsible for enforcing the
MAC, and inspects information associated with both the subject and
object to determine whether to give the access right to the subject.
In the real world, DAC is widely used in all modern operating
systems because it is very simple, easy to use, and easy to manage.
However, DAC is the root of most security issues today. The reason is
that with DAC, it is impossible to protect the system against
malicious code (such as hostile mobile code or Trojan horses) because
such code gains the security permissions of the user executing them.
Exploiting these legitimate rights, the malware gains unauthorized
access to the user's files and resources, and can then compromise
their confidentiality and integrity. Even worse, it can change the DAC
policy to abuse the system without the user's knowledge. This causes
an arms race between anti-malware researchers and the bad guys, and
the problem becomes more and more serious as time goes on [1, 2].
To address the problems of DAC, it is necessary to eliminate them
and employ MAC instead [3]. In fact, for decades various researchers
have demonstrated that mandatory security is essential for security of
computer systems, so MAC should be used to enforce security policy
instead of DAC [4]. With MAC, a malicious user (or malicious code
running on behalf of a legitimate user) cannot misuse resources for a
purpose other than what the system specifies. Because MAC can only be
changed by the system administrator, harmful code cannot modify the
policy without approval from the system.
To realize the MAC capability, various schemes and implementations
have been introduced in all kinds of operating systems, with the hope
that all systems would eventually switch from DAC to MAC.
Unfortunately, while MAC might efficiently stop or mitigate security
damages, many proposed schemes proved hard to deploy and complicated
to manage. MAC often becomes so painful that administrators choose to
disable MAC and return to DAC instead, despite the fact that MAC would
help to secure their machines [5]. Currently, researchers are working
on making MAC easier to use and more widely accepted.
Recently virtual machine (VM) technology has emerged as one of the
hottest topics in computer research. The principle of VM technology is
to allow the creation of many virtual hosts, each running an instance
of an operating system, all running at the same time on the same
physical machine. Obviously VM technology can help to reduce both
hardware and maintenance costs for organizations that need to use
various machines for different services.
However, systems with virtual hosts face a major problem when
deploying MAC: current schemes do not address MAC within a VM
environment. A machine with multiple virtual hosts needs to have
multiple security policies, and each of these policies must be managed
separately inside each virtual host. Whenever the administrator wants
to update the security policy of a specific host, he must login to
that host and carries out the job there. As a result, managing
machines with hundreds or more virtual hosts is very time-consuming
and complicated, especially if the hosts employ different policies.
Clearly, we need more efficient and flexible methods to solve this
problem.
In an attempt to address this difficulty, this paper proposes a
novel architecture named Virtual Mandatory Access Control
(VMAC) for virtual hosts: instead of having security policies
inside of each host, VMAC moves the security policies outside of the
VMs, and puts them into a central machine. This strategy allows the
administrator to manage the security policies of all the virtual hosts
from an administrative virtual host. As a result, updating the MAC for
virtual hosts becomes much easier, because it can be done from a
central place. The architecture also gathers the security logging data
from virtual hosts and saves them into the central machine, so the
intrusion detection process based on security violation logging can
also be done there. Obviously, this scheme makes it easier to
correlate and manage intrusion evidence. To prove the concept of VMAC,
we have implemented it on the Xen Virtual Machine [6, 7, 8], with
three selected MAC schemes: AppArmor, LIDS and Trustees.
The rest of this paper comprises five sections: a summary of
related works, the VMAC architecture, and implementation of VMAC on
Xen, experiences employing selected MAC schemes, a few concerns with
the proposed solution, and a conclusion with future plans.
Related Works
Our work is a combination of two ideas: MAC and operating system
virtualization. The original meaning of an operating system virtual
machine, also called a hardware virtual machine, is that of a number
of different identical execution environments executing on a single
computer. One of the most popular uses of virtual machines is to allow
a user to run multiple full-featured operating systems at the same
time on one physical machine. The host software providing this ability
is often referred to as a virtual machine monitor (VMM) or hypervisor.
Recently, virtualization has emerged as one of the hottest
research topics, garnering much attention from academia and industrial
sectors. Various VM software systems are available, ranging from
commercial solutions such as VMWare or Microsoft Virtual PC to free
solutions like UML, OpenVZ, VServer and Xen.
Among these technologies, the Xen Virtual Machine Monitor is one
of the most interesting solutions. Basically, Xen is a thin layer of
software above the bare hardware. Xen exposes a VM abstraction that is
only slightly different from the underlying hardware. Xen introduces a
new architecture called xen, which is very similar to the x86
architecture. The VMs executing on Xen are modified (at the kernel
level) to work with the xen architecture. With this Xen-aware
kernel, the performance impact of the virtual hosts is amazingly low:
only around 3% in some published experiments [9]. All accesses of
virtual hosts to the hardware and peripherals must go through Xen, so
that Xen can keep a close eye on those VMs and control all activities.
Formerly developed by researchers from Cambridge University,
currently Xen is backed by various industrial players such as IBM,
Intel, AMD, HP, RedHat and Novell. The whole Xen community is working
very hard to push the code into the Linux kernel, so that it will be
available for everyone to use.
Mandatory security has been a research topic for decades in the
research community. Originally, the Orange Book defined mandatory
security as the multi-level security policy of the Department of
Defense [10]. However, in this paper we use a more general notion of
mandatory security, in which we consider a security policy mandatory
if the definition of the policy and the assignment of security
attributes are tightly controlled by the system administrator. This is
the most common use of this terminology nowadays [4].
To realize mandatory security, quite a few MAC schemes have been
introduced. The most practical solutions have been implemented and are
available in commodity operating systems, such as SELinux [11], LIDS
[12], Trustees [13] and AppArmor [14]. Of these, SELinux offers the
most secure solution, and has been merged into the Linux kernel for a
few years. Unfortunately, despite the fact that it is available on all
Linux systems, SELinux is very hard to manage: it usually requires
expert skill to develop SELinux policies. Consequently, it is often
recommended that novice users disable SELinux, which eventually
subjects their system to vulnerabilities. But a lot of people would
rather have their systems run without complexity than be secure. This
is a headache for SELinux developers: how to make the system secure,
but still easy to use for everyone. We believe that this problem
cannot be easily solved within the foreseeable future.
In contrast with SELinux, Trustees, AppArmor and LIDS are very
easy to manage, even for those who are new to these schemes. With the
aim to be a simple and easy-to-use MAC solution, AppArmor enforces its
policies only on selected applications (contrary to SELinux, which
enforces its policies in a system-wide manner). The policy of AppArmor
is based on file paths and can be declared in a human-friendly way in
its policy files.
Originally a project named Subdomain [15] developed by a company
called Immunix, AppArmor has been acquired by Novell and published
under the open-source GPL license. Its ideas have been warmly welcomed
by those who dislike the complexity of SELinux. At the moment,
AppArmor attracts a group of open source developers who are working to
push the project into the Linux kernel as an alternative option to
SELinux.
LIDS adopts a similar approach to AppArmor, but in a ``reverse''
way: while AppArmor puts policies on applications, in which a policy
declares which files and which modes a specific application can
access, LIDS declares which applications can access a specific file.
Subsequently, while LIDS seems to be more focused on protecting the
data in file systems, AppArmor pays more attention to keeping
applications from damaging data in file systems. Another difference is
that LIDS aims to provide system-wide protection, but AppArmor only
tries to protect critical applications, mostly network services. That
is one of the reasons AppArmor has received criticism from the
security community: if an unprotected local application is broken, the
attacker can leverage it to attack a protected one, and bring it down
easily.
However, AppArmor is superior to LIDS in its capabilities in
confining sub processes: a thread in an application can choose to
change the policy (which is called a ``hat'' in AppArmor terminology).
As a result, AppArmor can be used to enforce separate policies for one
multi-threaded application such as the Apache web server: with Apache,
PHP or Perl scripts can be run with different isolated policies from
the overall Apache policy.
Trustees is a MAC scheme inspired by NetWare. It allows the system
administrator to attach ``trustees'' to any directory or file. All
subdirectories and files in that directory will also inherit these
trustees. Trustee rights can be overridden or extended in
subdirectories. Subsequently, the access control enforced by Trustees
is also based on the file path of the object.
Trustees is designed to lessen the requirement of maintaining too
many ACLs in a system with a lot of files and directories. It is also
hard and time-consuming to check whether all ACLs are correctly set.
Deploying a system with Trustees, the administrator only needs to
specify the full system rights in a small configuration file, for
specific top directories.
All of the above projects are possible thanks to hooks provided by
a security subsystem in Linux named the Linux Security Module (or LSM
in short). LSM provides a lightweight and general-purpose access
control framework for the mainstream Linux kernel. LSM enables many
different access control models to be implemented as loadable kernel
modules [16, 17]. Note that LSM does not provide any policy, but
rather a generic framework in the form of interception points
throughout the kernel. Just before the kernel would have accessed an
internal object, a hook makes a call to a function provided by an LSM
module. The module can either allow the access, or deny the access and
force an error code to be returned.
VMAC Architecture
Goals and Approach
VMAC is designed with the aim of making it more comfortable for
the administrator to handle MAC policies in a VM environment. VMAC has
the following goals:
-
An easy-to-manage security policy: To address the difficulty of
managing MAC policies in a VM environment, we propose to centralize
the security policies of virtual hosts in a central machine: instead
of having separate policy in each separate host, we put all the MAC
policies of all the virtual hosts in an administrative VM called
Vi0. The policies can be managed from inside Vi0. The
reference-monitor in the kernels of these virtual hosts are
modified,[Note 1]
so that MAC policies are downloaded from Vi0. In Vi0,
the administrator can locally manage and update the policies of any VM
at any time. Obviously, with this centralized scheme, the MAC
policies become much easier to deploy in a VM environment, because
everything can be done from inside Vi0.
-
Aggregate and protect security logging data: Traditionally,
security logging has saved data inside each virtual host. Given
machines with multiple virtual hosts, managing these scattered logs
becomes complicated. Moreover, if an attacker breaks into a virtual
host, he might compromise the logging in order to cover his
penetration activities. To fix this issue, VMAC is designed to
centralize security logging data: instead of keeping the logging data
in each separate virtual host, all the access control logging data are
sent out to Vi0. Thanks to this tactic, all logging data can be
saved in one place, so that it is straightforward to aggregate and
analyze intrusion evidence of all the maintained hosts in a site-wide
manner. We suppose that in our scheme, Vi0 is securely
protected[Note 2]
such that the attacker has no chance to exploit our immune data, even
if he totally takes over his virtual box.
VMAC Design
The architecture of VMAC exploits the fact that VMs are able to
share memory with each other. So each VM (called ViU from now
on) that wishes to have its security policies centralized and managed
in Vi0 would allocate an area of memory and share it with
Vi0. This memory is used to exchange information: when
receiving a request from ViU for the security policy,
Vi0 puts the corresponding policy into shared memory, and
notifies ViU to take it. Contrariwise, when Vi0 wants to
adjust the policies of a specific virtual host, it informs the
ViU to get rid of the old policies and take the new policies it
has put into shared memory. To mitigate the performance impact,
ViU can cache the policies in its internal kernel memory, and
only flush it out and update the cache when there are updated requests
from Vi0. Because all information about the policies are
exchanged between Vi0 and ViU via the shared memory, the
process incurs very little overhead, and our scheme works reliably.
Note that the network stack is never used to exchange data between
virtual hosts. This strategy avoids the traffic from being sniffed,
which could happen if we used the network to forward data.
To send logging data to Vi0, all access control logging
from the kernel of ViU is sent out to Vi0, and
optionally sent to the traditional kernel log buffer as well. We
employ the same shared memory area above for this job: the memory can
be divided into two halves, with one half for exchanging security
policies and the other for logging data.
VMAC consists of two main components: the first component in each
ViU, called VMACU, and a daemon process running in
Vi0, called VMACd. The overall architecture of VMAC is
outlined in Figure 1.

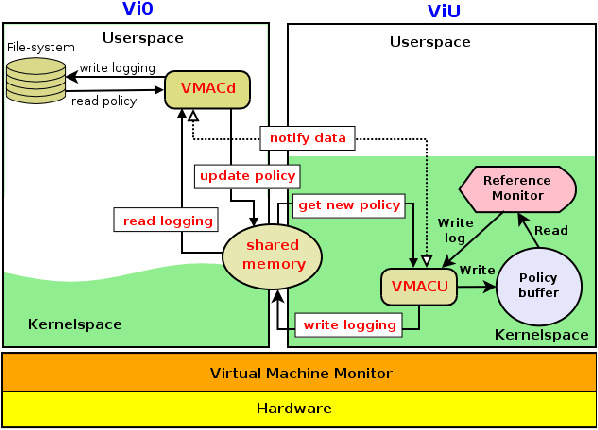

Figure 1: MAC architecture.
The VMACU Component
The VMACU component in the kernel of each ViU is
responsible for allocating kernel memory which it shares with
Vi0. Instead of getting policies uploaded from user-space as in
the legacy method, VMACU gets its policies updated from a
daemon process named VMACd, which runs in Vi0.
VMACU also uses this shared memory to send logging data to
VMACd.
In order to send notifications between VMACU and
VMACd, VMACU should employ an inter-host communication
channel, and use this channel to inform the other host when it wants
to get new data, or when asking the other host to get updated data put
into shared memory.
In our scheme, information needs to be exchanged between
VMACU and VMACd in two ways: either from Vi0 to
ViU, in which case VMACd requests ViU to update
the security policy; or from ViU to Vi0, in which case
VMACU sends logging data out to VMACd. To address this
problem, we employ the same trick widely used in current Xen code: a
ring buffer with two halves. The first half is for sending data from
Vi0 to ViU, while the other half is for sending data the
reverse way. Each half has two heads: one for writing data, and the
other for reading data. Applying this format, the shared memory can be
accessed by both sides at the same time to update and retrieve
information without worrying about conflict.
When initializing, VMACU sends a request for security
policy to VMACd, and gets the policy from shared memory. It
then puts all the policy [Note 3]
into the policy buffer, and somehow calls the reference-monitor of the
MAC scheme running in the system. The reference-monitor then is
notified to pick up policies from the buffer, and analyzes them. From
then on, the reference-monitor caches policy in memory and never asks
for the same policy again. The security enforcer does its job by
retrieving policy from cache, so there is no penalty paid for getting
policy from Vi0 at runtime.
To allow administrators to update the policy, at run-time
VMACd can also ask VMACU to update its policy. In this
case, VMACd does the similar job: it copies the policy into the
shared memory, and then notifies the corresponding VMACU to
come to pick up them. This requires the MAC scheme in ViU to
get rid of the old policy and take the new policy put in the policy
buffer.
VMACU also provides a mechanism to send security logging
data to Vi0: it exports a function for the MAC scheme to use.
Whenever the MAC wishes to log data, it calls the function with the
logging data as a parameter. The function then puts the data into
shared memory and notifies VMACd to pick them up.
The VMACd Component
VMACd is a daemon which listens for policy update requests
for a specific host. VMACd puts the policy into the shared
memory of the corresponding ViU. Then VMACd informs the
related ViU about the new policy, so that the virtual host can
retrieve the updated policy.
There are two kinds of request for updating security policy that
VMACd must serve: one is from VMACU, and the other is
from administrators in Vi0.
-
At initializing time, VMACU sends request to get the security
policy. To do that, VMACU directly notifies VMACd about
its demand. In this case VMACd passively waits for the request
from VMACU.
-
At run-time, from inside Vi0 the administrators can modify the
policy, and then asks VMACd to send the updated policy to
VMACU. In this case, VMACd actively informs VMACU about
the updating.
In order to support both these kinds of request, we propose to let
VMACd actively get the policy from Vi0. So whenever
VMACd needs to serve the updating policy request, either to
VMACU or administrators, it executes a policy feeder and
gets the output of the command (this policy feeder tool is
specific for each ViU). The output is regarded as the ``raw
policy,'' which is then put into the shared memory with VMACU
as described above.
Figure 2 describes the connection between the policy
feeder, vmacd and the shared memory with ViU.
Figure 2: vmacd gets the raw policy from the
output of the policy feeder, then puts these data into the
shared memory with ViU.
Besides serving the policy update requests, VMACd also has
the job of gathering logging data sent by VMACU. VMACd
patiently waits for notification of new data from VMACU, then
retrieves the logging data in the corresponding shared memory area and
saves the collected data into separate logs for each corresponding
virtual host.
VMAC on Xen
To realize the VMAC architecture described here, we have
implemented on Linux with the Xen Virtual Machine. The reason we chose
Xen as the virtual machine monitor is that Xen is open source, already
stable and available with Linux. Note that the implementation
presented here can be similarly applied to other kinds of VMs and MAC
schemes, however.
Running on top of Xen, a VM is called a Xen domain, or
domain for short. A special privileged domain called Domain0 (or Dom0
for short) always runs. Dom0 manages other domains called User
Domains (or DomU for short), and performs tasks such as start,
shutdown, reboot, save, restore and migration between physical
machines. Dom0 plays the role of Vi0, while DomU plays the role
of ViU in the VMAC architecture.
Because all domains run on the same machine, they can share
physical resources such as memory, hardware interrupts, and
peripherals. Note that all such sharing must be permitted by Xen or it
is disallowed.
The following sections describe in detail the implementation of
VMAC's components in Xen.
The VMACU Component
By default, when initializing VMACU allocates a single page
of memory (which is equivalent to 4KB in the IA32 platform) and uses
this area as shared memory with VMACd. Then the hardware
address of the shared memory is sent to VMACd via
XenStore, using the XenBus functions [18]. This shared
memory employs the ring buffer format with two halves: one for
exchanging security policies, the other for logging data, as explained
earlier.
In order to send notifications between VMACU and
VMACd, VMACU registers a Xen channel event, and informs
VMACd about this channel via XenStore. VMACU and
VMACd then register a virtual interrupt (called a VIRQ
in Xen terminology) and use this interrupt whenever they want to
notify each other about data they put into shared memory. Information
about this interrupt is also sent to VMACd via XenBus
interface.
To save policies from shared memory, VMACU allocates a
memory area and uses it as its policy buffer. After gathering policies
from VMACd, VMACU calls the registered reference-monitor
to retrieve the updated policies from this buffer.
Finally, to send logging data to VMACd, VMACU
exports a function named vmac_send_log() for MAC schemes to use
it. This function simply puts the logging data, which is represented
by the function's parameters, to the shared memory, and then notifies
VMACd to pick up them.
The VMACd Component
VMACd is implemented in Dom0's user-space as a daemon named
vmacd. vmacd has two primary jobs: first, it must serve
the policy update request on demand; second, it has to save security
logging data.
Update Security Policy
One of vmacd's jobs is to listen for the initializing
policy request from ViU . Upon the request, vmacd
executes a special policy feeder tool, which is specific for
that DomU, and gets the output from the command. The output is
considered ``raw policy``, and put into the shared memory with the
DomU. Then vmacd informs the related ViU about the new
policy, so it can retrieve the policy and update it in its cache.
vmacd also can be used as tool by administrators to update
policy from Dom0 at run-time. When running with a special
--update option on a DomU, vmacd does the similar things
we described above: vmacd runs the policy feeder
specific for that DomU,[Note 4]
then gets the output as ``raw policy'' and put them into the shared
memory with DomU. The final step is to notify the related ViU
about the new policy.
To designate the policy feeder tool, the path-name of it
must be put in a configuration file, which is specific for each DomU.
Save Logging Data
Besides the job of updating policy, vmacd also has to
gather the logs sent from VMACU. vmacd waits for
notification from VMACU, then retrieves the logging data in the
corresponding shared memory, saving the collected data into separate
logs for the corresponding domain.
To retrieve data delivered from VMACU and save them to
logs, vmacd uses two separate threads: the main thread is used
to get the data, and a worker thread is used to save the data
to the file-system. The main thread silently waits for notification of
new data from VMACU. When it detects that new data has arrived,
it reads the data out from the corresponding shared memory, then
copies them to a host-buffer [Note 5]
allocated by vmacd when initializing. While the shared memory
size between vmacd and VMACU should be limited (because
it is the memory allocated by DomU's kernel, and kernel memory is a
limited resource), this user-space memory can be much bigger.[Note 6]
After collecting data from shared memory, the main thread wakes the
worker up to do its job. Figure 3 outlines the diagram of the
whole process.
Figure 3: The vmacd workflow.
Regarding the worker thread, this thread simply waits to be
woken up by the main thread (via the pthread_cond_signal()
function), and reads the data from the host-buffer. The logging
data is then extracted out, and saved to the logging files on file-system,
separately for each domain.
Deploying MAC Schemes
The VMAC scheme presented is intended to serve as a generic
framework for all sorts of MAC schemes. However, to make a specific
MAC scheme work with the VMAC architecture, there is some work that
must be done:
-
Reference-monitor: We must make the reference-monitor work with
the VMAC architecture, and get the policy from VMACU, instead
of from user-space as in the traditional method. Though VMACU
already makes security policies available via the policy buffer, the
reference-monitor must be informed to retrieve and update the policy
from the policy buffer of VMACU. This requires a trivial
modification on the reference-monitor system of MAC schemes.
-
Logging data: Usually MAC schemes send the logging data[Note 7]
to the kernel buffer,[Note 8]
and the logging data are collected by certain syslogd processes
in user-space. We must modify the MAC schemes so they deliver these
data to the shared memory between Vi0 and ViU instead.
In most cases, we can do this simply by replacing the original report
function[Note 9]
with the VMACU's exported function vmac_send_log(), which puts
logging data into the shared memory.
-
Policy feeder tool: Usually, MAC schemes keep security policy
in kernel memory after loading it from user-space. Each MAC scheme
employs different way to load and update the security policy. As we
have seen, in the VMAC architecture, the vmacd running within
Vi0 needs to get the ``raw policy'' from the policy
feeder. Fortunately, we can modify the available policy-loading
and -updating tools of each MAC scheme to do this job. Typically these
tools send the compiled policy directly to its kernel. We must patch
them, so that they do their job via vmacd instead.
Specifically, each original tool must be modified to play the role of
the policy feeder, so it delivers the ``raw policy'' to output
for vmacd to pick up. After that, vmacd transmits these
special data to the corresponding VMACU. Note that
vmacd does not need to understand the semantic of the ``raw
policy.'' It just sends the data as it is, and let the MAC scheme in
ViU do anything it wants with the received data.
To ease the burden of maintaining patches in the future, we
strived to isolate and minimize our modifications to the original
source code of MAC schemes. This section describes our experiences
when we ported three MAC schemes - AppArmor, LIDS and Trustees - to
our VMAC on Xen.
AppArmor
AppArmor gets its security policy via the Linux sysfs
interfaces: loading policy is done via
/sys/kernel/security/.load, updating policy via
/sys/kernel/security/.replace, and removing via
/sys/kernel/security/.remove. We have modified the kernel-space
part of AppArmor such that all these processes are done via the policy
buffer of VMACU instead. As a result, the original code
handling the sysfs interfaces can be removed.
Regarding the security errors and reports made by the kernel
component of AppArmor: originally they are sent to the internal kernel
buffer with the printk() function. We modified the code so that
all the messages are sent to the shared memory using the
VMACU's exported function vmac_send_log().
At the user-space level, the tool named subdomain_parser
originally transmitted policy data directly to kernel via these sysfs
interfaces. We patched this tool so that it plays the role of the
policy feeder described in the architecture of VMACd
component above. Specifically, the modified subdomain_parser
sends the compiled policy to standard output for vmacd to pick
up.
All other parts of AppArmor are unchanged for VMAC. In total, the
modifications to AppArmor are quite minimal: we replaced only 166
lines of code in the kernel-space part, and replaced around 50 lines
of subdomain_parser with about 100 lines of new code. These
modifications are pretty small when compared with the totality of the
AppArmor code - version 2.0 contains around 20000 lines of code.
LIDS
LIDS employs a controversial way to load and update security
policies from user-space: in contrast to the ``standard method'' we
have commonly seen in other kernel projects, LIDS does not use an
interface with user-space to load and update policy at all. Instead,
LIDS exploits the system call sys-read to read data from user-space
to the kernel. This method works quite well, and obviates LIDS
from having a user-space tool to interact with kernel.[Note 10]
However, this method is strongly criticized by some Linux kernel
developers because it violates kernel policy by failing to work in the
file-system namespace environment [19].
To adapt LIDS to VMAC, we modified its kernel part: we simply
replaced the code that reads the security policies from the file-system
[Note 11]
with the code to read the policies from the policy buffer. Besides,
same as in AppArmor's case, we patched LIDS so that all the security
messages are sent to the shared memory using the VMACU's
exported function vmac_send_log() instead of to the kernel
buffer. In all, the kernel code of LIDS was changed by less than 150
lines of code.
Because LIDS user-space tools do not interact with the kernel, we
had to write a small policy feeder that sends the compiled
policy to output, which is then picked up by vmacd. This tool,
named lids-vmac, is very small: only around 200 lines of C
code.
Trustees
The latest stable version of Trustees is 3.0. To get security
policies from user-space, Trustees creates a special virtual the
kernel part of Trustees to pick up policies from the policy buffer of
vmacd; the trusteesfs code can then be disabled. We also
made Trustees to use the exported function vmac_send_log() to
send error reports to shared memory instead of to its kernel buffer.
The total code changes are around 150 lines.
As for the user-space tool settrustees, we modified it to
be the policy feeder, so that it writes policies[Note 12]
to the standard output for vmacd to pick up, instead of to
trusteesfs. This change affects around only 50 lines of
settrustees code.
Discussions
We have implemented the VMAC architecture on Xen with three MAC
schemes: AppArmor, LIDS and Trustees. From Xen's Dom0, the
administrator is able to manage and update the policies on virtual
hosts at runtime. Each DomU might be configured to run with any
scheme, independent from other domains.[Note 13]
As for the performance impact of VMAC, because our tool only modifies
and adds in support for managing policy from outside, and does not
change anything in the security enforcer component of the MAC schemes,
VMAC causes no performance penalty on the system.
In all three ports of the mentioned MAC schemes, we have kept the
interface and supported code to allow policies to be updated from the
user-space of the DomU. That means the administrator could manage the
security policies either from inside the DomU, or from the
central Dom0. But this ``dual-headed'' solution can be confusing, and
might cause some conflicts if the policy is updated from Dom0 at the
same time. Therefore, we recommend disabling the ability to manage and
update the policies from inside DomU. We provide such a compilation
option to achieve this for in all three implemented schemes. This
tactic has another advantage: if the DomU's kernel access is
prohibited,[Note 14] if an attacker successfully
breaks into the DomU, he cannot access or modify the security policies
in the kernel. As a result, the whole system is more secure and tamper
resistant to a root-level attack.
Conclusions and Future Work
This paper proposes an architecture named VMAC to centralize the
security policies for VMs, so that managing MAC policies in this
environment becomes easier and more flexible. VMAC also centralizes
the security logs, so collecting and analyzing information to detect
security violations becomes more straightforward. VMAC has no
performance impact to the system, as the security enforcer remains
unmodified inside the virtual host's kernel.
To prove the concept, we implemented VMAC on top of the Xen
Virtual Machine and ported three popular MAC schemes - AppArmor, LIDS
and Trustees - to our system. The whole system is flexible, easy to
manage and can help ease the hard job put on MAC administrators.
As of this writing, Xen is being pushed into the Linux kernel, and
the process is expected to be done sometime in 2006. Once Xen is
merged, it will become widely used and a practical solution for
everyone. We expect that our solution will then be useful for many
people.
For the time being, we are making extensive investigations of
other MAC techniques, such as FLASK (which SELinux is based on), RSBAC
[20] and Grsecurity [21]. In the future, we plan to go on to support
these other schemes if there are requests to do so.
At the moment, we have implemented VMACU only for Linux-based
VMs. We plan to provide support for other operating systems,
such as FreeBSD and NetBSD once these ports work more stably on Xen.
Acknowledgments
We are grateful for the comments we received from Trey Harris, our
shepherd, as well as suggestions from the anonymous reviewers who
greatly shaped our paper.
Author Biographies
Nguyen Anh Quynh is a Ph.D. student of Graduate School of Media
and Governance, Keio University, Japan. His research interest includes
Computer Scurity, Operating System, Virtualization technology and
Computer Forensics.
Ruo Ando received his Ph.D. degree in Graduate School of Media and
Governance, Keio University, Japan in 2006. He is a permanent
researcher of National Institute of Information and Communication
Technology in Japan since 2006. His research interests include secure
operating system, software verification, security testbed and
emulation, and automated reasoning.
Yoshiyasu Takefuji is a tenured professor on faculty of
environmental information at Keio University since April, 1992 and was
on tenured faculty of Electrical Engineering at Case Western Reserve
University since 1988. Before joining Case, he taught at the
University of South Florida for two years and the University of South
Carolina for three years. He received his BS (1978), MS (1980), and
Ph.D. (1983) in Electrical Engineering from Keio University.
His research interests focus on neural computing, security,
electronic toys. He received the National Science Foundation Research
Initiation Award in 1989, the distinct service award from IEEE Trans.
on Neural Networks in 1992, the TEPCO research award in 1993, the
Takayanagi research award in 1995, the Kanagawa Academy of Science and
Technology research award in 1993, the best courseware award from Asia
multimedia forum in 1999, the best paper award of Information
Processing Society of Japan in 1980, special research award from the
US air force office of scientific research in 2003, chairman award
from JICA in 2004. He has authored 25 books including neural network
parallel computing in 1992, and has published more than 200 papers.
Bibliography
[1] McAfee Avert Labs: Rootkits, Part 1 of 3: The Growing
Threat, 2006,
https://www.mcafee.com/us/local_content/white_papers/threat_center/wp_newappleofmalwareseye_en.pdf
.
[2] Naraine, Ryan, Microsoft: Stealth Rootkits Are
Bombarding XP SP2 Boxes, 2005,
https://www.eweek.com/article2/0,1895,1896605,00.asp.
[3] Loscocco, P. A., S. D. Smalley, P. A. Muckelbauer, R. C.
Taylor, S. J. Turner, J. F. Farrell, ``The inevitability of failure:
The flawed assumption of security in modern computing environments,''
Proceedings of the 21st National Information System Security
Conference, 1998.
[4] Bishop, M., Computer Security: Art and Science,
Addison-Wesley Professional, 2002.
[5] Fedora Core Mailing List: ``Keeping SELinux on,''
2006, https://lwn.net/Articles/173812/.
[6] Dragovic, B., K. Fraser, S. Hand, T. Harris, A. Ho, I. Pratt,
A. Warfield, P. Barham, R. Neugebauer, ``Xen and the art of
virtualization,'' Proceedings of the ACM Symposium on Operating
Systems Principles, 2003.
[7] Pratt, I., K. Fraser, S. Hand, C. Limpach, A. Warfield, D.
Magenheimer, J. Nakajima, A. Mallick, ``Xen 3.0 and the art of
virtualization,'' Proceedings of the 2005 Ottawa Linux
Symposium, Ottawa, Canada, 2005.
[8] Xen project, Xen virtual machine monitor, 2006,
https://www.cl.cam.ac.uk/Research/SRG/netos/xen/.
[9] Clark, B., T. Deshane, E. Dow, S. Evanchik, M. Finlayson, J.
Herne, J. N. Matthews, ``Xen and the art of repeated research,''
Proceedings of the Usenix annual technical conference, Freenix
track, pp. 135-144, 2004.
[10] DOD 5200.28-STD: Department of defense trusted computer
system evaluation criteria, 1985.
[11] Smalley, S., C. Vance, W. Salamon, Implementing SELinux
as a Linux Security Modulep Nai labs report, NAI Labs, 2005.
[12] LIDS team, Linux Intrusion Detection System, 2005,
https://www.lids.org.
[13] Ruder, Andrew, Trustees ACL, 2006,
https://trustees.aeruder.net/.
[14] AppArmor team, AppArmor project, 2006,
https://en.opensuse.org/Apparmor.
[15] Cowan, C., S. Beattie, G. Kroah-Hartman, C. Pu, P. Wagle, V.
Gligor, ``SubDomain: Parsimonious server security,'' 14th USENIX
Systems Administration Conference (LISA 2000), New Orleans, LA,
2000.
[16] Wright, C., C. Cowan, J. Morris, S. Smalley, G. Kroah-Hartman,
``Linux Security Modules: General Security Support for the
Linux Kernel,'' Proceedings of the 11th Usenix Security
Symposium, 2002.
[17] Smalley, S., T. Fraser, C. Vance, Linux Security Modules:
General Security Hooks for Linux, 2003,
https://lsm.immunix.org/docs/overview/linuxsecuritymodule.html.
[18] Xen project, Xen interface manual, 2006,
https://www.cl.cam.ac.uk/Research/SRG/netos/xen/readmes/interface/interface.html
.
[19] Kroah-Hartman, Greg, Driving Me Nuts - Things You
Never Should Do in the Kernel, 2005,
https://www.linuxjournal.com/article/8110.
[20] RSBAC Team, RSBAC: Extending Linux Security Beyond
the Limits, 2006, https://www.rsbac.org/.
[21] Spengler, Brad, Grsecurity, 2006,
https://www.grsecurity.net/.
Footnotes:
Note 1: Note that the modification
is limited to the security subsystem only.
Note 2: Thus Vi0 might be
considered to belong to the Trusted Computing Base (TCB), the
core component required to enforce the system security policy.
Note 3: The policy is represented
in a raw format, and VMAC does not need to understand them
Note 4: this is the same policy
feeder tool used when vmacd serves the request from
ViU, explained above
Note 5: This host-buffer is
of the same ring buffer style described earlier, but we do
not need two halves in this case, because data only goes one way
from main thread.
Note 6: In fact, we set aside 32KB
for this host-buffer area
Note 7: Primarily, security
violation reports.
Note 8: In the Linux kernel,
reporting can be done generally with the available
printk() function.
Note 9: Most are just the
printk() function in Linux case.
Note 10: In fact, the LIDS user-space
tool lidsconf only focuses on managing and compiling
policies.
Note 11: LIDS keeps all policies
under the /etc/lids/ directory.
Note 12: Trustees puts all its
policies in the file /etc/trustees.conf.
Note 13: Unfortunately at the
moment LSM does not support stacking module, so each virtual
domain can adopt only one kind of scheme at a time.
Note 14: In Linux, this can be
done by removing the ability to load the kernel module, together
with eliminating the /proc/{mem,kmem,port} interfaces.
|
