Recovering Device Drivers
Michael M. Swift, Muthukaruppan Annamalai, Brian N. Bershad, and Henry M. Levy
Department of Computer Science and Engineering
University of Washington
Seattle, WA 98195 USA
{mikesw,muthu,bershad,levy}@cs.washington.edu
Abstract
This paper presents a new mechanism that enables applications
to run correctly when device drivers fail. Because
device drivers are the principal failing component in most systems,
reducing driver-induced failures greatly improves overall reliability.
Earlier work has shown that an operating system can survive driver
failures [33], but the applications that depend on them cannot.
Thus, while operating system reliability was greatly improved,
application reliability generally was not.
To remedy this situation, we introduce a new operating system
mechanism called a shadow driver. A shadow driver monitors
device drivers and transparently recovers from driver failures.
Moreover, it assumes the role of the failed driver during recovery.
In this way, applications using the failed driver, as well as
the kernel itself, continue to function as expected.
We implemented shadow drivers for the Linux operating system and
tested them on over a dozen device drivers. Our results show that
applications and the OS can indeed survive the failure of a variety of
device drivers. Moreover, shadow drivers impose minimal performance
overhead. Lastly, they can be introduced with only modest changes to
the OS kernel and with no changes at all to existing device drivers.
1 Introduction
Improving reliability is one of the greatest challenges for
commodity operating systems.
System failures are commonplace and costly across all domains: in the
home, in the server room, and in embedded systems, where the existence
of the OS itself is invisible. At the low end, failures lead to user
frustration and lost sales. At the high end, an hour of downtime from
a system failure can result in losses in the millions [16].
Most of these system failures are caused by the operating system's
device drivers. Failed drivers cause 85% of Windows XP
crashes [30], while Linux drivers have seven times the bug
rate of other kernel code [14]. A failed driver typically
causes the application, the OS kernel, or both to crash or stop
functioning as expected. Hence, preventing driver-induced failures
improves overall system reliability.
Earlier failure-isolation systems within the kernel were designed to
prevent driver failures from corrupting the kernel
itself [33]. In these systems, the kernel unloads a failed
driver and then restarts it from a safe initial state. While isolation
techniques can reduce the frequency of system crashes,
applications using the failed driver can still crash. These
failures occur because the driver loses application state when it
restarts, causing applications to receive erroneous results. Most
applications are unprepared to cope with this. Rather,
they reflect the conventional failure model: drivers and the operating
system either fail together or not at all.
This paper presents a new mechanism, called a shadow driver,
that improves overall system reliability by concealing a driver's
failure from its clients while recovering from the failure.
During normal operation, the shadow tracks the state of the real
driver by monitoring all communication between the kernel and the
driver. When a failure occurs, the shadow inserts itself
temporarily in place of the failed driver, servicing requests on
its behalf. While shielding the kernel and applications from the
failure, the shadow driver restores the failed driver to a state where
it can resume processing requests.
Our design for shadow drivers reflects four principles:
- Device driver failures should be concealed from the driver's
clients. If the operating system and applications using a driver
cannot detect that it has failed, they are unlikely to fail
themselves.
- Recovery logic should be centralized in a single subsystem.
We want to consolidate recovery knowledge in a small number of
components to simplify the implementation.
- Driver recovery logic should be generic. The increased
reliability offered by driver recovery should not be offset by
potentially destabilizing changes to the tens of thousands of
existing drivers. Therefore, the architecture must enable a single
shadow driver to handle recovery for a large number of device
drivers.
- Recovery services should have low overhead when not needed.
The recovery system should impose relatively little overhead for the
common case (that is, when drivers are operating normally).
Overall, these design principles are intended to minimize the
cost required to make and use shadow drivers while maximizing their
value in existing commodity operating systems.
We implemented the shadow driver architecture for sound, network, and
IDE storage drivers on a version of the Linux operating system. Our
results show that shadow drivers: (1) mask device driver failures from
applications, allowing applications to run normally during and after a
driver failure, (2) impose minimal performance overhead, (3) require no
changes to existing applications and device drivers, and (4) integrate
easily into an existing operating system.
This paper describes the design, implementation and performance of
shadow drivers. The following section reviews general approaches to
protecting applications from system faults.
Section 3 describes device drivers and the shadow
driver design and components. Section 4
presents the structure of shadow drivers and the mechanisms required
to implement them in Linux. Section 5 presents
experiments that evaluate the performance, effectiveness, and
complexity of shadow drivers. The final section summarizes our work.
2 Related Work
This
section describes previous research on recovery strategies and
mechanisms. The importance of recovery has long been known in the
database community, where transactions [19] prevent data
corruption and allow applications to manage failure. More recently,
the need for failure recovery has moved from specialized applications
and systems to the more general arena of commodity
systems [28].
A general approach to recovery is to run application replicas on two
machines, a primary and a backup. All inputs to the primary are
mirrored to the backup. After a failure of the primary, the backup
machine takes over to provide service. The replication can be
performed by the hardware [21], at the
hardware-software interface [8], at the system call
interface [2,5,7], or at a message passing
or application interface [4]. Shadow drivers similarly
replicate all communication between the kernel and device driver (the
primary), sending copies to the shadow driver (the backup). If the
driver fails, the shadow takes over temporarily until the driver
recovers. However, shadows differ from typical replication schemes in
several ways. First, because our goal is to tolerate only driver
failures, not hardware failures, both the shadow and the "real"
driver run on the same machine. Second, and more importantly, the
shadow is not a replica of the device driver: it implements only
the services needed to manage recovery of the failed driver and to
shield applications from the recovery. For this reason, the shadow is
typically much simpler than the driver it shadows.
Another common recovery approach is to restart applications after a
failure. Many systems periodically checkpoint application
state [26,27,29], while others combine
checkpoints with logs [2,5,31]. These
systems transparently restart failed applications from their last
checkpoint (possibly on another machine) and replay the log if one is
present. Shadow drivers take a similar approach by replaying a log of
requests made to drivers. Recent work has shown that this approach is
limited when recovering from application faults: applications
often become corrupted before they fail; hence, their logs or
checkpoints may also be corrupted [10,25]. Shadow
drivers reduce this potential by logging only a small subset of
requests. Furthermore, application bugs tend to be deterministic and
recur after the application is restarted [11]. Driver
faults, in contrast, often cause transient failures because of the
complexities of the kernel execution environment [34].
Another approach is simply to reboot the failed component, for
example, unloading and reloading failed kernel extensions, such as
device drivers [33]. Rebooting has been proposed as a
general strategy for building high-availability
software [9]. However, rebooting forces
applications to handle the failure, for example, reinitializing
state that has been lost by the rebooted component. Few existing
applications do this [9], and those that do not share the
fate of the failed driver. Shadow drivers transparently restore
driver state lost in the reboot, invisibly to applications.
Shadow drivers rely on device driver isolation to prevent failed
drivers from corrupting the OS or applications. Isolation can be
provided in various ways. Vino [32] encapsulates
extensions using software fault isolation [35] and uses
transactions to repair kernel state after a failure.
Nooks [33] and Palladium [13] isolate extensions
in protection domains enforced by virtual memory hardware.
Microkernels [23,38,39] and their
derivatives [15,17,20] force isolation by
executing extensions in user mode.
Rather than concealing driver failures, these systems all reflect a
revealing strategy, one in which the application or user is made
aware of the failure. The OS typically returns an error code, telling
the application that a system call failed, but little else (e.g., it
does not indicate which component failed or how the failure occurred).
The burden of recovery then rests on the application, which must
decide what steps to take to continue executing. As previously
mentioned, most applications cannot handle the failure of device
drivers [37], since driver faults typically crash the
system. When a driver failure occurs, these systems expose the
failure to the application, which may then fail. By impersonating
device drivers during recovery, shadow drivers conceal errors caused
by driver failures and thereby protect applications.
Several systems have narrowed the scope of recovery to focus on a
specific subsystem or component. For example, the Rio file
cache [12] provides high performance by isolating a single
system component, the file cache, from kernel failures.
Phoenix [3] provides transparent recovery after the failure
of a single problematic component type, database connections in
multi-tier applications. Similarly, our shadow driver research
focuses on recovery for a single OS component type, the device driver,
which is the leading cause of OS failure. By abandoning
general-purpose recovery, we transparently resolve a major cause of
application and OS failure while maintaining a low runtime overhead.
3 Device Drivers and Shadow Driver Design
A device driver is a kernel-mode software component that
provides an interface between the OS and a hardware
device1. The driver converts
requests from the kernel into requests to the hardware. Drivers rely
on two interfaces: the interface that drivers export to the
kernel that provides access to the device, and the kernel interface
that drivers import from the operating system. For example,
Figure 1 shows the kernel calling into a sound
driver to play a tone; in response, the sound driver converts the
request into a sequence of I/O instructions that direct the sound card
to emit sound.
Figure 1: A sample device driver. The device driver
exports the services defined by the device's class interface and
imports services from the kernel's interface.
In practice, most device drivers are members of a class, which
is defined by its interface. For example, all network drivers obey
the same kernel-driver interface, and all sound-card drivers obey the
same kernel-driver interface. This class orientation simplifies the
introduction of new drivers into the operating system, since no OS
changes are required to accommodate them.
In addition to processing I/O requests, drivers also handle
configuration requests. Applications may configure the device, for
example, by setting the bandwidth of a network card or the volume for
a sound card. Configuration requests may change both driver and
device behavior for future I/O requests.
3.1 Driver Faults
Most drivers fail due to bugs that result from
unexpected inputs or events [34]. For example, a driver
may corrupt a data structure if an interrupt arrives during a
sensitive portion of request processing. Device drivers may crash in
response to (1) the stream of requests from the kernel, both
configuration and I/O, (2) messages to and from the device, and (3)
the kernel environment, which may raise or lower power states, swap
pages of memory, and interrupt the driver at arbitrary times. A
driver bug triggered solely by a sequence of configuration or I/O
requests is called a deterministic failure. No generic recovery
technique can transparently recover from this type of bug, because any
attempt to complete an offending request may trigger the
bug [11]. In contrast, transient failures are
triggered by additional inputs from the device or the operating system
and occur infrequently.
A driver failure that is detected and stopped by the system before any
OS, device, or application state is affected is termed
fail-stop. More insidious failures may corrupt the system or
application and never be detected. The system's response to failure
determines whether a failure is fail-stop. For example, a system that
detects and prevents accidental writes to kernel data structures
exhibits fail-stop behavior for such a bug, whereas one that allows
corruption does not.
Appropriate OS techniques can ensure that drivers execute in a fail-stop
fashion [32,33,36]. For example, in earlier
work we described Nooks [33], a kernel reliability subsystem
that executes each driver within its own in-kernel protection domain.
Nooks detects faults through memory protection violations, excessive
CPU usage, and certain bad parameters passed to the kernel.
When Nooks detects a failure, it stops execution within the driver's
protection domain and triggers a recovery process. We reported that

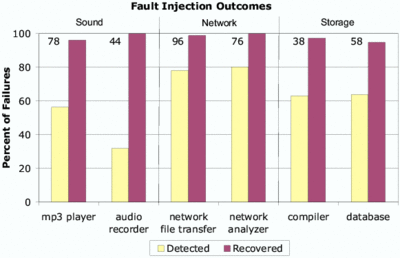

Nooks was able to detect approximately 75% of failures in synthetic
fault-injection tests [33].
Shadow drivers can recover only from failures that are both transient
and fail-stop. Deterministic failures may recur when the driver
recovers, again causing a failure. In contrast, transient failures are
triggered by environmental factors that are unlikely to persist during
recovery. In practice, many drivers experience transient failures,
caused by the complexities of the kernel execution environment (e.g.
asynchrony, interrupts, locking protocols, and virtual
memory) [1], which are difficult to find and fix.
Deterministic driver failures, in contrast, are more easily found and
fixed in the testing phase of development because the failures are
repeatable [18]. Recoverable failures must also be
fail-stop, because shadow drivers conceal failures from the
system and applications. Hence, shadow drivers require a reliability
subsystem to detect and stop failures before they are visible to
applications or the operating system. Although shadow drivers may use
any mechanism that provides these services, our implementation uses
Nooks.
3.2 Shadow Drivers
A shadow driver is a kernel agent that improves
reliability for a single device driver. It compensates for and
recovers from a driver that has failed. When a driver fails, its
shadow restores the driver to a functioning state in which it can
process I/O requests made before the failure. While the driver
recovers, the shadow driver services its requests.
Shadow drivers execute in one of two modes: passive or active.
In passive mode, used during normal (non-faulting)
operation, the shadow driver monitors all communication between
the kernel and the device driver it shadows. This
monitoring is achieved via replicated procedure calls: a kernel call
to a device driver function causes an automatic, identical call to a
corresponding shadow driver function. Similarly, a driver call to a
kernel function causes an automatic, identical call to a corresponding
shadow driver function. These passive-mode calls are transparent to
the device driver and the kernel. They are not intended to provide
any service to either party and exist only to track the state of the
driver as necessary for recovery.
In active mode, which occurs during recovery from a failure, the
shadow driver performs two functions. First, it "impersonates" the
failed driver, intercepting and responding to calls from the kernel.
Therefore, the kernel and higher-level applications continue operating
in as normal a fashion as possible. Second, the shadow driver
impersonates the kernel to restart the failed driver, intercepting and
responding to calls from the restarted driver to the kernel. In other
words, in active mode the shadow driver looks like the kernel to the
driver and like the driver to the kernel. Only the shadow driver is
aware of the deception. This approach hides recovery details from the driver,
which is unaware that it is being restarted by a shadow
driver after a failure.
Once the driver has restarted, the active-mode shadow reintegrates the
driver into the system. It re-establishes any application
configuration state downloaded into the driver and then resumes
pending requests.
A shadow driver is a "class driver," aware of the interface to the
drivers it shadows but not of their implementations. A single
shadow driver implementation can recover from a failure of any
driver in the class. The class orientation has three key
implications. First, an operating system can leverage a few
implementations of shadow drivers to recover from failures in a large
number of device drivers. Second, implementing a shadow driver does
not require a detailed understanding of the internals of the drivers
it shadows. Rather, it requires only an understanding of those
drivers' interactions with the kernel. Finally, if a new driver is
loaded into the kernel, no new shadow driver is required as long
as a shadow for that class already exists. For example, if a new
network interface card and driver are inserted into a PC, the existing
network shadow driver can shadow the new driver without change.
Similarly, drivers can be patched or updated without requiring changes
to their shadows. Shadow updating is required only to respond to a
change in the kernel-driver programming interface.
As we have seen, a shadow driver monitors communication
between a functioning driver and the kernel and impersonates one
component to the other during failure and recovery. These activities
are made possible by a new mechanism, called a tap. Conceptually, a
tap is a T-junction placed between the kernel and its drivers. It
can be set to replicate calls during passive mode and redirect them
during recovery.
A tap operates in passive or active mode, corresponding to the state of the
shadow driver attached to it. During passive-mode operation, the
tap: (1) invokes the original driver, then (2) invokes the shadow
driver with the parameters and results of the call. This operation is
shown in Figure 2.
Figure 2: A sample shadow driver operating in passive mode.
Taps inserted between the kernel and sound driver ensure that all
communication between the two is passively monitored by the shadow
driver.
On failure, the tap switches to active mode, shown in
Figure 3. In this mode, it: (1) terminates all
communication between the driver and kernel, and (2) redirects all
invocations to their corresponding interface in the shadow. In active
mode, both the kernel and the recovering device driver interact
only with the shadow driver. Following recovery, the tap returns
to its passive-mode state.

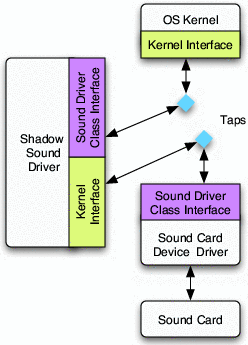

Figure 3: A sample shadow driver operating in active mode.
The taps redirect communication between the kernel and the failed
driver directly to the shadow driver.
Taps depend on the ability to dynamically dispatch all communication
between the driver and the OS. Consequently, all communication into
and out of a driver being shadowed must be explicit, such as through a
procedure call or a message. Most drivers operate this way, but some
do not and cannot be shadowed. For example, kernel video drivers often
communicate with usermode applications through shared memory
regions [22].
3.4 The Shadow Manager
Recovery is supervised by the shadow manager, which is
a kernel agent that interfaces with and controls all shadow
drivers. The shadow manager instantiates new shadow drivers and
injects taps into the call interfaces between the device driver and
kernel. It also receives notification from the fault-isolation
subsystem that a driver has stopped due to a failure.
When a driver fails, the shadow manager transitions its taps and
shadow driver to active mode. In this mode, requests for the driver's
services are redirected to an appropriately prepared shadow driver.
The shadow manager then initiates the shadow driver's recovery
sequence to restore the driver. When recovery ends, the shadow
manager returns the shadow driver and taps to passive-mode operation
so the driver can resume service.
3.5 Summary
Our design simplifies the development and integration of
shadow drivers into existing systems. Each shadow driver is a single
module written with knowledge of the behavior (interface) of a class
of device drivers, allowing it to conceal a driver failure and restart
the driver after a fault. A shadow driver, normally passive, monitors
communication between the kernel and the driver. It becomes an
active proxy when a driver fails and then manages its recovery.
4 Shadow Driver Implementation
This section describes the implementation of shadow drivers
in the Linux operating system [6]. We have implemented
shadow drivers for three classes of device drivers: sound card
drivers, network interface drivers, and IDE storage drivers.
4.1 General Infrastructure
All shadow drivers rely on a generic service infrastructure
that provides three functions. An isolation service prevents
driver errors from corrupting the kernel by stopping a driver on
detecting a failure. A transparent redirection mechanism
implements the taps required for transparent shadowing and recovery.
Lastly, an object tracking service tracks kernel
resources created or held by the driver so as to facilitate recovery.

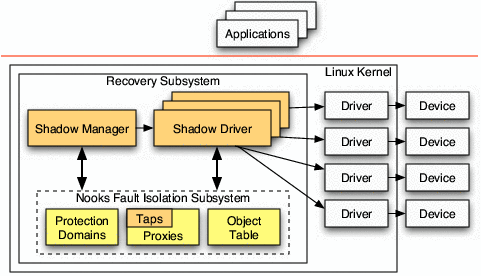

Our shadow driver implementation uses Nooks to provide these
functions. Through its fault isolation subsystem, Nooks [33]
isolates drivers within separate kernel protection domains. The
domains use memory protection to trap driver faults and ensure the
integrity of kernel memory. Nooks interposes proxy procedures on all
communication between the device driver and kernel. We insert our tap
code into these Nooks proxies to replicate and redirect communication.
Finally, Nooks tracks kernel objects used by drivers to perform
garbage collection of kernel resources during recovery.
Our implementation adds a shadow manager to the Linux operating
system. In addition to receiving failure notifications from Nooks,
the shadow manager handles the initial installation of shadow drivers.
In coordination with the kernel's module loader, which provides the
driver's class, the shadow manager creates a new shadow driver
instance for a driver. Because a single shadow driver services a class
of device drivers, there may be several instances of a shadow driver
executing if there is more than one driver of a class present. The
new instance shares the same code with all other instances of that
shadow driver class.
Figure 4 shows the driver recovery subsystem,
which contains the Nooks fault isolation subsystem, the shadow
manager, and a set of shadow drivers, each of which can monitor one or
more device drivers.
Figure 4: The Linux operating system with several device
drivers and the driver recovery subsystem. New code components
include the taps, the shadow manager and a set of shadow drivers,
all built on top of the Nooks driver fault isolation subsystem.
4.2 Passive-Mode Monitoring
In passive mode, a shadow driver records several types of
information. First, it tracks requests made to the driver, enabling
pending requests to execute correctly after recovery. For
connection-oriented drivers, the shadow driver records the state of
each active connection, such as offset or positioning information.
For request-oriented drivers, the shadow driver maintains a log
of pending commands and arguments. An entry remains in the log until
the corresponding request has been handled.
The shadow driver also records configuration and driver parameters
that the kernel passes into the driver. During recovery, the shadow
uses this information to act in the driver's place, returning the same
information that was passed in previously. This information also
assists in reconfiguring the driver to its pre-failure state when it
is restarted. For example, the shadow sound driver keeps a log of
ioctl calls (command numbers and arguments) that configure the
driver. This log makes it possible to: (1) act as the device driver
by remembering the sound formats it supports, and (2) recover the
driver by resetting properties, such as the volume and sound format in
use.
The shadow driver maintains only the configuration of the driver
in its log. For stateful devices, such as frame buffers or storage
devices, it does not create a copy of the device state. Instead, a
shadow driver depends on the fail-stop assumption to preserve
persistent state (e.g., on disk) from corruption. It can restore
transient state (state that is lost when the device resets) if it can
force the device's clients to recreate that state, for example,
by redrawing the contents of a frame buffer.
Lastly, the shadow tracks all kernel objects that the driver allocated
or received from the kernel. These objects would otherwise be lost
when the driver fails, causing a memory leak. For example, the shadow
must record all timer callbacks registered and all hardware resources
owned, such as interrupt lines and I/O memory regions.
In many cases, passive-mode calls do no work and the shadow
returns immediately to the caller. For example, the dominant calls to
a sound-card driver are read and write, which record or
play sound. In passive mode, the shadow driver implements these calls
as no-ops, since there is no need to copy the real-time sound
data flowing through the device driver. For an ioctl call,
however, the sound-card shadow driver logs the command and data for
the connection. Similarly, the shadow driver for an IDE disk does
little or no work in passive mode, since the kernel and disk driver
handle all I/O and request queuing. Finally, for the network
shadow driver, much of the work is already performed by the Nooks
object-tracking system, which keeps references to outstanding packets.
4.3 Active-Mode Recovery
A driver typically fails by generating an illegal memory reference or
passing an invalid parameter across a kernel interface. The
kernel-level failure detector notices the failure and invokes the
shadow manager, which locates the appropriate shadow
driver and directs it to recover the failed driver. The three steps
of recovery are: (1) stopping the failed driver,
(2) reinitializing the driver from a clean state, and (3) transferring
relevant shadow driver state into the new driver.
4.3.1 Stopping the Failed Driver
The shadow manager begins recovery by informing the
responsible shadow driver that a failure has occurred. It also
switches the taps, isolating the kernel and driver from one another's
subsequent activity during recovery. After this point, the tap
redirects all kernel requests to the shadow until recovery is
complete.
Informed of the failure, the shadow driver first disables execution of
the failed driver. It also disables the hardware device to prevent it
from interfering with the OS while not under driver control. For
example, the shadow disables the driver's interrupt request line.
Otherwise, the device may continuously interrupt the kernel and
prevent recovery. On hardware platforms with I/O memory mapping, the
shadow also removes the device's I/O mappings to prevent DMAs into
kernel memory.
To prepare for restarting the device driver, the shadow garbage
collects resources held by the driver. It retains objects that the
kernel uses to request driver services, to ensure that the kernel
does not see the driver "disappear" as it is restarted. The shadow
releases the remaining resources.
4.3.2 Reinitializing the Driver
The shadow driver next "reboots" the driver from a clean state.
Normally, restarting a driver requires reloading the driver from disk.
However, we cannot assume that the disk is functional during recovery.
For this reason, when creating a new shadow driver instance, the
shadow manager caches in the shadow instance a copy of the device
driver's initial, clean data section. These sections tend to be
small. The driver's code is kernel-read-only, so it is not cached and
can be reused from memory.
The shadow restarts the driver by initializing the driver's state and
then repeating the kernel's driver initialization sequence. For
some driver classes, such as sound card drivers, this consists of a
single call into the driver's initialization routine. Other drivers,
such as network interface drivers, require additional calls to connect
the driver into the network stack.
As the driver restarts, the shadow reattaches the driver to its
pre-failure kernel resources. During driver reboot, the driver makes
a number of calls into the kernel to discover information about itself
and to link itself into the kernel. For example, the driver calls the
kernel to register itself as a driver and to request hardware and
kernel resources. The taps redirect these calls to the shadow driver,
which reconnects the driver to existing kernel data structures. Thus,
when the driver attempts to register with the kernel, the shadow
intercepts the call and reuses the existing driver registration, avoiding
the allocation of a new one. For requests that generate callbacks,
such as a request to register the driver with the PCI subsystem, the
shadow emulates the kernel, making the same callbacks to the driver
with the same parameters. The driver also acquires hardware
resources. If these resources were previously disabled at the first
step of recovery, the shadow re-enables them, e.g., enabling interrupt
handling for the device's interrupt line. In essence, the shadow
driver initializes the recovering driver by calling and responding as
the kernel would when the driver starts normally.
4.3.3 Transferring State to the New Driver
The final recovery step restores the driver
state that existed at the time of the fault, permitting it to respond
to requests as if it had never failed. Thus, any configuration that
either the kernel or an application had downloaded to the driver must
be restored. The details of this final state transfer depend on the
device driver class. Some drivers are connection oriented. For
these, the state consists of the state of the connections
before the failure. The shadow re-opens the connections and restores
the state of each active connection with configuration calls. Other
drivers are request oriented. For these, the shadow restores the
state of the driver and then resubmits
to the driver any requests that were outstanding when the driver
crashed.
As an example, for a failed sound card driver, the shadow driver
resets the sound driver and all its open connections back to their
pre-failures state. Specifically, the shadow scans its list of open
connections and calls the open function in the driver to reopen
each connection. The shadow then walks its log of configuration
commands and replays any commands that set driver properties.
For some driver classes, the shadow cannot completely transfer its
state into the driver. However, it may be possible to compensate in
other, perhaps less elegant, ways. For example, a sound driver that
is recording sound stores the number of bytes it has recorded since
the last reset. After recovery, the sound driver initializes this
counter to zero. Because no interface call is provided to change the
counter value, the shadow driver must insert its "true" value into
the return argument list whenever the application reads the counter to
maintain the illusion that the driver has not crashed. The shadow can
do this because it receives control (on its replicated call) before
the kernel returns to user space.
After resetting driver and connection state, the shadow must handle
requests that were either outstanding when the driver crashed or
arrived while the driver was recovering. Unfortunately, shadow
drivers cannot guarantee exactly-once behavior for driver requests and
must rely on devices and higher levels of software to absorb duplicate
requests. For example, if a driver crashes after submitting a request
to a device but before notifying the kernel that the request has
completed, the shadow cannot know whether the request was actually
processed. During recovery, the shadow driver has two choices:
restart in-progress requests and risk duplication, or cancel the
request and risk lost data. For some device classes, such as disks or
networks, duplication is acceptable. However, other classes, such as
printers, may not tolerate duplicates. In these cases, the shadow
driver cancels outstanding requests, which may limit its ability to
mask failures.
After this final step, the driver has been
reinitialized, linked into the kernel, reloaded with its pre-failure
state, and is ready to process commands. At this point, the shadow driver
notifies the shadow manager, which sets the taps to restore
kernel-driver communication and reestablish passive-mode monitoring.
4.4 Active-Mode Proxying of Kernel Requests
While a shadow driver is restoring a failed driver, it is
also acting in place of the driver to conceal the failure and recovery
from applications and the kernel. The shadow driver's response to a
driver request depends on the driver class and request semantics. In
general, the shadow will take one of five actions: (1) respond with
information that it has recorded, (2) silently drop the
request, (3) queue the request for later processing, (4) block the
request until the driver recovers, or (5) report that the driver is
busy and the kernel or application should try again later. The choice
of strategy depends on the caller's expectations of the driver.
Writing a shadow driver that proxies for a failed driver requires
knowledge of the kernel-driver interface, interactions, and
requirements. For example, the kernel may require that some driver
functions never block, while others always block. Some kernel
requests are idempotent (e.g., many ioctl commands), permitting
duplicate requests to be dropped, while others return different
results on every call (e.g., many read requests). The shadow
for a driver class uses these requirements to select the response
strategy.
Active proxying is simplified for driver interfaces that support a
notion of "busy." By reporting that the device is currently busy,
shadow drivers instruct the kernel or application to block calls to a
driver. For example, network drivers in Linux may reject requests and
turn themselves off if their queues are full. The kernel then
refrains from sending packets until the driver turns itself back on.
Our shadow network driver exploits this behavior during recovery by
returning a "busy" error on calls to send packets. IDE storage drivers
support a similar notion when request queues fill up. Sound drivers
can report that their buffers are temporarily full.
Our shadow sound-card driver uses a mix of all five strategies for
emulating functions in its service interface. The shadow blocks
kernel read and write requests, which play or record sound
samples, until the failed driver recovers. It processes ioctl
calls itself, either by responding with information it captured or by
logging the request to be processed later. For ioctl commands
that are idempotent, the shadow driver silently drops duplicate
requests. Finally, when applications query for buffer space, the
shadow responds that buffers are full. As a result, many applications
block themselves rather than blocking in the shadow driver.
4.5 Limitations
As previously described, shadow drivers have
limitations. First, shadow drivers rely on dynamic unloading and
reloading of device drivers. If a driver cannot be reloaded
dynamically, or will not reinitialize properly, then a shadow cannot
recover the driver. Second, shadow drivers rely on explicit
communication between the device driver and kernel. If driver-kernel
communication takes place through an ad-hoc interface,
such as shared memory, the shadow driver cannot monitor it.
Third, shadow drivers assume that driver failure does not cause
irreversible side effects. If a corrupted driver stores persistent
state (e.g., printing a bad check or writing bad data on a disk), the
shadow driver will not be able to correct that action.
The effectiveness of shadow drivers is also limited by the abilities
of the isolation and failure-detection subsystem. If this layer
cannot prevent kernel corruption, then shadow drivers cannot
facilitate system recovery. In addition, if the fault-isolation
subsystem does not detect a failure, then shadow drivers will not be
properly invoked to perform recovery, and applications may fail.
Detecting failures is difficult because drivers are complex and may
respond to application requests in many ways. It may be impossible to
detect a valid but incorrect return value; for example, a sound driver
may return incorrect sound data when recording. As a result, no
failure detector can detect every device driver failure. However, we support
class-based failure detectors that can detect violations of a driver's
programming interface and reduce the number of undetected failures.
Finally, shadow drivers may not be suitable for applications with
real-time demands. During recovery, a device may be unavailable for
several seconds without notifying the application of a failure. These
applications, which should be written to tolerate failures, would be
better served by a solution that restarts the driver but does not
perform active proxying.
4.6 Summary
This section presented the details of our Linux shadow
driver implementation. The shadow driver concept is straightforward:
passively monitor normal operations, proxy during failure, and
reintegrate during recovery. Ultimately, the value of shadow drivers
depends on the degree to which they can be implemented correctly,
efficiently, and easily in an operating system. The following section
evaluates some of these questions both qualitatively and
quantitatively.
5 Evaluation
This section evaluates four key aspects of shadow drivers.
- Performance. What is the performance overhead of shadow
drivers during normal, passive-mode operation (i.e., in the absence
of failure)? This is the dynamic cost of our mechanism.
- Fault-Tolerance. Can applications that use a device
driver continue to run even after the driver fails? We evaluate
shadow driver recovery in the presence of simple failures to show
the benefits of shadow drivers compared to a system that provides
failure isolation alone.
- Limitations. How reasonable is our assumption that driver
failures are fail-stop? Using synthetic fault injection, we evaluate
how likely it is that driver failures are fail-stop.
- Code size. How much code is required for shadow drivers
and their supporting infrastructure? We evaluate the size and
complexity of the shadow driver implementation to highlight the
engineering cost integrating shadow drivers into an existing system.
Based on a set of controlled application and driver experiments, our
results show that shadow drivers: (1) impose relatively little
performance overhead, (2) keep applications running when a driver
fails, (3) are limited by a system's ability to detect that a driver
has failed, and (4) can be implemented with a modest amount of code.
The experiments were run on a 3 GHz Pentium 4 PC with 1 GB of RAM and
an 80 GB, 7200 RPM IDE disk drive. We built and tested three Linux
shadow drivers for three device-driver classes: network interface
controller, sound card, and IDE storage device. To ensure that our
generic shadow drivers worked consistently across device driver
implementations, we tested them on thirteen different Linux drivers,
shown in Table 1. Although we present detailed
results for only one driver in each class (e1000, audigy,
and ide-disk), behavior across all drivers was similar.
| Class | Driver | Device | |
| Network | e1000 | Intel Pro/1000 Gigabit Ethernet |
| pcnet32 | AMD PCnet32 10/100 Ethernet |
| 3c59x | 3COM 3c509b 10/100 Ethernet |
| e100 | Intel Pro/100 Ethernet |
| epic100 | SMC EtherPower 10/100 Ethernet | |
| Sound | audigy | SoundBlaster Audigy sound card |
| emu10k1 | SoundBlaster Live! sound card |
| sb | SoundBlaster 16 sound card |
| es1371 | Ensoniq sound card |
| cs4232 | Crystal sound card |
| i810_audio | Intel 810 sound card | |
| Storage | ide-disk | IDE disk |
| ide-cd | IDE CD-ROM | |
Table 1: The three classes of shadow drivers and the Linux
drivers tested. We present results for the boldfaced drivers
only, as the others behaved similarly.
5.1 Performance
To evaluate performance, we produced
three OS configurations based on the Linux 2.4.18 kernel:
- Linux-Native is the unmodified Linux kernel.
- Linux-Nooks is a version of Linux-Native that
includes the Nooks fault isolation subsystem but no shadow drivers.
When a driver fails, this system restarts the driver but does not
attempt to conceal its failure.
- Linux-SD is a version of Linux-Nooks that includes
our entire recovery subsystem, including the Nooks fault isolation
subsystem, the shadow manager, and our three shadow drivers.
We selected a variety of common applications that depend on our three
device driver classes and measured their performance. The application
names and behaviors are shown in Table 2.
| Device Driver | Application Activity | |
| Sound | mp3 player (zinf) playing 128kb/s audio |
| (audigy driver) | audio recorder (audacity) recording from microphone |
| speech synthesizer (festival) reading a text file |
| strategy game (Battle of Wesnoth) | |
| Network | network send (netperf) over TCP/IP |
| (e1000 driver) | network receive (netperf) over TCP/IP |
| network file transfer (scp) of a 1GB file |
| remote window manager (vnc) |
| network analyzer (ethereal) sniffing packets | |
| Storage | compiler (make/gcc) compiling 788 C files |
| (ide-disk driver) | encoder (LAME) converting 90 MB file .wav to mp3 |
| database (mySQL) processing the Wisconsin Benchmark | |
Table 2: The applications used for evaluating shadow
drivers.
Different applications have different performance metrics of interest.
For the disk and sound drivers, we ran the applications shown in
Table 2 and measured elapsed time. For
the network driver, throughput is a more useful metric; therefore, we
ran the throughput-oriented network send and network
receive benchmarks. For all drivers, we also measured CPU
utilization while the programs ran. All measurements were repeated
several times and showed a variation of less than one percent.

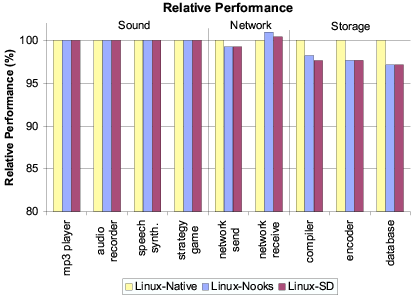

Figure 5: Comparative application performance, relative to
Linux-Native, for three configurations. The X-axis crosses at 80%.
Figure 6: Absolute CPU utilization by application
for three configurations.
Figure 5 shows the performance of
Linux-Nooks and Linux-SD relative to Linux-Native.
Figure 6 compares CPU utilization for execution of
the same applications on the three OS versions. Both figures make
clear that shadow drivers impose only a small performance penalty
compared to running with no isolation at all, and no no
additional penalty beyond that imposed by isolation alone. Across all
nine applications, performance of the system with shadow drivers
averaged 99% of the system without, and was never worse than 97%.
The low overhead of shadow drivers can be explained in terms of its
two constituents: fault isolation and the shadowing itself. As
mentioned previously, fault isolation runs each driver in its own
domain, leading to overhead caused by domain crossings. Each domain
crossing takes approximately 3000 cycles, mostly to change page tables
and execution stacks. As a side effect of changing page tables, the
Pentium 4 processor flushes the TLB, resulting in TLB misses that can
noticeably slow down drivers [33].
For example, the kernel calls the driver approximately 1000 times per
second when running audio recorder. Each invocation executes
only a small amount of code. As a result, isolating the sound driver
adds only negligibly to CPU utilization, because there are not many
crossings and not much code to slow down. For the most disk-intensive
of the IDE storage applications, the database benchmark, the
kernel and driver interact only 290 times per second. However, each
call into the ide-disk driver results in substantial work to
process a queue of disk requests. The TLB-induced slowdown doubles
the time database spent in the driver relative to
Linux-Native and increases the application's CPU utilization from
21% to 27%. On the other hand, the network send benchmark
transmits 45,000 packets per second, causing 45,000 domain crossings.
The driver does little work for each packet, but the overall impact is
visible in Figure 6, where CPU utilization for this
benchmark increases from 28% to 57% with driver fault isolation.
In the case the actual shadowing, we see from a comparison of the
Linux-Nooks and Linux-SD bars in
Figures 5 and 6 that the cost
is small or negligible. As noted in Section 4.2,
many passive-mode shadow-driver functions are no-ops. As a
result, the incremental passive-mode performance cost over basic fault
isolation is low or unmeasurable in many cases.
In summary, then, the overall performance penalty of shadow drivers
during failure-free operation is low, suggesting that shadow drivers
could be used across a wide range of applications and environments.
5.2 Fault-Tolerance
Regardless of performance, the crucial question for shadow
drivers is whether an application can continue functioning following
the failure of a device driver on which it relies. To answer this
question, we tested 10 applications on the three configurations,
Linux-Native, Linux-Nooks, and Linux-SD. For the disk
and sound drivers, we again ran the applications shown in
Table 2. Because we were interested in the
response to, not performance, we substituted network file copy,
remote window manager, and network analyzer for the
networking benchmarks.
We simulated common bugs by injecting a software fault
into a device driver while an application using that driver was
running. Because both Linux-Nooks and Linux-SD depend on the same
isolation and failure-detection services, we differentiate their
recovery capabilities by simulating failures that are easily isolated
and detected. To generate realistic synthetic driver bugs, we
analyzed patches posted to the Linux Kernel Mailing List [24].
We found 31 patches that contained the strings "patch," "driver,"
and "crash" or "oops" (the Linux term for a kernel fault) in their
subject lines. Of the 31 patches, we identified 11 that fix transient
bugs (i.e., bugs that occur occasionally or only after a long delay
from the triggering test). The most common cause of failure (three
instances) was a missing check for a null pointer, often with a
secondary cause of missing or broken synchronization. We also found
missing pointer initialization code (two instances) and bad
calculations (two instances) that led to endless loops and buffer
overruns. Because these faults are detected by Nooks, they cause
fail-stop failures on Linux-Nooks and Linux-SD.
We injected a null-pointer dereference bug derived from these patches
into our three drivers. We ensured that the synthetic bug was
transient by inserting the bug into uncommon execution paths, such as
code that handles unusual hardware conditions. These paths are rarely
executed, so we accelerated the occurrence of faults by also executing
the bug at random intervals. The fault code remains active in the
driver during and after recovery.
Table 3 shows the three application behaviors we
observed. When a driver failed, each application either continued to
run normally ("OK"), failed completely ("CRASH"), or continued to
run but behaved abnormally ("MALFUNCTION"). In the latter case,
manual intervention was typically required to reset or terminate the
program.
| | Application Behavior |
| Device Driver | Application Activity | Linux-Native | Linux-Nooks | Linux-SD | |
| Sound
| mp3 player | CRASH | MALFUNCTION | OK |
| (audigy driver)
| audio recorder | CRASH | MALFUNCTION | OK |
| speech synthesizer | CRASH | OK | OK |
| strategy game | CRASH | MALFUNCTION | OK | |
| Network
| network file transfer | CRASH | OK | OK |
| (e1000 driver)
| remote window manager | CRASH | OK | OK |
| network analyzer | CRASH | MALFUNCTION | OK | |
| IDE
| compiler | CRASH | CRASH | OK |
| (ide-disk driver)
| encoder | CRASH | CRASH | OK |
| database | CRASH | CRASH | OK | |
Table 3: The observed behavior of several applications
following the failure of the device drivers on which they
rely. There are three behaviors: OK indicates
that the application continued to operate normally; CRASH indicates
that the application failed completely (i.e., it terminated);
MALFUNCTION indicates that the application continued to run, but with
abnormal behavior.
This table demonstrates that shadow drivers (Linux-SD) enable
applications to continue running normally even when device drivers
fail. In contrast, all applications on Linux-Native failed when
drivers failed. Most programs running on Linux-Nooks failed or
behaved abnormally, illustrating that Nooks' kernel-focused recovery
system does not extend to applications. For example, Nooks isolates
the kernel from driver faults and reboots (unloads, reloads, and
restarts) the driver. However, it lacks two key features of shadow
drivers: (1) it does not advance the driver to its pre-fail state, and
(2) it has no component to "pinch hit" for the failed driver during
recovery. As a result, Linux-Nooks handles driver failures by
returning an error to the application, leaving it to recover by
itself. Unfortunately, few applications can do this.
Some applications on Linux-Nooks survived the driver failure
but in a degraded form. For example, mp3 player, audio
recorder and strategy game continued running, but
they lost their ability to input or output sound until
the user intervened. Similarly, network analyzer,
which interfaces directly with the network device driver, lost its
ability to receive packets once the driver was reloaded.
A few applications continued to function properly after driver failure
on Linux-Nooks. One application, speech synthesizer,
includes the code to reestablish its context within an unreliable
sound card driver. Two of the network applications survived on
Linux-Nooks because they access the network device driver through
kernel services (TCP/IP and sockets) that are themselves resilient to
driver failures.
Linux-SD recovers transparently from disk driver failures.
Recovery is possible because the IDE storage shadow driver instance
maintains the failing driver's initial state. During recovery the
shadow copies back the initial data and reuses the driver code, which
is already stored read-only in the kernel. In contrast,
Linux-Nooks illustrates the risk of circular dependencies from
rebooting drivers. Following these failures, Nooks, which had
unloaded the ide-disk driver, was then required to reload the
driver off the IDE disk. The circularity could only be resolved by a
system reboot. While a second (non-IDE) disk would mitigate this
problem, few machines are configured this way.
In general, programs that directly depend on driver state but are
unprepared to deal with its loss benefit the most from shadow drivers.
In contrast, those that do not directly depend on driver state or are
able to reconstruct it when necessary benefit the least. Our
experience suggests that few applications are as fault-tolerant as
speech synthesizer. Were future applications to be pushed in
this direction, software manufacturers would either need to develop
custom recovery solutions on a per-application basis or find a general
solution that could protect any application from the failure of a
kernel device driver. Cost is a barrier to the first approach.
Shadow drivers are a path to the second.
Application Behavior During Driver Recovery
Although shadow drivers can prevent application failure, they
are not "real" device drivers and do not provide complete device
services. As a result, we often observed a slight timing disruption
while the driver recovered. At best, output was queued in the shadow
driver. At worst, input was lost by the device. The length of the
delay was primarily determined by the recovering device driver itself,
which, on initialization, must first discover, and then configure,
the hardware.
Few device drivers implement fast reconfiguration, which can lead to
brief recovery delays. For example, the temporary loss of the
e1000 network device driver prevented applications from receiving
packets for about five seconds.2 Programs using files stored on
the disk managed by the ide-disk driver stalled for about four
seconds during recovery. In contrast, the normally smooth sounds
produced by the audigy sound card driver were interrupted by a
pause of about one-tenth of one second, which sounded like a slight click
in the audio stream.
Of course, the significance of these delays depends on the
application. Streaming applications may become unacceptably
"jittery" during recovery. Those processing input data in real-time
might become lossy. Others may simply run a few seconds longer in
response to a disk that appears to be operating more sluggishly than
usual. In any event, a short delay during recovery is best considered
in light of the alternative: application and system failure.
5.3 Limits to Recovery
The previous section assumed that failures were fail-stop.
However, driver failures experienced in deployed systems may exhibit a
wider variety of behaviors. For example, a driver may corrupt state
in the application, kernel, or device without being detected. In this
situation, shadow drivers may not be able to recover or mask failures
from applications. This section uses fault injection experiments in
an attempt to generate faults that may not be fail-stop.
Non-fail-stop Failures
If driver failures are not fail stop, then shadow
drivers may not be useful. To evaluate whether device driver failures
are indeed fail-stop, we performed large-scale fault-injection tests
of our drivers and applications running on Linux-SD. For each driver
and application combination, we ran 350 fault-injection
trials.3 In total, we ran 2100 trials across the three
drivers and six applications. Between trials, we reset the system and
reloaded the driver. For each trial, we injected five random errors
into the driver while the application was using it. We ensured the
errors were transient by removing them during recovery. After
injection, we visually observed the impact on the application and the
system to determine whether a failure or recovery had occurred. For
each driver, we tested two applications with significantly different
usage scenarios. For example, we chose one sound-playing application
(mp3 player) and one sound-recording application (audio
recorder).
If we observed a failure, we then assessed the trial on two criteria:
whether the fault was detected, and whether the shadow driver could
mask the failure and subsequent recovery from the application. For
undetected failures, we triggered recovery manually. Note that a user
may observe a failure that an application does not, for example, by
testing the application's responsiveness.
Figure 7: Results of fault-injection experiments on
Linux-SD. We show (1) the percentage of failures that are
automatically detected by the fault isolation subsystem, and (2) the
percentage of failures that shadow drivers successfully recovered.
The total number of failures experienced by each application is
shown at the top of the chart.
Figure 7 shows the results of our experiments.
For each application, we show the percentage of failures that the
Nooks subsystem detected and the percentage of failures from which
shadow drivers correctly recovered. Only 18% of the injected faults
caused a visible failure.
In our tests, 390 failures occurred across all applications. The sytem
automatically detected 65% of the failures. In every one of these
cases, shadow drivers were able to mask the failure and facilitate
driver recovery. The system failed to detect 35% of the failures. In
these cases, we manually triggered recovery. Shadow drivers recovered
from nearly all of these failures (127 out of 135). Recovery was
unsuccessful in the remaining 8 cases because either the system had
crashed (5 cases) or the driver had corrupted the application beyond
the possibility of recovery (3 cases). It is possible that recovery
would have succeeded had these failures been detected earlier with a
better failure detector.
Across all applications and drivers, we found three major causes of
undetected failure. First, the system did not detect application hangs
caused by I/O requests that never completed. Second, the system did
not detect errors in the interactions between the device and the
driver, e.g., incorrectly copying sound data to a sound card. Third,
the system did not detect certain bad parameters, such as incorrect
result codes or data values. Detecting these three error conditions
would require that the system better understand the semantics of each
driver class. For example, 68% of the sound driver failures with
audio recorder went undetected. This application receives data from
the driver in real time and is highly sensitive to driver output. A
small error or delay in the results of a driver request may cause the
application to stop recording or record the same sample repeatedly.
Our results demonstrate a need for class-based failure detectors that
can detect violations of the driver interface to achieve high levels
of reliability. However, driver failures need not be detected quickly
to be fail-stop. There was a significant delay between the failure
and the subsequent manual recovery in our tests, and yet the
applications survived the vast majority of undetected failures. Thus,
even a slow failure detector can be effective at improving application
reliability.
Non-transient Failures
Shadow drivers can recover from transient
failures only. In contrast, deterministic failures may recur during
recovery when the shadow configures the driver. While unable to
recover, shadow drivers are still useful for these failures. When a
failure recurs during recovery, the sequence of shadow driver recovery
events creates a detailed reproduction scenario that aids diagnosis.
This record of recovery contains the driver's calls into the kernel,
requests to configure the driver, and I/O requests that were pending
at the time of failure. This information enables a software engineer
to find and fix the offending bug more efficiently.
5.4 Code Size
The preceding sections evaluated the efficiency
and effectiveness of shadow drivers. This section examines the
complexity of shadow drivers in terms of code size, which can
serve as a proxy for complexity.
Driver Class | Shadow Driver
Lines of Code | Device Driver Shadowed
Lines of Code |
Class Size
# of Drivers | Class Size
Lines of Code |
| Sound | 666 | 7,381 (audigy) | 48 | 118,981 |
| Network | 198 | 13,577 (e1000) | 190 | 264,500 |
| Storage | 321 | 5,358 (ide-disk) | 8 | 29,000 | |
Table 4: Size and quantity of shadows and the drivers they shadow.
Table 4 shows, for each class, the
size in lines of code of the shadow driver for the class. For
comparison, we show the size of the driver from the class that we
tested and the total number and cumulative size of existing Linux
device drivers in that class in the 2.4.18 kernel. The total code
size is an indication of the leverage gained through the shadow's
class-driver structure. Furthermore, the table shows that a shadow
driver is significantly smaller than the device driver it shadows.
For example, our sound-card shadow driver is only 9% of the size of
the audigy device driver it shadows. The IDE storage shadow is
only 6% percent of the size of the Linux ide-disk device
driver.
The Nooks driver fault isolation subsystem we built upon contains
about 23,000 lines of code. In total, we added about 3300 lines of new
code to Nooks to support our three class drivers. Otherwise, we made
no changes to the remainder of the Linux kernel. Shadow drivers
required the addition of approximately 600 lines of code for the
shadow manager, 800 lines of common code shared by all shadow drivers,
and another 750 lines of code for general utilities. Of the 177 taps
we inserted, only 31 required actual code; the remainder were no-ops.
5.5 Summary
This section examined the performance, fault-tolerance,
limits, and code size of shadow drivers. Our results demonstrate
that: (1) the performance overhead of shadow drivers during normal
operation is small, particularly when compared to a purely isolating
system, (2) applications that failed in any form on Linux-Native
or Linux-Nooks ran normally with shadow drivers, (3) the
reliability provided by shadow drivers is limited by the system's
ability to detect failures, and (4) shadow drivers are small, even
relative to single device driver. Overall, these results indicate
that shadow drivers have the potential to significantly improve the
reliability of applications on modern operating systems with only
modest cost.
6 Conclusions
Improving the reliability of modern systems demands that we
increase their resilience. To this end, we designed and implemented
shadow drivers, which mask device driver failures from both the
operating system and applications.
Our experience shows that shadow drivers improve application
reliability, by concealing a driver's failure while facilitating
recovery. A single shadow driver can enable recovery for an entire
class of device drivers. Shadow drivers are also efficient, imposing
little performance degradation. Finally, they are transparent,
requiring no code changes to existing drivers.
Acknowledgments
This work was supported in part by the National Science
Foundation under grants ITR-0085670 and CCR-0121341. We would also
like to thank our shepherd, Peter Chen, who provided many valuable
insights.
References
- [1]
-
S. Arthur.
Fault resilient drivers for Longhorn server.
Technical Report WinHec 2004 Presentation DW04012, Microsoft
Corporation, May 2004.
- [2]
-
Ö. Babaoglu.
Fault-tolerant computing based on Mach.
In Proceedings of the USENIX Mach Symposium, Oct. 1990.
- [3]
-
R. Barga, D. Lomet, and G. Weikum.
Recovery guarantees for general multi-tier applications.
In International Conference on Data Engineering, 2002. IEEE.
- [4]
-
J. F. Bartlett.
A NonStop kernel.
In Proceedings of the 8th ACM Symposium on Operating Systems
Principles, Dec. 1981.
- [5]
-
A. Borg, W. Balu, W. Graetsch, F. Herrmann, and W. Oberle.
Fault tolerance under UNIX.
ACM Transactions on Computer Systems, 7(1):1-24, Feb. 1989.
- [6]
-
D. P. Bovet and M. Cesati.
Inside the Linux Kernel.
O'Reilly & Associates, 2002.
- [7]
-
T. C. Bressoud.
TFT: A software system for application-transparent fault tolerance.
In Proceedings of the 28th Symposium on Fault-Tolerant
Computing, June 1998. IEEE.
- [8]
-
T. C. Bressoud and F. B. Schneider.
Hypervisor-based fault tolerance.
ACM Transactions on Computer Systems, 14(1):80-107, Feb.
1996.
- [9]
-
G. Candea and A. Fox.
Recursive restartability: Turning the reboot sledgehammer into a
scalpel.
In Proceedings of the Eighth IEEE Workshop on Hot Topics in
Operating Systems, May 2001.
- [10]
-
S. Chandra and P. M. Chen.
How fail-stop are faulty programs?
In Proceedings of the 28th Symposium on Fault-Tolerant
Computing, June 1998. IEEE.
- [11]
-
S. Chandra and P. M. Chen.
Whither generic recovery from application faults? A fault study
using open-source software.
In Proceedings of the 2000 IEEE International Conference on
Dependable Systems and Networks, June 2000.
- [12]
-
P. M. Chen, W. T. Ng, S. Chandra, C. Aycock, G. Rajamani, and D. Lowell.
The Rio file cache: Surviving operating system crashes.
In Proceedings of the Seventh ACM International Conference on
Architectural Support for Programming Languages and Operating Systems, Oct.
1996.
- [13]
-
T. Chiueh, G. Venkitachalam, and P. Pradhan.
Integrating segmentation and paging protection for safe, efficient
and transparent software extensions.
In Proceedings of the 17th ACM Symposium on Operating Systems
Principles, Dec. 1999.
- [14]
-
A. Chou, J. Yang, B. Chelf, S. Hallem, and D. Engler.
An empirical study of operating system errors.
In Proceedings of the 18th ACM Symposium on Operating Systems
Principles, Oct. 2001.
- [15]
-
D. R. Engler, M. F. Kaashoek, and J. O. Jr.
Exokernel: an operating system architecture for
application-level resource management.
In Proceedings of the 15th ACM Symposium on Operating Systems
Principles, Dec. 1995.
- [16]
-
W. Feng.
Making a case for efficient supercomputing.
ACM Queue, 1(7), Oct. 2003.
- [17]
-
B. Ford, G. Back, G. Benson, J. Lepreau, A. Lin, and O. Shivers.
The Flux OSKit: a substrate for OS language and research.
In Proceedings of the 16th ACM Symposium on Operating Systems
Principles, Oct. 1997.
- [18]
-
J. Gray.
Why do
computers stop and what can be done about it?
Technical Report 85-7, Tandem Computers, June 1985.
- [19]
-
J. Gray and A. Reuter.
Transaction Processing: Concepts and Techniques.
Morgan Kaufmann, 1993.
- [20]
-
S. M. Hand.
Self-paging in the Nemesis operating system.
In Proceedings of the 3rd USENIX Symposium on Operating
Systems Design and Implementation, Feb. 1999.
- [21]
-
D. Jewett.
Integrity S2: A fault-tolerant Unix platform.
In Proceedings of the 21st Symposium on Fault-Tolerant
Computing, June 1991. IEEE.
- [22]
-
M. J. Kilgard, D. Blythe, and D. Hohn.
System support for OpenGL direct rendering.
In Proceedings of Graphics Interface, May 1995. Canadian
Human-Computer Communications Society.
- [23]
-
J. Liedtke.
On m-kernel construction.
In Proceedings of the 15th ACM Symposium on Operating Systems
Principles, Dec. 1995.
- [24]
-
Linux Kernel Mailing List.
Available at
https://www.uwsg.indiana.edu/hypermail/linux/kernel.
- [25]
-
D. E. Lowell, S. Chandra, and P. M. Chen.
Exploring failure transparency and the limits of generic recovery.
In Proceedings of the 4th USENIX Symposium on Operating
Systems Design and Implementation, Oct. 2000.
- [26]
-
D. E. Lowell and P. M. Chen.
Discount checking: Transparent, low-overhead recovery for general
applications.
Technical Report CSE-TR-410-99, University of Michigan, Nov. 1998.
- [27]
-
G. Muller, M. Banâtre, N. Peyrouze, and B. Rochat.
Lessons from FTM: An experiment in design and implementation of a
low-cost fault-tolerant system.
IEEE Transactions on Software Engineering, 45(2):332-339,
June 1996.
- [28]
-
D. Patterson, A. Brown, P. Broadwell, G. Candea, M. Chen, J. Cutler,
P. Enriquez, A. Fox, E. Kýcýman, M. Merzbacher, D. Oppenheimer,
N. Sastry, W. Tetzlaff, J. Traupman, and N. Treuhaft.
Recovery-Oriented Computing (ROC): Motivation, definition,
techniques, and case studies.
Technical Report CSD-02-1175, UC Berkeley Computer Science, Mar.
2002.
- [29]
-
J. S. Plank, M. Beck, G. Kingsley, and K. Li.
Libckpt: Transparent checkpointing under Unix.
In Proceedings of the 1995 Winter USENIX Conference, Jan.
1995.
- [30]
-
R. Short, Vice President of Windows Core Technology, Microsoft Corp.
private communication, 2003.
- [31]
-
M. Russinovich, Z. Segall, and D. Siewiorek.
Application transparent fault management in Fault Tolerant Mach.
In Proceedings of the 23rd Symposium on Fault-Tolerant
Computing, June 1993. IEEE.
- [32]
-
M. I. Seltzer, Y. Endo, C. Small, and K. A. Smith.
Dealing with disaster: Surviving misbehaved kernel
extensions.
In Proceedings of the 2nd USENIX Symposium on Operating
Systems Design and Implementation, Oct. 1996.
- [33]
-
M. M. Swift, B. N. Bershad, and H. M. Levy.
Improving the reliability of commodity operating systems.
ACM Transactions on Computer Systems, 22(4), Nov. 2004.
- [34]
-
V. Orgovan, Systems Crash Analyst, Windows Core OS Group, Microsoft Corp.
private communication, 2004.
- [35]
-
R. Wahbe, S. Lucco, T. E. Anderson, and S. L. Graham.
Efficient software-based fault isolation.
In Proceedings of the 14th ACM Symposium on Operating Systems
Principles, Dec. 1993.
- [36]
-
R. S. Wahbe and S. E. Lucco.
Methods for safe and efficient implementation of virtual machines,
June 1998.
US Patent 5,761,477.
- [37]
-
J. A. Whittaker.
Software's invisible users.
IEEE Software, 18(3):84-88, May 2001.
- [38]
-
W. A. Wulf.
Reliable hardware-software architecture.
In Proceedings of the International Conference on Reliable
Software, 1975.
- [39]
-
M. Young, M. Accetta, R. Baron, W. Bolosky, D. Golub, R. Rashid, and
A. Tevanian.
Mach: A new kernel foundation for UNIX development.
In Proceedings of the 1986 Summer USENIX Conference, June
1986.
Footnotes:
1This paper uses the terms "device driver" and
"driver" interchangeably; similarly, we use the terms "shadow
driver" and "shadow" interchangeably.
2This driver is particularly
slow at recovery. The other network drivers we tested
recovered in less than a second.
3For details on the fault injector
see [33].
File translated from
TEX
by
TTH,
version 3.63.
On 4 Oct 2004, 17:04.
|
