Abstract
Voice over IP
(VoIP) is a key enabling technology for the migration of circuit-switched PSTN
architectures to packet-based networks. The problem of spam in VoIP networks
has to be solved in real time compared to e-mail systems. Many of the
techniques devised for e-mail spam detection rely upon content analysis and in
the case of VoIP it is too late to analyze the media after picking up the
receiver. So we need to stop the spam
calls before the telephone rings. From our observation, when it comes to
receiving or rejecting a voice call people use social meaning of trust and
reputation of the calling party. In this paper, we describe a multi-stage spam
filter based on trust, and reputation for detecting the spam. In particular we
used closed loop feedback between different stages in deciding if the incoming
call is a spam or not. For verifying the concepts, we used a laboratory setup
of several thousand soft-phones and a commercial grade proxy server. We
verified our filtering mechanisms by simulating the spam calls and measured the
accuracy of the filter. Results show that multistage feedback loop fares better
than any single stage. Also, the larger
the network size, the harder to detect a spam call. Further work includes
understanding the behavior of different controlling parameters in trust and reputation
calculations and deriving meaningful relationships between them.
1. Introduction
Defending the
country’s telecommunication networks requires cooperation between service
providers, equipment vendors, enterprises and the government. Currently VoIP infrastructure is being
aggressively deployed in enterprises and residential areas without much
security analysis. It is estimated that by 2006 IPPBX deployments will
outnumber the traditional PBX deployments. This can be a clear recipe for a
possible disaster to critical infrastructure like telecommunications
network. There is very little work
reported in the literature on how to defend VoIP against attacks like DOS
(Denial of Service), session hijacking and termination, monitoring and
eavesdropping, service disruption, toll fraud, identity fraud, spamming etc..
Also, the impact of vulnerabilities on a large scale (e.g., several millions of
IP phones) VoIP network is not well understood. Hence it is imperative that we
investigate the vulnerabilities and threats to residential communities due to
the new real-time services like VoIP. All the threats need to be addressed
before VoIP services are deployed on a mass scale because the lack of security
has the potential of delaying and disrupting next generation voice
communications.
The possibility of VoIP network
replacing the PSTN network depends on enhancing the existing IP network to
carry voice traffic. With the usage of IP network to carry voice traffic,
existing problems on the IP network holds for the VoIP network too. One of the
major issues that the present day IP networks face is the problem of
controlling spam - the unsolicited bulk mail. Spam control has been perceived
to be the most important problem of research with present traditional e-mail
systems. The problem of spam is increasing day-by-day and recent results
indicate that of all the e-mail that is circulating in the internet right now,
as high as 80% of that is spam (junk or unsolicited messages). A study[12] by
Radicati Group a California based consultancy states that “last year daily
global e-mail traffic via the Internet amounted to 56.7 billion messages per
day. Of that, the firm says, 25.5 billion messages were spam, or about 45%.
Daily traffic is expected to rise above 68 billion messages per day, and more
than half of it--52%--will be spam With this magnitude of junk or spam messages
circulating all through the internet every day, the problems like low
availability, network congestion etc. would not be a surprise. In VoIP
networks, spam refers to the unsolicited voice calls, which end up consuming
many resources on the end VoIP phones and intermediate VoIP infrastructure
components. With the advent of VoIP and openness of internet, the spamming
attacks on the VoIP infrastructure are estimated to take the world to the same position
as the traditional e-mail systems with respect to e-mail spam. While there are
many techniques that have been designed to avoid e-mail spam, such techniques
can be of limited application to avoid the problem of voice spam. The reason
lies in the real time application of VoIP. The problem of spam in VoIP
networks has to be solved in real time compared to e-mail systems. Compare
receiving an e-mail spam at 2:00 AM that sits in the Inbox until you open it
next day morning to receiving a junk voice call at the same time. Moreover,
many of the techniques devised for e-mail spam detection rely upon content
analysis. The same with VoIP calls is already late.
2. Background
Most of the present day e-mail spam filters employ content
filtering as both the signaling and media arrives at the spam filter at the
same time. Content filtering is not useful in VoIP spam analysis as media flows
in after the two participating entities have agreed upon to start the
communication and would be too late to filter the call. This poses a serious
challenge of detecting spam in real time with the available signaling messages
and a danger of increasing the end-to-end delay on the communication between
participating entities during call set up.
There
is a lot of literature on spam filtering for the present day e-mail
infrastructure. Spam filters have known to use a wide variety of filtering
mechanisms like text classification and rule based scoring systems, Bayesian
filtering, pattern recognition, identity recognition etc
[1][2][3][6][7][8][10]. Cohen[8] recommends spam filtering based on a set of
rules for identifying the message body content. Features of the message are
identified and scored to compute the total spam score of the e-mail spam
message and the messages having a score more than a given threshold is
identified to be spam e-mail. Large quantities of spam and legitimate messages
are used to determine the appropriate scores for each of the rules in the
rule-based scoring systems. Sakkis[7] suggests probabilistic inference for
calculating the mutual information index (MI) and a vector of attributes having
the highest MI scores is constructed for spam identification. The
Memory-based algorithms attempt to classify messages by finding similar
previously received messages by storing all training instances in a memory
structure, and using them directly for classification. Soonthornphisaj[6] spam
filtering technique works by constructing the centroid vector of the e-mail and
is classified based on its similarity measured
between the centroid vector of spam e-mail class and the legitimate e-mail
class. Rigoutsos[10] suggests pattern discovery scheme for
identifying unsolicited e-mails by training the system with a large number of
spam messages. The system matches the e-mail message with the available
patterns; more the patterns are matched more is likelihood that the message is
spam. Sahami[1] proposes that incorporating domain specific features in
addition to identifying various textual phrases and probabilistically inferring
the spam behavior of the constructed message vector leads to a more accurate
spam analysis. All the solutions account for some sort of identification and
filtering based on message body content. These solutions do not have direct
applicability to VoIP systems, as content filtering cannot be achieved before
the users communicate.
The standard for VoIP, SIP (Session
Initiation Protocol), establishes an open model where users have IP phones
linked to the pervasive Internet infrastructure. To realize the objective of
receiving a call from a person anywhere in the world, static junk call
filtering mechanisms have to be replaced with adaptive learning systems. These
systems apart from learning spam behavior have to account for modeling human behavior.
For example, whenever a phone rings, we first look into our state of mind (or
presence), and see if the call is from a trusted party. If we do not know who
the caller is, then we guess the trust and reputation of the calling party.
After picking up the telephone, we query and move forward only when we are
satisfied with the response. Similarly, our proposed research uses an
intelligent call admission control consists of the presence of the called party
(e.g., state of mind, location), the rate of incoming calls from a given user
(by computing first and second order differentials), trust between calling and
called parties (using Bayesian theory), and reputation graphs based on the
social network of the calling party. In addition, all the above techniques are
combined in deciding whether to accept/reject a call or forward it to voice

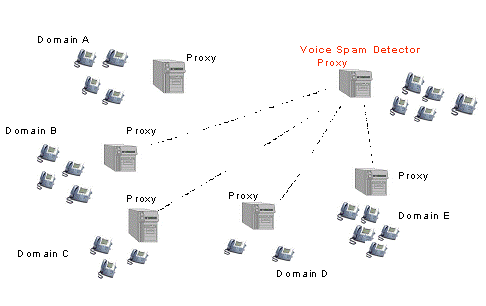

mail. We propose a Voice Spam Detector(VSD) acting as a separate process
running along with the domain proxy and processes the incoming call and informs
the proxy about the spam nature of the call based on past feedback from the end
users in its domain.
VoIP
spam detection process does not pertain to a single technique of detection. The
detection needs to be done using various techniques at different stages. At
each stage the spam detection process qualified by that stage eliminates most
of the spam and any subsequent spam left through or forwarded would be
quarantined in the next stage. The techniques employed at each stage would
determine the spam behavior of the call and with the available feedback
information from the called domain end user, the call is either stopped or
forwarded to the user voicemail box. The basic criterion on which the call
processing depends is on whether a similar call had been designated as a spam
or a valid call before.
3.1
Architecture
The
architecture behind the spam detection process would take into account all the
user preferences of wanted and unwanted people, his or her presence of mind,
the reputation and trust of the calling party. The basic architecture would be
as shown in Figure. Each stage represents a technique based on which the call
would be quarantined by employing a specific set of mechanisms and user
feedback. Each stage of the spam detection process gives feedback about the
possibility of the call to be spam and the collective inference of all stages
would give the spam nature of the call that can be used for quarantining the
call.
Fig
1: Functional
Elements of VSD
3.2
Functional Elements in Voice spam Detection
Presence: Whenever we receive a
voice call, we normally pick up the telephone receiver depending on our state
of mind. So, the definition of a spam call depends on one’s ‘state of mind’.
Hence the first step in this filtering process is the characterization of spam
depending on the state of mind. For example, a state of mind changes depending
on a location, do-not-disturb-me mode, follow-me mode, and
911-emergency-mode. One example of
assessing the state of mind is to synchronize the system with an individual’s
calendar. The filtering process that takes place during this stage is based on
static/dynamic rules (like firewall rules).
Rate
Limiting: Based on known traffic
patterns, signatures can be used to detect the rate of incoming calls. For example,
velocity and acceleration values (first and second order derivative) of the
number of arriving calls from a given user/host/domain can be used as a
detection mechanism. That is, when the velocity/acceleration reaches a certain
threshold, the drop rate can be updated through feedback control. As expected,
the sooner we detect a change in the incoming pattern based on signatures, the
faster there will be a reduction in the spread of the spam. Once spamming is
identified, PID (Proportional Integral Control) feedback control can be used to
reduce the velocity of spreading. This method of detection is useful not only
in deterring spamming attacks but also in DOS (denial of service, where large
number of messages sent in a short period of time) attacks. All the results
have been discussed in[5].
Black
and White Lists: Most of the spam
detection is done using a set of valid and invalid signatures. These signatures
would make the Spam detection server know which calls the server has to forward
and which calls the server has to block. This is a direct way of quarantining
the calls where the end user would specify a set of entities from which it is
always ready to receive calls encoded in white lists and a different set of
entities from which it would like to see all calls being blocked that are
encoded in Blacklists. The entities might be any of the end user or an end
soft-phone or a domain. Depending upon the specification of the end user, the
specified calling users would be allowed or denied calling. The lists are
customized. i.e. each end user would have the flexibility of specifying its own
entries. Entries differ in each of the lists specified by different end users
and thus would have no bearing whatsoever of influencing the call forwarding or
blocking of other end users. i.e. each end user would be guaranteed of
forwarded or denied calls based on its own customized list. The Voice Spam
Detector would let forward all the calls from the trusted elements in the white
lists and block all the calls from un-trusted elements in the blacklist.
The black and white lists are constructed using user feedback to the
VSD. When after forwarding the call, the user responds with a spam feedback
message saying that the present call was a spam call to the VSD, the VSD adds
the new entry to the black list and any future call with the same parameters is
directly blocked at the server and is not forwarded. On the other hand, if the
user specifies that the present call is important to it and want to receive any
such calls in the future with these parameters, the entry is added to the user
white list and any future calls with the same parameters are directly forwarded
to the end user.
Bayesian Learning:
Learning the behavior of the participating entities would let us make many
intelligent decisions regarding the call. The behavior of the participating
entities can be learnt during the course of a period of time. The behavior can
be estimated by their past history of calling to the called party’s domain end
users. This process of observing the calling party’s behavior over a period of
time is termed as Learning. Learning as such represents an abstract modeling of
the calling party’s past behavior. The observed behavior over the period of time
would classify the participating entities as spam producing or valid.
For an incoming call,
the VSD would examine the participating entities like the call source (end user,
host, domain etc.), participating proxies in routing etc with the help of fields
like “from”, “to”, “record route”, “via”. VSD checks for any spam behavior
associated with any of the participating entities by looking up trust
information available for those entities. The trust information would be
available if any of the entities has a history of calling an end user in the
analysis domain. The spam probability of the call(i.e., associated trust level
of the call) can be computed using Bayesian inference techniques [1]. The spam
probability of an incoming call is P(X | C = spam) for a message X= {x1,x2,x3…xn}
and can be calculated by
where each of x1..xn
represent different identifiers in the header of a signaling message, like
“From”, “To”, “Via” “Record Route”, and “Contact Info”). VSD would be filtering
out the calls if the spam probability of the call would be greater than the
permissible limit or tolerance level. Otherwise, the call is forwarded to the
actual recipient of the call and the VSD waits for a feedback from the
recipient. All the call processing depends on the end users reaction on the just
forwarded call. The recipient responds with a message about the nature of the
call. If the recipient responds with a message saying that the present call is a
spam call, the VSD logs the call source information for future spam analysis.
Future calls with any of the above participating entities would have a high
degree of spam probability and more chances of getting stopped at VSD. On the
other hand, if the recipient responds with a valid call message, the trust of
the participating entities is updated to depict more valid probability i.e. less
spam probability. Often, the called party does not know the calling party and
hence there is no history of trust for a specific caller. In this context, we
can infer the reputation of the calling party by using social networks.
The permissible limit
or tolerance level is chosen by giving a preference of valid calls over spam
calls i.e. the number of spam messages that can be let in so as to minimize the
blocking of valid calls called “False Positives”. The main aim of any spam
filtering technique should be to minimize the “False Negatives”(spam calls let
in as valid) keeping the false positives to zero. This ratio of valid calls to
permitted spam calls would give a measure of the permissible limit. And any call
that exceeds the permissible limit would be classified as spam and quarantined.
Social Networks and
Reputation: Social networks can be used to represent user relationships that
can be derived along the paths of the network. These relationships are
transitive and transparent [4]. If Alice is related to Bob and Bob is related to
Charles, then with a high degree of confidence, an argument can be made that
Alice is related to Charles. These social networks can be used to infer the
associated relations between the social elements. With respect to a VoIP service
user, the user’s social network represents the associated and trusted neighbors
from which the user is willing to receive calls.
With respect to a
proxy, a graph can be generated using the neighboring proxies and their users.
Subsequently this graph can be used in deriving the reputation of a calling
party. Reputation implies social understanding. Reputation is derived from
trusted peers (e.g., nearest proxies reachable in one hop) while the trust is
calculated based on the past history. The peer proxies would derive reputation
by their trusted peer proxies, and this would continue until the last proxy in
the “via” list or the proxy that is reachable from source by one hop is reached.
Based on the reputation inference from the peer proxies of the source and the
entities in-between, the reputation can be inferred. If R (a,b) gives a’s
reputation on c, R(a,c) = Q(R(a,b),R(b,c))
for all (b) in trust-neighbors of (a). We believe that
Q is a Bayesian inference function on
the proxies bearing the topology depicted by the graph. For a given call to an
end user in the receiving domain, the reputation of the domain from which the
call originated is inferred and the spam probability of the call obtained by
trust inference is updated based on reputation inference. If the call is let
through VSD to the receiving end user, based on the feedback given by the end
user to the VSD, the reputation of the call originating domain and all
intermediate domains that have routed the call are updated. The update is
positive for a valid call and negative for a spam call.
Fig
2: Reputation Inference for a call
from Domains D to A
Many a
times, trust and reputation are used for representing human belief. Trust
represents caller’s past behavior while reputation signifies social status.
While trust is a calculated entity, reputation is derived. Reputation is
inferred by modeling human behavior. i.e., in [Fig 2], if there was a spam
call from domain D to domain A through domain C, then the reputation of D is
decreased and also the reputation of C is decreased for forwarding a spam call.
For a second spam call from domain D to domain A, the decrease in reputation is
more than compared to the decrease for the first spam call. Also, the decrease
in reputation for a spam call is more than the increase in reputation for a
valid call. We achieve this by increasing the reputation additively for a valid
call and decreasing multiplicatively for a spam call i.e. an additive
increase and multiplicative decrease in reputation. In this way, using
reputation and trust from past history, the calls can be quarantined or
classified as spam.
For the given topology graph in [Fig 2], reputation
is inferred by using Bayesian networks. For a call form domain D to domain A,
the reputation can be inferred by calculating P(A|D) i.e. the posterior
probability of A given an event that a call has been generated at D.
P(A|D) = P(A,B|D) + P(A,~B|D)
= P(A|B)P(B|D) + P(A|~B)P(~B|D)
Eq 1
where P(A|B) = P(A,C|B) + P(A,
~C|B) = P(A|B,C)P(C) + P(A|B~C)P(~C)
Eq 2
and P(A|~B) =
P(A,C|~B) + P(A,
~C|~B)
= P(A|~B,C)P(C) + P(A|~B,
~C)P(~C)
Eq 3
P(C) = P(C,D) + P(C,
~D) = P(C|D)P(D) +
P(C|~D)P(~D)
Eq 4
Solving equations
1-4 gives the updated probability or updated reputation of D. For a given set of
initial or prior probabilities to the nodes of the topology graph representing
the reputation of those domains, for a spam call from domain D to domain A the
Bayesian inference calculations shown above would decrease the reputation for
B,C and D proxies, and increase the reputation for a valid call for the same.
4. Experimental Setup and Results
The
experimental setup consists of the Voice spam detection server, the end users
for whom the VSD is acting as a spam detector and the call generating domains
from which calls would be generated to the end users in the receiving domain.
The end clients in the calling domain and the called domain are simulated SIP
soft clients strictly in compliant with SIP RFC[11]. All the simulated
clients and the Voice Spam Detector are compatible with the real SIP phones and
are capable of establishing sessions with them. The simulated clients on
the call-generating end generate calls by using randomly chosen usernames and
hosts in the SIP URI of “from” field. The call generation process uses a
Bernoulli distribution and the calls are generated with an average rate of 8
calls/minute. Neither the VSD nor the called domain end users have any idea
regarding the call generation process. A button called “SPAM” included in
each IP phone in the receiving domain to give feedback to the VSD.
Fig
4:
Experimental Setup showing the Calling and Receiving domains.
The simulated end clients on the call
generating end randomly generate calls to the VSD and the VSD analyzes the call
based on the caller trust and reputation. VSD calculates the spam probability of
the call and compares with a predetermined threshold value to infer the spam
behavior and block them. The threshold values chosen for each stage of analysis
depends upon factors like the learning period, minimization of false alarms
(false positives and false negatives) etc. Learning period signifies the
minimum number of calls required by the VSD to learn the spam behavior before
it starts blocking spam calls.
The called domain users are equipped with
spam recognition capabilities. We configure the calling domain with randomly
chosen set of users, hosts and domains as spammers before the start of the
experiment. The call received by the receiving client is analyzed and a
feedback is given to the VSD about the nature of call. The Voice Spam Detector
learns by observing the calling pattern with respect to called users, hosts and
domains and the received feedback. [Fig 3] gives the SIP call flows for both
the spam and valid calls respectively.
Fig 3: Call Flow for Spam and Valid calls through the VSD
Fig 5: Comparing the actual calls generated,
actual spam calls generated and filtered calls.
[Fig 5]
represents the comparison between total calls, total spam calls generated and
number of spam calls blocked by the VSD. The results are shown for five calling
domains with each domain having an average of 100 users and 35 hosts. The
number of calls blocked is a result of all the three stages of analysis [See
Sec 3.2]. i.e. the black and white listing, trust (past history) and reputation
of the calling party.
Fig
6: Spam
Detection Accuracy increases with time.
[Fig 6]
represents the comparison between the spam calls generated and filtered calls
by the VSD. Initially VSD has no knowledge of spam generating clients, but
learns the spam behavior with time and feedback from the end users. The spam
calls detected are equal to the actual spam calls generated after certain
learning period with an accuracy of 97.6% and a false positive percentage of
0.4%.
Fig 7: Spam Calls blocked by VSD
for different stages of analysis.
[Fig 7] shows
the spam calls blocked for the three stages of analysis. The experiments are
conducted with a random 100 users and 35 hosts in each of 5 domains on the call
generating end. It can be observed that the number of spam calls blocked using
blacklisting, trust and reputation is approximately 97.16% compared to 4.25% if
only blacklisting is implemented.
Fig
8: Blocked
Spam Calls for increasing scalability on call generation.
[Fig 8] gives the number of spam calls blocked for three
different sizes of topology. The time taken by VSD for learning spam behavior
from 20 domains is more compared to time taken for 15 domains for the same set
of spammers i.e. for the same set of spam users, hosts and domains. However, the VSD would have the near about
the same approximate accuracy of spam recognition when the number of spammers
increase with increase in the number of call generating users, hosts and
domains. For the analysis shown in [Fig 8], the false alarms and the accuracy
of VSD is as shown in [Tab 1].
|
# of
Domains
|
Filter
Accuracy %
|
False Positives %
|
False Negatives %
|
|
5
|
97.6
|
0.4
|
2
|
|
15
|
97.52
|
0.19
|
2.3
|
|
20
|
97.595
|
0.11
|
2.36
|
Tab 1: False Alarms and Spam recognition accuracy for
the analyzed calls in Fig 8.
5. Conclusion
It is estimated that 35 billion spam email messages per day were generated in 2004. These messages are nuisance to the receivers and in addition create low availability and network
congestion. VoIP technology is replacing existing PSTN at a rapid pace. The problem of spam in VoIP networks has to be solved in real time compared to e-mail systems. Many of
the techniques devised for e-mail spam detection rely upon content analysis and in the case of VoIP it is too late to analyze the media after picking up the receiver. So we need to
stop the spam calls before the telephone rings.
In computing, trust has traditionally been a term relating to authentication, security, or a measure of reliability. When it comes to receiving or rejecting a voice call social
meaning of trust is applied and in particular reputation of the calling party is analyzed. We developed a five-stage process for identifying if the incoming call is spam or not. These
stages include multivariable Bayesian analysis and inferring reputation using Bayesian networks. The results from each stage are fed back for collaboration between different processes.
We have verified the results using an experimental setup consists of more than randomly generated calls from several thousand soft clients and a SIP proxy server. This setup includes
commercial grade proxy server software as well as soft client. We have added the spam filter software at the proxy server for preventing and detecting the spam. We found that combining
black/white lists, trust of the calling party and reputation of the calling party can be used accurately to identify if it is a spam or not. In this analysis we have used a concept where trust
can be built up over time but a single spam call can exponentially bring down the trust level. We used this concept and found that the call can be more accurately identified as spam after
a period of learning. From our observation of the logs it takes at least 3 spam calls to confirm it is a spam and fourth call can be accurately identified as the spam. Finally we expanded
the experiments with large number of domains and verified our filtering mechanism. Further work involves understanding the behavior of different controlling parameters in trust and
reputation calculations and deriving meaningful relationships between them. Also, we believe that our multistage filtering architecture can be used in prevented unwanted emails as
well as in electronic commerce.
References
1.
M.
Sahami, S. Dumais, D. Heckerman, and E. Horvitz. 1998. A Bayesian Approach to
Filtering Junk E-Mail. Learning
for Text Categorization – Papers from the AAAI Workshop, pages 55–62, Madison Wisconsin. AAAI
Technical Report WS-98-05.
2.
G.
Salton, M.J. McGill. 1983. Introduction to Modern Information Retrieval.
McGraw- Hill.
3.
T.M.
Mitchell, Machine Learning. McGraw-Hill, 1997.
4.
J.
Golbeck, J. Hendler, ”Reputation Network Analysis for Email Filtering”, IEEE
conference on Email and Anti Spam, August 2004.
5.
R. Dantu,
J. Cangussu, A. Yelimeli, “Dynamic Control of Worm Propagation”, IEEE
International Conference on Information Technology ITCC April 04
6.
N.
Soonthornphisaj, K. Chaikulseriwat, P Tang-On, “Anti-Spam Filtering: A Centroid
Based Classification Approach”, IEEE proceedings ICSP 02
7.
G.
Sakkis, I. Androutsopoulos, G. Paliouras, V. Karkaletsis, C.D. Spyropoulos, P.
Stamatopoulos, “A memory based approach to anti-spam filtering for mailing
lists”, Information Retrieval 2003.
8.
W.W. Cohen, “Learning Rules that Classify
e-mail”, In Proceedings of the AAAI Spring Symposium on Machine Learning in
Information Access, 1996.
9.
P.O.
Boykin, V. Roychowdhury, ”Personal email networks: an effective anti-spam
tool”. Preprint, http://www.arxiv.org/abs/cond-mat/0402143, (2004).
10.
I
Rigoutsos, T. Huynh, “Chung-Kwei: A Pattern Discovery based System for the
Automatic Identification of Unsolicited E-mail messages”, Proceedings of the
first conference on E-mail and Anti-Spam, 2004.
11.
J.
Rosenberg, H Shulzrinne, G Camerillo, A Johnston, J Peterson, R Sparks, M.
Handley, E. Schooler, ”Session Initiation Protocol”, RFC 3261, June 2002.
12. http://www.forbes.com/technology/2004/02/27/cx_ah_0227tentech.html
Need help?
