Pp. 83–98 of the Proceedings

Trusting Trusted Hardware: Towards a Formal Model for Programmable Secure Coprocessors

Disclaimers, etc.

Abstract

Formal methods provide one means to express, verify, and analyze such solutions (and would be required for such a solution to be certified at FIPS 140-1 Level 4). This paper discusses our current efforts to apply these principles to the architecture of our secure coprocessor. We present formal statements of the security goals our architecture needs to provide; we argue for correctness by enumerating the architectural properties from which these goals can be proven; we argue for conciseness by showing how eliminating properties causes the goals to fail; but we discuss how simpler versions of the architecture can satisfy weaker security goals

We view this work as the beginning of developing formal models to address the trust challenges arising from using trusted hardware for electronic commerce.

1. Introduction

However, using trusted hardware as a foundation for real e-commerce applications gives rise to an additional requirement: validating that trust. Many e-commerce efforts cite FIPS 140-1 [NIST94] (even though this U.S. government standard addresses crypto modules, not general-purpose secure coprocessors). Certification to this standard means that the device passed a suite of specific tests [HMMW95] administered by an independent laboratory. Level 4 (the most stringent level in the standard) requires that secrets are rendered unavailable in all foreseeable physical attacks---the standard definition of a high-end ``secure coprocessor.'' As of this writing, no device has ever been certified at that level.

Our team plans to meet this trust requirement by submitting our hardware for full certification at FIPS 140-1 Level 4, and (as a research project) carrying out the formal modeling and verification that would be necessary for also certifying the bootstrap software at Level 4. Besides applying formal methods to a sizable, implemented system, this project is challenging because it applies a standard originally crafted for cryptographic modules to programmable secure coprocessors, the flexible platform necessary for e-commerce applications.

This effort involves:

• building a formal model of the configuration of a programmable secure coprocessor

• expressing the security requirements in terms of this model

• translating the bootstrap software and other aspects of system behavior into a set of transformations on this model

• formally verifying that the security properties are preserved by these transformations

The Potential of Trusted Hardware The security of electronic commerce applications requires that participating computers and storage devices correctly carry out their tasks. An adversary who modifies or clones these devices can undermine the entire system. However, in many current and proposed electronic commerce scenarios, the adversary may have physical access to machines whose compromise benefits him. These threats include insider attack, attacks on exposed machines, and dishonest users attacking their own machines.

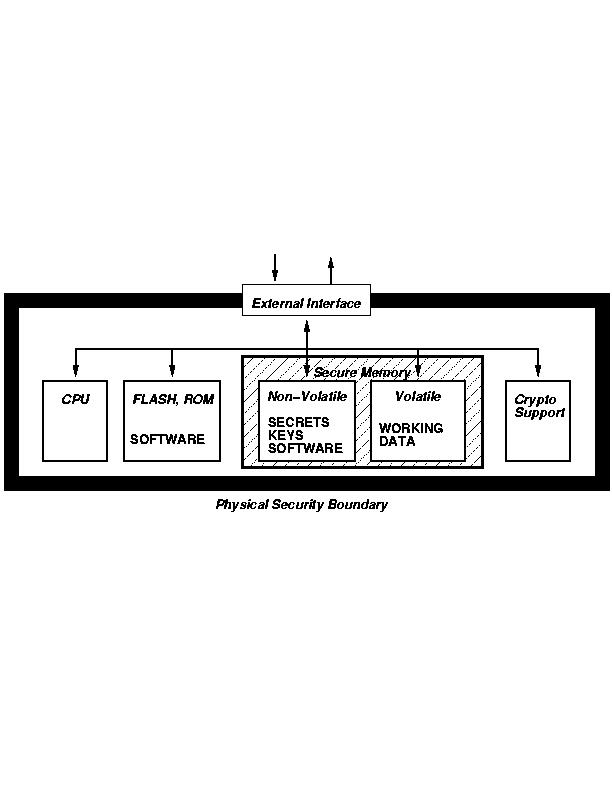

A secure coprocessor is a general-purpose computing device with secure memory that is protected by physical and/or electrical techniques intended to ensure that all foreseeable physical attack zeroizes its contents. Previous work at our laboratory [Pa92,Wein87,WhCo87,WWAP91] explored the potential of building a coprocessor with a high-end computational environment and cryptographic accelerators, encapsulated in protective membrane and protected by tamper-response circuitry that senses any physical changes to this membrane. Subsequent work at CMU [TyYe91,Yee94] used these prototypes to define and demonstrate the power of the secure coprocessing model---achieving broad protocol security by amplifying the security of a device trusted to keep its secrets despite physical attack. In particular, this model addresses many security problems in electronic commerce applications [YeTy95].

Building Trusted Hardware In order to move the secure coprocessing model from the research laboratory into real-world e-commerce applications, our group, over the last two years, has been researching, designing, and implementing a mass-produced high-end secure coprocessor. We needed to accommodate many constraints:

• A device must detect and respond to all foreseeable avenues of tamper.

• We cannot rely on physical inspection to distinguish a tampered device from an untampered device.

• A device must be tamper-protected for life, from the time it leaves the factory---the field is a hostile environment.

• Nearly all software on the device---including most bootstrap, and the operating system---must be remotely replaceable in the field without security officers, secure couriers, or other trusted physical channels.

• The different layers of software within any one device must be controllable by different, mutually suspicious authorities---so we need to allow for malicious authorities, as well as Byzantine failure of fundamental code (such as the OS or bootstrap).

• Different end-users of the same application (but on different coprocessors) may not necessarily trust each other---and possibly may never have met.

• Nevertheless, an application running on an untampered device must be able to prove, to all concerned, that it's the real thing, doing the right thing.

Trusting Trusted Hardware Clearly, a critical component of such a device is effective tamper response: physical attack must zeroize the contents of secure memory, near-instantly and with extremely high probability. Our protections are based on always-active circuitry that crowbars memory when it senses changes to a tamper-detecting membrane, which is interleaved with tamper-resistant material to force attacks to affect the membrane. As widely reported (e.g., [AnKu96,AnKu97,WWAD90]), designing effective tamper-response techniques and verifying they work can be tricky; [SmWe98] discusses the suite of techniques we use in our device, currently under independent evaluation against the FIPS 140-1 Level 4 criteria [HMMW95,NIST94].

Other important components include the hardware and software design that enable fast crypto performance, and the software programming environment that enables applications to easily exploit these abilities.

However, a security architecture must connect these pieces in order to ensure that the tamper response actually did any good. Since developing our architecture required simultaneously addressing several complex issues, we find that presenting this material often leads to the same questions:

• ``What does a secure coprocessor do?''

• ``What is your architecture trying to achieve?''

• ``Why does it have so many pieces?''

• ``Why should I believe it works?''

• ``What if I'm solving a simpler problem, and can eliminate property $X$?''

As part of verification of our commercial design, as well as preparation for future work in secure commerce systems, we are currently developing formal models (based on the formalism which guided the implementation) in which to frame and answer these questions. This paper presents some preliminary results. Section 2 presents English statements of some of the overall security goals for a programmable high-end secure coprocessor. Section 3 refines these statements in more formal terms. Section 4 enumerates the elements of our architecture that makes these properties hold. Section 5 presents some arguments for conciseness of design, by showing how eliminating elements of the design causes these properties to fail. But Section 6 shows how weakening the security properties can lead to simpler designs.

This paper presents a snapshot of one aspect of the broader efforts required to ensure that trusted hardware can be trusted. Section 7 explores some of this broader picture.

2. English Statements of Security Goals

In our design, the non-volatile secure memory consists of battery-backed static RAM (BBRAM). Hardware constraints limited the amount of BBRAM to 8.5 kilobytes; the business goal required that the device carry within it its own software; and our security model did not require that this software be secret (footnote1) from adversaries. Consequently, our design includes a megabyte of FLASH memory (footnote2) as the primary code store; this memory is contained with the secure boundary (so attacks on it should first trigger tamper response) but is not itself zeroized upon attack.

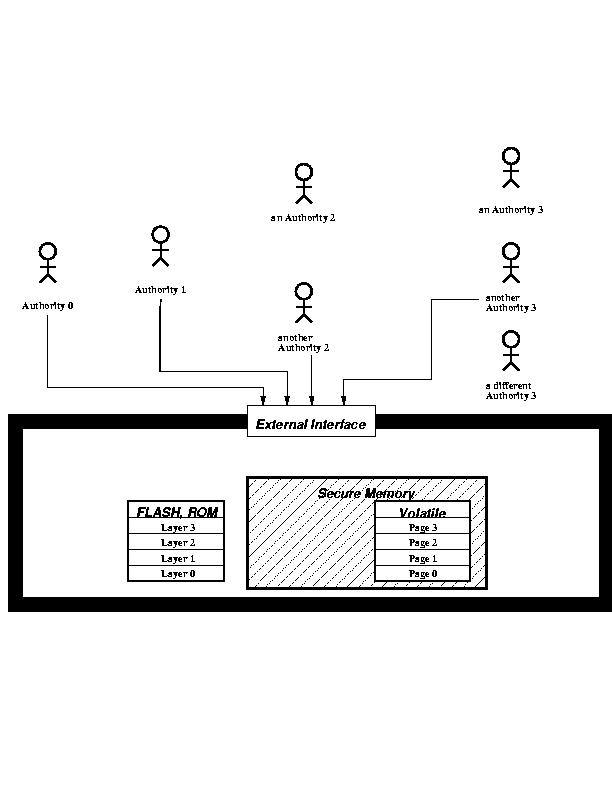

The constraints we faced caused us to partition the code-space in FLASH into three layers: a foundational Miniboot 1 layer, an operating system layer, and an application layer. We refer to a generic layer as Layer $N$; boot-block ROM code is Layer $0$, Miniboot 0. See Figure 2 .

For each device, each of these layers may potentially be controlled by a different authority. Articulating and accommodating the nature of this control constituted one of the major challenges of moving our secure coprocessor from a laboratory prototype to a real-world device.

• We had to permit the authority to be at a remote site, not where the card is.

• We had to recognize that, potentially, no one at the card's site may be trustworthy.

• We had to allow different authorities to distrust each other.

For a particular device, we refer to the party in charge of the software in Layer $N$ as Authority $N$. Each layer includes code, as well as space for a public key (of the authority over that layer), and some additional parameters.

We partition the BBRAM into a region for each code layer: Page $N$ belongs to Layer $N$. Given the multitude of potential owners and the potential failure properties of FLASH, we also must include some notion of the status of a code layer at any particular time: e.g., ``unowned,'' ``owned but unreliable,'' ``reliable but unrunnable,'' ``runnable.''

2.2 Desired Properties

2.2.1 Control of Software

2.2.2 Access to Secrets

2.2.3 Authenticated Execution

• a message from a particular layer $N$ with particular software environment on a particular untampered device

• a message from a clever adversary

2.2.4 Recoverability

These failures include:

• the layer contents themselves become scrambled

• the program in that layer behaves with arbitrary evil intent

Furthermore, for this recovery to be meaningful, we must be able to confirm that the recovery has taken place.

2.2.5 Fault Tolerance

2.3 Justification

• (Section 2.2.1) A party who deploys an e-commerce application on such a device wants to be sure that others cannot alter his code. Otherwise, the application can be subverted by an adversary ``updating'' the program to include a backdoor or Trojan horse.

• (Section 2.2.2) The coprocessor must really provide a trusted environment to safely store application secrets. For example, an adversarial application should not be be able to copy or use secret keys, or modify the balance in an e-wallet.

• (Section 2.2.3) It must be possible for a participant in a coprocessor-based e-commerce application to verify that they are interacting with the correct software on an untampered device. Failure of either of these conditions leaves even basic coprocessor applications, such as cryptographic accelerators, open to attack (e.g., [YoYu96]).

• (Section 2.2.4) Failures and interruptions should leave us with at least a safe state, if not a recoverable one; otherwise, an adversary can be expected to cause the necessary failures and interruptions. The cost of the device, and the inevitability of errors in complex software, stress recovery from Byzantine action by loaded software.

Although arguable necessary, whether this set of properties is sufficient is an interesting avenue for further exploration.

3. Formal Statements of Security Goals

Layer $N$, Authority $N$, and Page $N$ were already introduced in Section 2.1.

The system configuration consists of a tuple of the relevant properties, including:

• a vector of conditions for each layer: its status, owner, code contents, and BBRAM page contents

• whether or not the device has been tampered.

• what other hardware failures may have occurred (e.g., does the DRAM scratch area still work?)

We use standard notation $\pi_N C$ to denote the Layer $N$ component of a configuration $C$.

We organize the possible values of these layer components into a natural partial order. For any $A$, ``owned by $A$ but unreliable'' dominates ''unowned.'' For any $A$ and $P$, ``owned by $A$ with reliable and runnable contents $P$'' dominates ``owned by $A$ with reliable but unrunnable contents $P$,'' which in turn dominates ``owned by $A$ but unreliable.''

For each BBRAM page, we need some notion of ``initial contents.''

For a runnable program at layer $N$, the software environment of $N$ in configuration $C$ consists of the programs and status of the components $\pi_K C$ for $0 <= K <= N$. We denote this by $\env_N C$. Our intention here is that the correct and secure execution of the layer $N$ code on an untampered device depends only on the correct and secure execution of the code in its software environment.

Initial State. In our design, devices are initialized at the factory and left in a configuration where only Layers 0 and 1 are installed, and each of these has a self-generated random secret in its BBRAM page, with a corresponding certificate stored in the FLASH layer. For Layer 1, this is just an RSA keypair, with public key signed by the Factory Certificate Authority (CA); for Layer 0 (which, as ROM, does not contain public-key code), this consists of a set of DES keys, and a certificate consisting of the encryption and signature of these keys by the privileged Authority $0$.

Transitions. The configuration of a device can change due to several potential causes:

• explicit configuration-changing commands, which (in our design) are carried out by the Miniboot layers;

• failures of hardware components, BBRAM and FLASH (discussed further in Section 3.2.5 below)

• tamper events

• ordinary operation of the device, and execution of the code layers.

Tamper. With our earlier assumption that the physical tamper response actually works, perhaps the most natural characterization of tamper is ``the device doesn't have its secrets any more.'' However, this characterization of the effect of tamper-response on secrets overlooks some critical issues:

• The device's secrets may have been copied off-card before tamper, due to exploitation of some error in memory management, and be restored later. (For example, the OS might have a bug that permits a hostile application to download the entire contents of secure memory.)

• The secrets belonging to another device may be loaded into this one, after tamper.

• The device's secrets may still be present after tamper, perhaps due a malicious code-loading command that tricked the device into thinking that the secret storage area contained the new code to be burned into FLASH.

However, the potential for tamper caused further headaches for formal analysis. The possible configuration transformations for a device are governed by its current code layers, and the physical construction of the device. (Indeed, it is the physical construction which causes the tamper response to occur.) Physical tamper can change these properties---and thus arbitrarily change the possible transformations and behaviors after tamper.

Clearly, reasoning about whether a remote party can authenticate an untampered device requires reasoning about tamper. However, our initial work also found it necessary to include ``untamperedness'' as an assumption for many other properties---since without it, no memory restrictions or other useful behaviors can hold with any certainty. This is the reason we ended up including ``memory of being tampered'' as an explicit element in the system configuration: to distinguish traces that have ventured into this terrain, from traces that have remained safe.

Authentication. We need to consider scenarios where needs to determine whether a particular message $M$ came from a particular $A$, or from someone else, and we consider authentication schemes based on some secret possessed by $A$.

For such secret-based schemes, we define the necessary trust set to consist of those parties who, if they abuse or distribute their secrets, can make it impossible for $B$ to make this distinction. For example, in a standard public-key scheme with a single CA, the necessary trust set would include both $A$, as well as the root CA. (In a scheme with multiple certificate authorities, the trust set would include the intermediate certificate authorities as well.)

3.2 Goals

3.2.1 Control of Software

• an untampered device is in valid configuration $C$

• $N >= 0$

• $\auth$ be the set of authorities over $\pi_K C$, for $0 <= K <= N$.

• a sequence of valid transitions takes $C$ to some $C'$, where the device is still untampered

• at least one transition in the sequence from $C$ to $C'$ was caused by a configuration-changing command

• at least the first such command in this sequence required knowledge of a secret belonging to a member of $\auth$

English An authority must be able to control his layer, and (under appropriate conditions) a superior authority should be able to repair that layer.

However, we also need to recognize the fact that failures of hardware or ``trust invariants'' also affect a layer's configuration, even without the action of any of these authorities.

The formal statement above attempts to express that one's layer can be demoted, due to failure or other reasons, but any change that otherwise modifies the contents must be traceable to an action---now or later---by some current Authority $K <= N$.

3.2.2 Access to Secrets

• $A$ is the authority over a layer $N$ in some untampered device in valid configuration $C_0$

• In $\pi_N C_0$, Page $N$ has its initial contents, but no program in $\env_N C_0$ has yet executed since these contents have been initialized.

• $T_A$ is the set of software environments for $N$ that $A$ trusts.

• The device is tampered in $C_k$

• Some $\pi_M C_k$, for $M <= N$, is not runnable

• $\env_N C_k \not\in T_A$

• The contents of Page $N$ are destroyed or returned to their initial state in $C_k$.

• For all $0 <= i < k$, only the programs in $\env_N C_i$ can directly access page $N$.

English This formal statement expresses that once an authority's program establishes secrets, the device maintains them only while the supporting environment is trusted by that authority---and even during this period, protects them from lower-privileged layers.

The overall motivation here is that authority $A$ should be able to trust that any future from configuration $C_0$ is safe, without trusting anything more than $\env_N C_0$---his environment right now.

In particular, we should permit $A$ to regard any of the following to cause $\env_N$ to stop being trustworthy:

• Some $C_i$ to $C_{i+1}$ transition might include a change to the code in layer $K < N$, which $A$ does not trust. (Your parent might do something you don't trust.)

• Some $\pi_K C_i$, for $K > N$ and $i >= 0$, might try to attack layer $N$. (Your child might be try to usurp your secrets.)

• Some other authority in any $C_i$, $i >= 0$, might behave clumsily or maliciously with his or her private key---e.g., to try to change what the device believes is $A$'s public key. (Your parent might try to usurp your authority.)

3.2.3 Authenticated Execution

Then Bob can determine whether $M$ came from this program in this environment, or from some adversary, with a necessary trust set as small as possible.

In particular, Bob should be able to correctly authenticate $M$, despite potential adversarial control of any of these:

• new code in any layer in $C_j$, for $j > k$;

• code in any layer in some alternate configuration $C'$ that follows from some $C_j$ via a sequence of valid transformations, one of which is tamper;

• code in any layer $L > N$ in $C_k$;

• old code in any layer $L > 1$ in $C_j$ for $j < k$.

English This formal statement basically restates Section 2.2.3, while acknowledging that a clever adversary might load new code into the device, including new bootstrap code, or control code already in a lower-privileged layer in that device, or have controlled code that used to be even in layer $N$, but has since been replaced.

3.2.4 Recoverability

• an untampered device is in configuration $C$

• $N > 0$,

• $\auth$ is the set of authorities for $0$ to $N-1$ in $C$.

• $\pi_0 C$ through $\pi_{N-1} C$ are runnable

• $\pi_N C$ is arbitrary (and may have attempted to cause unauthorized configuration changes through its execution)

• $P_N$ specifies proposed new contents for layer $N$.

• $\pi_k C = \pi_k C'$, for $0 <= k < N$

• $\pi_N C = P_N$.

• the device is still untampered in $C'$

• the members of $\auth$ can verify that these properties of $C'$ hold

English The formal statement basically says that, if layer $N$ is bad but the higher-privileged layers are good, then the authorities over these layers can repair layer $N$.

The final condition expresses a necessary but often-overlooked aspect of code-downloading: the ability to repair a device in a hostile environment is often not meaningful, unless one authenticate that the repair actually took place. Did the new code ever get there? (Any secret used to authenticate this fact must not be accessible to the faulty code.)

3.2.5 Fault Tolerance

To achieve the real-world goal of fault tolerance, it is important that our model be as complete as possible: these transformations must include not just configuration-changing commands and ordinary operation, but also:

• improperly formatted but authentic commands

• early termination of command processing

• as many ``hardware failures'' (e.g., FLASH storage failures) as possible

Unlike the other desired property, this goal is best expressed as a meta-statement: the other properties hold, even when the model is expanded to cover these conditions.

However, in the process of carrying out the plan outlined in this paper, we discovered that this requirement leads to quite a few subtleties. For example, we did easily extend our initial formal model to express abnormal termination, but we found it inadequate to address improper formatting. (These issues are potentially amenable to formal models, but not with the level of abstraction we chose.) Consequently, we resorted to a separate, systematic code analysis to address improper formatting.

3.3 Independence

For example, ``Control of Software'' does not imply ``Recoverability.'' A scheme where software could never change, or where software could only change if the public key of that layer's owner was contained in the FLASH segment, would satisfy the former but not the latter.

Conversely, a scheme where any layer owner could change layer $N$ establishes that ``Recoverability'' does not imply ``Control of Software.''

This remains an area for further investigation, particularly with the mechanical theorem prover. Exploring whether this set of necessary properties could be expressed in a smaller, more concise form could be an interesting problem.

4. Correctness

4.1 Architecture Components

4.1.1 Boot Sequence

Our architecture addresses this problem linking device-reset to a hardware ratchet:

• a ratchet circuit, independent of the main CPU, tracks a ``ratchet value'' $\rat$

• hardware ensures that the reset signal forces CPU execution to begin in Miniboot 0 boot-block ROM, and forces $\rat$ to zero.

• software on the CPU can increment the ratchet at any point, but only reset can bring it back to zero.

We model this by introducing an execution set of programs that have had control or have been invoked since reset. Hardware reset forces the execution set to empty; invocation or passing control adds a program to the set.

4.1.2 Hardware Locks

• The protected FLASH segments can only be written when $\rat <= 1$.

• Page $N$ in BBRAM can be read or written only when $\rat <= N$.

4.1.3 Key Management

As noted earlier, Miniboot 1 generates a keypair during factory initialization; the private key is retained in Page 1 and the public key is certified by the factory CA. Miniboot 1 can also regenerate its keypair, certifying the new public key with the old private key. In our design, Miniboot 1 generates a keypair for use by Layer 2; the private key is left in Page 2, the public key is certified by Miniboot 1, and the keypair is regenerated each time Layer 2 is altered. Lacking public key code, Miniboot 0 possesses a set of random DES keys used for mutual secret-key authentication with Authority 0.

Section 4.2.3 and Section 5.2 below discuss this in more detail, as does the architecture report [SmWe98].

Both the BBRAM and the FLASH locks play a critical role in this solution: the BBRAM locks ensure that the secrets are accessible only by the right layers, and the FLASH locks ensure that the right layers are what we thought they were.

4.1.4 Authentication Actually Works

Our design addresses this problem by having each Authority $N$ ($N >= 1$) generate an RSA keypair and use the private key to sign commands; Miniboot 1 verifies signatures against the public key currently stored in Layer $N$. (With no public-key code in Miniboot 0, Authority 0 uses secret-key authentication.)

However, reasoning that ``Miniboot accepted authenticated command from Authority $N$'' implies ``Authority $N$ signed that command'' requires many additional assumptions:

• the intractability assumption underlying cryptography are true;

• keys are really generated randomly;

• the authorized owner of a private key actually keeps it secret;

• Miniboot 0 does not leak its secret keys; and

• Miniboot correctly carries out the cryptographic protocols and algorithms.

4.1.5 Code Actually Works

For example:

• reasoning about the identity of $\env_N$ in some configuration $C$ requires assuming that the code in previous configurations correctly followed the policy of updating code layers;

• reasoning about the behavior of $\env_N$ in some configuration requires assuming that $\env_{N-1}$ correctly evaluated and responded to hardware failures and other status changes affecting Layer $N$, and actually passes control to Layer $N$ when appropriate;

• asserting that only $\env_N$ can access Page $N$ requires not just the BBRAM locks, but also the assumption that each Layer $K < N$ correctly incremented the ratchet (as well as the assumption that $\env_N$ is and does what we thought)

Proving these assertions will require careful mutual induction: e.g., establishing that code layers change only through the action of Miniboot requires first establishing that Miniboot hasn't changed in an unauthorized way.

Given the fact that Miniboot 1 itself can change, this means that most trust assertions about the architecture will follow the schema ``believing $X$ is true for the system, from now on, requires believing that Miniboot does $Y$ right now.''

4.2 Assumptions for Goals

4.2.1 Control of Software

• demotion of status can occur via failure response;

• any other transition requires an authenticated command; and

• the authority issuing this command must have been in the authority set at $C$.

4.2.2 Access to Secrets

If $C_i$ differs from $C_{i-1}$ for at least one of the following reasons:

• the device is tampered

• $\env_N C_i$ stopped being fully runnable

• $\env_N C_i \not\in T_A$

then $C_i$ also differs in that the contents of Page $N$ are cleared or returned to initial state.

Enforcing this invariant requires developing some reasonable way that the device can determine whether or not a new configuration is still a member of $T_A$. We adopted some simple trust parameter schemes to characterize the detectable $T_A$, then further reduce this detectable set by requiring that

• the device itself must be able to confirm that a new $\env_N \in T_A$

• by directly verifying its signature against a reliable public key currently in Layer $N$

• before the change occurs

The fact that this invariant is enforced by Miniboot code that is itself part of $\env_N$, and subject to untrusted change, complicates this implementation. If the $C_k$ transition involved the loading of an untrusted Miniboot, we ensure that trusted Miniboot code currently part of $\env_N C_{k-1}$ ensures that Page $N$ secrets are erased before the transition succeeds. The fact that, if $A$ does not trust a new Miniboot in $C_k$, it cannot trust Miniboot to correctly carry out authentication in $C_k$ and the future, leads to some additional protocol considerations.

4.2.3 Authenticated Execution

Suppose Bob is trying to authenticate a message from layer $N$, in $C_k$. For simplicity, let suppose $0<= N <= 2$. (The argument extends to the 3-layer schemes discussed in [SmWe98].)

The hierarchical nature of code layers, coupled with the fact that each layer $N>0$ is replaceable, gives a two-dimensional history of code changes. We can extract this history from the configuration sequence $C_0,...C_i...$ undergone by an untampered device: each $\pi_N C_i$ depends on $\pi_{N-1} C_i$, and is succeeded by $\pi_N C_{i+1}$.

These two dimensions create two dimensions for spoofing: in one axis, some $\pi_j C_k$ might have sent the message, for $j != N$; in the other, some $\pi_N C_j$ might have sent the message, for $\env_N C_j != \env_N C_k$.

If $N = 0$, the preliminary subgoal that only $\env_N$ sees Page $N$ gives the result---with Bob's necessary trust set consisting of Miniboot 0, $\pi_1 C_0$ (since Miniboot 1 at the factory participates in initialization) and the Authority 0/Factory CA.

If $N = 1$, the preliminary subgoal coupled with the regeneration policy, gives the result---with Bob's necessary trust set consisting of Miniboot 0, the Factory CA, and each version of Miniboot 1 from $\pi_1 C_0$ up to $\pi_1 C_k$. (The fact that any code-changing action of Authority 0 requires repeating factory certification removes Authority 0 from this set).

If $N = 2$, the preliminary subgoal along with the layer 2 key policy gives the result---with Bob's necessary trust set consisting of the $N = 1$ set, along with $\pi_2 C_k$.

This necessary trust set for $N = 1,2$ is arguably minimal:

• a secret-based scheme forces the factory CA, and $\pi_1 C_0$ (the on-card code that participates in initialization) to be in the set;

• $\pi_N C_k$ must be in the set

• the on-card components in the set must be ``connected'': some certification path must exist from the initializer $\pi_1 C_0$ to $\pi_N C_k$

• from hierarchical dependence, the set must be ``bottom-closed'': if $\pi_j C_i$ is in the set, then so must be $\pi_{j-1} C_i$.

4.2.4 Recoverability

4.2.5 Fault Tolerance

However, various constraints forced our design to depart from standard atomicity---a change fails completely or succeeds completely---in a few subtle ways.

First, hardware constraints permit us to have redundant FLASH areas only for Layer 1---so reburns of Layer 2 or 3 force the device first to erase the entire Layer, then reburn it. We handle such destructive transitions by implementing a sequence of two transitions, each of which is atomic. The intermediate failure state is taken to a safe state by the transformation performed by clean-up at the next boot.

Second, some failures can leave the device in a fairly odd state, that requires clean-up by execution of code. We handle these situations by having Miniboot 0 in ROM enforce these clean-up rules, and using the boot sequence subgoal to argue that this clean-up happens before anyone else has a chance to perceive the troubled state. This complicates the formal analysis: atomicity of configuration change does not happen to device configurations as they exist in real time, but device configurations as they can be perceived.

Our design permits the code authorities to specify what family of untampered devices (and with what software environments) should accept a particular code-loading command. These target features provide the hooks for authorities to enforce the serializability and compatibility rules they find important.

5. Conciseness

5.1 Code Loading

The correctness of our scheme follows from a number of items, include the ratchet locks on FLASH, the ratchet locks on BBRAM, and the trust parameters for what happens to Page $N$ when something in $\env_N$ is changed.

If our scheme omitted FLASH locks, then we could no longer be sure what layer code is carrying out code changes, and what's in the contents of the code layer that is supposed to be evaluating and carrying out the changes.

If our scheme omitted BBRAM locks, then we would not be able to authenticate whether a change has actually occurred---so, for example, we could never recover from a memory-manager vulnerability in a deployed operating system.

If our scheme forced all code changes to erase all BBRAM, then we would lose the ability to authenticate an untampered device while also performing updates remotely in a hostile field---since the device, after the code change, would not be able to prove that it was the same untampered device that existed before the change, one would have to rely on the testimony of the code-loader.

If we did not treat untrusted changes to Miniboot 1 differently from the other layers, then we would force authorities to be in the inconsistent situation of relying on code they no longer trust to correctly evaluate statements about what they do or do not trust.

5.2 Authenticated Execution

If the device Page 1 keypair was not regenerated as an atomic part of Miniboot 1 reloads, then it would be possible for new code in $\pi_1 C_{k+1}$ to forge this message. Regeneration protects against attack by future, evil versions of Miniboot 1.

If we did not have a separate keypair for Layer 2, then we'd either have the inefficiency of forcing Layer 2 to reboot the device in order to get a signature (and have Miniboot 1 carefully format what it signs on behalf of Layer 2), or leave the private key outside of Page 1 and have the vulnerability of $\pi_2 C_k$ forging messages from $\pi_1 C_k$.

If we did not regenerate the Layer 2 key with each $\env_2$ change, then we'd permit $\pi_2 C_{k+1}$ and $\pi_2 C_{k-1}$ to forge messages from $\pi_2 C_k$. (For one example, suppose Authority 2 releases a new operating system to fix a known hole in the old one. Even though the fixed version should retain other operational secrets, not forcing a change of the keypair permits the buggy version to impersonate the fixed version. Conversely, if Authority 2 mistakenly introduces a hole with a new version, not forcing a change of the keypair permits the new version to impersonate the old.)

If we did not have the BBRAM locks, then $\pi_j C_k$ could forge messages from $\pi_N C_k$ for general $j > N$. If we did not have the FLASH locks, then any $\pi_j C_i$ for $0 <= i <= k$ might be forging this message.

6. Simplifications

To put it succinctly, our design is an arguably minimal solution to an arguably pessimal problem. Simplifying the problem can certainly simplify the solution. For example:

• Forcing any configuration change to $\env_N$ to kill Page N---except for the outgoing authentication keys---would simplify enforcement of Access to Secrets.

• Only allowing for one code authority---or for a family of mutually trusting authorities---would simplify authentication and trust.

• If we assume the OS will never have any memory access vulnerabilities, then we could eliminate FLASH locks and BBRAM locks: memory management would be enforced by code we trusted.

• If Miniboot, and possibly the OS, were never to be changed, then the key management and secret-access schemes can be greatly simplified.

7. Related and Future Work

As noted earlier, this paper reports our initial strategy for formal verification of our existing implementation of an e-commerce tool. Having refined the design goals into statements about a formal model, the next step is to express and verify these properties with a mechanical verification tool---and to, in accordance with FIPS 140-1 Level 4, rigorously document how the model and transformation system correspond to the actual device and its code. This work is underway, as is independent verification of the physical security of our device.

However, we have found that convincing users that our trusted hardware can indeed be trusted also requires addressing additional issues. For example:

• Does the implementation match the design? History clearly shows that ``secure'' software is fraught with unintended vulnerabilities. In our work, we address this with several techniques:

  • evaluation by independent laboratories (e.g., as part of FIPS certification)

  • continual consultation and evaluation by in-house penetration specialists

  • following general principles of careful coding design such as clearing the stack, and safely tolerating input that is deranged (e.g., negative offsets) even if authenticated

• Does the product, when purchased, match the implementation? Our policy of ``tamper-protection for life'' protects the device when it leaves the factory; we have procedures in place to address potential attack before that point.

The existence of flexible, powerful and trusted secure coprocessors can help secure computation in untrusted environments. This research is one part of our group's broader efforts to achieve this security by making these tools available.

Acknowledgments

We also wish to thank Ran Canetti, Michel Hack, Matthias Kaiserswerth, Mike Matyas, and the referees for their helpful advice, and Bill Arnold, Liam Comerford, Doug Tygar, Steve White, and Bennet Yee for their inspirational pioneering work.

Availability

Software Toolkits exist for independent parties to develop, experiment with, and deploy their own applications on this platform. In addition, application software available from IBM transforms the box into a cryptographic accelerator.

Data More information---including development manuals---is available on the Web:

www.ibm.com/security/cryptocards/

References

[AnKu96] R. Anderson, M. Kuhn. ``Tamper Resistance---A Cautionary Note.'' The Second USENIX Workshop on Electronic Commerce. November 1996.

[AnKu97] R. Anderson, M. Kuhn. Low Cost Attacks on Tamper Resistant Devices. Preprint. 1997.

[ClWi96] E. M. Clarke and J. M. Wing. ``Formal Methods: State of the Art and Future Directions.'' ACM Computing Surveys. 28: 626-643. December 1996.

[HMMW95] W. Havener, R. Medlock, R. Mitchell, R. Walcott. Derived Test Requirements for FIPS PUB 140-1. National Institute of Standards and Technology. March 1995.

[HTWW96] N. Heintze, J. D. Tygar, J. M. Wing, H. C. Wong. ``Model Checking Electronic Commerce Protocols.'' The Second USENIX Workshop on Electronic Commerce. November 1996.

[IBM97] IBM PCI Cryptographic Coprocessor. Product Brochure G325-1118. August 1997.

[KaMo97] M. Kaufmann and J. S. Moore. ``An Industrial Strength Theorem Prover for a Logic Based on Common Lisp.'' IEEE Transactions on Software Engineering. 23, No. 4. April 1997.

[KiWi96] D. Kindred and J.M. Wing. ``Fast, Automatic Checking of Security Protocols.'' The Second USENIX Workshop on Electronic Commerce. November 1996.

[Me96] C. Meadows. ``Language Generation and Verification in the NRL Protocol Analyzer.'' Proceedings of the 9th Computer Security Foundations Workshop. 1996.

[MeSy98] C. Meadows and P. Syverson. ``A Formal Specification of Requirements for Payment Transactions in the SET Protocol.'' Proceedings of the Second International Conference on Financial Cryptography. Springer-Verlag LNCS. To appear, 1998.

[NIST94] National Institute of Standards and Technology. Security Requirements for Cryptographic Modules. Federal Information Processing Standards Publication 140-1, 1994.

[Pa92] E. R. Palmer. An Introduction to Citadel---A Secure Crypto Coprocessor for Workstations. Computer Science Research Report RC 18373, IBM T. J. Watson Research Center. September 1992.

[SPW98] S. W. Smith, E. R. Palmer, S. H. Weingart. ``Using a High-Performance, Programmable Secure Coprocessor.'' Proceedings of the Second International Conference on Financial Cryptography. Springer-Verlag LNCS. To appear, 1998.

[SmWe98] S. W. Smith, S. H. Weingart. Building a High-Performance, Programmable Secure Coprocessor. Resarch Report RC21102. IBM T.J. Watson Research Center. February 1998. (A preliminary version is available as Resarch Report RC21045.)

[TyYe91] J. D. Tygar and B. S. Yee. ``Dyad: A System for Using Physically Secure Coprocessors.'' Proceedings of the Joint Harvard-MIT Workshop on Technological Strategies for the Protection of Intellectual Property in the Network Multimedia Environment. April 1993.

[Wein87] S. H. Weingart. ``Physical Security for the microABYSS System.'' IEEE Computer Society Conference on Security and Privacy. 1987.

[WhCo87] S. R. White, L. D. Comerford. ``ABYSS: A Trusted Architecture for Software Protection.'' IEEE Computer Society Conference on Security and Privacy. 1987.

[WWAP91] S. R. White, S. H. Weingart, W. C. Arnold and E. R. Palmer. Introduction to the Citadel Architecture: Security in Physically Exposed Environments. Technical Report RC 16672, Distributed Systems Security Group. IBM T. J. Watson Research Center. March 1991.

[WWAD90] S. H. Weingart, S. R. White, W. C. Arnold, and G. P. Double. ``An Evaluation System for the Physical Security of Computing Systems.'' Sixth Annual Computer Security Applications Conference. 1990.

[Yee94] B. S. Yee. Using Secure Coprocessors. Ph.D. thesis. Computer Science Technical Report CMU-CS-94-149, Carnegie Mellon University. May 1994.

[YeTy95] B. S. Yee, J. D. Tygar. ``Secure Coprocessors in Electronic Commerce Applications.'' The First USENIX Workshop on Electronic Commerce. July 1995.

[YoYu96] A. Young and M. Yung. ``The Dark Side of Black-Box Cryptography---or---should we trust Capstone?'' CRYPTO 1996. LNCS 1109.

Footnote 1 Clearly, this design extends to a model where software is secret, by putting in FLASH a two-part program: one part uses secrets in BBRAM to verify and decrypt the second part.

Footnote 2 FLASH memory provides rewritable non-volatile storage; but rewriting involves a lengthy process of erasing and modifying a sector that is tens of kilobytes long, and can only be done a relatively small number of times compared to ordinary RAM.

Figure 1

Figure 2
