Pp. 171–182 of the Proceedings

Abstract

1 Introduction

Webcasting applications use push technology to send data from network servers to client machines. In group collaboratories, people from a global pool of participants come together to perform work or take part in meetings without regard to geographic location. A distributed collaboratory provides: (1) human-to-human communications and shared software tools and workspaces; (2) synchronized group access to a network of data and information sources; and (3) remote access and control of instruments for data acquisition. A collaboratory software environment includes tools such as whiteboards, electronic notebooks, chat boxes, multi-party data acquisition and visualization software, synchronized information browsers, and video conferencing to facilitate effective interaction between dispersed participants. A key challenge for the designers of wide-area collaboratories is the creation of scalable distribution and dissemination mechanisms for the shared data.

The Salamander substrate provides support for both webcasting and groupware applications by providing virtual distribution channels in an attribute-based data space. In a Salamander system, a tree of distribution nodes (servers) can be dynamically constructed to provide points of service into the data space. Clients can connect to this tree to both publish and subscribe to data channels. The data is pushed from suppliers to the clients through the distribution tree. Opaque data objects are constructed by clients that are described using text-based attribute lists. Clients provide persistent queries to the Salamander substrate using attribute expressions that represent the data flows they wish to receive, thereby subscribing to a virtual data channel. Salamander connections are first-class objects and are addressable if desired. This addressability allows for feedback from subscribers to data publishers. Additionally, Salamander allows for plug-in modules at any point in the distribution tree for application code to affect the data distribution. These plug-in modules provide the mechanism to support application-level Quality of Service policies.

Although the terminology is relatively new, Push technologies have been around for many years. The seminal push technology is electronic mail. Email has been pushed from publisher to subscribers for decades through mailing lists. Moreover, USENET news [9] has been used to push data objects (articles) based on text attributes (group names). Extending netnews, the SIFT tool [18] has been used to redistribute netnews articles based on text-based user profiles. At a lower level the combination of native IP multicast support and specific Mbone [5] routers provides a mechanism for the push of IP datagrams throughout portions of the Internet. Multicast datagrams are pushed based on a single attribute, namely the IP multicast group address.

Recently, many commercial push-based companies have started: BackWeb, IFusion, InCommon, Intermind, Marimba, NETdelivery, PointCast, and Wayfarer. These commercial ventures promise to manage the complexity of the web by providing data to users by means of subscription; similar to what current mailing lists provide, only more intrusively. In fact, many of these products are really poll and pull instead of push. The clients in these systems periodically poll the servers for new data, and then fetch it if it is available, reducing scalability.

The Salamander substrate differs from past technologies in several ways. First, it is not user-centric, but application-centric. Salamander is an underlying substrate that applications can plug into to transparently connect different portions of a wide-area application. This connectivity is achieved through the use of a channel subscription service. Second, Salamander allows for the addition of application plug-in modules along the distribution path to allow for a variety of data modifications and delivery decisions. The remainder of the paper will further describe the Salamander substrate. Section 2 provides background material on Salamander's current applications. Section 3 enumerates the main architectural features. Section 4 provides an overview of the Salamander application programming interface (API) as well as describes its administration and security features. Section 5 gives both a qualitative and quantitative performance evaluation. Finally, in Section 6 we conclude and describe our current and future research interests.

2 Application Domain

The UARC system provides a variety of services to its users including shared synchronized displays for instrument data, multiparty chat boxes, a shared annotation database, and a distributed text editor. However, the primary mechanism for collaboration is the real-time distribution of atmospheric data to the experiment's participants. This data is collected at remote sites such as Kangerlussuaq, Greenland, and is distributed over the Internet to the scientific collaboratory using the Salamander substrate described in this paper. Figure 1 shows several different data feeds displayed during a real-time campaign.

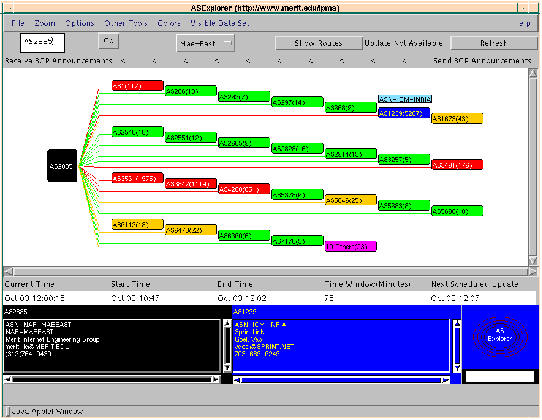

The second project that uses Salamander is the Internet Performance Measurement and Analysis (IPMA) project [8], a joint effort of the University of Michigan and Merit Network. The IPMA project collects a variety of network and interdomain performance and routing statistics at Internet Exchange Points (IXPs), internal ISP backbones, and campus LAN/WAN borders. A key objective of the IPMA project has been to develop and deploy tools for real-time measurement, analysis, dissemination and visualization of performance statistics. Two major tools from the IPMA projects are ASExplorer and NetNow. They both use Salamander to webcast the real-time data from the IPMA Web servers to their connected Java applets. ASExplorer is intended to explore real-time autonomous system (AS) routing topology and instability in the Internet. It supports measurement and analysis of interdomain routing statistics, including: route flap, growth of routing tables, network topology, invalid routing announcements, characterization of network growth and stability. An example of the ASExplorer client is shown in Figure 2. NetNow is tool for measuring network loss and latency. The NetNow daemon collects a variety of loss and latency statistics between network peers. The NetNow client is a Java applet which provides a graphical look at real-time conditions across an instrumented network.


3 Architecture

• Channel Subscription Service:

The Salamander substrate uses a publish/subscribe service that combines the strength of database retrieval with a dynamic distribution mechanism. This service is used to provide a continuous flow of data from publishers to subscribers.
• Application-level Quality of Service:

Application-level quality of service policies are supported that provide the ability to adapt the delivery channels in response to changes in client and network resources and subscriptions. These policies are supported by the use of application specific plug-in modules that can be used for data flow manipulation.
• Lightweight Data Persistence:

Salamander employs the use of a caching and archival mechanism to provide the basis for high-level message orderings. A two-tiered cache keeps current data in memory while migrating older data to permanent storage. This storage takes the form of a lightweight temporal database tailored to Salamander's needs.

3.1 Channel Subscription Service

Salamander allows for feedback from subscribers to their publishers in the form of negotiated push. This is accomplished though the combination of unique endpoint addresses, endpoint namespace registration, and the ability to send unicast messages between Salamander clients. Each Salamander connection is given a unique address that it can insert into a global namespace. Connections manage their entries in this global namespace using the supply command. The supply command is given an attribute list, similar to the one used in the query command, that is paired with its identifier in the namespace. Other clients can then find entries in the namespace by matching the attributes with a supply query. Having obtained the identifier of an endpoint, the connection can then send it a unicast message. In practice, these sets of commands are used to denote the availability of data or membership in a group. In negotiated push, this mechanism can be used to allow subscribers to ask publishers to begin data distribution, or to modify a supplier's data flows at the source. The UARC application uses this mechanism to turn different data flows on and off. These data flows are computationally expensive, and should only be generated when there is a demand for the data.

A notification service is also provided within the Salamander namespace to allow for propagation of various system events to endpoints. For example, a connection can register a close event with their server that will cause the generation of a close notification message to a specified endpoint. In this way, clients can maintain membership information within their groups.

3.2 Application-Level Quality of Service

To illustrate the use of these modules, we use UARC as an example. Specifically, the UARC application uses discrete delivery, data degradation, and data conversion plug-in modules. By multiplexing the subscribed flows, discrete delivery modules can be used to prioritize, interleave, and discard discrete data objects. We have constructed a flexible interface that allows the client to both: determine its current performance level with respect to the supply, and to gracefully degrade its quality of service from an application-level standpoint so that it best matches the client connection's service level. These quality of service parameters are taken directly from the user in the UARC application. When users discover that they are oversubscribed, they can use the interface to specify priorities among the subscribed flows, and assign drop policies for the individual flows.  A skipover policy can be used to specify fine-grained drop orders. Current skipover policies consist of both a FIFO threshold, and a drop distance parameter. The threshold is used to allow for transient congestion; once this threshold of data has accumulated in the proxy, the drop distance parameter is used to determine which data are discarded, and which are delivered.

In addition to discrete delivery policies, the Salamander substrate provides for on-demand data degradation and conversion of data objects. In general, these mechanisms are used to convert one object into another. In order to support real-time collaboration between heterogeneous clients, some mechanism for graceful data degradation must be made available to provide useful data to the slower participants. At the application level, we understand something about the semantics of the shared data. We can exploit this knowledge, and provide a graceful degradation of the data based upon these semantics. The Salamander substrate uses on-demand (lossless and lossy) compression on semantically typed data, tailoring contents to the specific requirements of the clients. Lossless compression techniques are used for those data that cannot be degraded, such as raw text, binary executables, and interpreted program text. Lossy compression techniques are applied to data that can suffer some loss of fidelity without losing their semantic information, examples of which are: still and moving images; audio; and higher level text like postscript or hypertext markup languages. We give the application layer control over this quality by providing an interface that adjusts the fidelity of the real-time data flow on a per-client basis.

We were surprised by our experiences with the UARC project, in discovering that the system bottleneck was not network bandwidth, but was instead the processing power on the clients. The UARC system uses sophisticated Java applets to process raw scientific data as they arrive. During the April 1997 campaign, the Salamander substrate could deliver the UARC data to a large number of clients without difficulty; however, the clients' Java interpreters couldn't keep up with the incoming data rate. Our solution was to put plug-in modules in the distribution tree that could convert the data in-transit to a more manageable format.

Previous work has addressed the variability in client resources. Client resources are addressed in the Odyssey [13] system by sending different versions of the same object from the server depending on the client's resources. In [6], Fox et.al. provide a general proxy architecture for dynamic distillation of data at the server. The use of hierarchically encoded data distributed over several multicast groups is discussed in [12] for the delivery of different qualities of audio and video data. Balachandran et.al target mobile computing in [1] and argue for adding active filters at base stations. Active network proponents [15] argue that Internet routers should be enabled to run arbitrary application-level code to assist in protocol processing. The contribution of our work is the use of client feedback to allow for prioritization among flows; the construction of application and user interfaces for flow modification; and the ability to place modules at any point in the distribution tree.

3.3 Lightweight Temporal Database

Salamander's synergy between real-time data dissemination and traditional temporal and relational databases is one of its significant contributions. It is taken for granted that queries on a relational or temporal database act as a static atomic action against a snapshot of a system's dynamic data elements. Our model alters this, by providing support for persistent queries that act over both a snapshot of the data elements present in the database and any modifications (real-time updates) to the database elements that may occur in the future. We plan to further address the impact of this model on database technologies in the future.

In addition to persistent state, Salamander maintains a memory cache used to buffer objects in-transit through the system. Together, the memory buffer and database act as a two-level cache that provides both high-level delivery semantics on the virtual flows and the ability to replay sections of flows from an archive. Salamander's virtual channels in the object space denote implicit groups. The delivery semantics within these groups varies depending on an application's needs. Groups can stay anonymous where the suppliers have no knowledge of the receivers, or they can become more explicit where the suppliers keep a tally of their receivers. A persistent disk-based cache of data objects, in conjunction with the use of application level framing [2], can be used to provide high-level delivery semantics. This includes: FIFO, causal, ordered atomic, etc [7].

4 Salamander Interfaces

The connect operation is demonstrated on line 8 of the listing, where a connectToSalamanderServer call is made. While hostname is straightforward, the sskey parameter requires some explanation. The sskey is a simple form of access control to the Salamander substrate. In the current implementation this key is very small, but one can imagine using a more robust key in conjunction with a secure socket implementation to achieve a greater level of confidence. Another security measure, implicit to the client, is an IP access list that restricts the access of data channels and administrative commands. This IP ACL is maintained on a per server basis.

After connecting to the substrate, the example then subscribes to the virtual channel by creating a query and submitted it to the server. This query is constructed in lines 14 through 19. The property list (plist_t) is the data structure that contains a data object's header and attribute information. Certain attributes are considered well-known by the system. An example, is the COMMAND_PROPERTY shown in line 15. The command property tells the substrate what to do with the data object upon receipt. In the example, the command is a query, which is intercepted by the substrate and is processed at the server. The NAME property is the only mandatory query attribute in the current implementation. While any number of attributes can be used to describe a virtual channel, one of them must be the NAME property. The COOKIE property on line 17 is used to match queries with a unique identifier that is returned by the Salamander substrate. This query identifier is added to any object that is returned by a subsequent receive operation, and is used to match responses with virtual channels. Finally, on lines 18 and 19, the well-known TIMESTAMP property is defined that designates the range of data for which the query corresponds. The send operation is carried out on line 22, followed by the destruction of the property list.

After the routine subscribes to the virtual channel, it goes into a loop that reads data objects from the substrate on lines 29 through 34. When the connection is severed, or another error occurs, the code disconnects and exits on line 36.

In addition to the base API, Salamander also exports an administrative interface. The substrate can be administered both remotely from a higher level API, and directly on the servers as configuration files. When used remotely, special commands are sent to the server using the base API. Example commands include: list current connections, list active virtual channels, prune a connection, resize a channel's memory buffer, establish a server peering connection, modify debugging level, etc. A server's configuration file is used primarily to establish static server peering relationships, to define default buffer sizes, and specify delivery semantics for specific virtual channels.

5 Performance Evaluation

A series of experiments were performed on a single Salamander server to help quantify its performance. For all of the following experiments, the same setup was used. This corresponds to the network configuration shown in Figure 6. In this figure, the single Salamander server, shown in the upper left corner, is a SUN Ultrasparc-1 with a 140 MHz processor and 192 Mbytes of memory. A 10 Mbps Ethernet segment connects the server to a router that is connected by a switching fabric to a second router. This second router has two interfaces that connect to university computing laboratories. Both of these laboratories consist of Ultrasparc-1 workstations connected by 10 Mbps Ethernet LANs.  During the experiments the single server and thirty of these laboratory workstations were controlled by an expect script.

The performance experiments highlight the scalability of the server in several dimensions: the number of simultaneous connections, and a throughput metric of objects per second. Both of these experiments characterize the substrate's performance in terms of a data object's end-to-end latency from a data supplier to a receiving client. To measure this latency, a timestamp is written into the object's attribute list as it flows down the distribution tree. These timestamps are written to a log file upon receipt at the subscribers. By analyzing the log files offline, the experiment's latency statistics can be extracted. Since the analysis of data in these experiments relies on this distributed timestamp information, a method for synchronizing the clocks on an experiment's hosts was applied. To compensate for the difference in the clocks, a probabilistic clock synchronization technique, similar to the protocols developed by Cristian [4] was used.

Figure 7 shows the results of experiments that evaluate the scalability of a single Salamander server in terms of both number of concurrent receivers and size of the data payload. Three payload sizes were used: 0, 1 Kbyte, and 10 Kbytes. However while the payload varied, each of the object's headers were filled with approximately 100 bytes of testing and channel information. For all of these results, a single data supplier was used that sent an object once per second for a period of five minutes. The horizontal axis represents the number of concurrent receivers during the experiment; whereas the vertical axis shows the mean delivery latency for the objects on a logarithmic scale. These results show that for a small data payload a significant number of clients can be supported. During the execution of these tests the available bandwidth between the server and the laboratories was approximately 400 Kbytes per second. This bandwidth was measured both informally using FTP latency and rigorously with the treno tool [16]. This explains the steep rise in the 10 Kbyte payloads between 40 and 50 receivers, that corresponds to 400 Kbytes and 500 Kbytes per second respectively. At levels of throughput above a link's capacity, Salamander's memory buffer fills and all latencies reach a steady state due to the finite buffer space and drop tail delivery semantics. A virtual channel's buffer space can be specifically tailored to bound this maximal latency of received objects.


The second set of experiments shows the scalability of a single Salamander server in terms of maximum objects per second (ops) that can be processed. This is similar to a datagram router's packets per second (pps) metric. The results of this set of experiments is shown is Figure 8. The data points in this graph represent the mean and standard deviation of the latency of objects from supplier to client under increasing server load. These points were generated by running experiments that sent an object with a header of 100 bytes and a payload of length zero from a set of senders to a set of receivers. Each sender sent a single object once per second. For example, in order to generate the 2400 ops data point a series of experiements were run using sets of 40 suppliers and 60 receivers. Unfortunately, the bandwidth between the server and the laboratories never exceeded 500 Kbytes per second for sustained periods while these experiments were undertaken. However, during the 4900 ops experiments the relatively slow 140 MHz processor was approximately 25% idle, leaving room for further scaling. The variation between the data points results from using an active testbed.

Together, these two sets of experiments show that a single server substrate scales with the available network bandwidth. Further improvements in scalability can be made by utilizing a heirarchy of servers in the substrate to offload bandwidth and processing overhead. The empirical results concur, showing Salamander to be both scalable and robust.

6 Conclusion

The Salamander substrate's channel subscription service provides for both an anonymous and a negotiated push of data from a set of suppliers to a set of receivers. The support for anonymous push is straightforward, the suppliers know nothing about its set of receivers. In contrast, negotiated push support enables subscribers and publishers to negotiate the content of their data channels. To provide this functionality, Salamander includes: a registration and matching service, similar to a name service; and a notification service that propagates various system events, including client termination, to Salamander endpoints.

Application-level Quality of Service is defined and supported in the Salamander substrate as a way of tailoring the available resources to best fit the user and application. This is done by utilizing semantic knowledge that only the application has about its data and providing mechanisms for the graceful degradation of its virtual data channels. The specific contribution of our work is the use of client feedback to allow for prioritization among virtual channels; the construction of application and user interfaces for channel modification; and the ability to place channel conversion modules at any point in the distribution tree.

Salamander's incorporation of a lightweight temporal database provides the basis for a powerful synergy between real-time data dissemination and traditional temporal and relational databases. Our model provides support for persistent queries that act over both a snapshot of the data elements present in the database and any modifications (real-time updates) to the database elements that may occur in the future.

Salamander's research contribution is complemented by the utility and robustness of the current implementation. Several Internet applications were described that motivated Salamander's push-based approach to data distribution. These applications, namely the UARC and IPMA project applets, use Salamander around the clock to provide application connectivity throughout the Internet. Through day-to-day use, these applications have shown Salamander's empirical performance to be good. Moreover, the quantitative performance experiments show that a single server scales well for a significant number of connections; the server's bandwidth was the first-order bottleneck in these experiments.

Our current work is focused on enhancing the scalability of the system. Specifically, we are investigating the applicability of scalable routing technologies to Salamander's attribute-based data dissemination. Additionally, we are addressing several system administration aspects of the multiserver substrate, including pairing it with a key distribution mechanism. In concert with these activities, we plan to further address the impact of Salamander's persistent query model on database technologies. Finally, we are in the process of porting the server to both Java and Win32 based platforms, in order to objectively compare the base system in a variety of settings.

Availability

Information that can be found there includes:

• Binaries and source code for the Solaris version of the Salamander server,
• Generic C and Java interface libraries for both data suppliers and clients,
• Status of both a Java and Win32 port of the Salamander server,
• Information about ongoing research efforts based on Salamander.
